Cisco 200-901 - DevNet Associate (DEVASC)

Cisco Intersight is a cloud-based management platform that provides comprehensive management for Cisco UCS and HyperFlex systems. It integrates with Cisco UCS Director and UCS Manager to control server, network, storage, and virtual resources, supporting policy-driven management for up to 10,000 physical Cisco servers. Intersight offers advanced capabilities such as proactive support and a robust API for automation and integration, ensuring seamless operations across various infrastructures.

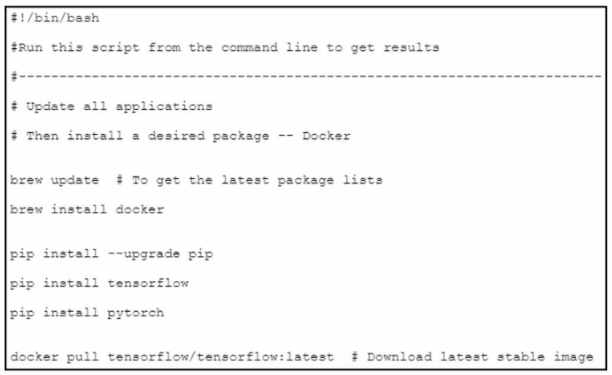

The Bash script shown in the exhibit performs the following actions:

Updates the list of available packages using brew update.

Installs Docker using brew install docker.

Upgrades pip and installs tensorflow and pytorch using pip install.

Pulls the latest TensorFlow Docker image using docker pull tensorflow/tensorflow:latest.

This script is designed to install the necessary software packages (Docker, TensorFlow, PyTorch) required for a machine learning-based application. It does not create or remove any software packages but installs them.

References:

Cisco DevNet Associate Certification Guide

Docker Documentation

Homebrew Documentation

Pip Documentation

Network Time Protocol (NTP) is used to synchronize the clocks of network devices to a common reference time. This is crucial for ensuring accurate time stamps in logs, coordinating time-sensitive operations, and maintaining consistent time across all devices in a network.

NTP: Synchronizes clocks of network devices to ensure they have the same time, which is essential for accurate event logging and coordination.

Other Protocols:

DNS: Resolves domain names to IP addresses.

SNMP: Used for monitoring network devices.

NAT: Translates private IP addresses to public IP addresses.

References:

Cisco DevNet Associate Certification Guide

Cisco NTP Overview

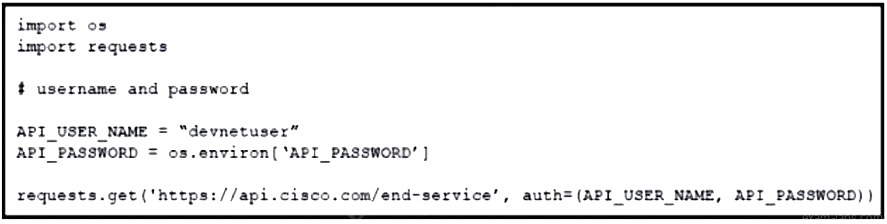

In the provided Python code, the API_PASSWORD is retrieved from the environment variable API_PASSWORD. To set this environment variable in a Bash shell, the correct command to use is export. This command sets the environment variable for the current shell session and any child processes.

Bash Command: export API_PASSWORD=Cisco123!

This command ensures that the environment variable API_PASSWORD is set to "Cisco123!" and can be accessed by the Python script.

References:

Bash export Command

Cisco DevNet Associate Certification Guide

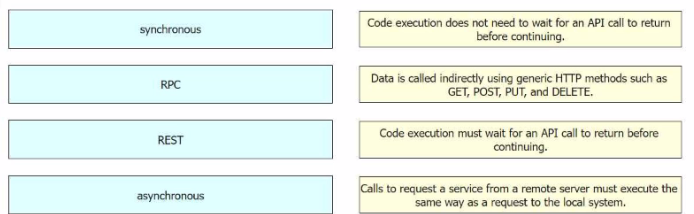

synchronous: Code execution must wait for an API call to return before continuing.

asynchronous: Code execution does not need to wait for an API call to return before continuing.

REST: Data is called indirectly using generic HTTP methods such as GET, POST, PUT, and DELETE.

RPC: Calls to request a service from a remote server must execute the same way as a request to the local system.

Comprehensive Detailed Step by Step Explanation with References

Synchronous:

Explanation: In a synchronous API call, the client must wait for the server to process the request and return a response before it can proceed with further execution.

Mapping: "Code execution must wait for an API call to return before continuing."

Asynchronous:

Explanation: In an asynchronous API call, the client can continue processing other tasks while waiting for the server to respond. This improves the efficiency and responsiveness of the application.

Mapping: "Code execution does not need to wait for an API call to return before continuing."

REST (Representational State Transfer):

Explanation: REST is an architectural style for designing networked applications. It relies on a stateless, client-server communication protocol, typically HTTP. RESTful APIs use standard HTTP methods (GET, POST, PUT, DELETE) to perform operations on resources.

Mapping: "Data is called indirectly using generic HTTP methods such as GET, POST, PUT, and DELETE."

RPC (Remote Procedure Call):

Explanation: RPC is a protocol that one program can use to request a service from a program located on another computer in a network. The calls are made in the same way as a local function call.

Mapping: "Calls to request a service from a remote server must execute the same way as a request to the local system."

References:

Cisco DevNet Associate Certification Guide, Sections on API styles and their characteristics

Official Cisco documentation on RESTful and RPC APIs

General programming resources on synchronous vs. asynchronous API calls

Therefore, the correct mapping is:

synchronous → "Code execution must wait for an API call to return before continuing."

asynchronous → "Code execution does not need to wait for an API call to return before continuing."

REST → "Data is called indirectly using generic HTTP methods such as GET, POST, PUT, and DELETE."

RPC → "Calls to request a service from a remote server must execute the same way as a request to the local system."

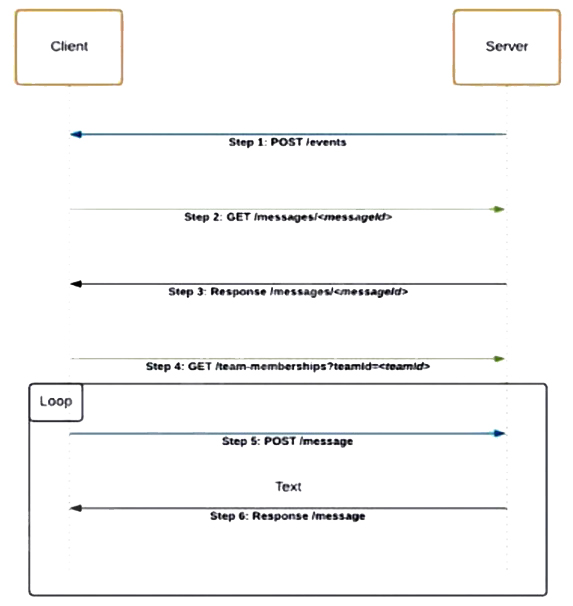

Refer to the exhibit which shows a sequence diagram illustrating a client-server interaction. The correct sequence of steps that match the code snippet is as follows:

Step 1: POST /events - The client posts an event to the server.

Step 2: GET /messages/<messageId> - The client retrieves the message details from the server using the message ID.

Step 3: Response /messages/<messageId> - The server responds with the message details.

Step 4: GET /team-memberships?teamId=<teamId> - The client retrieves team membership details using the team ID.

Step 5: POST /message - The client posts a message.

Step 6: Response /message - The server responds with the message confirmation.

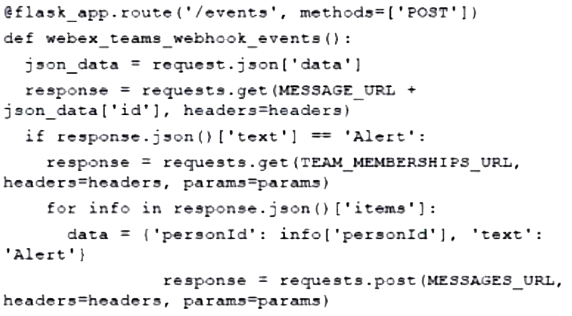

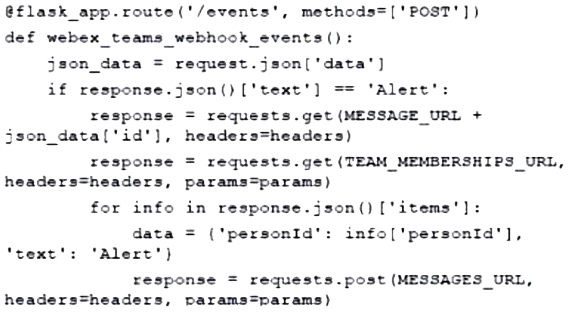

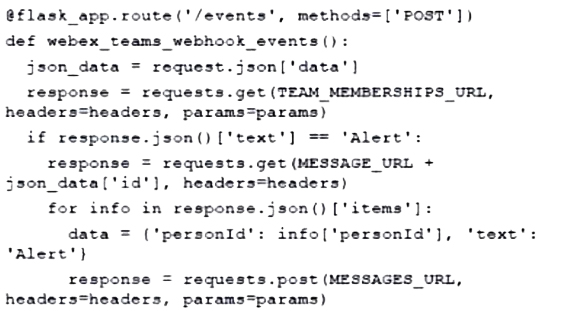

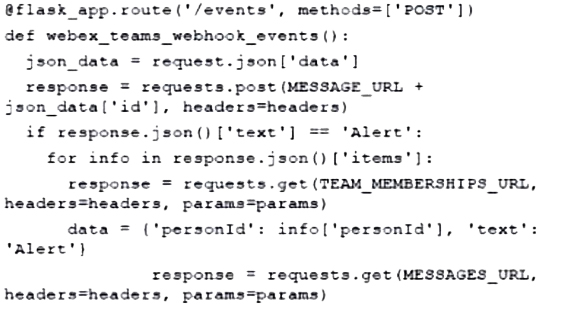

The correct code snippet represents the sequence diagram correctly:

@flask_app.route('/events', methods=['POST'])

def webex_teams_webhook_events():

json_data = request.json['data']

response = requests.get(MESSAGE_URL + json_data['id'], headers=headers)

if response.json()['text'] == 'Alert':

response = requests.get(TEAM_MEMBERSHIPS_URL, headers=headers, params=params)

for info in response.json()['items']:

data = {'personId': info['personId'], 'text': 'Alert'}

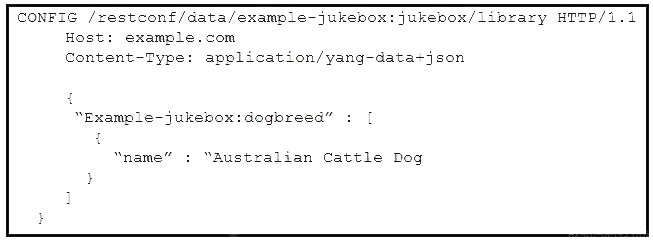

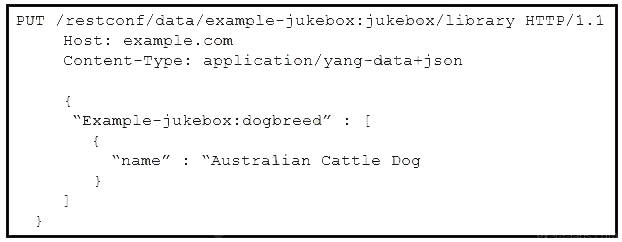

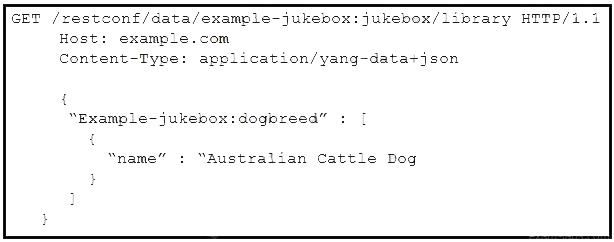

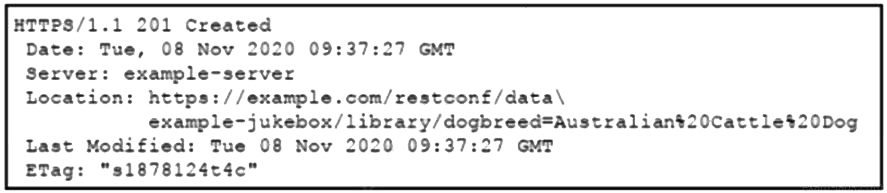

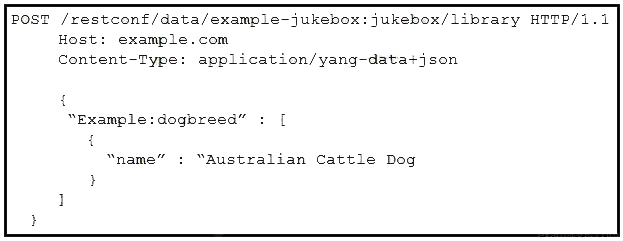

The PUT method is used to create or update a resource at a specific URL. In the given RESTCONF request and response example, the response indicates a successful creation of a resource, as evidenced by the HTTP status code 201 (Created). The request to create the "Australian Cattle Dog" resource under the "dogbreed" category would use the PUT method to ensure the resource is created or updated at the specified location.

References:

Cisco DevNet Documentation - RESTCONF Operations

IETF RFC 8040 - RESTCONF Protocol
