Cisco 200-901 - DevNet Associate (DEVASC)

In test-driven development (TDD), the "green bar" refers to the visual indication that all tests have passed, typically seen in a testing framework. Two of the patterns that developers use to reach the green bar in TDD are "triangulate" and "fake it."

A. another test - This is not a green bar pattern; it's a step in the TDD cycle but not a pattern for passing tests. B. break - This is not a TDD pattern. C. triangulate - Correct. Triangulation involves adding another test to force the implementation to be more generic and robust. D. starter test - This is not a TDD pattern. E. fake it - Correct. Faking it means to return a simple, hard-coded value to make the test pass.

References:

Test-Driven Development (TDD) Patterns

Growing Object-Oriented Software, Guided by Tests

The script returns a 401 Unauthorized response, indicating that the request lacks proper authentication. To resolve this, you must include an Authorization header in the HTTP GET request. The value of this header should be the Base64 encoded string of the username and password in the format username:password. This is necessary to authenticate the request and receive a 200 OK response.

References:

Cisco DevNet Associate Study Guide: REST API Authentication Methods (Chapter 7, Section: HTTP Basic Authentication).

To determine the correct JSON snippet for configuring a new interface according to the YANG model, we need to carefully examine both the YANG model definitions and the provided JSON snippets. Here’s a step-by-step explanation:

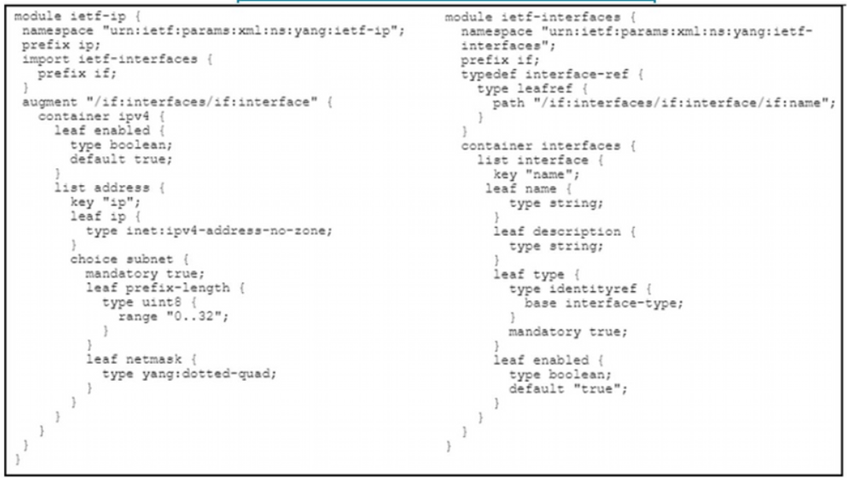

YANG Model Analysis:

The ietf-interfaces YANG module defines a container interfaces with a list interface.

Each interface has the following important leaves: name, enabled, and description.

The ietf-ip YANG module augments the interface list with a container ipv4, which includes a list address. Each address has the ip and netmask leaves.

Key Elements in JSON:

To configure an interface, the JSON must include the name of the interface, its enabled status, and the IP address configuration.

The structure should reflect the hierarchy defined by the YANG models.

Options Analysis:

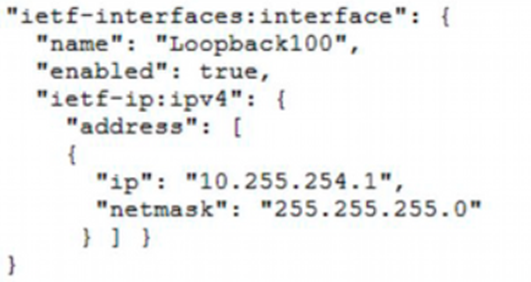

Option A:

json

Copy code

"ietf-interfaces:interface": {

"name": "Loopback100",

"enabled": true,

"ietf-ip:ipv4": {

"address": [

{

"ip": "10.255.254.1",

"netmask": "255.255.255.0"

}

]

}

}

This option correctly follows the hierarchy specified in the YANG model. The interface includes name and enabled leaves and augments with ietf-ip:ipv4 which includes the address list with ip and netmask.

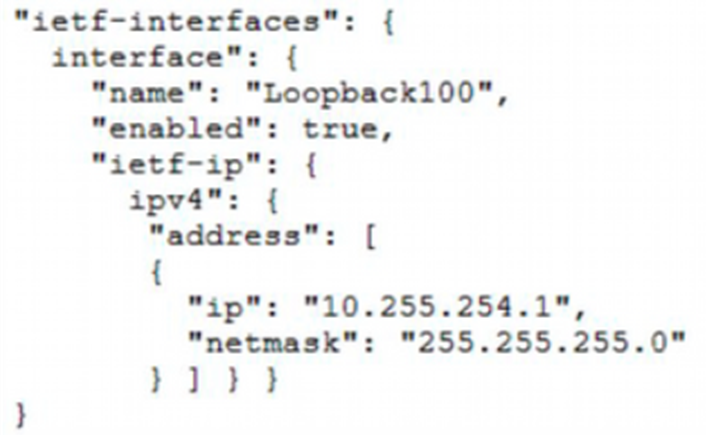

Option B:

"ietf-interfaces": {

"interface": {

"name": "Loopback100",

"enabled": true,

"ietf-ip": {

"ipv4": {

"address": [

{

"ip": "10.255.254.1",

"netmask": "255.255.255.0"

}

]

}

}

}

}

This option incorrectly nests interface directly under ietf-interfaces, which does not match the YANG model’s structure.

Option C:

"interface": {

"name": "Loopback100",

"enabled": true,

"ipv4": {

"address": [

{

"ip": "10.255.254.1",

"netmask": "255.255.255.0"

}

]

}

}

This option misses the namespace prefixes ietf-interfaces and ietf-ip required by the YANG model.

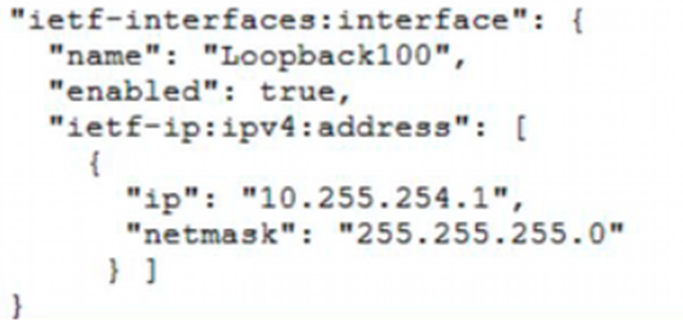

Option D:

"ietf-interfaces:interface": {

"name": "Loopback100",

"enabled": true,

"ietf-ip:ipv4:address": [

{

"ip": "10.255.254.1",

"netmask": "255.255.255.0"

}

]

}

This option incorrectly uses ietf-ip:ipv4:address directly, which does not align with the proper hierarchy where address should be nested inside ipv4.

Correct Explanation:

Option A correctly adheres to the YANG model hierarchy and namespace specifications.

It properly nests address within ipv4, which is itself nested within ietf-ip augmentation to interface.

This structure is consistent with how the YANG models define the relationships between the elements.

References:

Understanding of YANG models and their use: Cisco DevNet YANG Introduction

YANG Data Models in NETCONF: RFC 6020

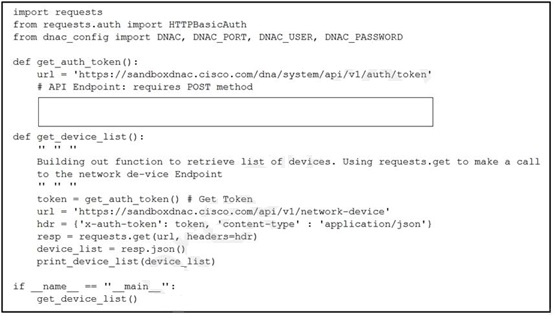

To complete the get_auth_token() function in the script to obtain a valid authentication token using HTTP Basic Authentication, you need to use the requests library correctly. The correct approach involves using the requests.post() method with the HTTPBasicAuth function.

A. resp = requests.post(url, auth=HTTPBasicAuth(DNAC_USER, DNAC_PASSWORD)) token = resp.json()['Token'] return token

Correct. This option uses requests.post() and HTTPBasicAuth properly. It retrieves the token from the JSON response.

B. resp = requests.post(url, auth=(DNAC_USER, DNAC_PASSWORD)) token = resp.json()['Token'] return token

Incorrect. This option incorrectly passes the auth credentials as a tuple without HTTPBasicAuth.

C. resp = http.post(url, auth=HTTPBasicAuth(DNAC_USER, DNAC_PASSWORD)) token = resp.json()['Token'] return token

Incorrect. http is not a valid method from the requests library.

D. resp = http.post(url, auth=(DNAC_USER, DNAC_PASSWORD)) token = resp.json()['Token'] return token

Incorrect. This option uses http.post(), which is incorrect.

References:

requests - HTTP for Humans

Cisco DNA Center Platform

Load balancers distribute network or application traffic across multiple servers to ensure no single server becomes overwhelmed. In modern application deployment, load balancers allow traffic to continue smoothly as new compute units are brought online and old units are decommissioned. This ensures high availability and reliability of services.

The CALMS framework is used to assess and guide DevOps transformations. It stands for Culture, Automation, Lean, Measurement, and Sharing. Each element represents a critical area for improvement in DevOps practices.

Collaboration: Emphasizes teamwork and breaking down silos.

Lean: Focuses on eliminating waste, optimizing processes, and ensuring efficiency.

Sharing: Encourages transparency and knowledge sharing among teams.

Measurement: Involves monitoring and analyzing performance metrics to drive improvement.

Given that the team is struggling to complete releases on time due to increased overhead, targeting the Lean aspect can help streamline processes, reduce waste, and improve efficiency, ultimately helping them to meet their release deadlines.

In version control systems, code review is typically performed before the code is merged into the main branch. The code review process involves evaluating the changes, ensuring they meet the project's coding standards, and identifying potential issues. This process helps maintain code quality and integrity before integration into the larger codebase.

References:

Cisco DevNet Associate Study Guide: Version Control and Code Review (Chapter 6, Section: Best Practices for Version Control).

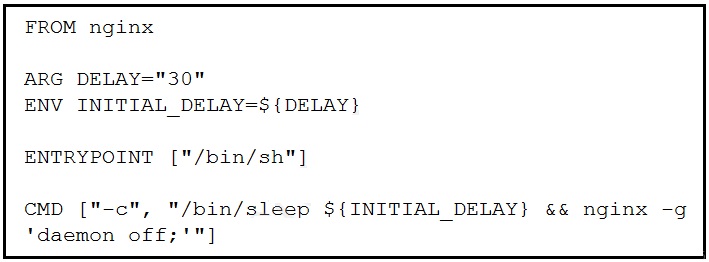

The Dockerfile shown in the exhibit sets up an NGINX container with a delay before starting the NGINX service. It uses the ENTRYPOINT and CMD directives to define the commands that should be executed when the container starts.

ARG and ENV: These lines define and set an argument and environment variable for the delay.

ENTRYPOINT: Specifies the executable to run, in this case, /bin/sh.

CMD: Provides additional arguments to the ENTRYPOINT, which are -c and the command string to execute.

The combined command that will be executed is: /bin/sh -c "/bin/sleep 30 && nginx -g 'daemon off;'"

The Model-View-Controller (MVC) design pattern provides several advantages, including the ability to present multiple views of the same data to different user groups and the separation of concerns by dividing the application into three interconnected components.

A. to enable multiple views of the same data to be presented to different groups of users - Correct. MVC allows different views to display the same data, enhancing flexibility and usability. B. to provide separation between the view and the model by ensuring that all logic is separated out into the controller - Correct. MVC promotes the separation of concerns, making the application easier to manage and scale. C. to ensure data consistency, which requires that changes to the view are also made to the model - Incorrect. This is not a primary advantage of MVC; changes to the view do not directly affect the model. D. to ensure that only one instance of the data model can be created - Incorrect. This is not a characteristic or advantage of MVC. E. to provide only a single view of the data to ensure consistency - Incorrect. MVC supports multiple views.

References:

MVC Design Pattern
