Cisco 200-901 - DevNet Associate (DEVASC)

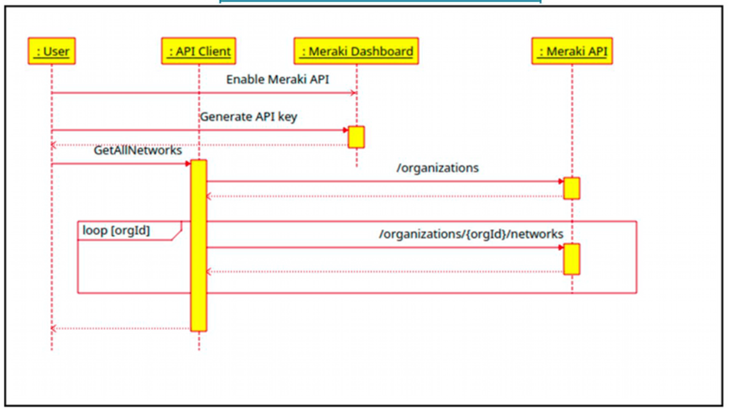

The sequence diagram shows the process where the API client first calls the /organizations endpoint to get the list of organization IDs. Then, for each organization, it makes a call to the /organizations/(orgId)/networks endpoint to retrieve the networks for that organization. Since there are two organizations, the GetAllNetworks function will make two parallel calls to the /organizations/(orgId)/networks endpoint, one for each organization.

References:

Cisco DevNet Associate Study Guide: Using Cisco Meraki APIs (Chapter 7, Section: Understanding Meraki API Calls and Endpoints).

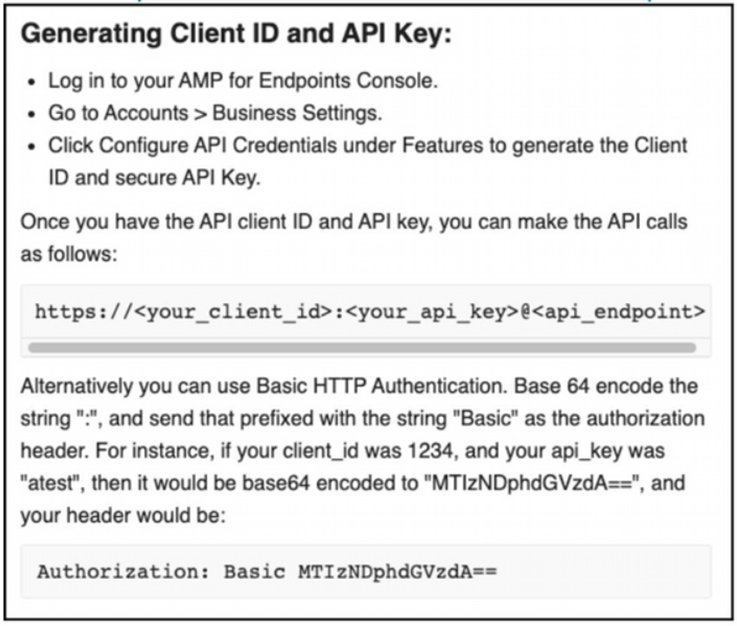

The provided documentation outlines how to use Basic HTTP Authentication with the Cisco AMP API. The correct method involves encoding the client ID and API key in base64 format and then including them in the authorization header. However, in the given scripts, the use of the requests library’s auth parameter directly with the client ID and API key is also a valid method.

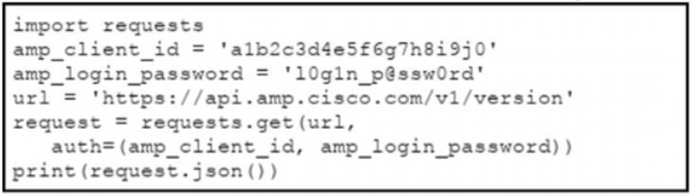

Option A correctly uses the requests library to make an API call with the client ID and API key. This method is supported and valid as per the documentation.

python

Copy code

import requests

amp_client_id = 'alb2c3d4e5f6g7h8i9j0'

amp_login_password = 'l0g1n_p@ssw0rd'

url = 'https://api.amp.cisco.com/v1/version '

request = requests.get(url,

auth=(amp_client_id, amp_login_password))

print(request.json())

Client ID and API Key: amp_client_id and amp_login_password are set with the values provided.

URL: The URL for the AMP API endpoint is correctly set.

GET Request: The requests.get method is used with the auth parameter that takes a tuple of the client ID and API key.

Response: The response is printed in JSON format.

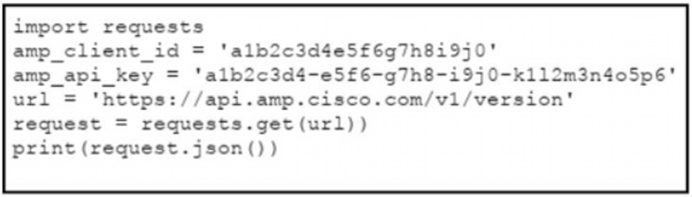

Option B:

Does not use the auth parameter or a header for Basic Authentication, thus it will fail.

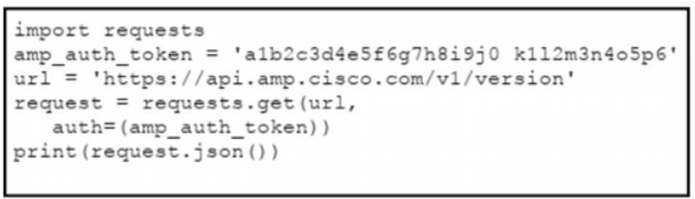

Option C:

Uses a single amp_auth_token which does not follow the provided documentation method.

Option D:

Incorrectly uses the auth parameter with a concatenated client ID and API key without specifying Basic Authentication in the header.

References:

Cisco AMP for Endpoints API Documentation

Requests: Authentication

A reverse proxy can be used to route external requests to different applications on the same host machine using a single public IP address and port. It forwards the requests to the appropriate backend servers based on the request URL or other routing rules.

Single Entry Point: A reverse proxy serves as a single entry point to multiple applications, making it ideal for managing traffic to multiple services hosted on the same machine.

Routing Requests: It can route requests to different internal ports based on the requested URL or other criteria.

Option A is the correct choice as a reverse proxy handles external access to multiple applications on the same host.

A model-driven approach for infrastructure automation offers several benefits. One of the primary advantages is that it provides a small learning curve and helps system administrators with limited coding experience. By using high-level models and declarative languages, administrators can define the desired state of the infrastructure without needing to write complex scripts.

Declarative Language: Model-driven approaches use declarative languages that allow users to specify what the desired state should be, rather than how to achieve that state. This abstracts the complexity of the underlying automation processes.

References: Cisco DevNet Associate Certification Guide, Chapter on Infrastructure as Code and Model-Driven Programmability.

An IP (Internet Protocol) address is a unique identifier assigned to each device connected to a network that uses the IP for communication. It serves two main functions: identifying the host or network interface and providing the location of the host in the network. This unique ID allows devices to locate and communicate with each other over an IP-based network, ensuring that data sent across the network reaches the correct destination.

References:

Cisco DevNet Associate Study Guide: IP Addressing (Chapter 4, Section: IP Addressing and Subnetting).

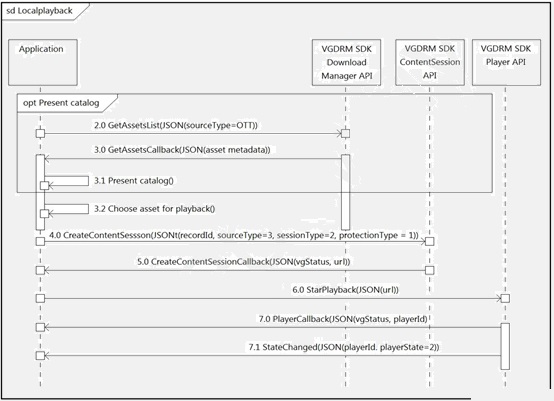

In the provided sequence diagram, each call must complete before the next one can proceed, indicating that the calls are synchronous. Synchronous calls block further execution until the response is received, maintaining a sequential order of operations.

Synchronous Nature: The diagram shows each function call being made and then waiting for a callback before proceeding to the next step.

Blocking Behavior: Each interaction completes fully before the next one starts, which is characteristic of synchronous operations.

Option C correctly identifies that all the calls shown in the sequence diagram are synchronous.

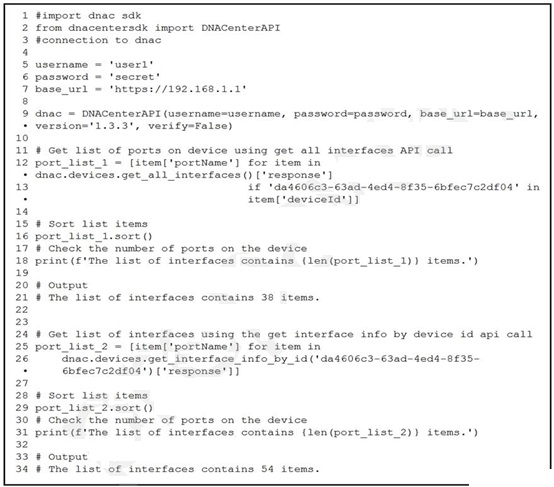

An engineer writes a Python script that uses two different API calls to query Cisco DNA Center for the number of interfaces on a device. The engineer notices that the two API calls produce different results. The fewer interfaces returned for the same device when the 'get_all_interfaces' API call is used can be explained by pagination.

A. times out - Incorrect. A timeout would likely result in an error, not fewer results. B. rate limit - Incorrect. Rate limiting would slow down requests but not reduce the number of returned interfaces. C. pagination - Correct. The 'get_all_interfaces' API call might be paginated, meaning it returns results in chunks rather than all at once. D. invalid password - Incorrect. An invalid password would result in an authentication error, not fewer results.

References:

Cisco DevNet DNA Center Platform

API Pagination

Simulation Environment: CML provides a realistic environment for testing network configurations and automation scripts before deploying them on actual devices.

Resource Verification: Engineers can use CML to ensure that their Ansible playbooks function correctly and make necessary adjustments before running the code in a live network.

Option D is the correct resource for verifying the code using a simulated network environment.

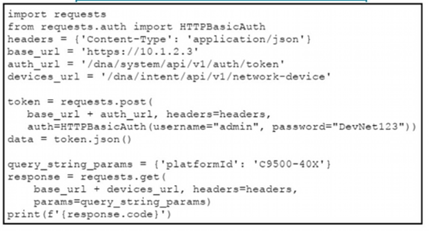

The error code 401 indicates an unauthorized request, which can often result from using an incorrect API endpoint. To solve this problem, ensure that the API URL correctly matches the endpoint for retrieving the device list. This URL must point to the correct API endpoint as specified by the Cisco DNA Center API documentation.

References:

Cisco DevNet Associate Study Guide: Interacting with Cisco DNA Center APIs (Chapter 7, Section: Using API Endpoints and Proper Authentication).
