Cisco 200-901 - DevNet Associate (DEVASC)

pyATS (Python Automation Test System) is a tool developed by Cisco that allows for comprehensive testing of network configurations and automation scripts. It is designed to validate and test changes before they are applied to the production environment, ensuring reliability and reducing the risk of errors.

References:

Cisco DevNet Associate Study Guide: Network Test Automation (Chapter 6, Section: Introduction to pyATS and Its Use Cases).

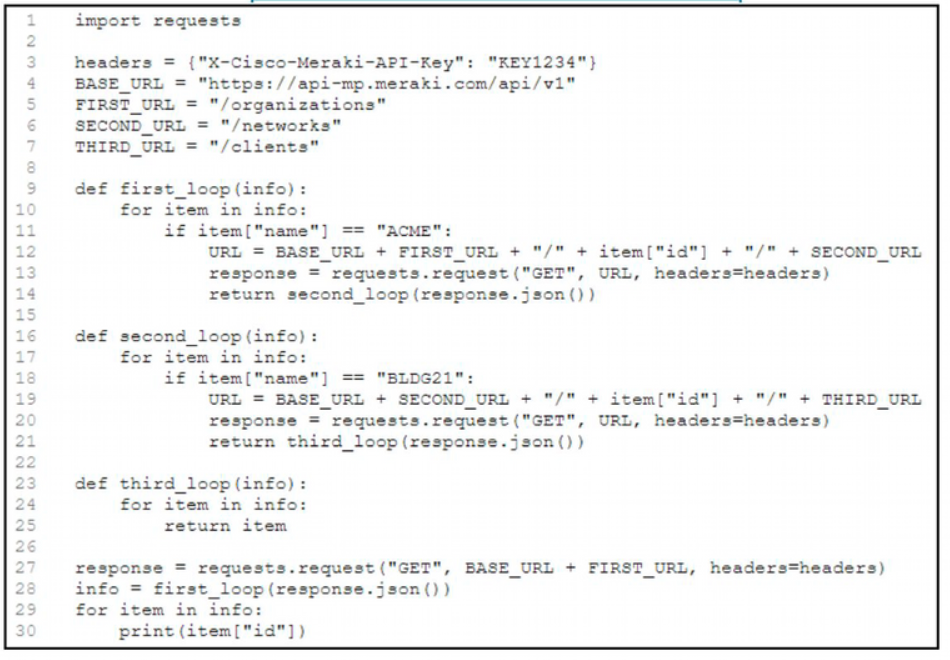

The Python script uses nested loops to gather information:

The first loop checks for the "ACME" organization.

If found, it collects information about the networks in that organization.

The second loop checks for the "BLDG21" network.

If found, it gathers information about clients in that network.

This process effectively provides the BLDG21 network information if it is part of the ACME organization.

One of the primary benefits of test-driven development (TDD) is increased code quality. By writing tests before coding and continuously testing during development, developers ensure that the code meets the specified requirements and behaves as expected. This approach leads to more reliable, maintainable, and bug-free code.

Ansible is a configuration management tool that has agentless capabilities. It uses SSH for communication and does not require any agent software to be installed on the managed nodes. This simplifies management and reduces overhead.

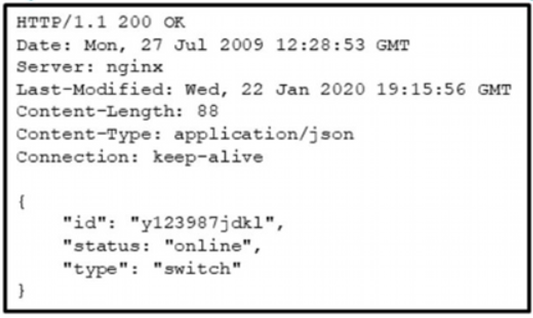

HTTP status codes in the 2xx range indicate that a request has been received, understood, and processed successfully.

A. 2xx - Correct. This range of status codes indicates successful responses. B. 3xx - Incorrect. This range of status codes indicates redirection messages. C. 4xx - Incorrect. This range of status codes indicates client errors. D. 5xx - Incorrect. This range of status codes indicates server errors.

References:

HTTP Status Codes

Private IP addresses are used within private networks and are not unique globally. They can be reused in different private networks without conflict.

Non-unique Addresses: Private IP addresses do not have to be unique globally, allowing them to be reused in different networks.

Repetition in Local Networks: They can be repeated within different local networks as they are not routable on the public Internet.

Options C and D correctly describe properties of private IP addresses.

When an application interacts with a webhook, it is typically characterized as a "listener" or "receiver." A webhook is a way for an application to provide real-time data to other applications as events occur. The listener or receiver application waits for incoming HTTP requests (events) triggered by certain activities on another application, making it possible to process the data immediately upon receipt.

References:

Cisco DevNet Associate Study Guide: Event-Driven Programming (Chapter 8, Section: Understanding Webhooks and Their Applications).
