CompTIA 220-1101 - CompTIA A+ Certification Exam: Core 1

One of the possible causes of the error message “No Source Found” is that the projector is not receiving any signal from the connected device, such as a laptop1. This could be due to an incorrect input source selected on the projector or an improper display setting on the laptop. Therefore, the first actions that the technician should take are to verify the projector settings and make sure the correct input is selected, and to check the laptop display settings and set them to extend/duplicate23.

According to the CompTIA A+ Core 1 (220-1101) Certification Study Guide1, a network crimper and a cable stripper are the tools that a technician should use to resolve this issue. A network crimper is used to attach a new RJ-45 connector to the end of the cable, and a cable stripper is used to remove the outer insulation of the cable and expose the twisted pairs of wires. A toner probe, a punchdown tool, a multimeter, and a loopback plug are not needed for this task.

Here are some web resources that explain how to repair an Ethernet cable:

Ethernet Cable Repair - iFixit: This guide provides step-by-step instructions and pictures on how to fix a broken Ethernet cable.

How to Repair a Cut Cat5e Ethernet Cable - wikiHow: This article shows how to solder the wires of a cut Ethernet cable and use shrink tube to cover the joints.

Amazon.com: Ethernet Cable Repair Kit: This page lists some products that can be used to repair an Ethernet cable, such as crimping tools, connectors, testers, and strippers.

The correct answer is A. DHCP scope.

A DHCP scope is a consecutive range of IP addresses that a DHCP server can select from to fulfill requests from network clients. A DHCP server is a device that automatically assigns IP addresses and other network configuration parameters to devices that request them. A DHCP scope defines the pool of available IP addresses, as well as the subnet mask, default gateway, DNS servers, and lease duration for each IP address. A DHCP scope can also include exclusions, reservations, and policies to customize the IP address allocation process12.

A static IP list is a list of IP addresses that are manually assigned to devices and do not change over time. A static IP list does not require a DHCP server, but it requires more administrative effort and coordination to avoid conflicts or errors. A static IP list is not a consecutive range of IP addresses that a server can select from3.

DNS A records are DNS records that map a domain name to an IPv4 address. DNS is a system that translates human-readable domain names into machine-readable IP addresses. DNS A records are not a range of IP addresses that a server can select from, but a way of resolving domain names to IP addresses.

Automatic private IP addressing (APIPA) is a feature of Windows that allows devices to self-assign an IP address in the absence of a DHCP server or a static IP configuration. APIPA uses the 169.254.0.0/16 address range, which is reserved for link-local communication. APIPA does not create a range of IP addresses that a server can select from, but a fallback mechanism for devices that cannot obtain an IP address from another source.

For more information about DHCP scopes and other related topics, you can refer to the following web search results: DHCP Scope - NETWORK ENCYCLOPEDIA, Managing Microsoft DHCP Scope and other Components - ATA Learning, Dynamic Host Configuration Protocol (DHCP) | Microsoft Learn.

A PSU (power supply unit) is a component that converts the AC power from the wall outlet into DC power that the PC components can use. A faulty or failing PSU can cause random system crashes, as well as other problems such as noise, overheating, or no power at all. A PSU can fail due to various reasons, such as age, dust, power surges, or poor quality.

To troubleshoot a PSU, the technician can use a multimeter to measure the voltage output of the PSU connectors. The voltage should be within the acceptable range of the specifications. For example, the 12V rail should be between 11.4V and 12.6V. If the voltage is too low or too high, the PSU is likely defective and needs to be replaced.

Alternatively, the technician can try swapping the PSU with a known good one and see if the system crashes persist. If the system works fine with a different PSU, then the original PSU is the problem and should be replaced.

The other options are not likely to fix the random system crashes. Testing the fan speed may help to diagnose overheating issues, but it is not related to the PSU. Disabling the USB ports may help to eliminate potential conflicts with USB devices, but it is not related to the PSU. Decreasing the RAM timings may help to improve performance and stability, but it is not related to the PSU.

The screen needs to be recalibrated. The cursor drift is a common symptom of a misaligned touch screen, which can be caused by physical shocks, temperature changes, or software updates. The screen can be recalibrated using the tablet’s settings or a utility program. The screen is not physically damaged, as there is no visible crack or break. The screen rotation is not related to the cursor drift, as it only affects the orientation of the display. The touch-pen battery is not relevant, as the cursor drift occurs even without using the pen.

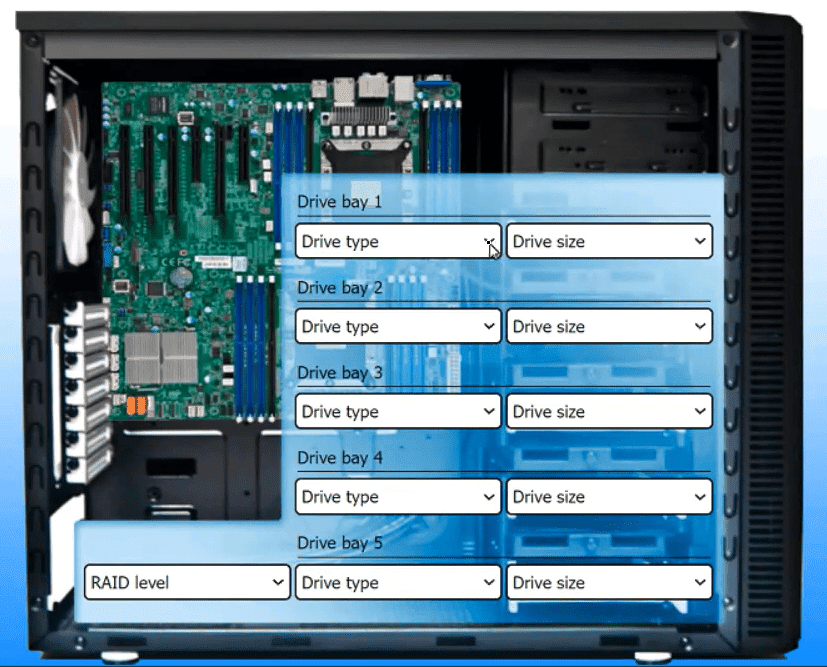

Based on the requirements, the best option for the video-editing workstation is to use RAID 10 with four SATA SSDs of 1TB each. This configuration will meet the following requirements:

Be able to edit files at the fastest speed: RAID 10 combines the advantages of RAID 0 and RAID 1, which are striping and mirroring, respectively. Striping can increase the data transfer rate by using multiple disks in parallel, while mirroring can provide redundancy and reliability by duplicating the data on another set of disks. SATA SSDs are also faster than HDDs or SSHDs, as they use flash memory instead of spinning disks, and they can offer lower latency, higher IOPS, and less noise and heat.

Allow for disk failure without any downtime: RAID 10 can withstand up to two disk failures, as long as they are not in the same mirrored pair. If one disk fails, the data can be read from or written to the other disk in the same pair, without affecting the performance or availability of the array. The failed disk can be replaced and rebuilt without interrupting the operation of the workstation.

Have 2TB of usable space: RAID 10 uses half of the total disk capacity for mirroring, so the usable space is equal to the size of two disks. By using four SATA SSDs of 1TB each, the total disk capacity is 4TB, and the usable space is 2TB, which meets the requirement.

Ensure the most robust fault tolerance: RAID 10 offers the highest level of fault tolerance among the standard RAID levels, as it can survive multiple disk failures and provide fast recovery. RAID 10 also has a low overhead, as it does not use parity or checksums, which can slow down the write performance or increase the complexity of the array.

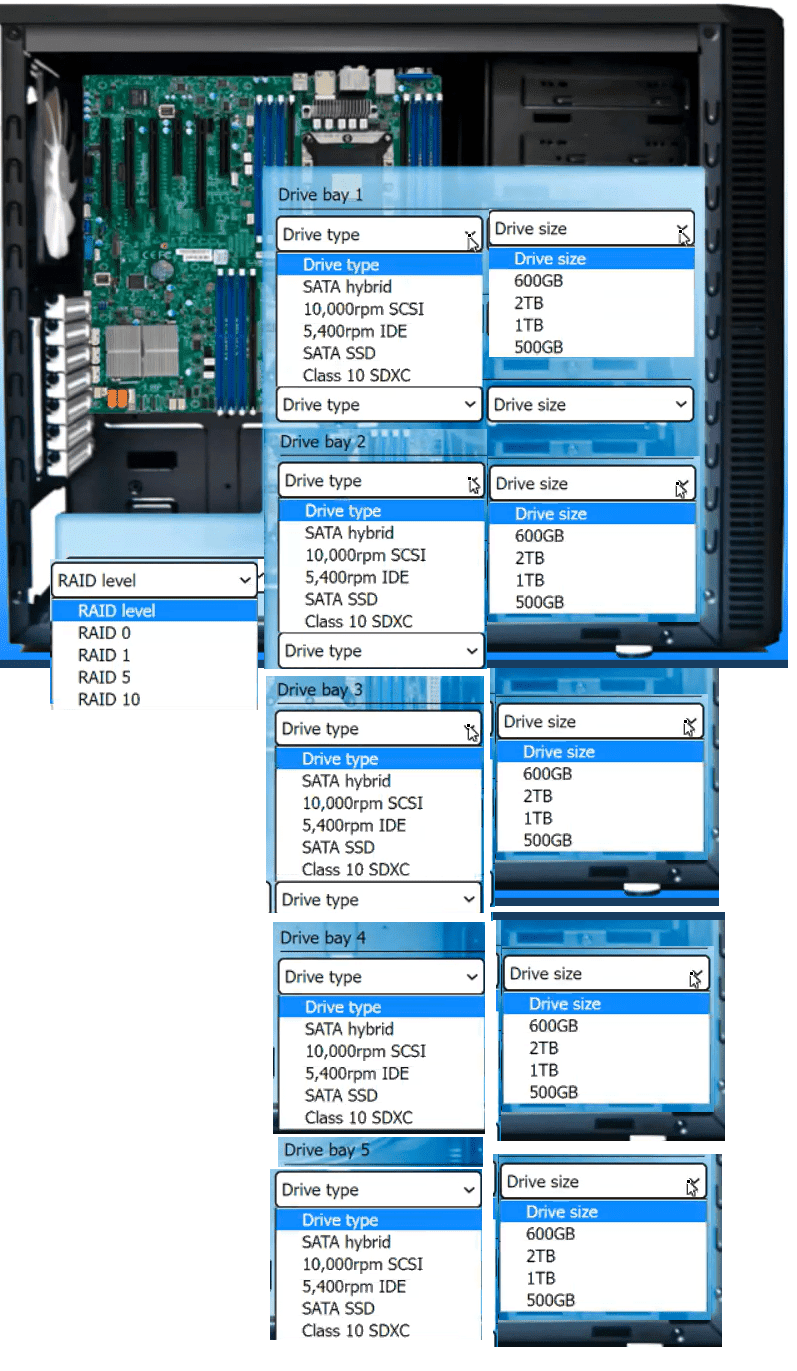

Therefore, the technician should select the following options from the drop-down menus:

RAID level: RAID 10

Drive type 1: SATA SSD

Drive size 1: 1TB

Drive type 2: SATA SSD

Drive size 2: 1TB

Drive type 3: SATA SSD

Drive size 3: 1TB

Drive type 4: SATA SSD

Drive size 4: 1TB

Drive type 5: SATA SSD

Drive size 5: 1TB

After resolving an issue, it's crucial for a technician to document the findings, actions taken, and the outcome. This documentation serves several purposes: it provides a record of the problem and the solution for future reference, which can be helpful if the issue recurs or if similar problems arise with other users. It also ensures that any follow-up actions, if necessary, are well-informed by the history of the issue. Documenting the resolution process contributes to knowledge sharing among the support team and can improve the efficiency of future troubleshooting efforts.

The problem in this scenario is that the battery charger is not a USB device, but a device that plugs into a USB port to draw power. Therefore, it does not have a unique identifier that can be recognized by the peripheral security software, which is designed to prevent unauthorized USB devices from accessing the company’s network or data. The security software cannot add the battery charger to its whitelist, and may block its power supply or generate alerts.

The best solution for this problem is to provide a USB to AC adapter for the battery charger, which is a device that converts the USB power output to an AC power input that can be plugged into a wall outlet. This way, the battery charger does not need to connect to the docking station or the computer, and does not trigger the peripheral security software. The user can still charge the camera’s battery without compromising the company’s security policy.

The other options are not advisable because they either do not solve the problem or create new risks. Option B, adding a powered USB hub to the docking station, may not work if the security software also monitors the hub’s ports and detects the battery charger as an unknown device. Option C, disabling the peripheral security software for this user only, is a very bad idea because it exposes the user’s computer and the company’s network to potential attacks from malicious USB devices. Option D, replacing the battery charger with a USB device that has a unique identifier, is unnecessary and costly, and may not be compatible with the camera’s battery.

A DHCP (Dynamic Host Configuration Protocol) server is a server type that can dynamically assign IP addresses and other network configuration parameters to clients, such as primary and secondary DNS (Domain Name System) servers. DNS servers are responsible for resolving hostnames to IP addresses and vice versa. A global catalog server, a web server, and a name server are not involved in DHCP operations.

The best way to protect the data of a virtual machine in the event of hardware failure is to use a cloud-based backup solution. A cloud-based backup solution is a service that copies and stores the data of a virtual machine to a remote server or storage device over the internet. A cloud-based backup solution can offer several benefits, such as:

High availability and reliability: A cloud-based backup solution can ensure that the data of a virtual machine is always accessible and recoverable, even if the hardware that hosts the virtual machine fails or is damaged. A cloud-based backup solution can also provide redundancy and fault tolerance, by replicating the data across multiple locations or regions.

Scalability and flexibility: A cloud-based backup solution can adapt to the changing needs and demands of the virtual machine, by allowing the user to adjust the backup frequency, retention period, and storage capacity. A cloud-based backup solution can also support different types of backup, such as full, incremental, or differential, depending on the user’s preferences and requirements.

Cost-effectiveness and simplicity: A cloud-based backup solution can reduce the cost and complexity of maintaining a backup infrastructure, by eliminating the need to purchase, install, or manage hardware, software, or licenses. A cloud-based backup solution can also automate and streamline the backup process, by providing easy-to-use tools and interfaces, such as web portals, APIs, or scripts.

Other options, such as redundant hardware, UPS, or RAID, may improve the performance or resilience of the hardware that hosts the virtual machine, but they do not provide a complete protection for the data of the virtual machine in the event of hardware failure. Redundant hardware is a technique that uses multiple components or devices to perform the same function, so that if one fails, another can take over. UPS (uninterruptible power supply) is a device that provides backup power to a system in case of a power outage or surge. RAID (redundant array of independent disks) is a technology that combines multiple disks into a logical unit, to improve the speed, capacity, or reliability of the storage. However, these options may not prevent data loss or corruption due to other causes, such as human error, malware, or natural disasters. Therefore, a cloud-based backup solution is the best way to protect the data of a virtual machine in the event of hardware failure.

One of the possible causes of the error message “No input source” is that the LCD projector is not receiving any signal from the connected device, such as a laptop1. This could be due to a loose or faulty cable or connector, or an incorrect input source selected on the projector2. Therefore, the first troubleshooting step that the technician should take is to check the physical cabling and make sure it is properly connected and secured12.

DNS stands for Domain Name System, which is a network service that translates hostnames to IP addresses. Hostnames are human-readable names that identify devices or services on the Internet, such as www.google.com or mail.yahoo.com. IP addresses are numerical identifiers that specify the location of devices or services on the Internet, such as 172.217.14.206 or 98.137.11.163. DNS allows users to access websites or services by using hostnames instead of IP addresses, which are easier to remember and type. DNS also allows hostnames to change their IP addresses without affecting the users, which can improve performance and security.

Calibration is the process of adjusting the printer settings to ensure that the printed output matches the original document. Calibration can fix issues such as misaligned images, color accuracy, and print quality. References: [Printer Calibration]

Using a mobile hotspot can quickly establish an internet connection for the remote user. A mobile hotspot uses cellular data to create a Wi-Fi network that the user can connect to, bypassing the need for a physical connection to the ISP. This solution is practical and efficient, especially in situations where the primary internet connection is down, and immediate connectivity is required. Mobile hotspots are widely used for their convenience and the ability to provide internet access almost anywhere cellular service is available, as highlighted in the CompTIA A+ Core 1 (220-1101) Exam Objectives in sections related to networking and mobile devices .

Running the printer’s alignment process is the first step that a technician should do to fix the shadowing problem on the printouts. Shadowing is a print quality issue that occurs when the printer prints a faint duplicate image of the original text or graphics, usually slightly offset from the original position. This can be caused by a misalignment of the printhead, which is the part of the printer that sprays ink onto the paper. The printer’s alignment process is a procedure that adjusts the position and angle of the printhead to ensure that the ink is applied accurately and evenly on the paper. The printer’s alignment process can be performed from the printer’s menu, the printer’s software, or the printer’s maintenance tool, depending on the model and type of the printer.

The other options are not the best solutions for this problem. Reseating the new ink cartridges may not solve the shadowing issue, unless the cartridges are not properly installed or recognized by the printer. However, this is unlikely to be the case, as the printer would usually display an error message or refuse to print if the cartridges are not compatible or inserted correctly. Replacing the fuser assembly or installing the maintenance kit are more drastic and expensive measures that are usually done when the printer has more serious problems, such as paper jams, smearing, streaking, or fading. The fuser assembly is the part of the printer that heats and melts the toner onto the paper, and the maintenance kit is a set of components that need to be replaced periodically to keep the printer in good condition. These parts are not directly related to the shadowing issue, and replacing them may not fix the problem.

The first step to troubleshoot this issue is to check if the website that hosts the random number generator is HTTPS enabled. This means that the website supports secure communication using SSL certificates and encryption. If the website is not HTTPS enabled, it may not be compatible with the SSL redirection implemented by the IT department. SSL redirection is a technique that automatically redirects HTTP requests to HTTPS, ensuring that the data exchanged between the web browser and the website is protected. However, some websites may not have SSL certificates or may have expired or invalid ones, which can cause errors or warnings when trying to access them via HTTPS. Therefore, the technician should check the website’s URL and see if it starts with https:// or http://. If it is the latter, the technician should try to manually change it to https:// and see if the website loads correctly. If it does not, the technician should contact the website owner or administrator and ask them to enable HTTPS or update their SSL certificates.

The most likely cause of the issue is a defective inverter. An inverter is a device that converts the direct current (DC) power from the laptop battery or adapter to the alternating current (AC) power that the LCD backlight bulb needs. The backlight bulb is a fluorescent lamp that illuminates the LCD screen and makes the image visible. If the inverter is defective, it may not provide enough power to the backlight bulb, or it may stop working intermittently. This can result in a dim, dark, or blank screen, even though the LCD panel is still functioning and displaying a faint image.

To troubleshoot a defective inverter, the technician can follow these steps:

Connect an external monitor to the laptop and check if the image is displayed normally. If the external monitor works fine, it means that the laptop video card and driver are not the cause of the issue.

Shine a flashlight into the LCD screen and look for a faint image. If the image is visible, it means that the LCD panel is not the cause of the issue.

Check the inverter cable and connector for any damage, loose connection, or corrosion. The inverter cable is a thin wire that runs from the laptop motherboard to the inverter board, which is usually located at the bottom of the LCD screen. The inverter connector is a small plug that connects the inverter cable to the inverter board. The technician can try to reseat the inverter cable and connector, or replace them if they are faulty.

Check the inverter board for any damage, burn marks, or blown fuses. The inverter board is a small circuit board that contains the inverter and other components. The technician can try to test the inverter board with a multimeter, or replace it if it is defective.

The first steps that the technician should perform are A. Check the version of the HDMI cable and B. Check the input source.

A possible cause of the problem is that the HDMI cable is not compatible with the 4K resolution of the monitor. HDMI cables have different versions that support different features and bandwidths. For example, HDMI 1.4 supports up to 4K at 30 Hz, while HDMI 2.0 supports up to 4K at 60 Hz1. The technician should check the version of the HDMI cable and make sure it matches the specifications of the monitor and the desktop.

Another possible cause of the problem is that the monitor is not set to the correct input source. The input source is the option that allows the monitor to switch between different video signals from different ports, such as HDMI, DVI, VGA, or DisplayPort2. The technician should check the input source and make sure it is set to HDMI, since that is how the desktop is connected to the monitor. The input source can usually be changed using the buttons or menu on the monitor itself2.

A serial interface is a common way to connect to the console port of a switch using a rollover cable and a terminal emulator program. This allows the network technician to configure and troubleshoot the switch. Bluetooth, near-field communication, and port replicator are not used for console connections.
