CompTIA 220-1101 - CompTIA A+ Certification Exam: Core 1

A Storage Area Network (SAN) is a network specifically designed to pool storage resources and make them accessible to servers as if they were locally attached drives. SANs are used in data centers for high-performance storage and retrieval of large volumes of data. This setup allows multiple networked devices to access shared storage as if it were local, which matches the scenario described. PAN (Personal Area Network), WLAN (Wireless LAN), and MAN (Metropolitan Area Network) serve different purposes and do not primarily focus on shared storage access.

For laptops, the most common type of RAM used is Small Outline Dual Inline Memory Module (SODIMM) due to its smaller size compared to DIMMs used in desktops. DDR5 is the latest generation of RAM, offering higher speed and efficiency. ECC (Error-Correcting Code) DIMM DDR5 and Registered DIMM DDR5 are typically used in servers and high-end workstations for error correction and stability, not in standard laptops. High latency DDR5 is not a desirable specification for RAM as lower latency is preferred for faster performance.

Badging is a form of authentication that requires employees to use a badge or ID card to release print jobs. This solution reduces unnecessary printing by ensuring only authorized users print.

Why Not A (Access control list): While ACLs manage permissions, they are not used for physical authentication at printers.

Why Not B (Audit logging): Audit logs track actions but do not restrict printer access.

Why Not D (Print server): A print server manages print jobs but doesn’t enforce authentication.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 2.5, authentication mechanisms​.

DHCP (Dynamic Host Configuration Protocol) dynamically assigns IP addresses to devices on a network, resolving the issue of an invalid static IP address. Configuring the device to use DHCP allows it to request and receive a valid IP address automatically.

Why Not A (SSH): Secure Shell (SSH) is used for secure remote access, not IP address assignment.

Why Not B (FTP): File Transfer Protocol (FTP) is used for file transfers, not network configuration.

Why Not D (DNS): DNS resolves domain names to IP addresses but doesn’t assign IP addresses.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 2.5, basic networking​.

TPM 2.0 (Trusted Platform Module) is often disabled by default in the UEFI BIOS. Enabling it is necessary to meet the requirements for certain Windows installations, including Windows 11.

Why Not B (Install an HSM): A Hardware Security Module (HSM) is a separate device used for cryptographic functions and is not related to TPM on the motherboard.

Why Not C (Perform a clean install): A clean installation will not bypass the TPM 2.0 requirement.

Why Not D (Implement BitLocker): BitLocker requires TPM but does not resolve its absence or lack of activation.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 3.4, BIOS/UEFI configuration​.

If a user consistently receives an error requesting A4 paper for print jobs, and this issue is isolated to a single user, it's likely that the user's printer settings are configured incorrectly for A4 paper size instead of the standard letter size used in the office. Adjusting the printer defaults in the Control Panel on the user's computer to use letter-sized paper should resolve the issue without needing to reinstall drivers, switch printers, or require the user to check page size for every job.

To make sure that the new operating system on the USB drive loads automatically, the user must configure the boot options in the BIOS/UEFI. Boot options determine the sequence of devices the computer will attempt to boot from when powered on. Setting the USB drive as the first boot option ensures that the system will load from the USB before trying other devices.

D. Boot options: The user should configure the boot sequence to prioritize the USB drive, so the system boots from it automatically.

Why the other options are incorrect:

A. BIOS password: A BIOS password is used to restrict access to the BIOS settings, not to control boot order.

B. Trusted Platform Module (TPM): TPM is a security feature used for cryptographic operations and securing hardware, not for controlling boot options.

C. USB permissions: This refers to access permissions for USB devices but does not affect booting from a USB drive.

This concept is part of the Hardware domain in the CompTIA A+ Core 1 exam, specifically regarding BIOS configuration​.

When two devices on the same network are assigned the same IP address, it can lead to intermittent connectivity issues as the network switches between the two devices. This situation, known as an IP address conflict, can disrupt the normal operation of the network, leading to connectivity problems that appear sporadic or intermittent. Resolving duplicate IP addresses typically involves ensuring DHCP is correctly configured or manually setting unique static IP addresses for devices prone to conflicts.

Category 7 (Cat 7) cables provide the best performance with the least Electromagnetic Interference (EMI) due to their enhanced shielding. Cat 7 cables are designed to support higher speeds and bandwidth while reducing interference compared to Cat 5 or Cat 6.

Why Not A (Cat 5): Cat 5 cables have limited shielding and are prone to EMI, making them unsuitable for high-performance requirements.

Why Not B (Cat 6): Cat 6 offers better shielding than Cat 5 but less than Cat 7.

Why Not D (Coaxial): While coaxial cables are resistant to EMI, Cat 7 offers better performance overall for networking applications.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 3.1, cable types and their performance characteristics​.

NVMe (Non-Volatile Memory Express) is an interface protocol built especially for Solid State Drives (SSDs) to utilize the high-speed PCIe bus in computers. M.2 is a form factor that is commonly used for NVMe SSDs due to its compact size and direct connection to the PCIe interface, which is ideal for laptops. The 2.5" and 3.5" form factors are more commonly associated with SATA drives, and SD is a form factor used for removable flash memory cards, not for internal storage solutions like NVMe SSDs.

Since the issue of the network connection dropping has been replicated on a known-good workstation using the same network cable, it suggests that the problem may not be with the individual workstations or the cable. The next logical step is to check for external interference, such as electrical or wireless interference that could be disrupting the network connection.

C. Validate the environment for external interference: External factors, such as nearby electronic devices or poor cabling, can cause intermittent network drops. Checking for interference would be a prudent next step.

Why the other options are incorrect:

A. Add new network hardware to reduce congestion: There’s no evidence that network congestion is the issue, and adding new hardware without identifying the cause is premature.

B. Assign a static IP to the impacted workstations: The issue appears to be related to the physical network connection or environment, not IP addressing.

D. Check the network logs for evidence of port flapping: Port flapping occurs when a network port rapidly switches between up and down states. While checking logs could provide information, external interference is a more likely culprit given the symptoms.

This issue is part of the Networking Troubleshooting domain in the CompTIA A+ Core 1 exam​.

Comprehensive and Detailed Step-by-Step Explanation:

Modifying duplex settings to double-sided:

Printing on both sides of the paper (duplex printing) reduces paper usage, making it one of the most effective environmentally friendly printing initiatives.

It directly minimizes waste and supports sustainability goals in the workplace.

Incorrect Options:

A. Requiring user authentication for printing: While this can reduce unnecessary or unauthorized printing, it does not directly address environmental objectives like saving resources.

B. Locking down printing to only certain individuals: Limiting access may reduce printing overall, but it does not actively contribute to environmentally friendly practices like duplex printing.

D. Changing the print quality settings to best: Using the "best" print quality increases toner or ink usage, which is counterproductive to environmentally friendly objectives.

Key Takeaway:

Modifying duplex settings to enable double-sided printing is the best initiative to achieve environmentally friendly goals by reducing paper consumption.

A managed switch provides advanced features such as traffic monitoring and VLAN configuration, allowing a technician to view network statistics for devices on the local subnet.

Why Not B (Router): A router connects different networks and directs traffic between them but does not provide detailed subnet-level statistics.

Why Not C (Access point): Access points provide wireless connectivity but lack traffic monitoring features.

Why Not D (Firewall): A firewall filters traffic but is not used for monitoring detailed statistics on a local subnet.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 2.6, network monitoring tools​.

If the user can hear sound through a Bluetooth headset but not through the laptop's internal speakers, the issue is likely related to the laptop's audio settings. One of the most common causes is that the laptop's speakers might be muted, either in the system settings or via a hardware mute button. This is the simplest and most likely solution to the problem.

B. Toggling the laptop's mute setting: Checking whether the laptop is muted, either through the keyboard shortcut or the system sound settings, is a quick way to resolve this common issue.

Why the other options are incorrect:

A. Updating the Bluetooth drivers: The issue is not with the Bluetooth headset, as it is working correctly. The problem is with the laptop's speakers.

C. Updating the speaker drivers: Updating the drivers is not the first step in troubleshooting, as the issue is more likely related to settings rather than outdated drivers.

D. Replacing the laptop's speakers: This is an extreme step and unlikely to be necessary if the problem is simply related to audio settings.

This scenario covers hardware troubleshooting and falls under the Hardware and Software Troubleshooting domain in the CompTIA A+ Core 1 exam​.

Hubs operate in half-duplex mode and are limited to low speeds like 10Mbps, making them the most likely cause for the network card's performance issue.

Why Not A (DSL): DSL relates to internet connectivity, not local network hardware.

Why Not B (Unmanaged switch): Unmanaged switches typically support full-duplex and higher speeds than 10Mbps.

Why Not C (NIC teaming): NIC teaming increases bandwidth and redundancy, and is not relevant to this issue.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 2.2, networking hardware​.

Looking at the network configurations and outputs from both PCs and servers, here are the possible issues and solutions:

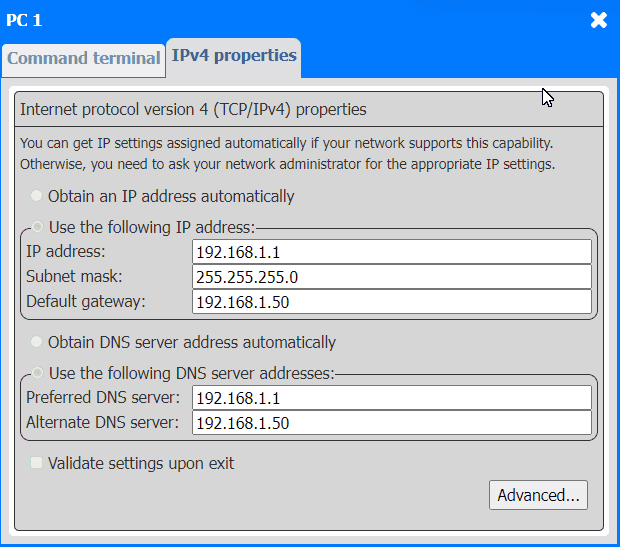

1. PC 1

Issue: The IP address for PC1 is 192.168.1.1, which conflicts with Server 1 (which also uses 192.168.1.1).

Solution: Change the IP address on PC1 to a unique one within the range, like 192.168.1.3.

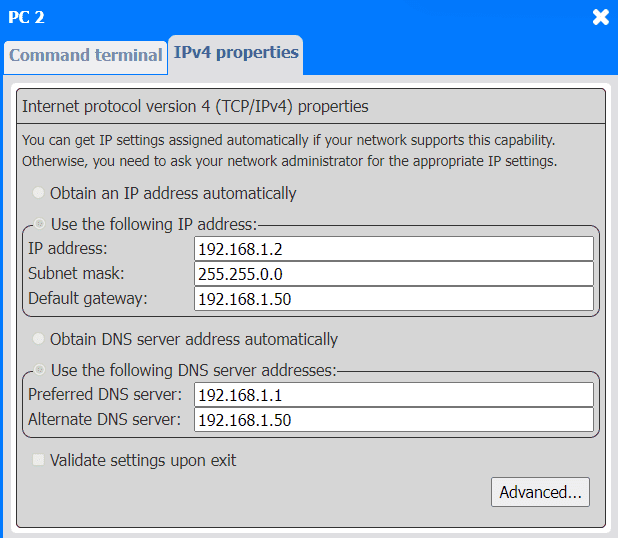

2. PC 2

Issue: PC 2 is configured with 192.168.1.2, which conflicts with Server 2 that has the same IP address.

Solution: Update the IP address on PC 2 to something unique, like 192.168.1.4.

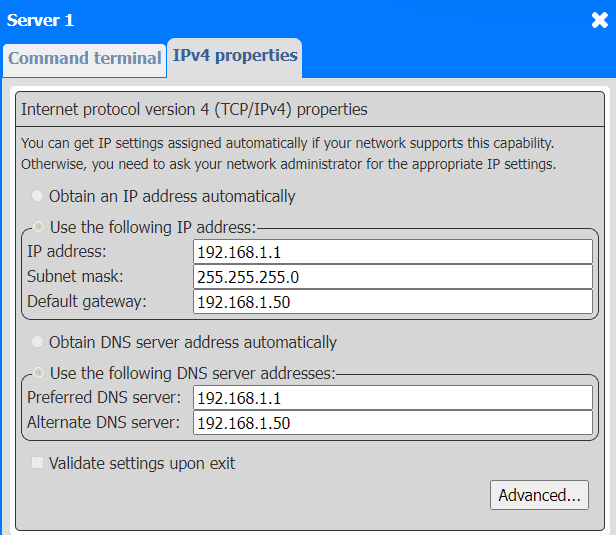

3. Server 1

Issue: The IP address for Server 1 is 192.168.1.1, which conflicts with PC1.

Solution: Since Server 1 and PC1 are using the same IP address, change one of them. For Server 1, you could change the IP address to 192.168.1.5.

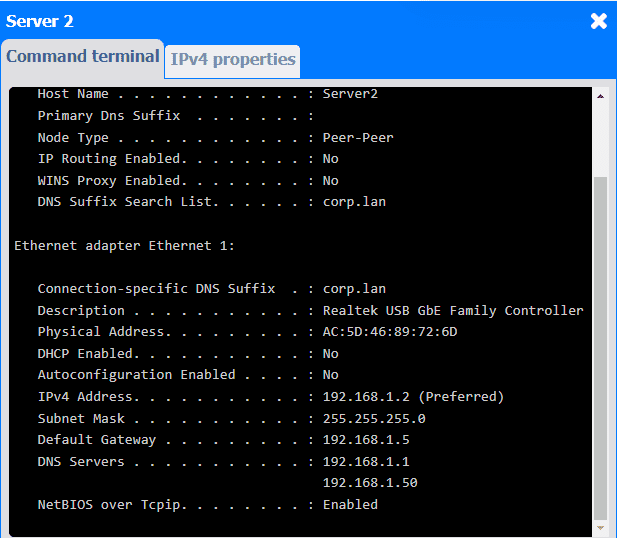

4. Server 2

Issue: Server 2 is using the IP address 192.168.1.2, which conflicts with PC2.

Solution: Update Server 2 to use a different IP address, such as 192.168.1.6.

General Remediation:

The primary problem here is overlapping IP addresses, leading to connectivity issues. Each device on the network must have a unique IP address. After making these changes, ensure that all devices can communicate properly by testing the connection between devices and verifying they can access shared resources.

The IPv4 address (192.168.10.5) and the gateway address (192.168.1.1) are on different subnets. With a netmask of 255.255.255.0, the network part of the IPv4 address is 192.168.10.x, while the network part of the gateway address is 192.168.1.x. For the workstation to correctly route traffic to the gateway, both must be on the same subnet. The correct gateway address should be within the same subnet as the IPv4 address, such as 192.168.10.1.

Step by Step Detailed Comprehensive Explanation with All CompTIA References:

Analysis of the Problem:

IPv4 records are associated with "A" records in DNS servers.

Option Evaluation:

A. AAAA: Used for IPv6. Incorrect.

B. MX: Relates to email servers. Incorrect.

C. CNAME: Provides aliases, not IP mappings. Incorrect.

D. A: Maps hostnames to IPv4 addresses. Correct.

An MX (Mail Exchange) record specifies the mail server responsible for receiving email for a domain.

Why Not A (CNAME): CNAME is used for domain aliasing, not for email delivery.

Why Not B (SRV): SRV records are used to locate specific services, not mail servers.

Why Not D (SOA): SOA records provide domain information but do not handle email.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 2.6, DNS record types​.

The issue described in the scenario is most likely caused by the incorrect heat sink being used on the CPU. The heat sink plays a critical role in dissipating heat from the CPU to prevent overheating. If the incorrect heat sink is used, it may not fit properly, leading to insufficient contact with the CPU. This can cause inadequate heat transfer, resulting in the CPU overheating. Overheating can lead to thermal stress on the motherboard, potentially causing shorts near the CPU location as the excessive heat can damage the motherboard's circuits and components.
