CompTIA 220-1101 - CompTIA A+ Certification Exam: Core 1

The most likely reason for this issue is A. The webcam is not on a level surface.

A webcam is a device that captures and transmits video and audio signals over the internet. A webcam can be integrated or external, depending on whether it is built-in or attached to the computer. A webcam can be used for various purposes, such as videoconferencing, streaming, or recording.

An integrated webcam is a webcam that is embedded in the monitor or the bezel of the laptop. An integrated webcam usually has a fixed position and angle, and it can be adjusted by tilting or rotating the laptop screen. An integrated webcam may have advantages such as convenience, portability, and compatibility, but it may also have disadvantages such as low quality, limited features, or vulnerability to damage.

An external webcam is a webcam that is connected to the computer via a cable or a wireless connection. An external webcam usually has a clip or a stand that allows it to be placed on a level surface or attached to the monitor or the laptop. An external webcam may have advantages such as high quality, advanced features, or flexibility, but it may also have disadvantages such as inconvenience, cost, or compatibility issues.

In this scenario, an integrated webcam on a user’s laptop broke, so a technician installed a temporary, external webcam. Since the external webcam installation, other users can only see part of the user’s face during videoconferences. This could indicate that the external webcam is not properly positioned or aligned to capture the user’s full face. The most likely cause of this issue is that the webcam is not on a level surface, and it is either too high or too low, or too far or too close to the user.

To resolve this issue, the user should adjust the position and angle of the external webcam until it captures their full face clearly and accurately. The user should also check the settings and features of the external webcam, such as zoom, focus, resolution, or brightness, and modify them if necessary. The user should also test the video and audio quality of the external webcam before joining a videoconference .

The other options are not the most likely causes of this issue, because they are not related to the partial face problem. A webcam driver should be updated (option B) if the webcam is not recognized or functioning properly by the computer. A webcam driver is a software component that enables the communication and interaction between the webcam and the operating system. A webcam is plugged into the wrong USB port (option C) if the webcam does not receive enough power or bandwidth from the computer. A USB port is a physical interface that allows data and power transmission between devices. A webcam is not compatible with the OS (option D) if the webcam does not work with the operating system installed on the computer. An operating system is a software program that manages the hardware and software resources of the computer.

For more information about webcams and how to use them effectively, you can refer to the following web search results: [What Is a Webcam?], [Integrated vs External Webcams: Which One Is Better?], [How to Set Up Your Webcam for Video Calls], [How to Look Good on Video Calls], [What Is a Device Driver?], [What Is a USB Port?], [What Is an Operating System?].

RAID 0 is a disk array configuration that splits data across two or more disks without parity or mirroring. RAID 0 provides the best I/O performance because it allows parallel read and write operations on multiple disks. RAID 0 also provides the most storage capacity possible because it does not use any disk space for redundancy. However, RAID 0 does not provide any fault tolerance and increases the risk of data loss if any disk fails.

To enable the printer to be shared across the network, the technician should configure the IP settings of the printer. The IP settings include the IP address, subnet mask, default gateway, and DNS server of the printer. The IP settings allow the printer to communicate with other devices on the network and access network resources such as print servers or cloud services.

The technician can configure the IP settings of the printer in different ways, such as:

Using the printer’s control panel or web interface to manually enter the IP settings or obtain them automatically from a DHCP server.

Using the printer’s software or driver to assign a static or dynamic IP address to the printer.

Using a network discovery tool to find and configure the printer on the network.

The technician should also make sure that the IP settings of the printer are compatible with the network configuration and do not cause any conflicts or errors.

The internal antennas are the components that allow the laptop to receive and transmit wireless signals from and to the wireless access point. The internal antennas are usually located inside or around the laptop screen, and they are connected to the wireless network card or adapter by thin wires or cables. If the internal antennas are disconnected, damaged, or misaligned, the laptop may experience wireless connectivity issues, such as low signal strength, limited range, or intermittent connection.

In this scenario, a customer reports that, after a technician replaced a laptop screen, the laptop is only able to connect to a Wi-Fi network if it is positioned very close to a wireless access point. This could indicate that the technician accidentally disconnected or damaged the internal antennas during the screen replacement process, and that the laptop is not receiving enough wireless signals from the wireless access point. Therefore, the first thing that the technician should verify is that the internal antennas are properly connected and positioned inside or around the laptop screen.

To verify and reconnect the internal antennas, the technician should follow these steps :

Turn off the laptop and disconnect it from any power source or external device.

Remove the battery and any screws that secure the laptop screen bezel.

Carefully pry off the laptop screen bezel and expose the internal antennas.

Check if the internal antennas are intact and securely connected to the wireless network card or adapter. The internal antennas may have different colors or labels, such as black, white, gray, main, aux, or 1, 2.

If the internal antennas are disconnected or loose, reconnect them to the corresponding connectors on the wireless network card or adapter. Make sure that they snap into place and that there is no gap or bend in the wires or cables.

If the internal antennas are damaged or broken, replace them with compatible ones. Make sure that they have the same length and shape as the original ones.

Realign and reposition the internal antennas inside or around the laptop screen. Make sure that they do not interfere with any other component or cable, and that they follow the original path and direction.

Reattach the laptop screen bezel and secure it with screws.

Reinsert the battery and turn on the laptop.

Test the wireless connectivity and performance of the laptop.

DHCP stands for Dynamic Host Configuration Protocol, which is a protocol that provides quick, automatic, and central management for the distribution of IP addresses within a network1. A DHCP server can assign IP addresses and other network information to devices that request them, such as computers, smartphones, and routers2.

The IP address 169.254.2.2 is an example of an APIPA (Automatic Private IP Addressing) address, which is a special type of IP address that devices use when they cannot obtain a valid IP address from a DHCP server3. APIPA addresses are in the range of 169.254.0.1 to 169.254.255.254, with a subnet mask of 255.255.0.03. Devices that use APIPA addresses can only communicate with other devices on the same local network that also use APIPA addresses3.

The router in the question is assigned the address scope of 192.168.1.254/24, which means it has an IP address of 192.168.1.254 and a subnet mask of 255.255.255.04. This address scope belongs to the private IP address range of 192.168.0.0 to 192.168.255.255, which is commonly used for local networks4. Devices that use private IP addresses can communicate with other devices on the same local network or across different networks through NAT (Network Address Translation)4.

The most likely cause of the technician receiving the IP address 169.254.2.2 is that the DHCP server on the router is not working properly or is not configured correctly3. This could be due to various reasons, such as a misconfigured router, a faulty cable, a firewall blocking DHCP traffic, or an exhausted pool of IP addresses3. As a result, the technician’s device cannot obtain a valid IP address from the DHCP server and resorts to using an APIPA address instead3.

To fix this issue, the technician should check the router settings and make sure that the DHCP server is enabled and has enough available IP addresses to assign to devices2. The technician should also check the physical cabling and make sure it is properly connected and secured2. If the issue persists, the technician should try rebooting the router or resetting it to factory defaults2. Alternatively, the technician could manually assign a static IP address to the device that matches the router’s address scope, such as 192.168.1.x/242.

The correct answer is B. Check the power supply wattage rating.

A possible cause of the desktop randomly shutting down during operations is that the power supply is not able to provide enough power for the high-end graphics card. The power consumption of today’s graphics cards has increased a lot, and the top models demand between 110 and 270 watts from the power supply1. Therefore, the technician should check the power supply wattage rating and make sure it is sufficient for the graphics card and the rest of the components. Confirming the power supply is grounded, checking whether the power supply is redundant, or confirming the power cables are well connected are not likely to solve this problem.

The technician should check the wattage and the form factor of the power supply to ensure it will support the upgraded workstation. These are the two most important criteria for choosing a compatible and adequate power supply.

Wattage: The wattage of a power supply is the maximum amount of power it can deliver to the components of the workstation. The wattage of the power supply should match or exceed the total power consumption of the components, especially the new graphics card, which is usually the most power-hungry part. If the power supply does not have enough wattage, it may cause instability, crashes, or damage to the workstation. To estimate the power consumption of the components, the technician can use a power supply calculator tool, such as the ones found in the web search results123. The technician should also add some headroom to the wattage, such as 20% to 50%, to account for peak power consumption, future upgrades, or power supply degradation.

Form factor: The form factor of a power supply is the physical size and shape of the unit. The form factor of the power supply should fit in the case of the workstation and match the mounting holes and screws. The most common form factor for desktop power supplies is ATX, which measures 150 x 86 x 140 mm. However, some older or smaller workstations may use different form factors, such as SFX, TFX, or FlexATX. The technician should check the specifications of the workstation case and the power supply to ensure they have the same form factor.

Other criteria, such as efficiency rating, heat dissipation, fan type, and modular cabling, are not essential for supporting the upgraded workstation, but they may affect the performance, noise, or aesthetics of the power supply. The efficiency rating is the percentage of input power that is converted to output power, and it indicates how much power is wasted as heat. The heat dissipation is the ability of the power supply to cool itself and prevent overheating. The fan type is the design and size of the fan that cools the power supply, and it affects the noise level and airflow of the unit. The modular cabling is the feature that allows the user to detach unused cables from the power supply, and it helps to reduce clutter and improve airflow inside the case.

A redundant power supply is a type of power supply that consists of two or more independent units that can provide power to the same device or system. A redundant power supply can increase the reliability and availability of the device or system, because if one unit fails, the other unit can take over and continue to provide power without interruption. A redundant power supply is often used in servers that require continuous availability, such as web servers, database servers, or file servers.

Speed is the most important consideration. Striping without parity, also known as RAID 0, is a RAID configuration that splits data across multiple disks without any redundancy. This improves the performance of read and write operations, as multiple disks can work in parallel. However, this also increases the risk of data loss, as any disk failure will result in losing all data on the array. Therefore, striping without parity is suitable for situations where speed is prioritized over reliability. According to the CompTIA Core1 objectives, one of the advantages of RAID 0 is increased speed. A research paper on RAID performance also confirms that RAID 0 has the highest throughput among all RAID levels.

A sandbox is a virtual environment that isolates the engineer’s research activities from the rest of the system. This allows the engineer to test, experiment, and modify the system without affecting the real data, applications, or settings. A sandbox is the best environment for research purposes because it provides a safe and controlled way to explore new ideas, simulate scenarios, and troubleshoot problems. A sandbox can also be easily reset or deleted after the research is done.

References

What is a Sandbox Environment?

Chapter 4: Virtualization and Cloud Computing

Satellite internet is the most widely available internet connection type, as it does not depend on cables or wires. It can reach remote areas that lack infrastructure for other types of internet connections1. References: Satellite Internet

The correct answer is C. The battery.

The battery is the component that stores and provides electrical power to the phone. The battery can degrade over time and lose its capacity to hold a full charge. This can cause the phone to stop charging at a certain percentage and run out of power faster. To resolve this issue, the battery should be replaced with a new one that is compatible with the phone model and manufacturer.

To replace the battery, the customer may need to follow different steps depending on the type of phone and battery. Some phones have removable batteries that can be easily accessed by opening the back cover of the phone and sliding out the old battery. Other phones have non-removable batteries that are sealed inside the phone and require special tools and skills to open the phone and disconnect the old battery. In this case, the customer may need to contact the phone manufacturer or a professional service center for assistance.

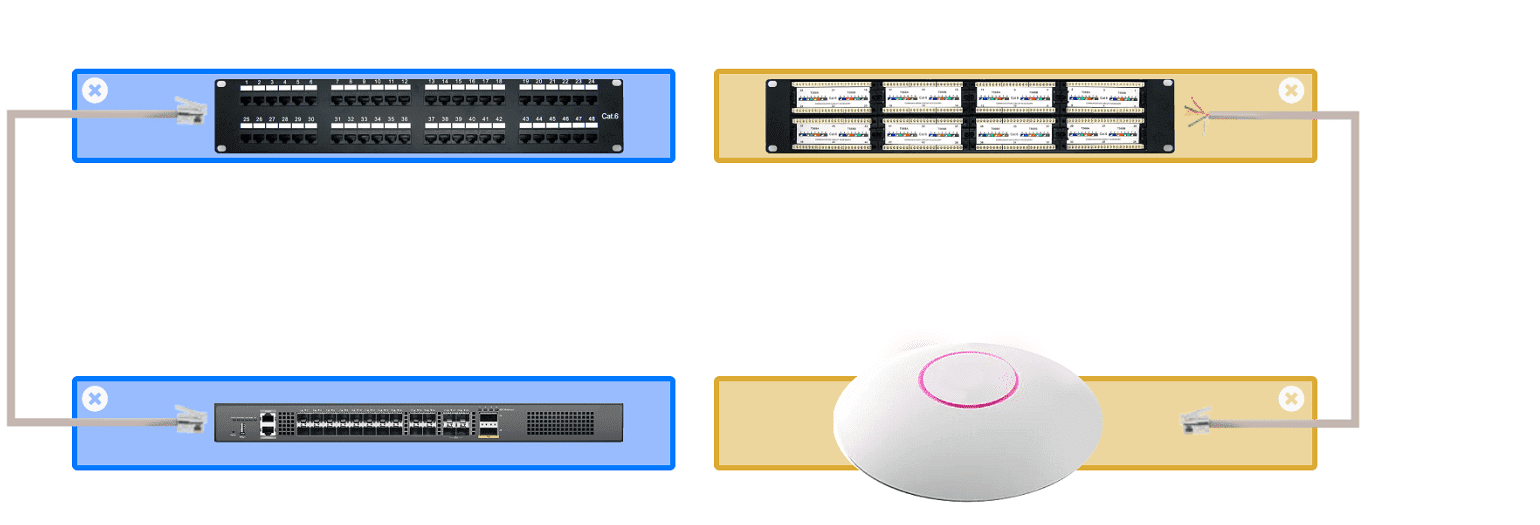

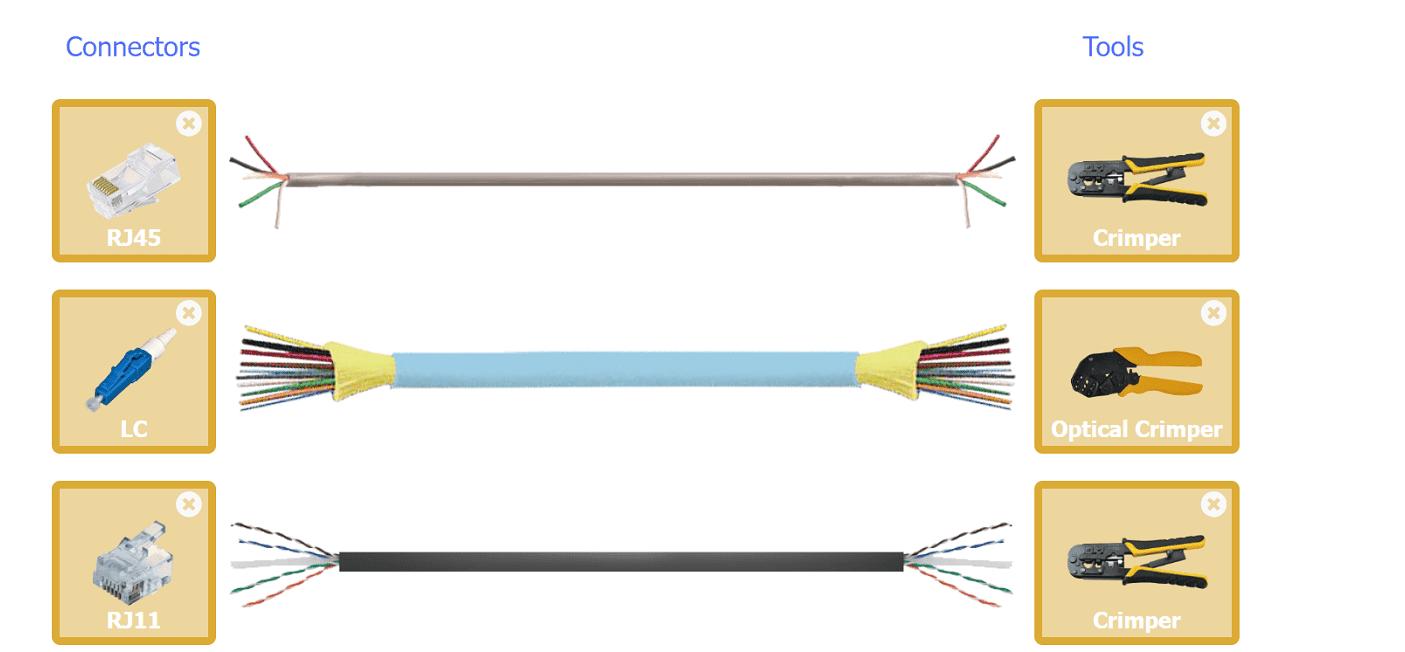

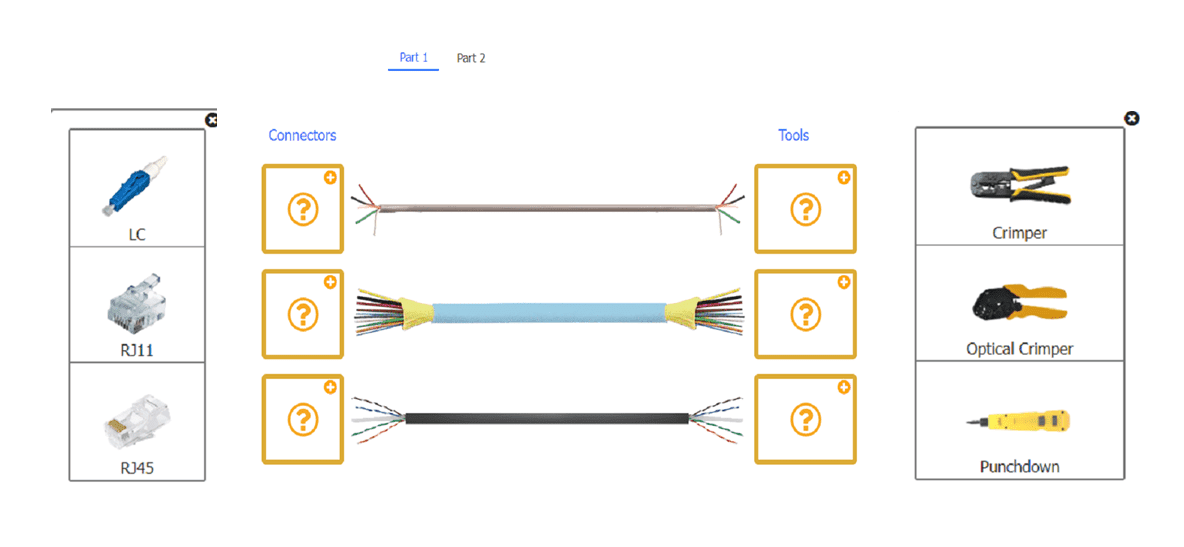

Check the exhibit diagram for both parts.

Part 2

According to the CompTIA troubleshooting methodology, the next step after establishing a theory of probable cause is to test the theory to determine the cause. However, before testing the theory, the technician may need to conduct some research based on the symptoms and the possible cause. This may involve consulting online resources, manuals, documentation, or colleagues to find out more information about the power supply and how to test it. Research can help the technician confirm or eliminate the theory and avoid unnecessary actions or damage.

Answer A is incorrect because inquiring about environmental or infrastructure changes is part of identifying the problem, which is the first step of the troubleshooting methodology. The technician should have already done this before establishing a theory of probable cause.

Answer C is incorrect because establishing a plan of action to resolve the problem and implement the solution is the fourth step of the troubleshooting methodology. The technician should not jump to this step without testing the theory and verifying the cause.

Answer D is incorrect because documenting the findings, actions, and outcomes is the last step of the troubleshooting methodology. The technician should not do this until the problem is resolved and verified.

A sandbox in virtualization allows testing an application in an isolated environment to observe its behavior without affecting the host system.

Why Not A (Run an application on multiple workstations): This describes application virtualization, not sandboxing.

Why Not C (Migrate a legacy application): This is about virtualization for legacy support, not testing.

Why Not D (Create a firewall): A firewall does not act as a sandbox for application testing.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 4.2, virtualization and sandboxing​.

The correct answer is A. Examine the application and device mute controls.

One of the possible reasons for the USB headset microphone not working is that the microphone is muted in the application or device settings. The technician should check if the mute button on the headset or the microphone icon in the application is active. If so, the technician should disable them and try to record sound again.

Some applications may also have their own settings for the microphone input. The technician should make sure that the USB headset is selected as the input device and that the volume level is appropriate. The technician can also test the microphone in different applications to see if the problem is specific to one application or not.

The other options are less likely to solve the problem, because:

•Connecting the headset to a different USB port may not make any difference if the device is already installed and recognized by the system.

•Checking the device’s driver release date may not be relevant if the microphone was working before and no updates were installed recently.

•Increasing the speaker volume setting may not affect the microphone input at all, and may only make the audio playback louder.

For more information and tips on how to fix USB headset problems, you can visit these links:

•USB Headset Mic Not Working? Here Are All Possible Fixes - TechNorms

•Fix microphone problems - Microsoft Support

•USB Headset Not Working? Try These Fixes - Tech News Today

A common reason for a POST failure after a motherboard installation is improperly seated RAM. The system requires working memory to successfully complete POST. Reseating (removing and reinserting) the RAM ensures it's making proper contact with the motherboard.

Option A: Flashing the BIOS is not possible if the system won’t POST.

Option B: A dead CMOS battery can cause BIOS settings to reset, but it usually won’t prevent POST entirely.

Option D: Reinstalling the old motherboard is premature — basic troubleshooting steps should be completed first.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.5: Given a scenario, troubleshoot problems related to motherboards, RAM, CPU, and power.

The most likely cause is a swollen battery, which occurs when the battery's internal components break down, causing a buildup of gas. This results in:

Physical Symptoms: The battery bulges, pushing the screen away.

Operational Symptoms: The device may still power on when connected to a charger but fails to hold a charge due to battery degradation.

Option A (Malfunctioning power supply): Incorrect. Power supply issues affect charging but do not cause physical bulging.

Option B (Damaged charge port): Incorrect. A damaged port can prevent charging but does not explain the bulge.

Option D (Broken screen): Incorrect. A damaged screen does not cause the device to bulge; it is likely a secondary effect of the swollen battery.

Safety Note: A swollen battery poses a risk of fire or explosion and should be replaced immediately following proper disposal procedures.
