CompTIA 220-1101 - CompTIA A+ Certification Exam: Core 1

OLED (Organic Light Emitting Diode) displays have lower power consumption than LCD (Liquid Crystal Display) displays because they do not require a backlight to produce light. Each pixel in an OLED display can emit its own light, which also allows for higher contrast and finer grayscale levels. However, OLED displays are more prone to color degradation over time than LCD displays, which use filters to create colors. Verified References: OLED vs LCD: How to choose the right display for your phone.

The correct answer is C. SPF.

SPF stands for Sender Policy Framework, which is a protocol that allows domain owners to specify which IP addresses are authorized to send email on behalf of their domains1. SPF helps prevent email spoofing and phishing by verifying the sender’s identity and preventing unauthorized use of their domain name12.

When an email is received, the receiving server checks the SPF record of the sender’s domain, which is a DNS TXT record that lists the valid IP addresses for that domain12. The server then compares the sender’s IP address with the SPF record and determines if it matches or not. If it matches, the email passes the SPF check and is accepted; if it does not match, the email fails the SPF check and is rejected or marked as spam12.

DKIM stands for DomainKeys Identified Mail, which is a protocol that allows domain owners to digitally sign their emails using a public-private key pair3. DKIM helps ensure the integrity and authenticity of email messages by verifying that they have not been tampered with or forged during transit3 .

MX stands for Mail Exchange, which is a type of DNS record that specifies the mail servers that are responsible for receiving email for a domain. MX records help direct incoming email to the correct destination and prioritize them based on preference values .

DMARC stands for Domain-based Message Authentication, Reporting and Conformance, which is a protocol that builds on SPF and DKIM and allows domain owners to define how receivers should handle unauthenticated or suspicious emails from their domains. DMARC helps protect domains from email fraud and abuse by providing feedback and reports on email delivery and authentication status .

Therefore, SPF is the only service among the options that checks whether the sender’s IP address is associated with the sender’s domain name when receiving email.

Rapid elasticity is the ability of a cloud service to scale up or down the resources (such as virtual servers, storage, bandwidth, etc.) according to the demand of the users. This is an efficient way to handle unusually high web traffic usage, as it allows the company to provision more virtual servers when needed and release them when not needed, without wasting resources or paying for unused capacity. Rapid elasticity also improves the performance and availability of the web service, as it can adjust to the fluctuations in traffic and avoid overloading or downtime.

References

Rapid Elasticity in Cloud Computing: On-Demand Scaling for Business

Chapter 4: Virtualization and Cloud Computing

An inverter is a component that converts DC power to AC power for the backlight of an LCD (liquid crystal display) screen. If the inverter is faulty, the screen may appear dim or dark, even if the brightness settings are adjusted. Replacing the inverter may fix the issue. The LCD itself, the video card, and the digitizer are not related to the screen brightness problem.

The correct answer is D. VPN.

A VPN (Virtual Private Network) is a service that allows a remote user to access network resources securely over the internet. A VPN creates an encrypted tunnel between the user’s device and the VPN server, which acts as a gateway to the network. The user can then access the network resources as if they were directly connected to the network, without exposing their traffic to eavesdropping, interception, or censorship.

A VPN can provide remote users with access to various services on a company network, such as file and print services, client/server applications, and remote network administration1. A VPN can also protect the user’s privacy and identity online by masking their IP address and location.

One of the possible causes of slow OS performance, random shutdowns, and loud fan noise is the CPU overheating. This can happen due to dust accumulation, faulty cooling system, or high CPU usage. Overheating can damage the CPU and other components, so it is important to monitor the CPU temperature and take preventive measures.

A video production workstation that will consist of two high-end GPUs will require a lot of power and a modular power supply. A modular power supply allows the technician to connect only the cables that are needed for the components, which reduces clutter and improves airflow. A 1,200W power supply should be enough to power the two GPUs and other components, but the exact wattage depends on the specifications of the GPUs and other components. A 400W external power supply is not enough to power the workstation and may not be compatible with the ATX case. Two 600W redundant power supplies are unnecessary and may not fit in the ATX case. A 1,500W uninterruptible power supply (UPS) is a device that provides backup power in case of a power outage, but it is not a replacement for a power supply unit (PSU). References: https://www.comptia.org/blog/what-is-a-power-supply-unit

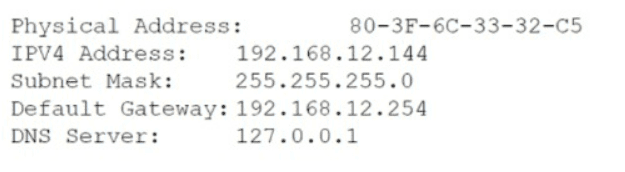

The most likely reason for the error is that the DNS server is not configured correctly. The technician should check the DNS server settings and make sure they are correct.

DNS, or Domain Name System, is a service that translates domain names, such as www.example.com, into IP addresses, such as 192.168.1.1, that computers use to communicate with each other. DNS is essential for joining a Windows client to a domain, which is a logical group of computers that share a common directory and security policy. A domain name, such as example.com, identifies the domain and its members on the network.

To join a Windows client to a domain, the client needs to resolve the hostname of the domain controller, which is the server that manages the domain and its resources. The client sends a DNS query to the DNS server, asking for the IP address of the domain controller. The DNS server responds with the IP address, and the client uses it to establish a connection with the domain controller and complete the domain join process.

However, if the DNS server is not configured correctly, the client may not be able to resolve the hostname of the domain controller, and receive the error: An attempt to resolve the hostname has failed. This can happen if the DNS server is not reachable, not authoritative, or not updated. For example, the DNS server may have an incorrect IP address, a wrong DNS suffix, a missing or outdated DNS record, or a firewall blocking the DNS traffic.

To fix the error, the technician should verify that the DNS server settings on the client and the domain controller are correct and consistent. The technician can use the ipconfig /all command to display the DNS server settings, such as the IPv4 address, the subnet mask, the default gateway, and the DNS suffix. The technician can also use the nslookup command to test the DNS resolution and the ping command to test the connectivity. The technician should make sure that the client and the domain controller are using the same DNS server, and that the DNS server can resolve the hostname of the domain controller.

The correct answer is B. Analyze the error logs.

Error logs are files that record the events and errors that occur on a server or a network device. They can provide valuable information about the cause and the time of the outage, as well as any warnings or alerts that preceded it. Analyzing the error logs can help the administrator narrow down the possible sources of the problem and identify the best course of action to resolve it.

The first step in troubleshooting a network is to identify the problem1. As a part of this step, the administrator should gather information about the current state of the network using the network troubleshooting tools that are available1. One of these tools is the error log viewer, which can be accessed through the server’s operating system or a network monitoring software. The administrator should look for any entries that indicate a failure, a crash, a timeout, or an exception in the error logs. The administrator should also note the date and time of the entries, as well as the severity and the frequency of the errors.

The other options are less likely to be the first step in troubleshooting, because:

•Documenting the results is an important step in troubleshooting, but it should be done after identifying and resolving the problem, not before. Documenting the results can help the administrator keep track of the actions taken, the changes made, and the outcomes achieved. It can also help prevent future problems by providing a reference for best practices and lessons learned1.

•Checking the physical connections is another important step in troubleshooting, but it should be done after analyzing the error logs, not before. Physical connections are the cables and ports that link the server to other devices on the network. They can affect the quality and stability of the network signal. If the error logs do not indicate any software or configuration issues, then checking the physical connections can help determine if there is any damage or interference in the hardware2.

•Upgrading the server firmware is a possible solution for some network problems, but it should not be done as a first step in troubleshooting, unless there is a clear indication that the firmware is outdated or corrupted. Firmware is a type of software that controls the basic functions of a hardware device. Upgrading the firmware can improve performance, security, and compatibility, but it can also introduce new bugs or conflicts with other software or hardware components. Therefore, upgrading the firmware should be done with caution and only after backing up data and settings3.

For more information and tips on how to troubleshoot network issues, you can visit these links:

•A Guide to Network Troubleshooting - CompTIA

•What is Network Troubleshooting? How to Fix Network Issues - SolarWinds

•Network Troubleshooting - Methodology, Steps & Techniques - DNSstuff

An imaging drum is a component of a laser printer that transfers the toner to the paper. It is sensitive to light and can wear out over time, resulting in poor print quality or missing colors. If the cleaning cycle does not resolve the issue, the imaging drum may need to be replaced1.

A fuser is a component of a laser printer that heats and melts the toner onto the paper. It does not affect the color output of the printer, but it can cause paper jams, smudges, or wrinkles if it is defective2.

An ink cartridge is a component of an inkjet printer, not a laser printer. A laser printer uses toner, which is a dry powder, instead of ink, which is a liquid. An ink cartridge would not be compatible with a laser printer3.

A toner tank is a container that holds the toner for a laser printer. It can be either integrated with the imaging drum or separate from it. If the toner tank is empty or low, the printer will display a warning message and the print quality will deteriorate. However, if only one color is missing, the problem is more likely with the imaging drum than the toner tank4.

Resin is a material that is used in some types of 3D printers, not laser printers. Resin printers use a liquid resin that is cured by a light source to create solid objects. Resin has nothing to do with laser printing5.

The most likely answer is C. Fuser.

A fuser is a component in a laser printer that uses heat and pressure to fuse the toner powder onto the paper. If the fuser is damaged or worn out, it can cause humming and grinding noises, as well as ghost images on the printouts. Ghost images are faint copies of previous images that appear on the same page. They are caused by the fuser not heating the toner properly, or by the toner sticking to the fuser roller and transferring to the next page12.

To fix this problem, you should replace the fuser unit with a new one. You can check your printer manual for instructions on how to remove and install the fuser unit. You can also use a diagnostic ruler to measure the distance between the ghost images and determine if the fuser is the source of the problem2. If the ghost images are far apart (between 4cm and 5cm), then the fuser is likely to be faulty.

The correct answer is D. Cat 6a.

Cat 6a (augmented) is a type of twisted pair cable that supports 10GBASE-T data transmission speed. 10GBASE-T is an Ethernet standard that can deliver 10 gigabits per second (Gbps) over copper cables. Cat 6a can support this speed up to a distance of 100 meters, which is the same as Cat 5e and Cat 6 for lower speeds. Cat 6a has better shielding and crosstalk prevention than Cat 6, which makes it more suitable for high-frequency signals.

Cat 3, Cat 5, and Cat 5e are not capable of supporting 10GBASE-T data transmission speed. Cat 3 can only support up to 10 Mbps, Cat 5 can only support up to 100 Mbps, and Cat 5e can only support up to 1 Gbps. These cables have lower bandwidth, higher attenuation, and more interference than Cat 6a.

GPS (Global Positioning System) is a feature that allows a phone to determine its location by receiving signals from satellites. A maps application relies on GPS to provide accurate directions and navigation. If GPS is turned off or not working properly, the maps application may not function as expected.

The other options are not relevant to the issue. Airplane mode is a setting that disables all wireless communication on a phone, including cellular, Wi-Fi, Bluetooth, and GPS. However, since the representative runs a speed test and gets ~10Mbps in both directions, it means that airplane mode is not enabled. PRL (Preferred Roaming List) is a database that contains information about the cellular towers and networks that a phone can connect to. Updating the PRL can improve the phone’s signal strength and coverage, but it does not affect the maps application. LTE (Long Term Evolution) is a standard for high-speed wireless communication on mobile devices. It is related to the cellular data speed and quality, but not to the maps application.

To troubleshoot the issue, the technician should check the GPS settings on the phone and make sure that it is turned on and has a clear view of the sky. The technician should also verify that the maps application has permission to access the GPS location. If the problem persists, the technician may suggest resetting the network settings, updating the phone’s software, or contacting the maps application’s support team.

The correct answer is A. DHCP scope.

A DHCP scope is a consecutive range of IP addresses that a DHCP server can select from to fulfill requests from network clients. A DHCP server is a device that automatically assigns IP addresses and other network configuration parameters to devices that request them. A DHCP scope defines the pool of available IP addresses, as well as the subnet mask, default gateway, DNS servers, and lease duration for each IP address. A DHCP scope can also include exclusions, reservations, and policies to customize the IP address allocation process12.

A static IP list is a list of IP addresses that are manually assigned to devices and do not change over time. A static IP list does not require a DHCP server, but it requires more administrative effort and coordination to avoid conflicts or errors. A static IP list is not a consecutive range of IP addresses that a server can select from3.

DNS A records are DNS records that map a domain name to an IPv4 address. DNS is a system that translates human-readable domain names into machine-readable IP addresses. DNS A records are not a range of IP addresses that a server can select from, but a way of resolving domain names to IP addresses.

Automatic private IP addressing (APIPA) is a feature of Windows that allows devices to self-assign an IP address in the absence of a DHCP server or a static IP configuration. APIPA uses the 169.254.0.0/16 address range, which is reserved for link-local communication. APIPA does not create a range of IP addresses that a server can select from, but a fallback mechanism for devices that cannot obtain an IP address from another source.

For more information about DHCP scopes and other related topics, you can refer to the following web search results: DHCP Scope - NETWORK ENCYCLOPEDIA, Managing Microsoft DHCP Scope and other Components - ATA Learning, Dynamic Host Configuration Protocol (DHCP) | Microsoft Learn.

The first step to recover data from a failing drive is to clone the drive to another one, which means creating an exact copy of the drive’s contents, including the operating system, applications, files, and settings, to a new drive. Cloning the drive can preserve the data and prevent further damage or data loss from the failing drive. Cloning the drive can also allow the technician to boot from the new drive and access the data normally, without needing to reinstall the operating system or the applications12.

The other options are not as effective or relevant as cloning the drive. Accessing the Device Manager may not help with data recovery, as it is a tool that displays and manages the hardware devices and drivers on a PC. The Device Manager may show the status of the failing drive, but it cannot copy or restore the data from it3. Downloading the drive manufacturer’s diagnostic tool may help with identifying and repairing some errors or issues with the drive, but it may not be able to recover the data if the drive is physically damaged or corrupted. The diagnostic tool may also overwrite or erase some data during the repair process, which can make the data recovery more difficult or impossible4. Uninstalling the drive in the Device Manager may not help with data recovery, as it removes the drive from the system and its driver from the operating system. Uninstalling the drive may make the drive inaccessible or unrecognized by the PC, which can prevent the data recovery5. Replacing the drive with a new one may not help with data recovery, as it does not transfer the data from the old drive to the new one. Replacing the drive may also require reinstalling the operating system and the applications, which can take time and effort. Replacing the drive may also discard the old drive, which may still contain some recoverable data.

RFD stands for Radio Frequency Identification, which is a technology that uses radio waves to identify and track objects that have RFID tags attached to them. RFID tags are small devices that store information and can be read by RFID readers without direct contact or line of sight. RFID can be used for inventory management, as it can provide real-time visibility and accuracy of the location, quantity, and status of the items in a warehouse, store, or supply chain .

The best tool to identify the correct cable is C. Toner probe.

A toner probe is a device that can be used to locate and trace a specific cable within a network rack or a wall outlet. A toner probe consists of two parts: a tone generator and a tone detector. The tone generator is connected to one end of the cable and sends an audible signal through the cable. The tone detector is used to scan the other end of the cable and pick up the signal. The tone detector emits a sound or a light when it detects the signal, indicating the correct cable.

A toner probe can be useful for network technicians who need to locate an end user’s Cat 6 cable within a network rack that is poorly documented and has no cable management system. A Cat 6 cable is a type of twisted pair cable that can support high-speed data transmission over Ethernet networks. A network rack is a frame that holds network equipment, such as servers, switches, routers, or patch panels. A cable management system is a set of devices or methods that organize and secure the cables within a network rack .

The other options are not the best tools to identify the correct cable, because they have different purposes or limitations. A cable tester (option A) is a device that can be used to test the functionality and quality of a cable, such as its continuity, resistance, or interference. A cable tester can help diagnose and troubleshoot faulty cables, but it cannot locate or trace specific cables within a network rack. A network tap (option B) is a device that can be used to monitor and analyze the traffic and data that pass through a network. A network tap can help capture and inspect network packets, but it cannot locate or trace specific cables within a network rack. A loopback plug (option D) is a device that can be used to test the functionality and connectivity of a port or an interface. A loopback plug can help verify if a port or an interface is working properly, but it cannot locate or trace specific cables within a network rack.

For more information about toner probes and other network tools, you can refer to the following web search results: [What Is a Toner Probe?], [What Is Cat 6 Cable?], [What Is a Network Rack?], [What Is a Cable Tester?], [What Is a Network Tap?], [What Is a Loopback Plug?].

The most likely cause of the wireless network connectivity issues is A. External interference.

External interference is any signal or noise that disrupts or degrades the quality of a wireless network. External interference can come from various sources, such as other wireless networks, cordless phones, microwaves, Bluetooth devices, or electrical appliances. External interference can affect the wireless network performance, reliability, and security, by causing issues such as signal loss, packet drops, latency, or interference.

In this scenario, a company in a large building uses a wireless network for its workstations. After a new company moves into the building on the floor below, the old company’s wireless network begins experiencing connectivity issues. This could indicate that the new company’s wireless network is using the same or overlapping frequency channel as the old company’s wireless network, and creating external interference. Wireless networks use radio frequency channels to transmit and receive data, and each channel has a certain bandwidth and range. If two or more wireless networks use the same or overlapping channel, they may interfere with each other and cause congestion or collision.

To resolve this issue, the old company’s network technician should change the wireless network channel to a different one that is less crowded or more compatible with the wireless network standard. The technician should also check the wireless network settings and features, such as SSID (Service Set Identifier), encryption, authentication, or power level, and adjust them if necessary. The technician should also scan the wireless environment and identify the sources and levels of external interference, and try to avoid or minimize them if possible.

For more information about external interference and how to prevent or reduce it, you can refer to the following web search results: [What Is Wireless Interference?], [How to Find the Best WiFi Channel for Your Router], [How to Reduce Wireless Interference].

three beeps and a black screen indicate a memory error of some sort123. This means that the RAM may not be properly installed or connected to the motherboard. Reseating the RAM means removing each stick and re-inserting it, making sure it clicks into place. This can sometimes solve the problem by ensuring a good contact between the RAM and the motherboard.

Replacing the power supply, reattaching the hard drive, or flashing the BIOS are unlikely to fix this issue, since they are not related to the memory error. The power supply provides power to the whole system, the hard drive stores data, and the BIOS is the firmware that controls the boot process. None of these components would cause three beeps and a black screen if they were faulty.
