CompTIA 220-1201 - CompTIA A+ Core 1 Exam (2026)

The correct answer is B. Inspect and replace the printer rollers .

According to CompTIA A+ Core 1 220-1201 objectives under Printers:

Frequent paper jams with no visible obstruction are often caused by worn or dirty feed rollers , which fail to grip and feed paper properly.

Inspecting and replacing the rollers ensures smooth paper feeding and prevents repeated jams, particularly in high-use network printers.

Why the other options are incorrect:

A. Check for firmware updates: Firmware updates address software or functionality issues, not mechanical paper feeding problems.

C. Reseat the fuser assembly: Fuser issues typically cause smudging or incomplete toner adhesion, not paper jams.

D. Clean the corona wire: The corona wire affects toner adhesion and print quality, not paper feeding.

The correct answer is C. ECC (Error-Correcting Code) .

In the CompTIA A+ Core 1 (220-1201) hardware objectives, RAM types and features include technologies designed to improve reliability and data integrity.

ECC memory is specifically designed to detect and correct data errors (faults) in memory automatically. It uses additional bits to store error-checking information, allowing the system to:

Detect single-bit and some multi-bit errors

Automatically correct errors without system interruption

Improve system stability, especially in servers and critical systems

This makes ECC the best choice for recovering from data faults .

Why the other options are incorrect:

A. Capacity

Capacity refers to how much data the RAM can hold (e.g., 8GB, 16GB). It has nothing to do with error detection or correction.

B. Speed

Speed (measured in MHz or MT/s) affects performance but does not provide any fault recovery capability.

D. DDR

DDR (Double Data Rate) refers to the generation/type of RAM (e.g., DDR3, DDR4, DDR5). It improves performance but does not handle errors.

E. Parity

Parity memory can detect errors but cannot correct them . Since the question specifically asks for recovery from faults, ECC is the correct answer because it both detects and corrects errors.

Final Answer: C. ECC

For a main database server with high read/write activity, the best RAID choice must deliver strong performance while still providing fault tolerance. Per CompTIA A+ Core 1 (220-1201) storage/RAID objectives, RAID 10 (1+0) combines disk mirroring (RAID 1) and disk striping (RAID 0). Striping improves performance by distributing read/write operations across multiple disks, which is ideal for databases that perform frequent transactions. Mirroring provides redundancy by keeping an identical copy of data on a paired drive, allowing the system to tolerate drive failures (typically one drive per mirrored pair) without data loss.

RAID 0 is fast but offers no redundancy, making it inappropriate for critical servers. RAID 5 and RAID 6 use parity, which provides redundancy but introduces a write penalty because parity must be calculated and written during updates—often a poor fit for workloads with heavy random writes like databases. RAID 6 is even more write-intensive

The correct answer is B. Replacing the fans .

According to CompTIA A+ Core 1 220-1201 objectives under Hardware and Troubleshooting:

A computer that gradually slows down and then shuts down without warning is often experiencing overheating .

Overheating can occur when cooling fans fail or dust accumulates, preventing proper airflow. Replacing or cleaning fans restores cooling and prevents thermal shutdowns.

Why the other options are incorrect:

A. Upgrading the memory: Would improve system performance if there is insufficient RAM but does not prevent thermal shutdowns caused by overheating.

C. Adding drive space: Helps with storage capacity but does not affect CPU/GPU heat or thermal shutdown.

D. Swapping the power supply: Would address power delivery issues, but the scenario describes gradual slowdown before shutdown, which is characteristic of thermal issues rather than immediate power failure.

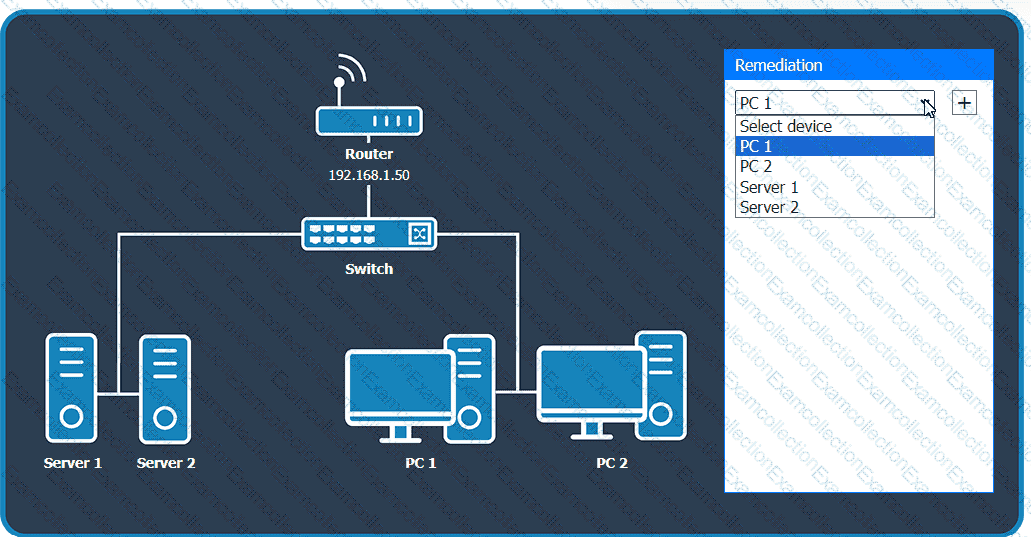

Looking at the network configurations and outputs from both PCs and servers, here are the possible issues and solutions:

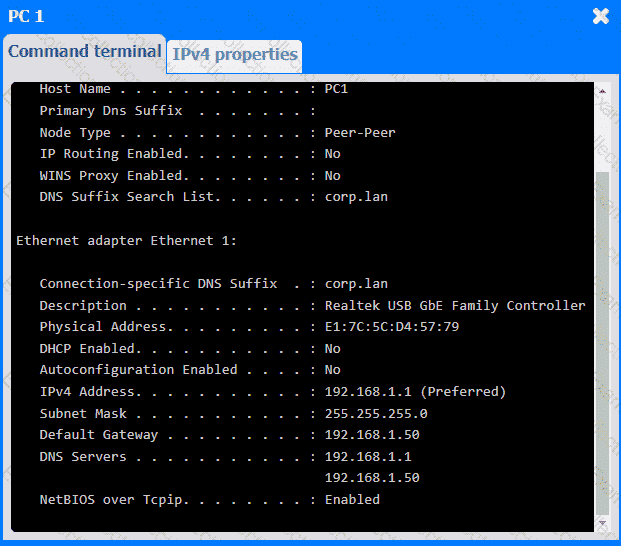

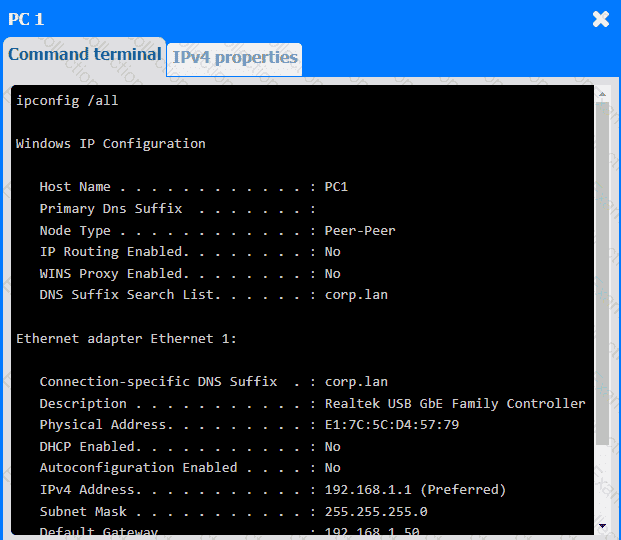

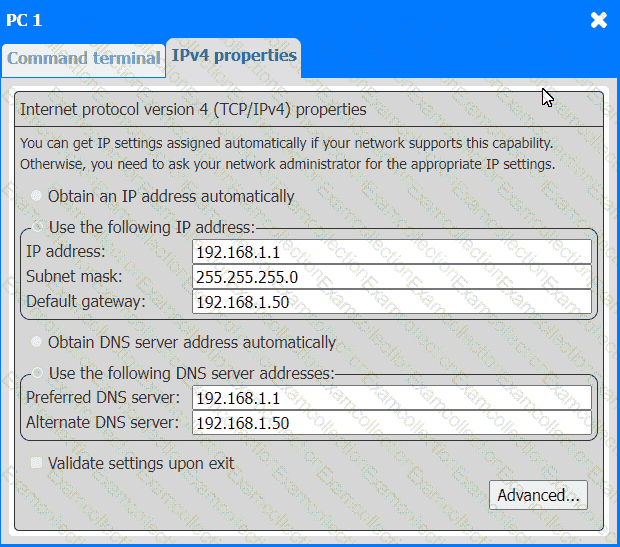

1. PC 1

Issue: The IP address for PC1 is 192.168.1.1, which conflicts with Server 1 (which also uses 192.168.1.1).

Solution: Change the IP address on PC1 to a unique one within the range, like 192.168.1.3.

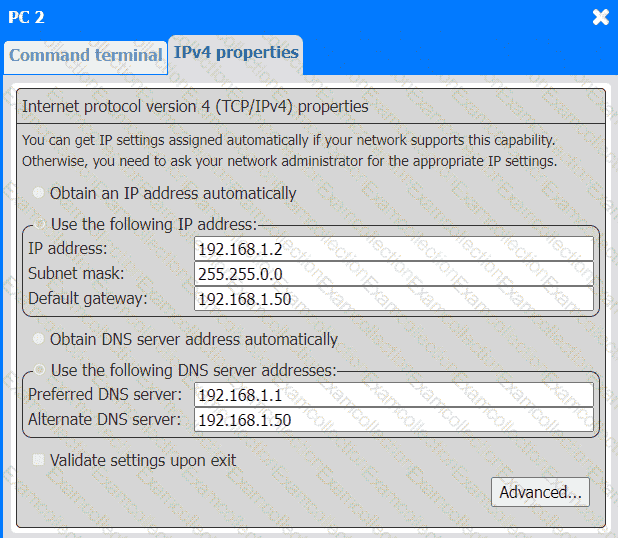

2. PC 2

Issue: PC 2 is configured with 192.168.1.2, which conflicts with Server 2 that has the same IP address.

Solution: Update the IP address on PC 2 to something unique, like 192.168.1.4.

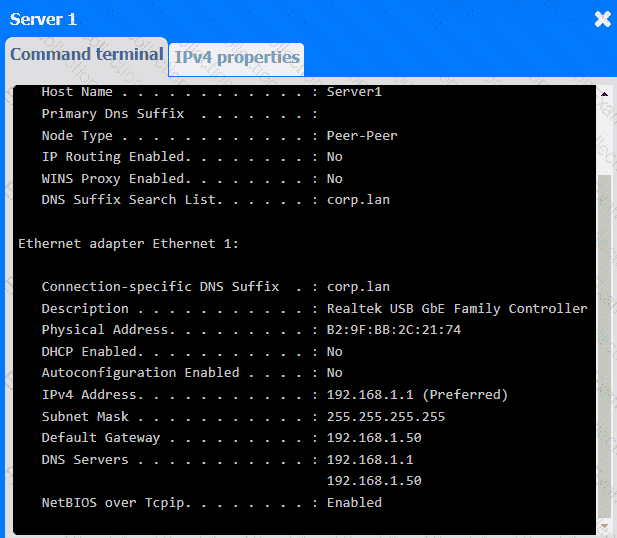

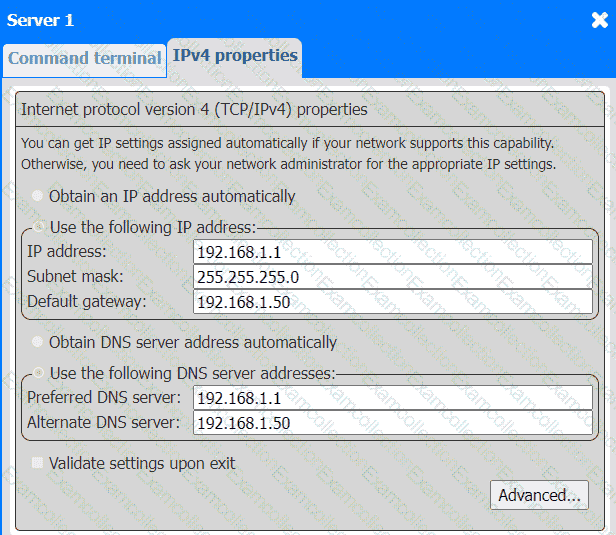

3. Server 1

Issue: The IP address for Server 1 is 192.168.1.1, which conflicts with PC1.

Solution: Since Server 1 and PC1 are using the same IP address, change one of them. For Server 1, you could change the IP address to 192.168.1.5.

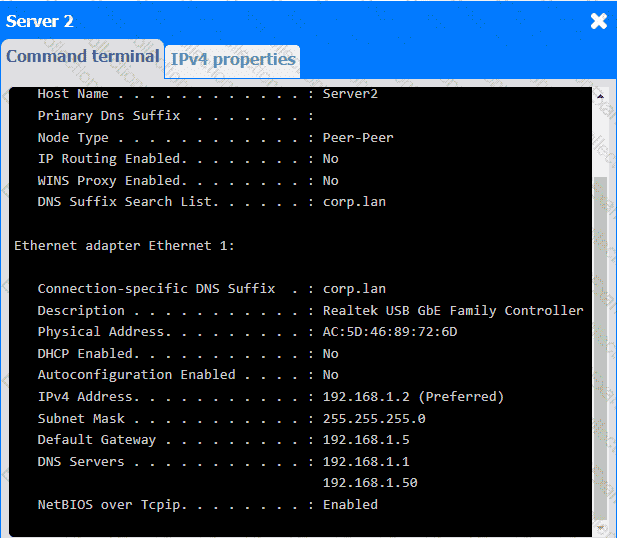

4. Server 2

Issue: Server 2 is using the IP address 192.168.1.2, which conflicts with PC2.

Solution: Update Server 2 to use a different IP address, such as 192.168.1.6.

General Remediation:

The primary problem here is overlapping IP addresses, leading to connectivity issues. Each device on the network must have a unique IP address. After making these changes, ensure that all devices can communicate properly by testing the connection between devices and verifying they can access shared resources.

The correct answer is B. Reconnect the wireless antennas .

According to CompTIA A+ Core 1 220-1201 objectives under Hardware and Laptop Maintenance:

Many laptop wireless antennas are routed through the display assembly to provide optimal Wi-Fi and Bluetooth signal strength.

When replacing a laptop display, it is essential to disconnect and then reconnect the wireless antennas to ensure proper connectivity.

Failing to reconnect these antennas can result in weak or no wireless signal.

Why the other options are incorrect:

A. Reattach the heat sinks: Heat sinks are part of the CPU/GPU cooling assembly and are unrelated to replacing the display.

C. Install a new CPU fan: CPU fans are part of the cooling system, not the display assembly.

D. Reset the BIOS to default settings: Not required for physically replacing the display; the BIOS retains settings independently of display hardware.
