The correct answer is D. Dual channel .

In the CompTIA A+ Core 1 (220-1201) hardware objectives, memory bandwidth refers to the amount of data that can be transferred between RAM and the CPU in a given amount of time.

Dual channel memory architecture increases bandwidth by:

Allowing the memory controller to access two memory modules simultaneously

Effectively doubling the data transfer rate compared to single-channel configurations

Improving overall system performance, especially in memory-intensive tasks

Why the other options are incorrect:

A. CAS latency

CAS latency measures the delay before data is available after a request. Lower latency improves response time, but it does not significantly increase total bandwidth.

B. ECC

ECC (Error-Correcting Code) improves reliability by detecting and correcting errors, but it does not increase data transfer bandwidth.

C. High clock speed

Higher clock speed does increase bandwidth, but not as significantly as enabling dual channel , which allows parallel data transfer paths and provides a greater overall increase.

Final Answer: D. Dual channel

The correct answer is B. NVMe SSD .

According to CompTIA A+ Core 1 220-1201 objectives under Hardware and Storage:

NVMe (Non-Volatile Memory Express) SSDs provide the fastest data access and retrieval speeds compared to other storage types, especially on laptops. NVMe SSDs use the PCIe interface, which allows significantly higher throughput and lower latency than SATA-based storage.

This improves boot times, application load times, and overall system responsiveness.

Why the other options are incorrect:

A. SATA M.2: While faster than traditional 2.5” SSDs and HDDs, SATA M.2 is limited by the SATA III interface (~600 MB/s), which is slower than NVMe SSDs (~3,000–7,000 MB/s).

C. Optical disk: Optical media (CD/DVD/Blu-ray) is extremely slow and not suitable for quick access or retrieval.

D. 7,200rpm HDD: Mechanical hard drives have the slowest access times and throughput compared to SSDs.

The correct answer is B. Header pinouts .

According to CompTIA A+ Core 1 220-1201 objectives under Hardware:

Header pinouts on a motherboard are designated connectors for internal components such as USB ports, audio connectors, and front panel buttons/LEDs.

When adding additional internal USB ports, a technician typically connects them to the motherboard’s USB header pinouts. These headers provide the necessary data and power connections to enable USB functionality for front-panel or expansion USB ports.

Why the other options are incorrect:

A. TPM (Trusted Platform Module): Used for hardware-based security functions like encryption, not USB connectivity.

C. M.2 connector: Used primarily for SSDs and other small-form-factor expansion devices, not standard USB ports.

D. Expansion slots: Typically PCIe or PCI slots are used for expansion cards such as GPUs, network cards, or USB controller cards, but not for connecting internal USB headers directly.

In the CompTIA A+ Core 1 (220-1201) exam objectives, cloud deployment models describe how and where computing resources are hosted and who has access to them. A private cloud is defined as a cloud environment that is dedicated to a single organization and may be hosted on-premises within the company’s own data center or in a dedicated external facility. Since the question states that the directory services server is located on premises, it indicates that the organization is hosting and managing its own infrastructure internally. This aligns directly with the definition of a private cloud deployment model.

Directory services—such as Microsoft Active Directory or LDAP-based services—are commonly deployed internally to manage user authentication, authorization, group policies, and resource access within an organization. When these services run on company-owned hardware inside the organization’s network, the infrastructure remains under the organization’s full administrative control, security policies, and management.

The other options do not match this scenario. A public cloud is hosted by third-party providers and shared among multiple customers ☁. A hybrid cloud combines on-premises infrastructure with public cloud services. A community cloud is shared by multiple organizations with similar requirements. Because the system is hosted internally for a single organization, the correct classification is Private Cloud .

The correct answer is B. USB .

In the CompTIA A+ Core 1 (220-1201) objectives under mobile devices and connectivity methods , tethering refers to sharing a mobile device’s internet connection with another device such as a laptop. There are several tethering methods, including USB tethering, Bluetooth tethering, and Wi-Fi hotspot .

USB tethering is considered the most stable and reliable (tethered) connection because:

It uses a physical cable connection , eliminating wireless interference.

It provides consistent bandwidth and low latency .

It also charges the phone while connected , which is an added benefit.

It is less prone to disconnections compared to wireless methods.

Why the other options are incorrect:

A. Bluetooth

Bluetooth tethering is slower and less stable due to limited bandwidth and susceptibility to interference. It is not ideal for high-performance or stable connections.

C. Hotspot

A mobile hotspot uses Wi-Fi, which is wireless , not tethered. While convenient, it is less stable than a wired USB connection and can be affected by interference and signal range.

D. NFC

NFC (Near Field Communication) is used for very short-range communication like payments or quick pairing. It is not used for maintaining a continuous network connection.

Final Answer: B. USB

Because the smudges are not in the original document, CompTIA A+ troubleshooting logic indicates the problem is occurring inside the print process, not in the application or file. For laser printers, smudging commonly points to an issue with the imaging components—especially the drum/photoconductor unit (and sometimes the fuser). A+ Core 1 (220-1201) printer troubleshooting emphasizes starting with the most likely, easiest-to-verify causes before replacing parts. Inspecting the drum is a diagnostic step that can reveal visible defects such as scratches, toner buildup, contamination, or worn surfaces that cause toner to transfer incorrectly, leading to streaks or smears on output.

Replacing the toner (D) is a corrective action and may be unnecessary if the drum is damaged. Changing paper type (A) can help with some issues (like poor fusing or humidity-related problems), but it’s less directly tied to consistent smudges caused by the imaging process. Firmware updates (C) are rarely the first step for print-quality defects; they’re more relevant to compatibility, bugs, or feature issues—not physical smearing. Therefore, inspecting the printer drum first best matches A+ methodology and common laser printer failure points.

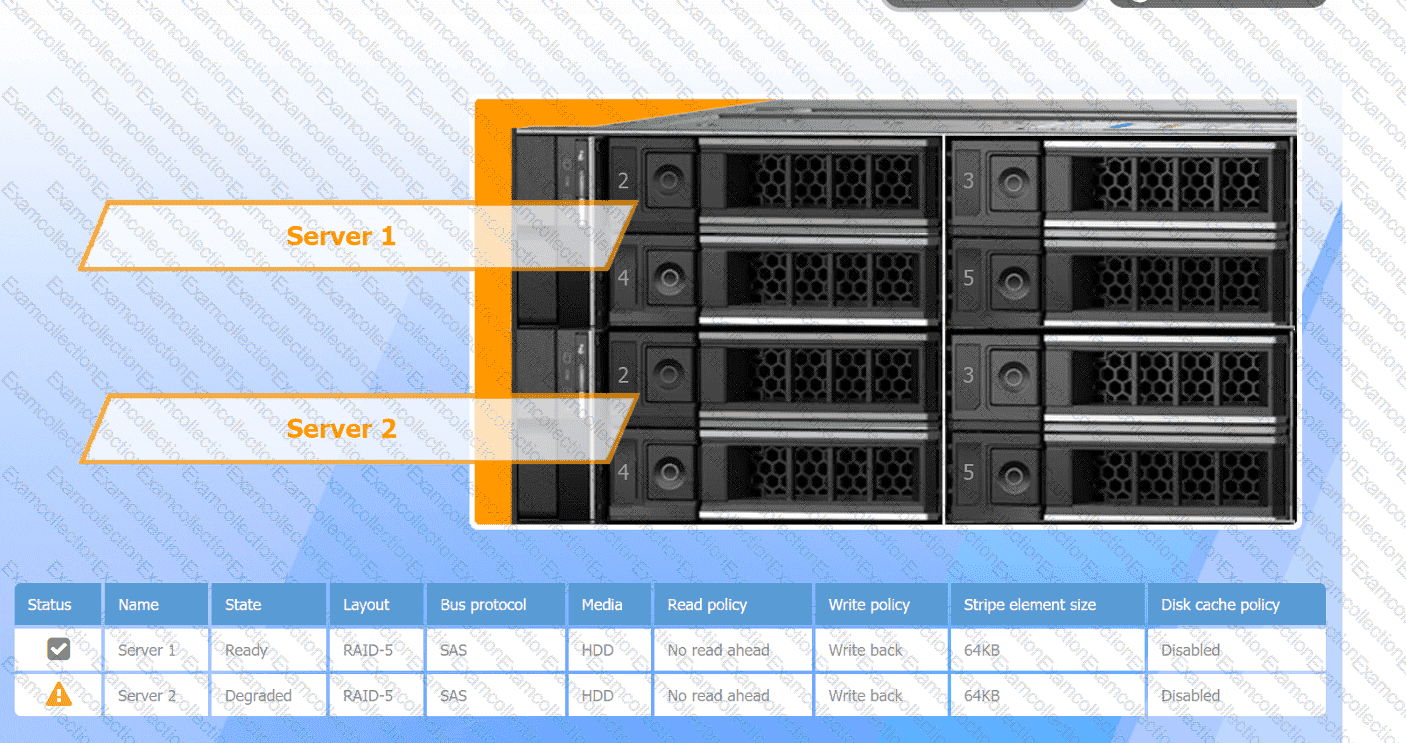

The degraded status on Server 2 indicates a RAID-5 issue, typically due to a failed or failing drive. In RAID-5 configurations, when one drive fails, the system can still operate but with reduced performance as parity data is used to rebuild missing data on-the-fly.

Recommended Replacement Drive:

To minimize performance degradation, the replacement drive should be:

SAS HDD with the same specifications (64KB stripe size, no read-ahead, and write-back policy).

Matching the configuration exactly ensures seamless integration and optimizes recovery speed in the RAID-5 array.

In RAID-5, degraded performance is expected when one drive fails, as parity data needs to rebuild missing information during each read/write process. Replacing the failed drive restores the RAID array to optimal status, reducing the load on existing drives and returning the system to normal read/write performance. The write-back policy and disabled disk cache settings are designed to reduce latency and increase efficiency, essential for handling real-time applications.

A user reports poor performance on the

application server.

INSTRUCTIONS

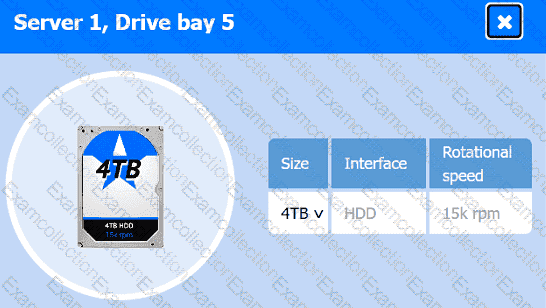

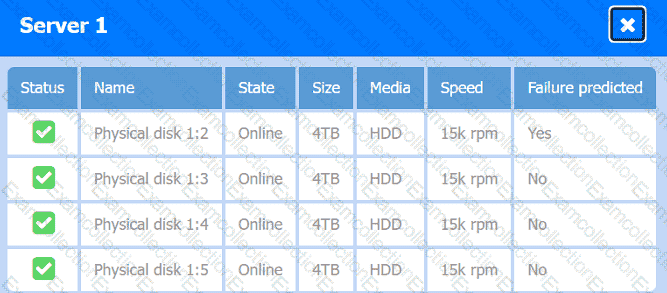

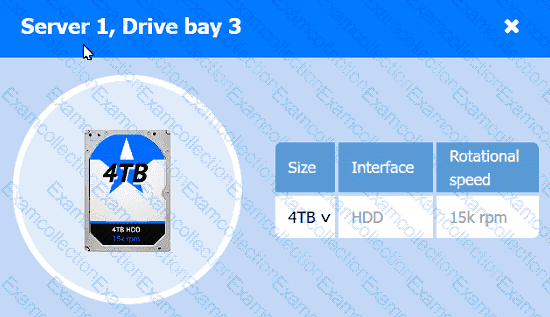

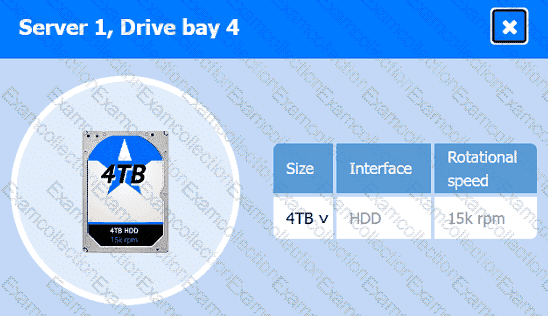

Click on Server 1 and Server 2 and review

the information presented in each chart to

determine which drives need to be replaced.

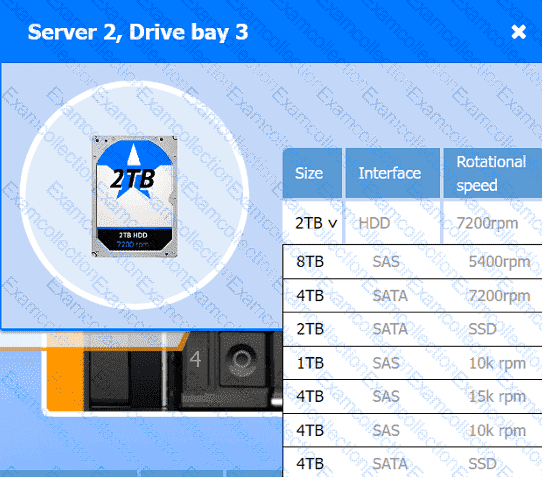

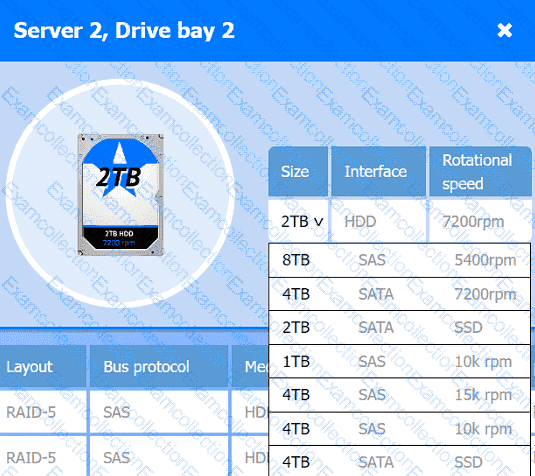

Select the appropriate replacement drive

that should be used, for the least

performance degradation to the server.

A computer server with many black and silver parts AI-generated content may be incorrect.A computer server with many black boxes Description automatically generated with medium confidence

A screen shot of a computer AI-generated content may be incorrect.A screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A screenshot of a computer AI-generated content may be incorrect.A screenshot of a computer Description automatically generated

A screenshot of a computer AI-generated content may be incorrect.A screenshot of a computer Description automatically generated

Since the issue only occurs during scanning and copying (not printing or faxing), the problem is isolated to the document feeder. A vertical line is typically caused by debris or damage on theglass under the ADF (Automatic Document Feeder), not on components related to printing.

Dual-BIOS motherboards contain two firmware chips. If theprimary BIOS becomescorrupted, the system canfailover to the secondary BIOS. Most boards allow manual enabling of the secondary BIOS via a physical switch or jumper.

Option B:Downgrading firmware may not be possible if the system won’t POST or access UEFI.

Option C:Not necessary until both BIOS chips are non-functional.

Option D:Thermal paste affects heat dissipation, not BIOS/boot behavior.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.5: Given a scenario, troubleshoot problems related to motherboards, RAM, CPU, and power.

Comprehensive and Detailed Explanation From Exact Extract (Aligned With CompTIA A+ 220-1201 Study Guide)

The CompTIA A+ wireless networking section describes key differences between 2.4 GHz and 5 GHz Wi-Fi frequencies.

2.4 GHz provides:

Better range

Better wall penetration

Better performance through structures and obstacles

This means less interference from physical structures, which is the primary advantage of 2.4 GHz over 5 GHz.

This maps directly to:

✔ C. Minimized structural interference

Why the other options are incorrect

A. Communication without external power

Not related to Wi-Fi frequencies.

B. Security for close-proximity connections

No Wi-Fi frequency provides inherent security advantages.

D. Increased channel options

5 GHz has more channels, not 2.4 GHz.
