VMware 2V0-41.24 - VMware NSX 4.X Professional V2

In NSX, BGP is the only supported dynamic routing protocol on a Tier-1 Gateway. OSPF is not supported at the Tier-1 level; it is only available on Tier-0 Gateways. This limitation means that for dynamic routing on a Tier-1 Gateway, administrators can configure BGP to exchange routing information with connected Tier-0 Gateways.

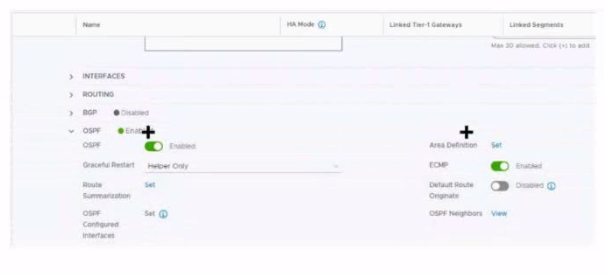

The correct answer is to enable the OSPF toggle and to add an Area Definition for the Tier-0 gateway in the image. These two items are required to configure OSPF on the Tier-0 gateway, as explained in the web search results123.

To mark your answers by clicking twice on the image, you can double-click on the toggle switch next to OSPF to turn it on. The switch should change from gray to blue, indicating that the option is enabled. Then, you can double-click on the Set button next to Area Definition to add an area definition. A pop-up window should appear where you can specify the area ID and type.

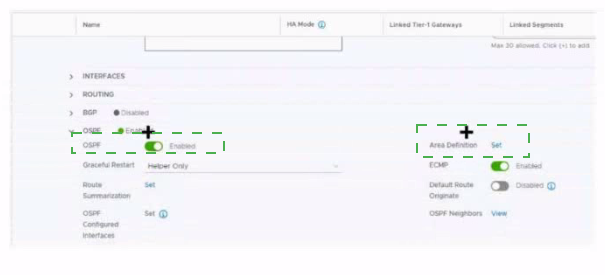

1. Click the OSPF toggle to enable OSPF 2. In the Area Definition field, click Set to add an area definition https://docs.vmware.com/en/VMware-NSX-T-Data-Center/3.2/administration/GUID-5BEC626C-5312-467D-B873-8E117349E9FC.html

The Network Engineer role in NSX is a built-in role that provides permissions to apply configuration changes on NSX components, including NSX Edge. It is the most restrictive role that still allows users to make changes, whereas roles like Network Operator are typically limited to read-only access.

When two virtual machines are connected on the same overlay segment, they are part of the same Layer 2 broadcast domain. In this case, the communication between the two VMs is happening within the same broadcast domain, which means that broadcast traffic can be sent to all devices on the segment. Since the ping is successful, the two VMs can communicate directly over Layer 2 without needing routing.

The set service nsx-manager log-level debug command is used to set the NSX Manager’s logging level to debug mode. Setting the log level to debug can provide more detailed logging information, which is useful for troubleshooting issues within the NSX Manager.

It supports a 4-byte autonomous system number: BGP on a Tier-0 Gateway supports 4-byte AS (Autonomous System) numbers, which are necessary for larger routing domains.

Can be used as an Exterior Gateway Protocol: BGP is commonly used as an Exterior Gateway Protocol to establish routing between different autonomous systems (AS).

BGP is enabled by default: On a Tier-0 Gateway, BGP is typically enabled by default, allowing administrators to configure it for external routing.

Switch Visualization in the NSX UI provides a clear mapping between virtual NICs (vNICs) and the physical adapters on the host. This feature allows administrators to see how virtual network interfaces connect to the underlying physical network infrastructure, which is essential for troubleshooting connectivity issues on transport nodes.

https://docs.vmware.com/en/VMware-NSX/4.1/administration/GUID-69604E49-BC8B-4777-BFD8-B98F8D1FF064.html

In NSX, the FABRIC message ID is used to capture and export syslog events related to host preparation and other fabric-related activities. These events are important for tracking and troubleshooting the setup and configuration of NSX components across the fabric, including host preparation events.
