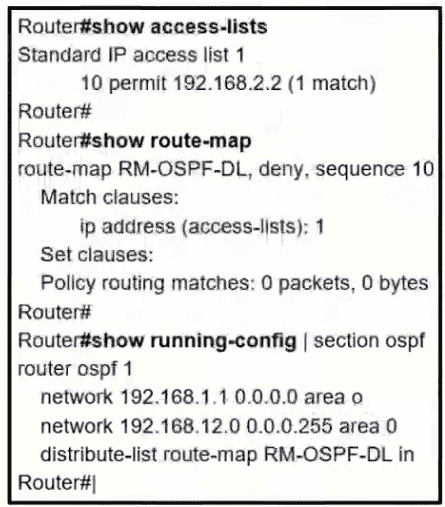

Refer to the exhibit.

Which two actions should be taken to access the server? (Choose two.)

A.

Modify the access list to add a second line of permit ip any

B.

Modify the access list to deny the route to 192.168.2.2.

C.

Modify distribute list seq 10 to permit the route to 192.168.2.2.

D.

Add a sequence 20 in the route map to permit access list 1.

E.

Add a floating static route to reach to 192.168.2.2 with administrative distance higher than OSPF

An engineer needs dynamic routing between two routers and is unable to establish OSPF adjacency. The output of the show ip ospf neighbor command shows that the neighbor state is EXSTART/EXCHANGE. Which action should be taken to resolve this issue?

A.

match the passwords

B.

match the hello timers

C.

match the MTUs

D.

match the network types

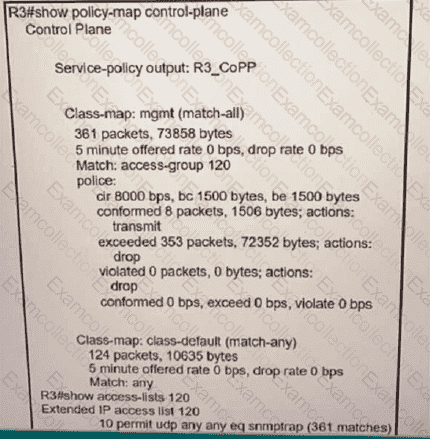

When configuring Control Plane Policing on a router to protect it from malicious traffic, an engineer observes that the configured routing protocols start flapping on

that device. Which action in the Control Plane Policy prevents this problem in a production environment while achieving the security objective?

A.

Set the conform-action and exceed-action to transmit initially to test the ACLs and transmit rates and apply the Control Plane Policy in the output direction

B.

Set the conform-action and exceed-action to transmit initially to test the ACLs and transmit rates and apply the Control Plane Policy in the input direction

C.

Set the conform-action to transmit and exceed-action to drop to test the ACLs and transmit rates and apply the Control Plane Policy m the input direction

D.

Set the conform-action to transmit and exceed-action to drop to test the ACLs and transmit rates and apply the Control Plane Policy m the output direction

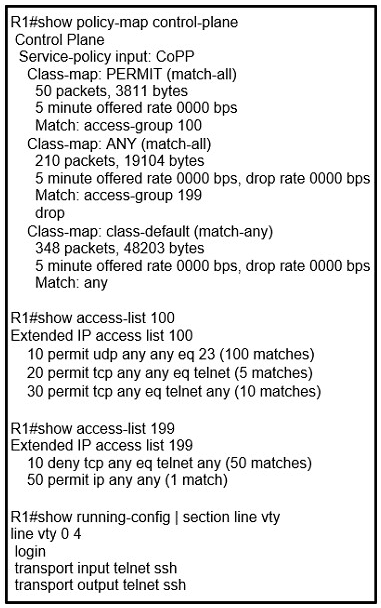

Refer to the exhibit.

Which two actions restrict access to router R1 by SSH? (Choose two.)

A.

Configure transport input ssh on line vty and remove sequence 30 from access list 100.

B.

Configure transport output ssh on line vty and remove sequence 20 from access list 100.

C.

Remove class-map ANY from service-policy CoPP

D.

Configure transport output ssh on line vty and remove sequence 10 from access list 199.

E.

Remove sequence 10 from access list 100 and add sequence 20 deny tcp any any eq telnet to access list 199

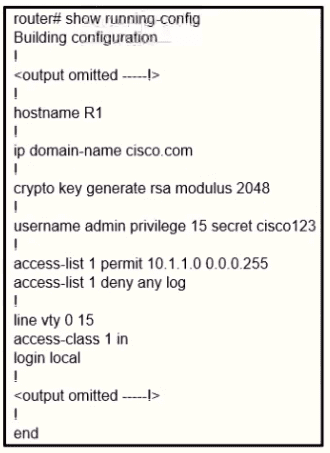

Refer to the exhibit.

A user cannot SSH to the router. What action must be taken to resolve this issue?

A.

Configure transport input ssh

B.

Configure transport output ssh

C.

Configure ip ssh version 2

D.

Configure ip ssh source-interface loopback0

What are two purposes of using IPv4 and VPNv4 address-family configurations in a Layer 3 MPLS VPN? (Choose two.)

A.

The VPNv4 address is used to advertise the MPLS VPN label.

B.

RD is prepended to the IPv4 route to make it unique.

C.

MP-BGP is used to allow overlapping IPv4 addresses between customers to advertisethrough the network.

D.

The IPv4 address is needed to tag the MPLS label.

E.

The VPNv4 address consists of a 64-bit route distinguisher that is prepended to the IPv4prefix.

An engineer configured Reverse Path Forwarding on an interface and noticed that the routes are dropped when a route lookup fails on that interface for a prefix that is available in the routing table Which interface configuration resolves the issue?

A.

ip verify unicast source reachable-via rx

B.

ip verify unicast source reachable-via any

C.

ip verify unicast source reachable-via allow-default

D.

ip verify unicast source reachable-via 12-src

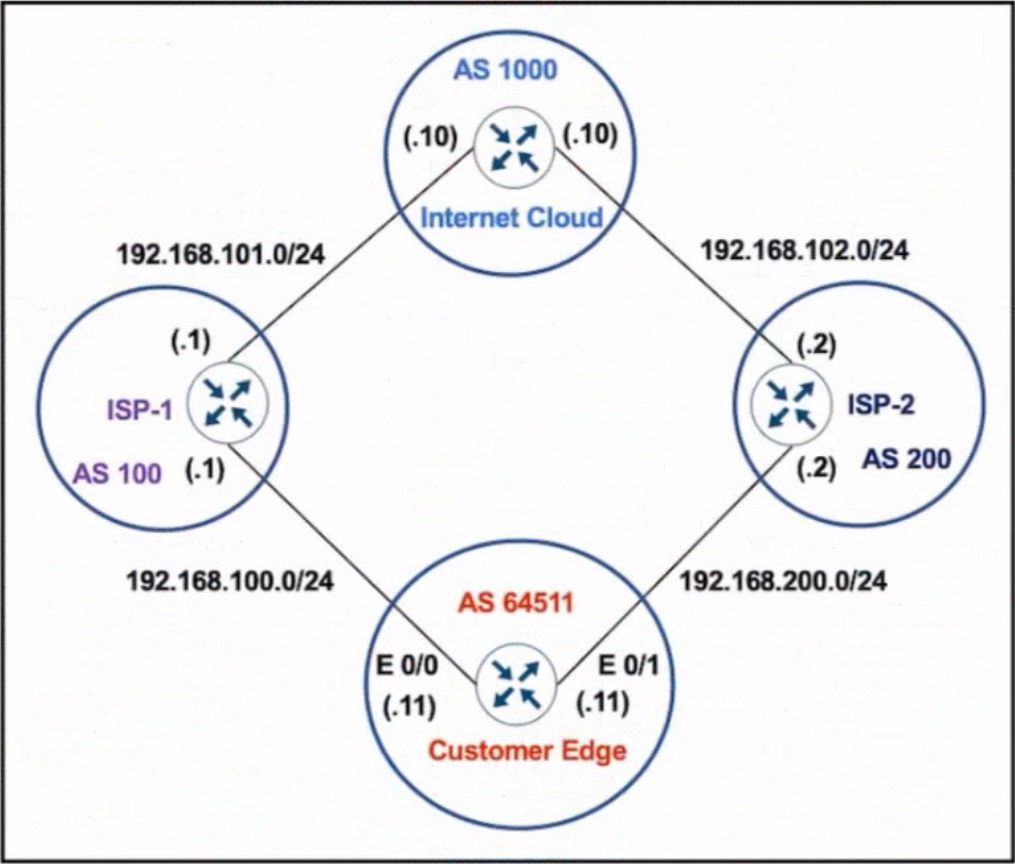

Refer to the exhibit. The network administrator has configured the Customer Edge router (AS 64511) to send only summarized routes toward ISP-1 (AS 100) and ISP-2 (AS 200).

router bgp 64511

network 172.16.20.0 mask 255.255.255.0

network 172.16.21.0 mask 255.255.255.0

network 172.16.22.0 mask 255.255.255.0

network 172.16.23.0 mask 255.255.255.0

aggregate-address 172.16.20.0 255.255.252.0

After this configuration. ISP-1 and ISP-2 continue to receive the specific routes and the summary route. Which configuration resolves the issue?

A.

router bgp 64511aggregate-address 172.16.20.0 255.255.252.0 summary-only

B.

router bgp 64511neighbor 192.168.100.1 summary-onlyneighbor 192.168.200.2 summary-only

C.

interface E 0/0ip bgp suppress-map BLOCK_SPECIFIC!interface E 0/1ip bgp suppress-map BLOCK_SPECIFIC!ip prefix-list PL_BLOCK_SPECIFIC permit 172.16.20.0/22 ge 24!route-map BLOCK_SPECIFIC permit 10match ip address prefix-list PL_BLOCK_SPECIFIC

D.

ip prefix-list PL_BLOCK_SPECIFIC deny 172.16.20.0/22 ge 22ip prefix-list PL BLOCK SPECIFIC permit 172.16.20.0/22!route-map BLOCK_SPECIFIC permit 10match ip address prefix-list PL_BLOCK_SPECIFIC!router bgp 64511aggregate-address 172.16.20.0 255 255.252.0 suppress-map BLOCKSPECIFIC

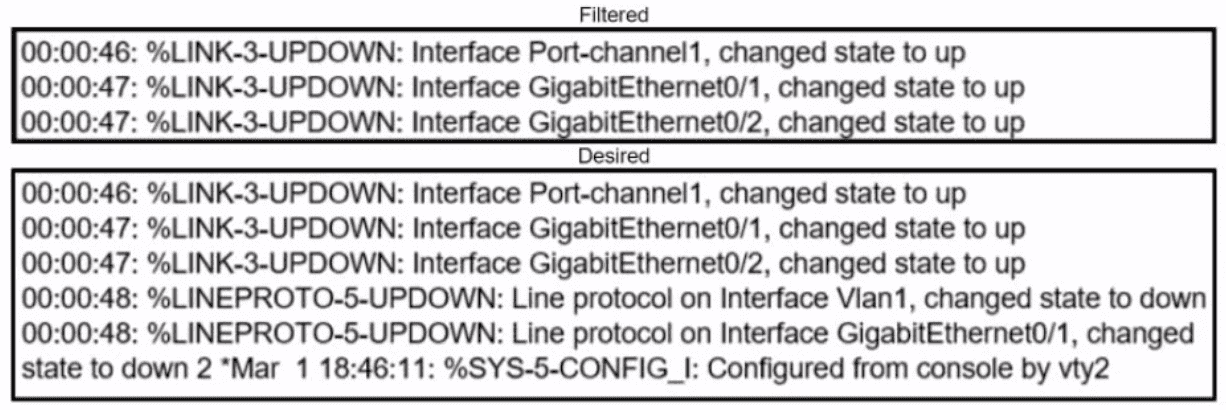

Refer to the exhibits. An engineer filtered messages based on severity to minimize log messages. After applying the filter, the engineer noticed that it filtered required messages as well. Which action must the engineer take to resolve the issue?

A.

Configure syslog level 2.

B.

Configure syslog level 3.

C.

Configure syslog level 4.

D.

Configure syslog level 5.

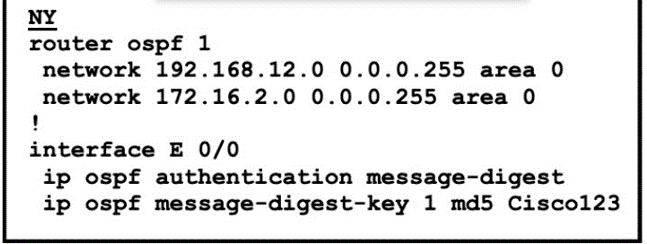

Refer to the exhibit.

The neighbor relationship is not coming up Which two configurations bring the adjacency up? (Choose two)

A.

NYrouter ospf 1area 0 authentication message-digest

B.

LAinterface E 0/0ip ospf message-digest-key 1 md5 Cisco123

C.

NYinterface E 0/0no ip ospf message-digest-key 1 md5 Cisco123ip ospf authentication-key Cisco123

D.

LAinterface E 0/0ip ospf authentication-key Cisco123

E.

LArouter ospf 1area 0 authentication message-digest

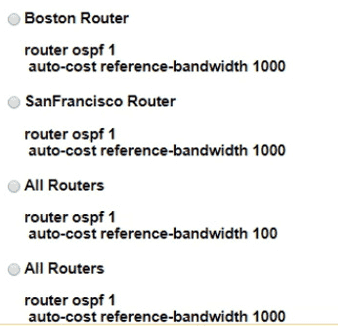

Refer to the exhibit.

SanFrancisco and Boston routers are choosing slower links to reach each other despite the direct links being up Which configuration fixes the issue?

A.

Option A

B.

Option B

C.

Option C

D.

Option D

Which IGPs are supported by the MPLS LDP autoconfiguration feature?

A.

RIPv2 and OSPF

B.

OSPF and EIGRP

C.

OSPF and ISIS

D.

ISIS and RIPv2

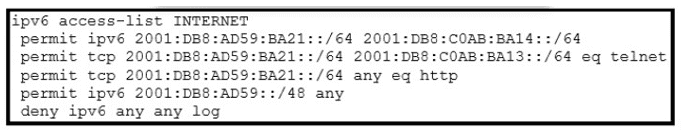

Refer to the exhibit.

When monitoring an IPv6 access list, an engineer notices that the ACL does not have any hits and is causing unnecessary traffic to pass through the interface Which command must be configured to resolve the issue?

A.

access-class INTERNET in

B.

ipv6 traffic-filter INTERNET in

C.

ipv6 access-class INTERNET in

D.

ip access-group INTERNET in

What statement about route distinguishes in an MPLS network is true?

A.

Route distinguishes make a unique VPNv4 address across the MPLS network.

B.

Route distinguishers allow multiple instances of a routing table to coexist within the edge router.

C.

Route distinguishes are used for label bindings

D.

Route distinguishes define which prefixes are imported and exported on the edge router

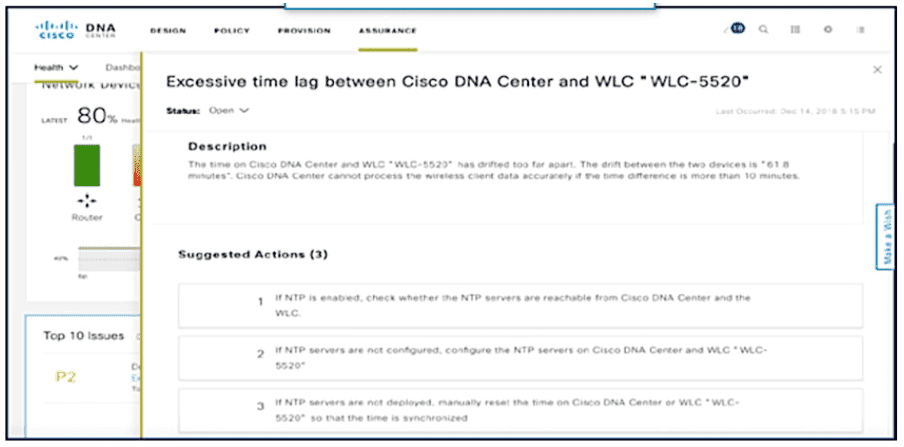

Exhibit:

NTP is configured across the network infrastructure and Cisco DNA Center. An NTP issue was reported on the Cisco DNA Center at 17:15. Which action resolves the issue?

A.

Check and resolve reachability between the WLC and the NTP server

B.

Reset the NTP server to resolve any synchronization issues for all devices

C.

Check and resolve reachability between Cisco DNA Center and the NTP server

D.

Check and configure NTP on the WLC and synchronize with Cisco DNA Center
