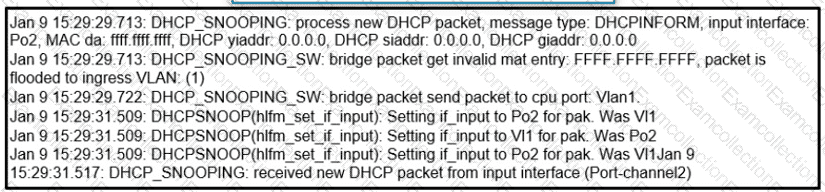

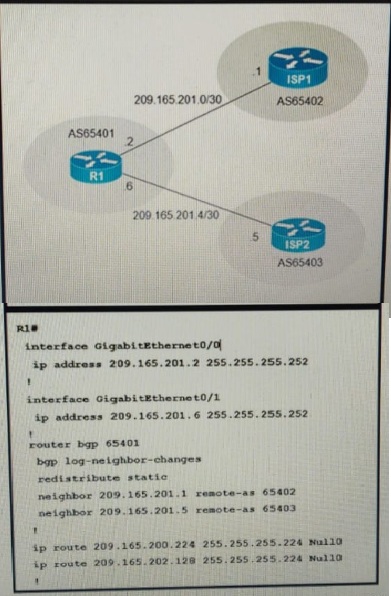

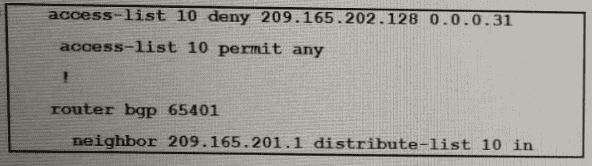

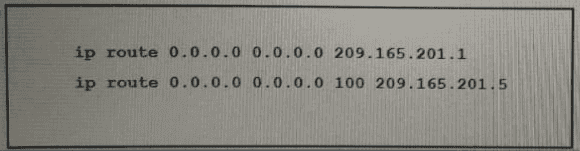

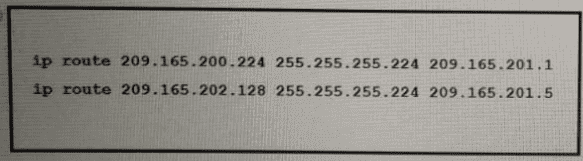

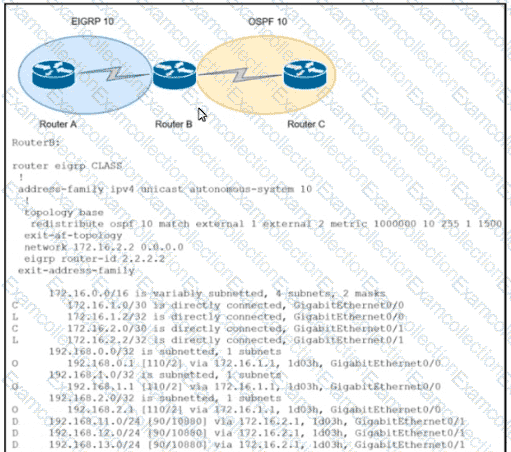

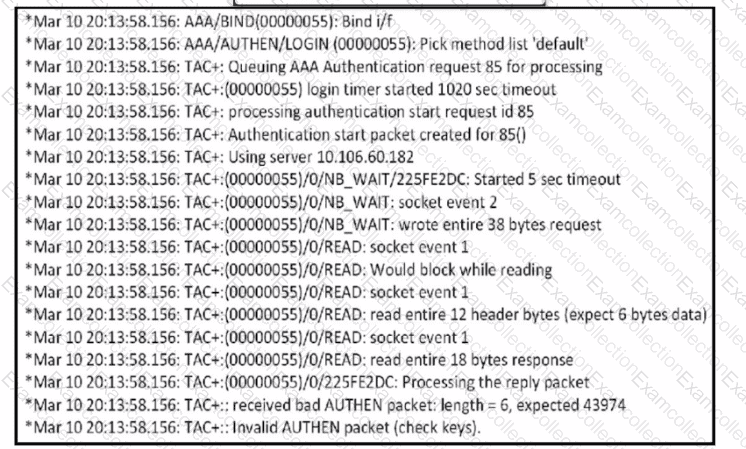

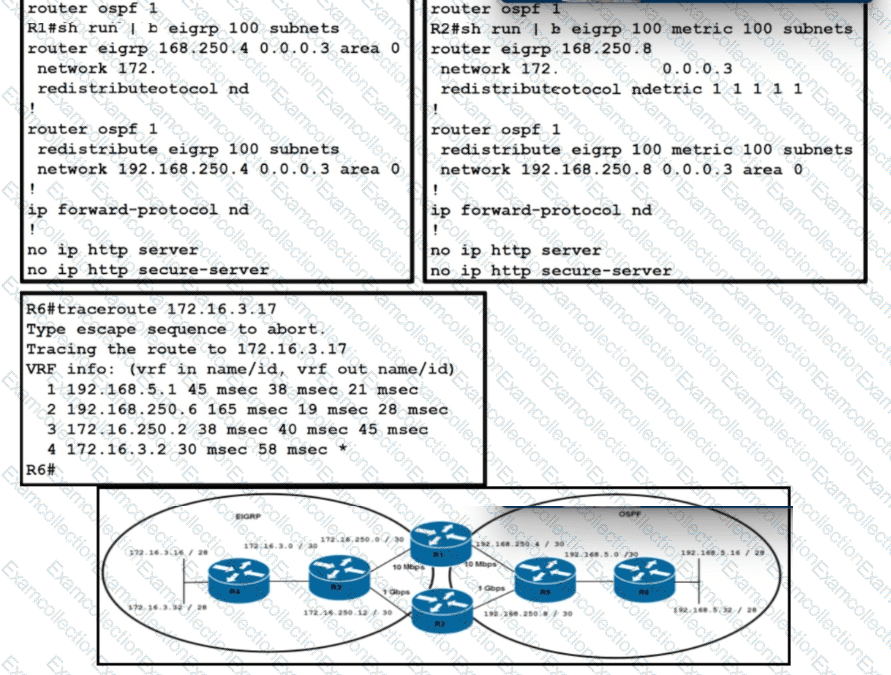

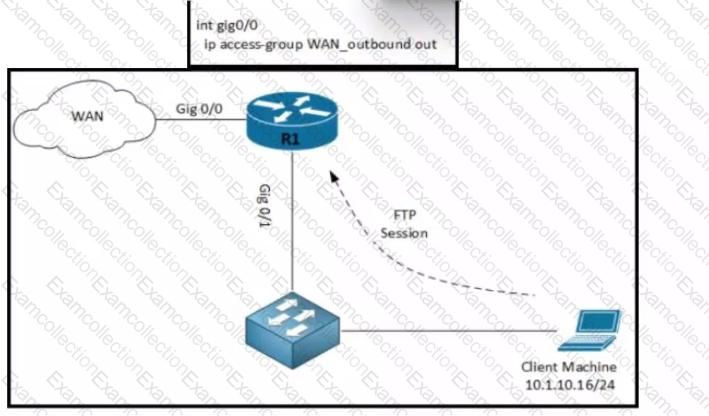

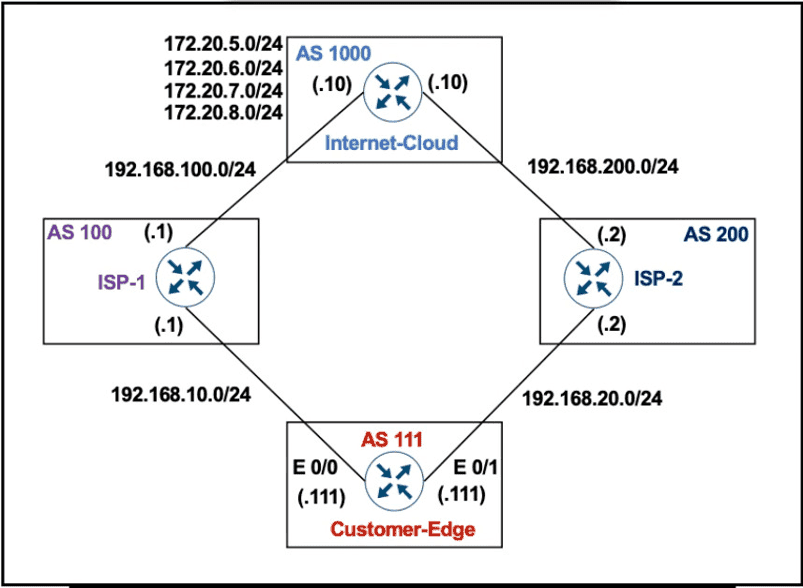

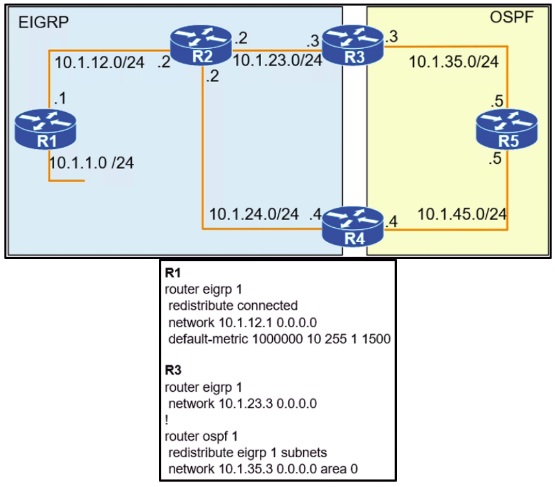

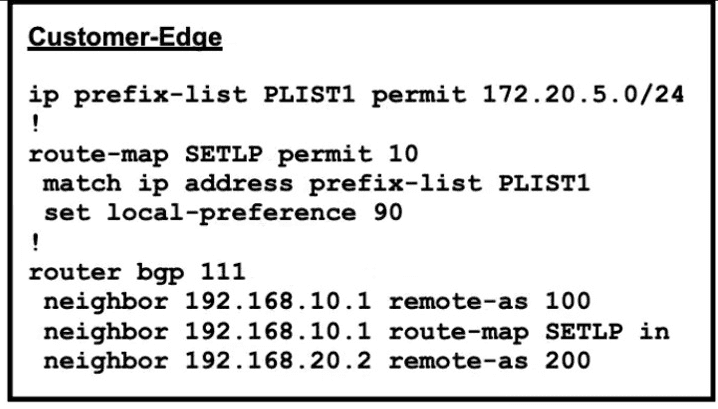

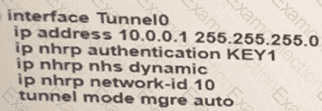

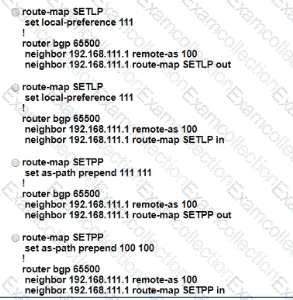

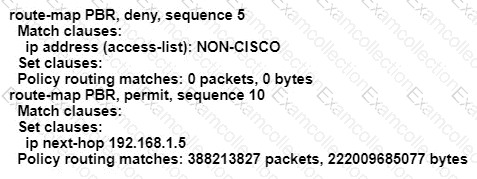

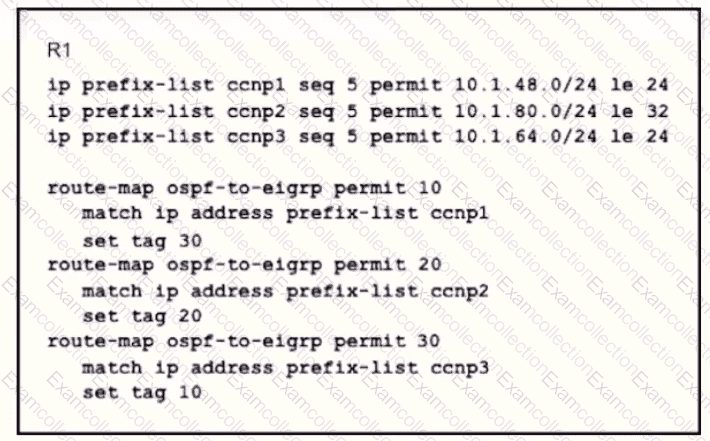

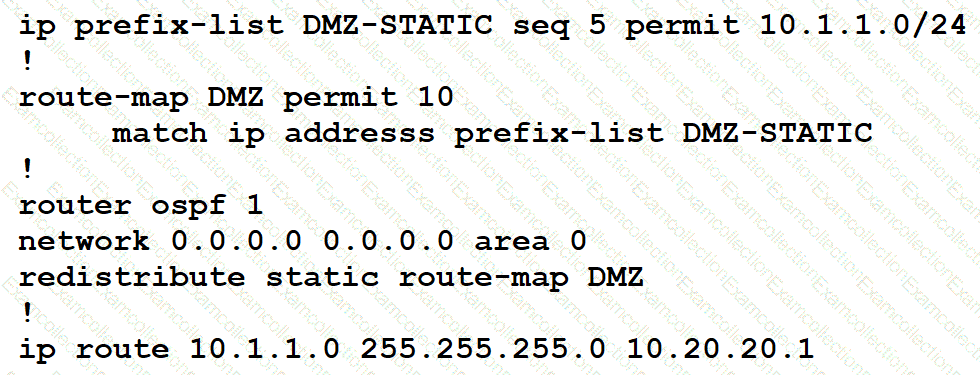

There is an implicit deny all at the end of any route-map so all other traffic that does not match 172.20.5.0/24 would be dropped. Therefore we have to add a permitsequence at the end of the route-map to allow other traffic.

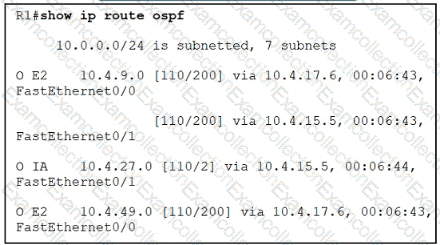

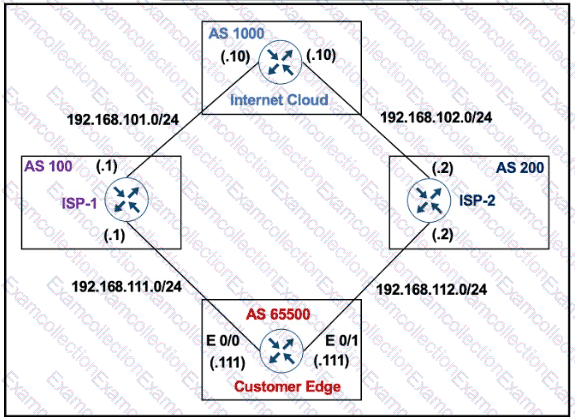

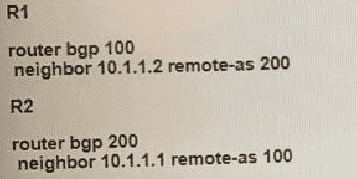

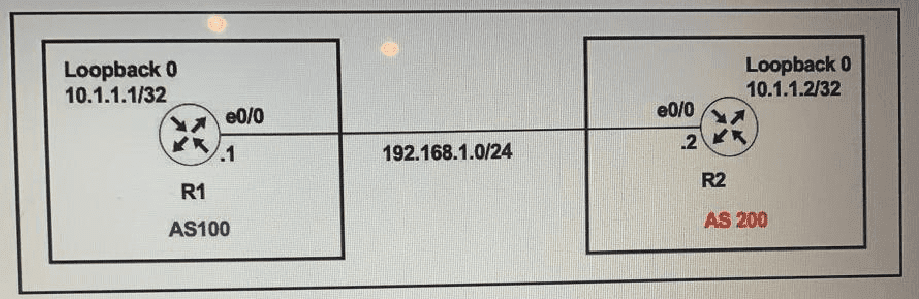

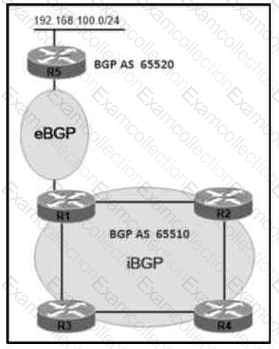

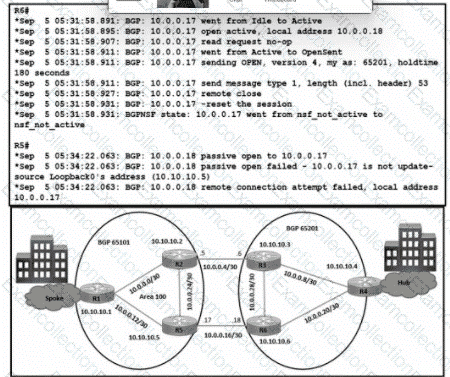

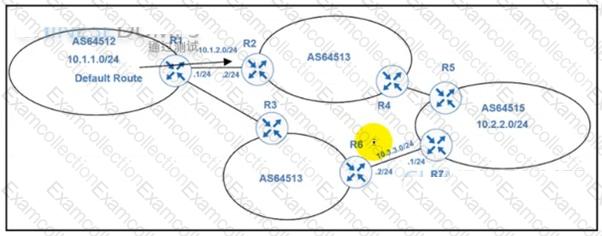

The default value of Local Preference is 100 and higher value is preferred so we have to set the local preference of AS100 lower than that of AS200.

https://www.cisco.com/c/en/us/support/docs/ip/border-gateway-protocol-bgp/23675-27.html

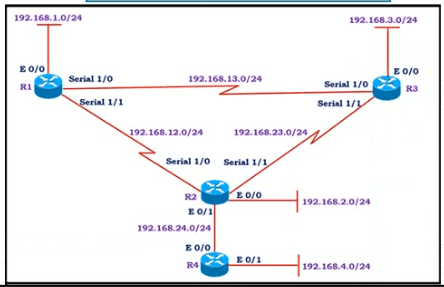

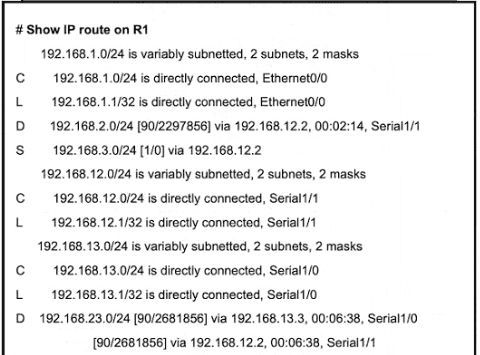

According to this question, uRPF is running in strict mode because packets are dropped even

when that route exists in the routing table. Maybe packets are dropped because the receiving

interface is different from the interface the local router uses to send packets to that destination.

The ip verify unicast source reachable-via rx command enables Unicast RPF in strict mode.

To enable loose mode, administrators can use the any option (ip verify unicast source

reachable-via any). In loose mode, it doesn’t matter if we use this interface to reach the source

or not.

The allow-default option allows the use of the default

route in the source verification process.

https://community.cisco.com/t5/other-network-architecture/out-of-band-router-access/td-p/333295

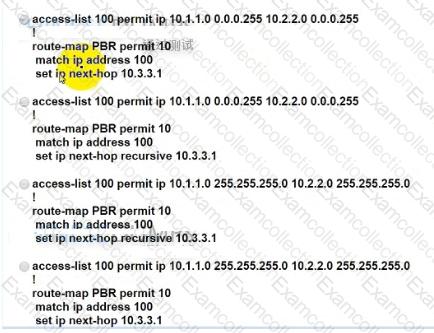

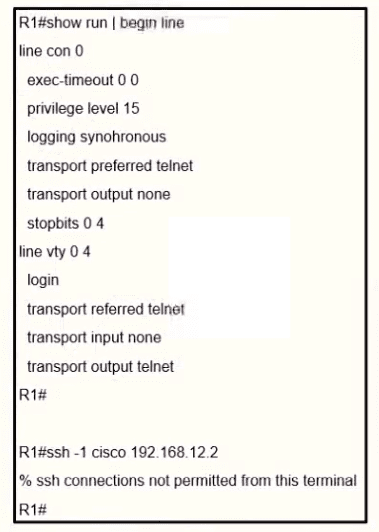

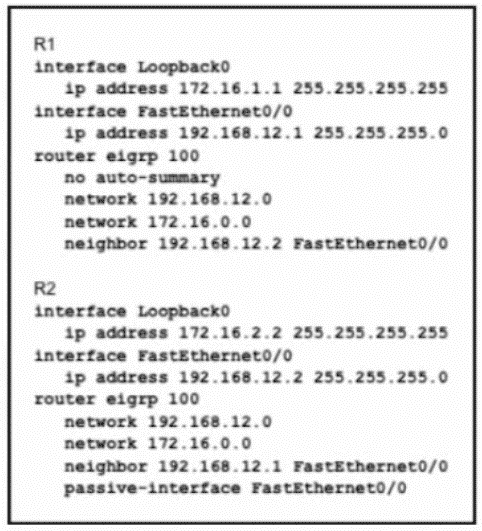

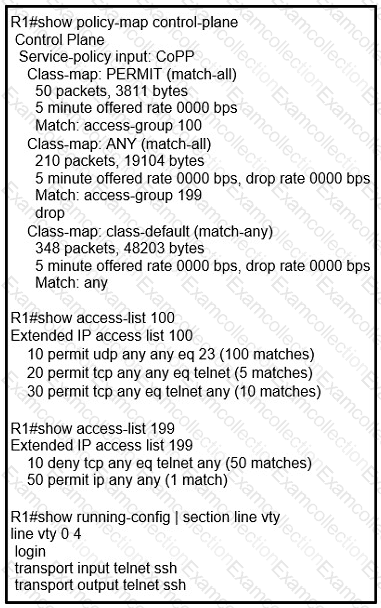

The “transport output none” command prevents any protocol connection made from R1.

Therefore our SSH connection to 192.168.12.2 was refused. In order to fix this problem we can

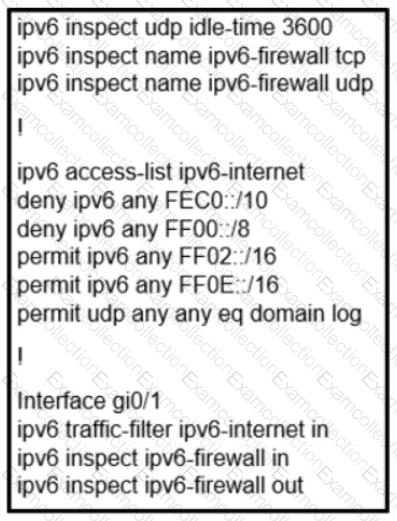

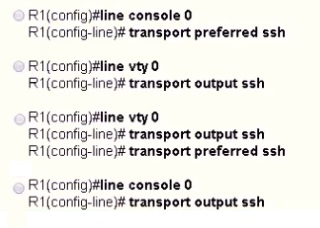

configure “transport output ssh” under “line console 0” of R1.

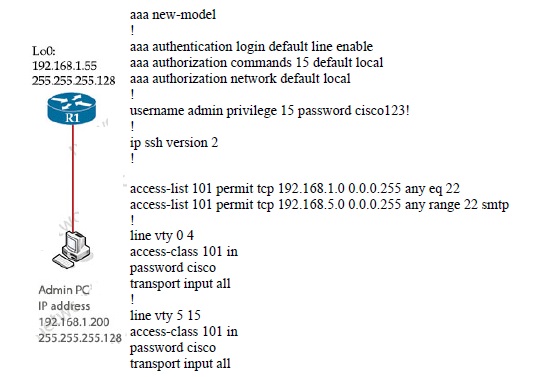

Note: The parameter “-l” specifies the username to log in as on the remote machine.

Required Min RX Interval: This is the minimum interval, in microseconds, between received BFD Control packets that this system is capable of supporting.

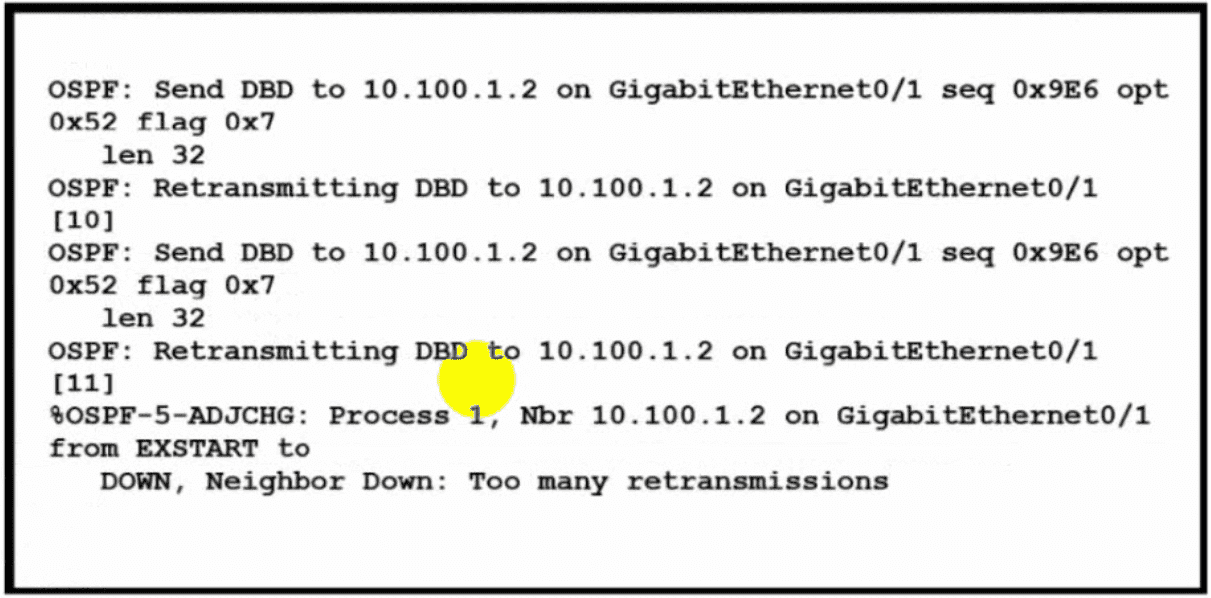

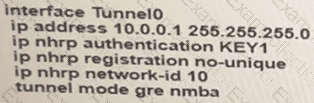

By default, the priority is 1 on all routers so we can set the OSPF priority of the hub to a value which is greater than 1 to make sure it would become the DR.

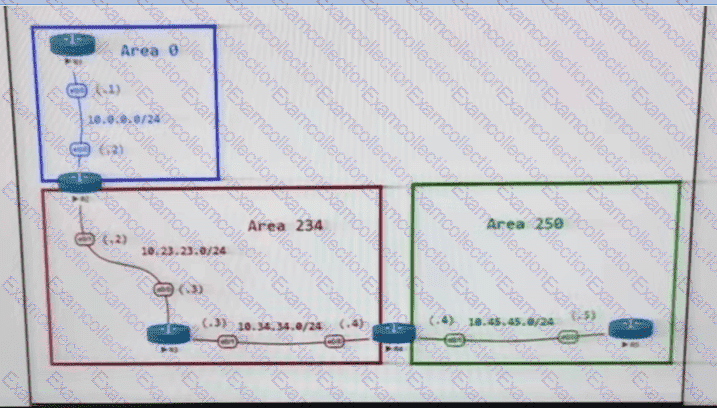

Diagram Description automatically generated

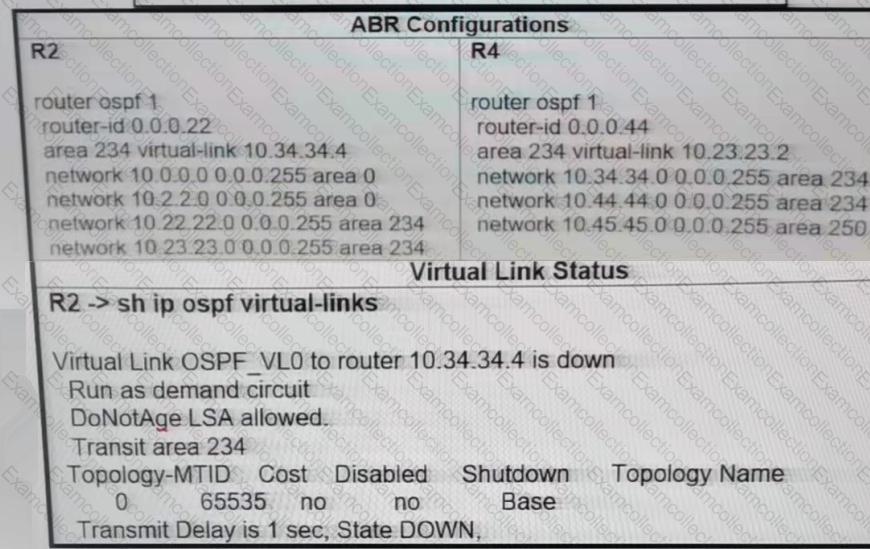

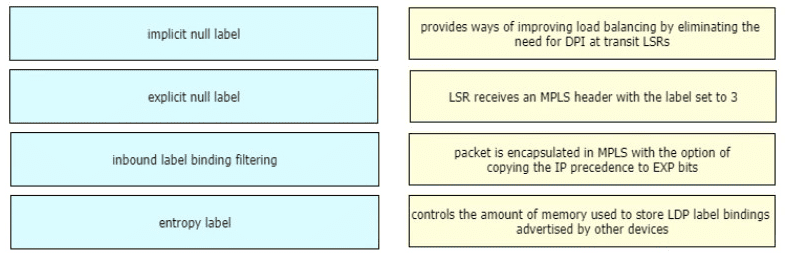

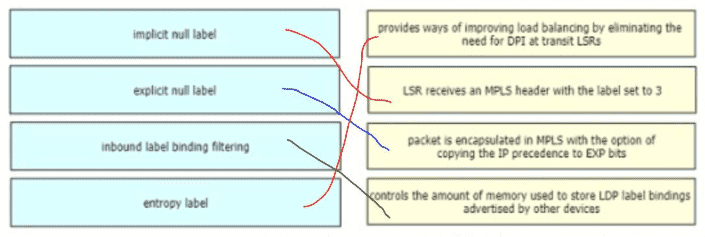

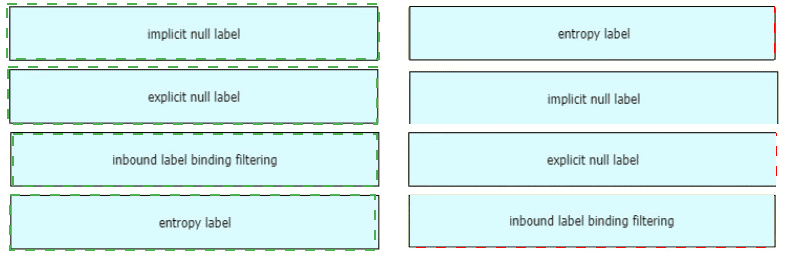

The MPLS LDP Inbound Label Binding Filtering feature can be used to control the amount of

memory used to store Label Distribution Protocol (LDP) label bindings advertised by other

devices. For example, in a simple Multiprotocol Label Switching (MPLS) Virtual Private Network

(VPN) environment, the VPN provider edge (PE) devices might require label switched paths

(LSPs) only to their peer PE devices (that is, they do not need LSPs to core devices). Inbound

label binding filtering enables a PE device to accept labels only from other PE devices.

Desired Min TX Interval: This is the minimum interval, in microseconds, that the local system would like to use when transmitting BFD Control packets, less any jitterapplied. The value zero is reserved.

Required Min Echo RX Interval: This is the minimum interval, in microseconds, between received BFD Echo packets that this system is capable of supporting, less anyjitter applied by the sender. If this value is zero, the transmitting system does not support the receipt of BFD Echo packets.

To turn off terminal monitor, use “terminal no monitor” in the enable mode

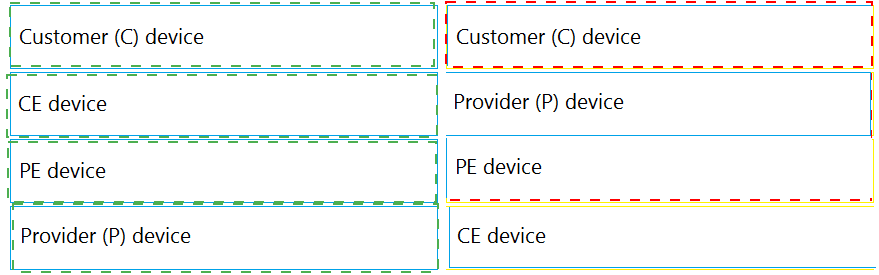

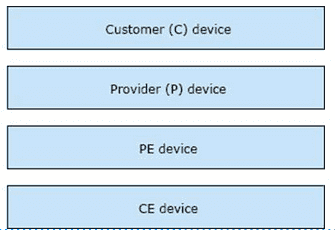

MPLS Network Protocols

+ IGP: OSPF, EIGRP, IS-IS on core facing and core links+ RSVP and/or LDP on core and/or core facing links ->

+ MP-iBGP on PE devices (for MPLS services), MP-BGP: Multiprotocol Border Gateway Protocol, used for MPLS L3 VPN -> .
