Cisco weight is the Cisco-proprietary BGP path attribute used to influence outbound traffic selection on a local router. Weight is locally significant and is not advertised to BGP neighbors. A higher weight is preferred, and because weight is evaluated early in the Cisco BGP best-path algorithm, it is a direct way to make one exit path preferred over another on the router where the attribute is configured. Local preference also influences outbound traffic, but it is a well-known discretionary BGP attribute used inside an AS and is not Cisco proprietary. MED is primarily used to influence inbound path selection by suggesting to a neighboring AS which entry point should be preferred. AS-path prepending is also typically used for inbound traffic engineering by making a route appear less attractive to external peers. Communities can carry policy information, but they are not the Cisco-proprietary attribute in the list. Therefore, when the requirement specifically asks for the Cisco proprietary BGP path attribute that influences outbound traffic flow, the answer is weight.

Bootstrap Router is the standards-based mechanism for dynamic Rendezvous Point discovery in PIM Sparse Mode. Cisco supports several RP discovery methods, but they are not equivalent from a standards perspective. Auto-RP is Cisco-developed and widely used in Cisco environments, but it is not the standards-based choice. Static RP configuration is simple and deterministic, but it does not provide dynamic discovery and requires every router to be configured consistently. Anycast RP is a redundancy and load-sharing design in which multiple RPs share the same RP address, usually with MSDP or another synchronization method, but it is not the RP discovery mechanism itself. BSR allows candidate RPs and candidate BSRs to advertise RP-set information through the PIM domain so routers can learn RP mappings dynamically. This makes BSR suitable for large PIM domains where manual static RP configuration becomes operationally risky. In design, the architect should also protect BSR/RP placement, scope group ranges, and validate convergence behavior during RP or BSR failure. Reference topics: PIM-SM, Bootstrap Router, RP discovery, Auto-RP comparison, multicast control-plane design.

The company must prevent itself from advertising routes learned from one ISP to the other ISP. If it receives full Internet tables from both providers and then re-advertises those learned prefixes, it can unintentionally become a transit autonomous system. The proper BGP design is to apply outbound route policy so only the company’s own originated prefixes are advertised to the ISPs, while routes learned from ISP1 are never advertised to ISP2 and routes learned from ISP2 are never advertised to ISP1. A route map or equivalent prefix filtering policy applied outbound to the ISP neighbors achieves that goal. Local preference influences outbound path selection inside the company AS; it does not prevent transit advertisements. MED influences how a neighboring AS may enter the company network, but it does not stop the company from advertising third-party routes. Tagging incoming routes with no-export is not as deterministic as simply filtering what is advertised to each provider and may still allow undesirable routing behavior within the directly connected provider. Therefore, the design should include outbound route filtering with a route map.

BFD is not required for the specific failure described: a physical fiber break on point-to-point routed links. In a Layer 3 campus or routed-access design, a direct physical link failure is detected by the interface state change, so the routing protocol can react immediately without waiting for hello/dead timers. Cisco campus design guidance favors point-to-point routed links partly because they give rapid convergence and avoid STP delays. BFD is valuable when a forwarding-path failure is not reliably detected by Layer 1 or Layer 2, or when a protocol adjacency must detect loss faster than its native timers. It does not automatically create convergence by itself; it detects failure and notifies the routing protocol. For a clean fiber cut on a routed point-to-point link, link-down detection is already fast enough for sub-second failover in the design. OSPF timer tuning is also not the preferred design answer for this physical-failure case. Reference topics: routed access design, point-to-point links, link-failure detection, BFD, OSPF convergence.

Bootstrap Router is the standards-based mechanism that supports dynamic RP discovery in a PIM sparse-mode domain. Cisco documentation distinguishes Auto-RP, which is Cisco-proprietary, from BSR, which is defined for standards-based RP distribution. With BSR, candidate RPs advertise their availability, and the elected bootstrap router distributes RP-set information throughout the PIM domain. This removes the operational burden of manually configuring the same static RP information on every multicast router. Anycast-RP provides RP redundancy and load sharing but does not by itself provide standards-based dynamic RP discovery across the domain. Static RP is simple but not dynamic. Auto-RP can dynamically distribute RP information, but it is not the standards-based answer. The design value of BSR is most visible in large multicast domains, where routers need consistent RP information and manual changes are risky. Therefore, when the question asks for a standards-based RP deployment that supports dynamic RP discovery, the correct answer is bootstrap router. Reference topics: PIM sparse mode, Bootstrap Router, candidate RP, RP-set distribution, dynamic RP discovery.

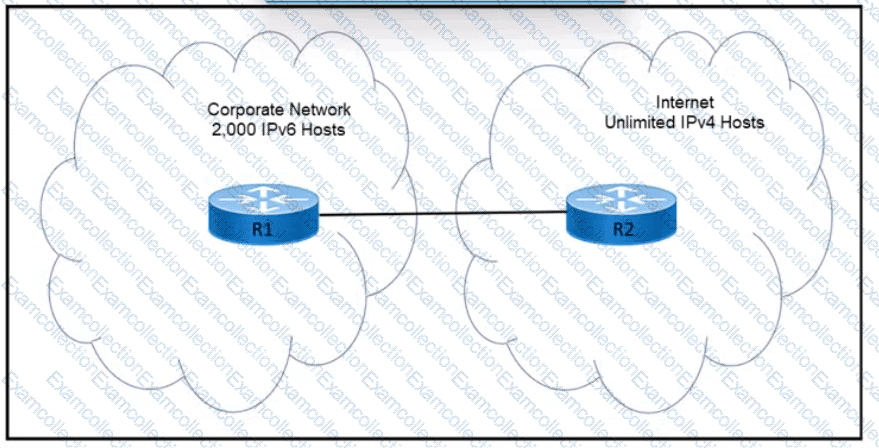

Stateful NAT64 is the correct translation solution when IPv6-only corporate hosts need Internet connectivity to IPv4 resources using a limited IPv4 address pool. NAT64 translates IPv6 client addresses to IPv4 addresses and maintains state for each session, allowing many IPv6 hosts to share a smaller set of IPv4 addresses through port multiplexing. The design is restricted to the 172.16.168.0/22 subnet, which provides an IPv4 pool that can be used for stateful translation. Stateless NAT64 requires algorithmic one-to-one address mapping and normally needs enough IPv4 address space to represent IPv6 hosts deterministically; it is not suitable when many clients must share a restricted IPv4 block. NAT66 translates IPv6 to IPv6 and does not provide access to IPv4 Internet resources. In a production design, stateful NAT64 is often paired with DNS64 so IPv6-only clients can resolve IPv4-only destinations through synthesized AAAA records. Reference topics: stateful NAT64, DNS64, IPv6-to-IPv4 translation, address conservation, Internet access migration.

Gateway Load Balancing Protocol is the first-hop redundancy protocol that provides load balancing while presenting a single default gateway IP address to hosts. Cisco’s GLBP documentation states that GLBP “provides load balancing over multiple routers using a single virtual IP address and multiple virtual MAC addresses.” That wording directly matches the requirement in the question. In a GLBP group, the active virtual gateway answers ARP requests for the virtual IP address and can return different virtual MAC addresses associated with active virtual forwarders. As a result, multiple routers forward traffic for the same subnet rather than leaving one router idle during normal operation. HSRP and VRRP provide first-hop redundancy, but their basic operation uses one active or master forwarding device for a virtual IP at a time unless multiple groups are manually engineered per VLAN. IRDP is not the Cisco campus FHRP used for this design. Therefore, when the requirement is automatic load balancing across multiple routers using one virtual IP and multiple virtual MAC addresses, GLBP is the correct protocol.

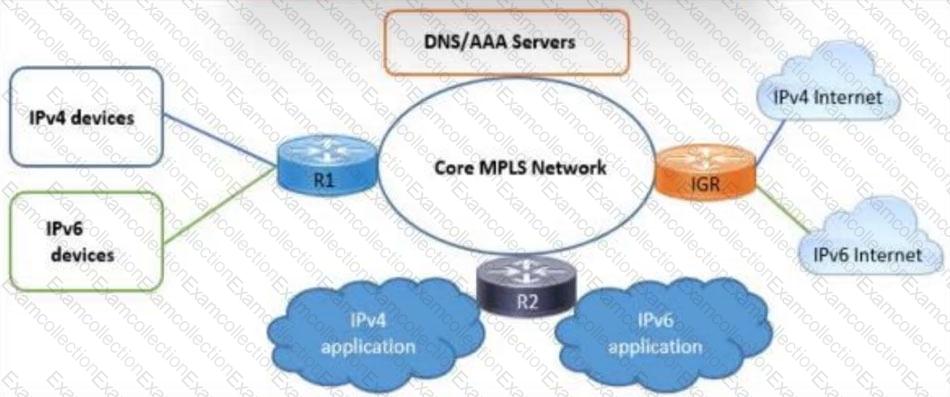

The design combines Dual-Stack Lite from the devices toward the core MPLS network and NAT44/64 from the MPLS network toward the Internet gateway router. The requirements describe IPv6-facing clients that still need access to IPv4 services and DNS behavior that allows the same service name to be reached during migration. Dual-Stack Lite carries IPv4 customer traffic across an IPv6 access or provider network by tunneling IPv4 packets over IPv6 toward a provider translation point. NAT44/64 services then provide translation or address-family interworking for IPv4-only resources. This combination is used when customer-facing access moves to IPv6 while legacy IPv4 services remain reachable during transition. A simple IPv6 tunnel from devices to the MPLS core does not provide the required IPv4 service translation. Using only NAT44/64 from end devices also shifts complexity to clients rather than placing translation at the network edge. The selected choices match the staged migration model: IPv6 transport with encapsulation in the access/core side and translation at the provider or gateway boundary. Reference topics: IPv6 transition, DS-Lite, NAT64, DNS64, IPv4-over-IPv6 tunneling.

Single-topology IS-IS with the transition feature is the correct design when IPv6 is being added to an existing IPv4 IS-IS network and both topologies must match exactly. In single-topology mode, IS-IS calculates one topology and uses it for both IPv4 and IPv6, which fits the requirement that the IPv4 and IPv6 paths and router levels remain the same on each interface. Cisco documentation notes that single-topology IS-IS IPv6 requires routers to run the same set of address families for adjacency consistency; during migration, transition support allows the network to operate while IPv6 is introduced gradually. Multi-topology IS-IS is used when IPv4 and IPv6 should be allowed to follow different topologies or when not all routers support the same address families. The question explicitly says the topologies will match exactly, so multi-topology is unnecessary. Single topology without the transition feature is risky during phased migration because routers that do not yet run both address families may fail adjacency checks or create blackholing. Reference topics: IS-IS for IPv6, single-topology IS-IS, transition mode, address-family consistency, IPv6 migration.

NBAR2 should be used to identify the affected cloud applications and then allocate bandwidth according to the measured application requirements. Modern collaboration suites often use dynamic ports, encrypted sessions, and multiple flows for voice, video, messaging, file sharing, and screen sharing. Classifying them only by static ports is unreliable and can misclassify traffic, especially when applications change transport behavior or use shared cloud endpoints. Cisco NBAR2 provides application recognition beyond basic port matching and can classify traffic by application signatures. Once the applications are identified, the QoS policy can be adjusted to give the required bandwidth, priority, or queue treatment. Reserving bandwidth only on perimeter routers is incomplete if congestion occurs elsewhere in the WAN path. Rate-limiting the applications would likely make the user experience worse. The key problem is that the existing policy works for other applications but not these cloud-based tools, so the first design step is accurate application visibility and classification. NBAR2 provides that visibility and supports a more precise QoS policy. Reference topics: NBAR2, application-aware QoS, cloud collaboration traffic, DSCP classification, bandwidth allocation.
