Cisco 300-420 - Designing Cisco Enterprise Networks (ENSLD) v1.1

StackWise Virtual is the correct technology for Cisco Catalyst 9500 aggregation switches when the design requires nonblocking Layer 2 multichassis EtherChannel from aggregation to access. The question specifically describes Catalyst 9500 switches located on different floors for availability, with access switches dual-homed through a Layer 2 MEC design. Traditional VSS was used on older Catalyst platforms such as Catalyst 4500 and 6500 families. For Catalyst 9000 platforms, Cisco uses StackWise Virtual to virtualize two physical switches into a single logical switching system. This enables multichassis EtherChannel, removes the need for STP to block one uplink, improves convergence, and provides device-level redundancy. vPC is a Nexus data-center technology, not a Catalyst campus aggregation technology. StackWise-180 refers to physical stack bandwidth behavior on specific access platforms and does not provide the same distributed campus aggregation function. Therefore, the design should use StackWise Virtual on the Catalyst 9500 aggregation pair. Reference topics: Catalyst 9500, StackWise Virtual, multichassis EtherChannel, campus aggregation, Layer 2 resiliency.

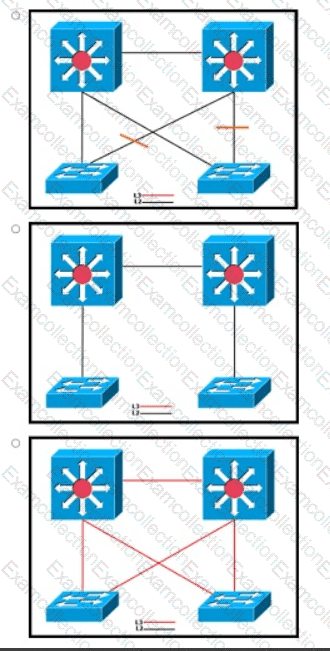

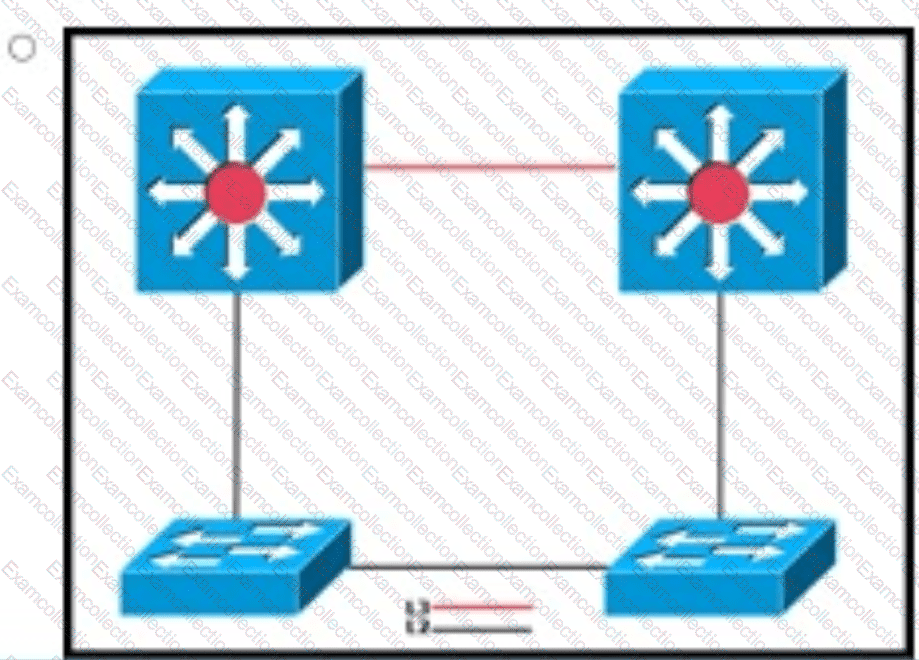

The selected design is correct because the requirement describes a resilient campus architecture that must support the same VXLAN at any access-layer switch while maintaining fast convergence and high availability. In Cisco campus and data-center-style fabric designs, VXLAN provides network virtualization by carrying Layer 2 adjacency over a routed or resilient transport. The correct design must avoid a fragile single spanning-tree domain and must provide redundant forwarding paths so that an access switch or uplink failure does not isolate the VLAN or VXLAN segment. The selected option represents the design that meets those conditions by allowing the overlay segment to be extended consistently across access switches while keeping the underlay resilient. Designs that rely on a traditional Layer 2 tree, a single aggregation point, or blocked redundant links would not meet the high availability and fast convergence objectives. The important design principle is that VXLAN should ride on a stable, redundant transport and should not depend on large Layer 2 failure domains. Reference topics: VXLAN campus design, overlay networking, fast convergence, access-layer resiliency, high availability.

Stateful NAT64 is the correct design because IPv6-only hosts must communicate with legacy IPv4 devices and only a small pool of IPv4 addresses is available for concurrent sessions. NAT64 translates IPv6 client traffic into IPv4 traffic, allowing IPv6-only endpoints to reach IPv4-only resources. A stateful implementation maintains translation state and can use a pool of IPv4 addresses for multiple IPv6 clients, which fits the requirement for up to 10 concurrent IPv6 hosts using 10 reserved IPv4 addresses. Static NAT- PT would require fixed one-to-one mappings and is less suitable for a pool-based concurrent access model. NAT66 translates between IPv6 prefixes and does not solve access to IPv4-only devices. Dynamic NAT-PT is an older transition mechanism and is not the preferred modern answer when NAT64 is available. The design should also include DNS64 when clients access IPv4-only services by name. Reference topics: IPv6 transition, stateful NAT64, DNS64, IPv6-only hosts, IPv4 legacy reachability.

Bidirectional PIM is the correct multicast protocol for this many-to-many financial application. The question states that most multicast sources also receive multicast traffic and that the design must not use source trees. Cisco describes BIDIR-PIM as a multicast mode built for many-to-many applications that use a shared tree rooted at the rendezvous point and avoid per-source shortest-path trees. This reduces multicast state because routers do not maintain separate source/group state for every active sender. PIM Sparse Mode can start with a shared tree, but it can switch to source trees, which violates the stated requirement. PIM-SSM is explicitly source-specific and requires receiver knowledge of the source, so it is not appropriate for a many-to-many model where source trees are disallowed. MSDP is not a multicast forwarding mode; it is used for source discovery between PIM-SM domains. The option text contains a spelling error, but the intended answer is BIDIR-PIM. The architect should verify RP placement, Designated Forwarder behavior, group ranges, and whether the application can tolerate shared-tree forwarding rather than shortest-path source trees. Reference topics: BIDIR-PIM, many-to-many multicast, shared tree, source-tree avoidance, multicast scaling.

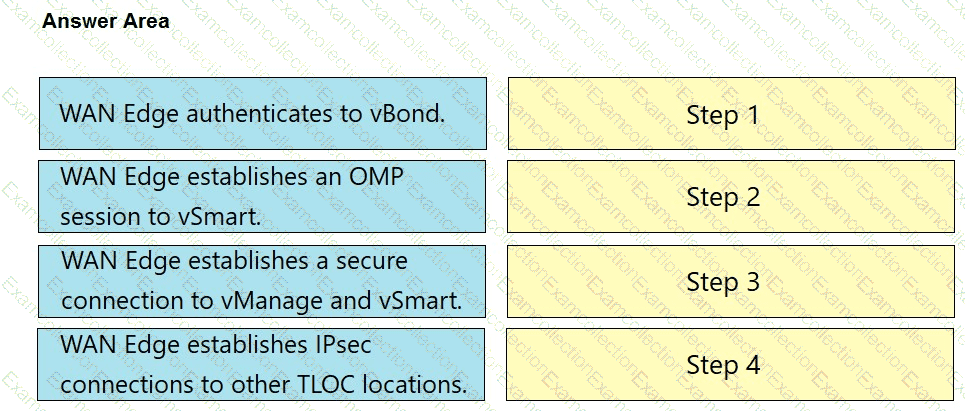

The SD-WAN onboarding sequence follows the controller trust and overlay-establishment workflow. A WAN Edge device first obtains basic reachability information through manual bootstrap, ZTP, or PnP-style provisioning so it can reach the orchestration components. It then establishes secure control connectivity to the orchestrator and validates identity through the certificate and authorized serial number information. After orchestration, the device forms the required secure control connections to the management and control-plane components, receives its configuration, and participates in OMP route exchange. Finally, the WAN Edge builds encrypted data-plane tunnels to other WAN Edge devices based on the TLOC and policy information learned through the control plane. This order matters because the device cannot exchange overlay routes or build data-plane IPsec tunnels until it is authenticated and authorized in the SD-WAN fabric. Cisco SD-WAN designs rely on this sequence to support zero-touch deployment, centralized policy, and secure fabric admission. Reference topics: Cisco SD-WAN onboarding, vBond orchestration, certificate validation, OMP, TLOC exchange, data-plane tunnel establishment.

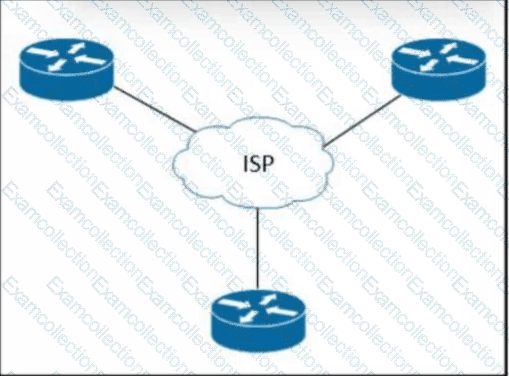

A single-homed full-mesh design is the best match when each WAN router has only one WAN interface, no additional WAN links can be purchased, and the customer still wants resilient site-to-site reachability. Single-homed means each site has one physical WAN attachment. Full mesh describes the logical connectivity model between sites, where each site can communicate directly with the others across the WAN service or overlay rather than relying completely on a central hub for intersite traffic. A hub-and-spoke design is simpler, but it creates dependency on the hub for spoke-to-spoke communication and provides poorer resiliency for a three-site design. Dual-homed hub-and-spoke and dual-homed full mesh both require additional WAN connectivity or interfaces, which violates the stated budget and hardware constraints. The best available design is therefore to use the single WAN attachment at each site while building a full-mesh logical topology over the provider or overlay service. Reference topics: WAN topology design, single-homed connectivity, full mesh, hub-and-spoke limitations, high availability under interface constraints.

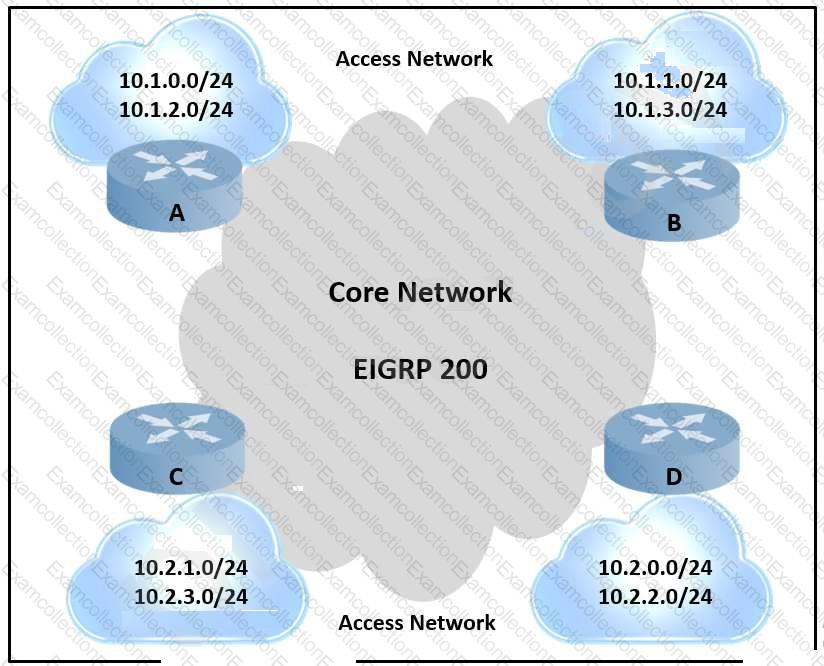

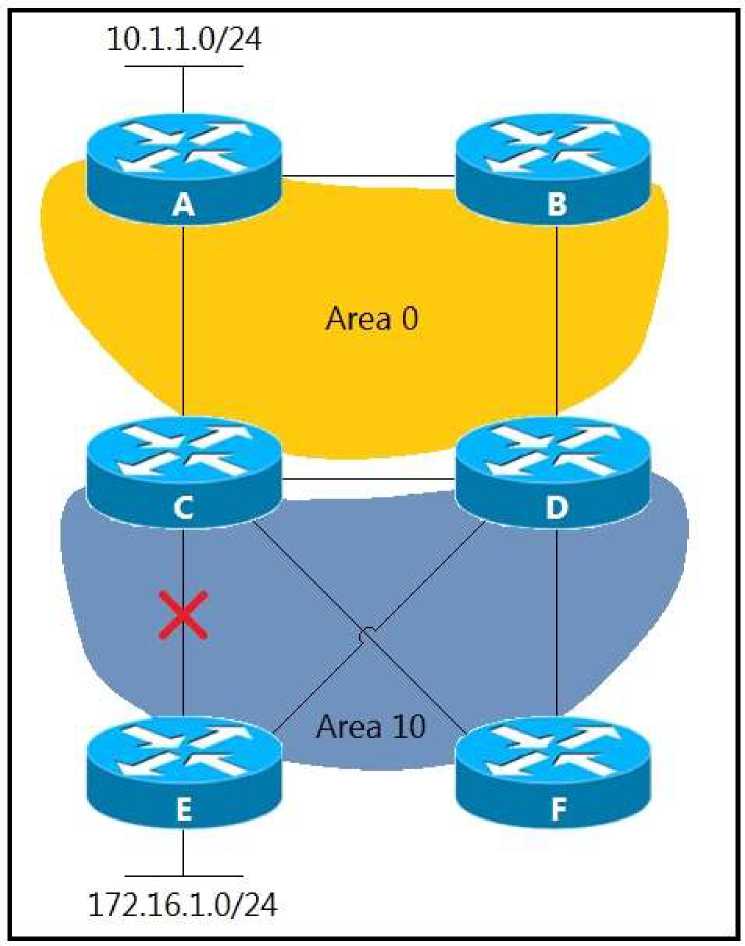

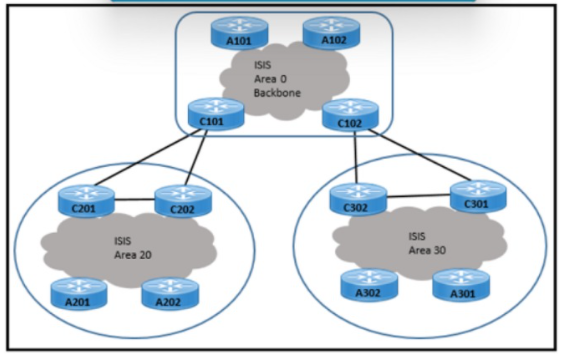

Summarization on routers A and C is the correct design because the requirement is to keep failures of the listed access networks from impacting the core while still supporting fast convergence in both access and core. Route summarization creates an aggregation boundary: more-specific access routes can flap behind the summary without causing the core to learn and withdraw every individual prefix. Cisco hierarchical routing design uses summarization at distribution or aggregation boundaries to reduce routing-table size, contain convergence events, and protect the core from access-layer instability. Adding another aggregation layer may be appropriate in some large designs, but it is not necessary when the question asks for the mechanism that stops specific prefix failures from impacting the core. Graceful restart protects forwarding during control-plane restart events, not ordinary access-prefix failures. FRR provides fast reroute for link or node failures but does not hide individual connected-network changes from the core. Summarizing at routers A and C directly addresses the stated networks and reduces the query, LSA, or update impact depending on the routing protocol used. Reference topics: route summarization, hierarchical routing, convergence containment, core protection, prefix aggregation.

GRE over IPsec is required when the backup connection is an Internet circuit, encryption is mandatory, and multicast applications must cross the tunnel. GRE provides the logical tunnel interface and can encapsulate multicast traffic and routing protocol packets. IPsec then encrypts the GRE packets across the public Internet, satisfying the security requirement. This combination is widely used in enterprise WAN designs where dynamic routing, multicast video, or other non-unicast traffic must be transported securely between sites. Direct IPsec encapsulation protects unicast IP traffic, but it does not natively provide a multicast-capable tunnel interface for routing and multicast services. GETVPN is designed for private WAN environments where the provider network can carry the routed addresses and where tunnel-less group encryption is desired; it is not the usual choice for Internet backup. DMVPN could also use GRE and IPsec, but for a simple backup connection between two sites, GRE over IPsec is the direct answer. Reference topics: GRE tunneling, IPsec encryption, multicast over VPN, Internet backup WAN design.

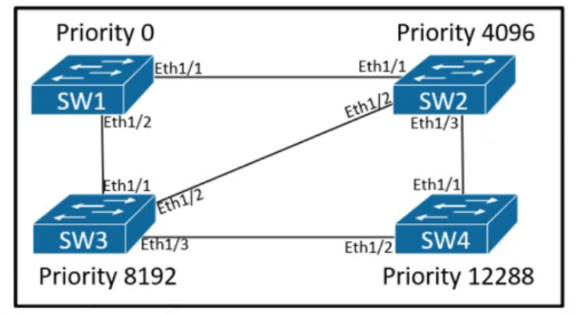

Rapid PVST+ and VTP address the stated redesign goals. Moving from IEEE 802.1D STP to Rapid PVST+ reduces the impact of topology changes because rapid spanning tree provides faster convergence through proposal/agreement behavior and faster port-role transitions. That improves availability compared with classic STP timers. VTP reduces administrative effort and manual configuration errors by centrally propagating VLAN information across switches in the same VTP domain. It can also support pruning so unused VLAN traffic is not unnecessarily carried across trunks. MST could reduce spanning-tree instance count, but the question emphasizes reducing topology-change impact and reducing manual VLAN configuration work; Rapid PVST+ plus VTP addresses both directly. Storm control helps limit broadcast and multicast traffic but does not solve STP convergence or VLAN administration. Dynamic Trunking Protocol negotiates trunk state; it does not propagate VLAN information and is often avoided in deterministic campus designs. In production, VTP should be used carefully with version control, domain/password discipline, and change governance because incorrect VTP configuration can have broad impact. Reference topics: Rapid PVST+, STP convergence, VTP, VLAN pruning, campus Layer 2 operations.

Graceful restart and nonstop forwarding designs depend on preserving forwarding continuity during a control-plane processor switchover. Cisco Stateful Switchover provides the mechanism for a standby route processor or supervisor to maintain synchronized state so it can assume control when the active processor fails. When SSO is combined with NSF or graceful restart capabilities in routing protocols, neighboring devices can continue forwarding traffic while the restarting device preserves or rebuilds control-plane adjacencies. Cisco Express Forwarding is required for fast data-plane forwarding, but CEF alone does not provide route processor state synchronization after processor failure. Virtual Switch System is a chassis or switching architecture that can provide high availability in certain campus designs, but it is not the required feature named by graceful restart recovery. Bidirectional Forwarding Detection is a failure-detection protocol used to detect path or neighbor failures quickly; it does not recover a failed processor. Therefore, the feature that must be incorporated for graceful restart recovery from processor failure is Stateful Switchover. In a resilient enterprise design, SSO, NSF, and protocol graceful restart are coordinated to reduce outage impact.
