Cisco Catalyst SD-WAN separates orchestration from management, control, and data forwarding. The orchestration-plane function is provided by vBond, which authenticates WAN Edge devices and helps establish secure connectivity between edges and controllers. In Cisco design terms, vBond is also the NAT traversal facilitator because it allows devices sitting behind NAT to discover reachable public and private address information and form the correct control connections. These two functions match the options for primary authentication point and NAT traversal facilitation. Centralized provisioning, troubleshooting, monitoring, and template-based configuration belong to vManage, the management plane. Route and policy distribution belongs to vSmart, the control plane, through OMP. Zero Touch Provisioning is part of the onboarding workflow, but the question asks for orchestration-plane functions, not the broader provisioning service. A sound SD-WAN design should deploy redundant vBond instances, ensure DNS reachability to them, and validate firewall rules so DTLS/TLS control connections can be established reliably across Internet and private transports. Reference topics: Cisco SD-WAN architecture, vBond orchestration, control connections, NAT traversal.

Cisco traffic policing evaluates packets against a configured traffic contract and classifies them into action states such as conforming, exceeding, and violating. The policy then applies configured actions to those states, such as transmit, drop, or remark. In a two-rate or three-color policing design, conforming traffic is within the committed rate, exceeding traffic is above the committed rate but may still be within an excess burst allowance, and violating traffic is outside the permitted profile. Therefore, conforming and violating are valid policing parameters or state/action categories in the context of the question. Shaping is not a policing parameter; it is a different QoS mechanism that buffers excess traffic and sends it later. Marking can be an action applied by policing, but the listed policing state that directly corresponds to Cisco class-based policing syntax is conform or violate. Bursting is related to token bucket sizing, but the answer choices specifically align to policing state categories. The correct pair is violating and conforming.

Incremental SPF is the correct solution because the problem specifically states that Type 1 or Type 2 LSAs force the OSPF process to recompute the entire shortest path tree. Cisco OSPF documentation states that when changes to a Type 1 or Type 2 LSA occur, the entire SPT is normally recomputed, and that incremental SPF allows the system to recompute only the affected part of the tree. This improves convergence and reduces CPU use because the router does not have to run a full Dijkstra calculation for every topology change. BFD detects failures quickly, but it does not change how OSPF recalculates the SPT after the LSA arrives. Standard SPF is the default full calculation behavior and therefore does not solve the optimization requirement. PRC is associated with partial route calculation behavior in some link-state contexts, but for this OSPF question the Cisco feature name is iSPF. Reference topics: OSPF incremental SPF, Type 1 LSA, Type 2 LSA, SPF optimization, campus OSPF scaling.

The dial-out model-driven telemetry approach is initiated by the network device, not by the collector. Cisco IOS XE telemetry documentation describes configured subscriptions as dial-out because the publisher, meaning the router or switch, initiates the connection to the configured receiver. After the session is established, the device streams the subscribed YANG-modeled data at the configured cadence or when the configured on-change condition occurs. This model is useful when the telemetry collector is a fixed destination and the network operator wants the device to maintain the outbound session automatically. Option B describes dial-in telemetry, where the collector or subscriber connects to the device and requests the subscription. Option C is also dial-in oriented because the collector initiates the session. Option D is close in wording, but the key design point is that the session is based on an already configured subscription rather than a negotiation process. Reference topics: model-driven telemetry, configured subscriptions, dial-out telemetry, YANG-push, telemetry collectors.

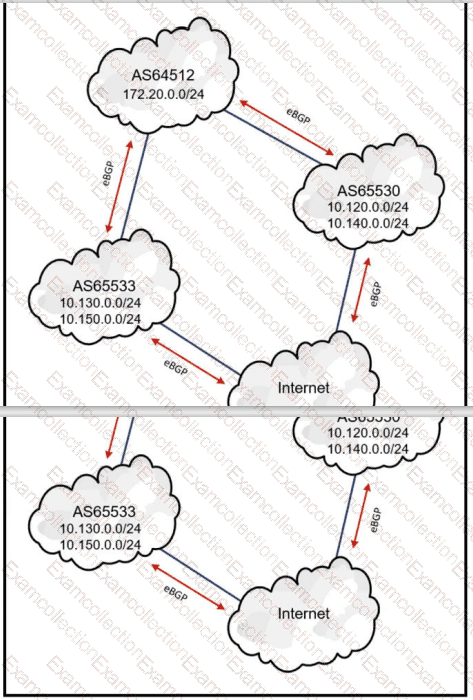

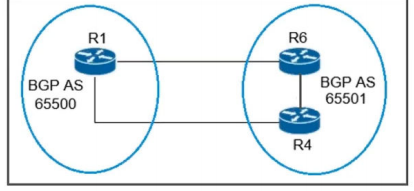

The No-Export community is the appropriate filtering mechanism when a design must prevent an autonomous system from becoming an unintended transit path. In a multihomed BGP design, a customer AS can accidentally advertise routes learned from one provider to another provider. If that happens, external traffic may cross the customer network to reach destinations beyond it, making the customer a transit AS. Applying No-Export to the appropriate learned or advertised routes instructs the receiving AS not to advertise those routes outside its own AS boundary. This helps contain route propagation and prevents third parties from learning paths through AS64512. Maximum-prefix protects a router from receiving too many routes; it is not a transit-prevention policy. No-advertise is more restrictive and prevents advertisement to all peers, which may break required internal or provider reachability. Next-hop is a path attribute used for reachability and path selection, not a route-leak prevention mechanism. In production, No-Export should be combined with explicit prefix filters so policy does not depend on community handling alone. Reference topics: BGP No-Export, transit AS prevention, route-leak control, BGP communities, multihoming.

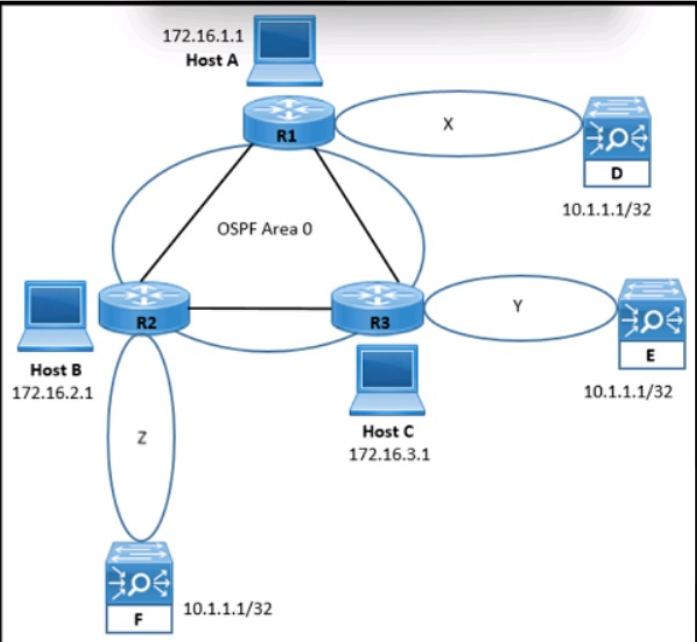

MSDP is the correct feature when multicast receivers in one autonomous system must be able to learn and receive content from sources in another autonomous system. The scenario describes separate multicast frameworks close to the receivers in each AS and requires source resiliency across AS boundaries. In PIM Sparse Mode, a local RP learns about sources registered in its own domain. MSDP allows RPs in different domains to exchange Source-Active information, enabling receivers in one domain to discover and join toward sources that exist in another domain. Anycast RP is primarily a redundancy and load-sharing technique for RPs, often inside a multicast domain, but it does not by itself provide interdomain source discovery for independent ASs. SSM can be efficient when receivers know the source, but the question emphasizes RP-based framework placement and source availability between ASs. BIDIR-PIM is for scalable many-to-many shared-tree forwarding, not interdomain source discovery. Therefore, the design should include MSDP. Reference topics: MSDP, interdomain multicast, PIM-SM, Source-Active exchange, RP resilience across autonomous systems.

Static routes tied to IP SLA with a floating static backup route provide the cleanest active/standby design for this requirement. The MPLS L3VPN path is the primary connection and should carry traffic while it is available. IP SLA can actively test reachability across the primary path, and object tracking can remove the primary static route if the test fails. The backup IPsec VPN route is configured with a higher administrative distance, so it remains inactive until the primary route is withdrawn. This design is deterministic and prevents traffic from using the backup tunnel during normal operation. Running EIGRP across both paths could allow dynamic path selection, but it would require careful metric manipulation and could still introduce unintended failover behavior. BGP multipath is the opposite of the requirement because it is designed to install multiple paths simultaneously for load sharing. OSPF passive-interface on the backup connection would prevent neighbor formation rather than provide reliable backup routing. For a branch with one primary MPLS path and one backup IPsec path, tracked static routing with IP SLA is the appropriate design.

The correct routing design is OSPF with multiple areas. The company is moving away from RIP because the network has grown and now requires segmentation, summarization, fast convergence, and scalability. Cisco positions OSPF as a link-state IGP suitable for larger enterprise networks, and OSPF areas are the standard mechanism for containing topology information and scaling the link-state database. Area Border Routers can summarize routes between areas, reducing routing table size and limiting the scope of link-state flooding and SPF recalculation. This directly satisfies the requirement to segregate departments while summarizing between segments. EIGRP can converge quickly and summarize, but “stub areas” are not an EIGRP construct; EIGRP uses stub routers. OSPF virtual links are not a primary segmentation design tool; they are used to repair backbone connectivity issues. Modifying EIGRP K values changes metric calculation but does not solve segmentation or summarization. Reference topics: OSPF multi-area design, ABR summarization, SPF scope control, enterprise IGP scalability.

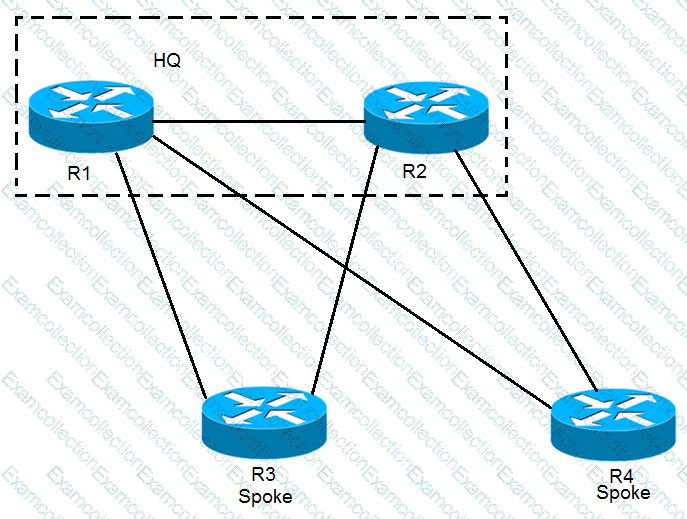

EIGRP stub routing is designed to prevent remote or spoke routers from being used as transit routers. In a hub-and-spoke or dual-homed remote design, a stub router advertises only the route types permitted by its stub configuration, such as connected or summary routes, and it is not queried for routes that it cannot reasonably provide. This reduces EIGRP query scope and helps avoid stuck-in-active conditions. The tradeoff is that the network must not depend on a stub site to carry transit traffic between other parts of the topology. In this scenario, the spoke nodes are configured as EIGRP stubs. When the direct R1-to-R2 link fails, R1 cannot use the alternate path through the other spoke-side topology as a transit path to reach a subnet attached to R2. The EIGRP stub design prevents the route from being advertised in a way that would make the spoke act as a transit router. As a result, R1 has no valid route to R2 ' s attached subnet and drops the traffic. This behavior is consistent with the purpose of EIGRP stub routing.

A scalable two-level IS-IS design uses Level 1 areas for internal campus routing and Level 2 for the interarea backbone. Each campus should have a unique IS-IS NET area value so the internal routers belong to that campus’s Level 1 area. Internal campus routers should be configured as Level 1 routers, which keeps detailed campus prefixes inside the local area and prevents unnecessary propagation of more-specific routes to other campuses. At the edge of each campus, routers that connect the campus to the backbone should operate as Level 1/Level 2 routers. These routers connect the local Level 1 area to the Level 2 backbone and can summarize or control routing information between levels. IS-IS does not use BDR routers; that is an OSPF term, so option A is invalid. Assigning the same NET value everywhere collapses the hierarchy and defeats the segregation goal. MTU differences are not a hierarchy or route-segmentation tool. Therefore, the design should use unique NET values per campus with Level 1 internal routers and Level 1/Level 2 routers at the campus edge.
