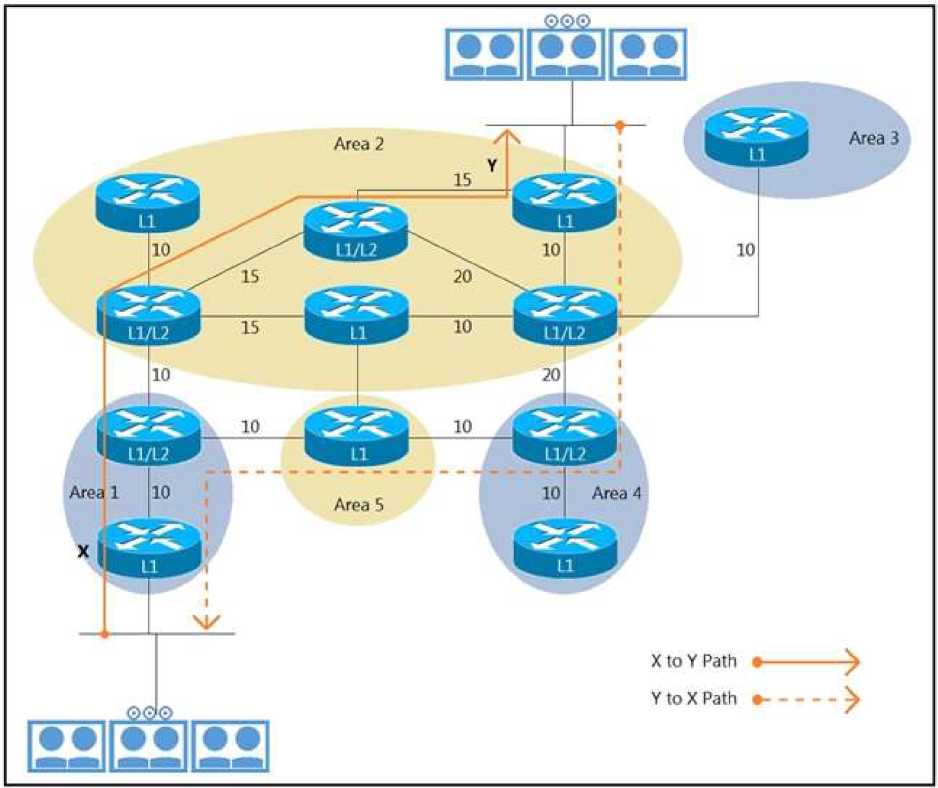

Cisco 300-420 - Designing Cisco Enterprise Networks (ENSLD) v1.1

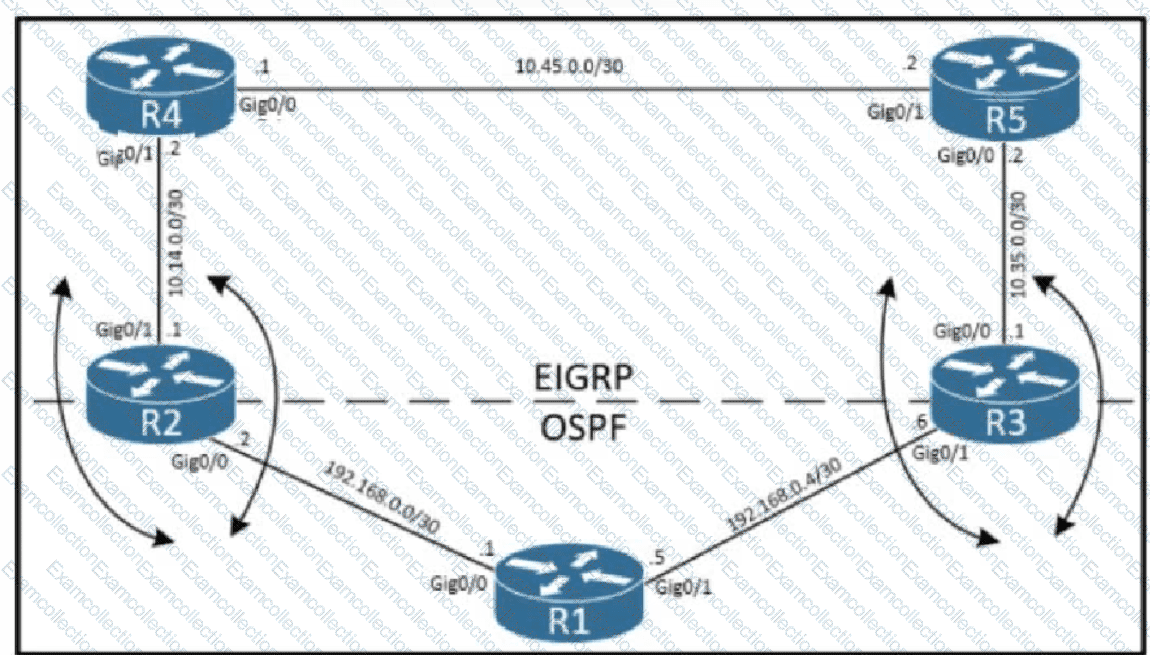

The design must influence how EIGRP-learned routes are injected into the OSPF domain, so R2 should redistribute EIGRP into OSPF as metric-type E1 and R3 as metric-type E2. Cisco OSPF documentation distinguishes external Type 1 and Type 2 routes. An E1 route includes the external cost plus the internal OSPF cost to reach the ASBR, while an E2 route uses only the external metric. Cisco path selection prefers O E1 over O E2 for the same external destination. Therefore, making R2 advertise the EIGRP routes as E1 causes OSPF routers to prefer R2 as the exit toward the EIGRP domain. Option C adjusts OSPF-to-EIGRP redistribution, which is the wrong direction for traffic passing toward EIGRP from OSPF. Removing redistribution on R3 would reduce redundancy. Option D reverses the preference and would favor R3. Reference topics: OSPF external route types, EIGRP-to-OSPF redistribution, ASBR preference, E1 versus E2 metrics.

Traffic shaping is the QoS mechanism that queues excess packets and transmits them later to conform to a configured rate. In Cisco QoS design, shaping smooths bursts by buffering traffic instead of immediately discarding it when the offered rate exceeds the configured rate. This makes shaping appropriate on egress interfaces where the enterprise router has a higher physical interface speed than the actual provider committed information rate. WRED and RED are congestion-avoidance mechanisms that drop packets probabilistically to prevent full queue exhaustion, especially for TCP traffic. They do not intentionally hold excess packets for later transmission as the primary behavior. Policing enforces a traffic rate by dropping or remarking traffic that exceeds the configured contract; it does not buffer traffic to smooth bursts. Therefore, when the design requirement says excess packets must be queued for later transmission, the mechanism must be shaping. In WAN edge QoS, shaping is often paired with child queuing policies so latency-sensitive and business-critical classes receive correct treatment inside the shaped parent rate.

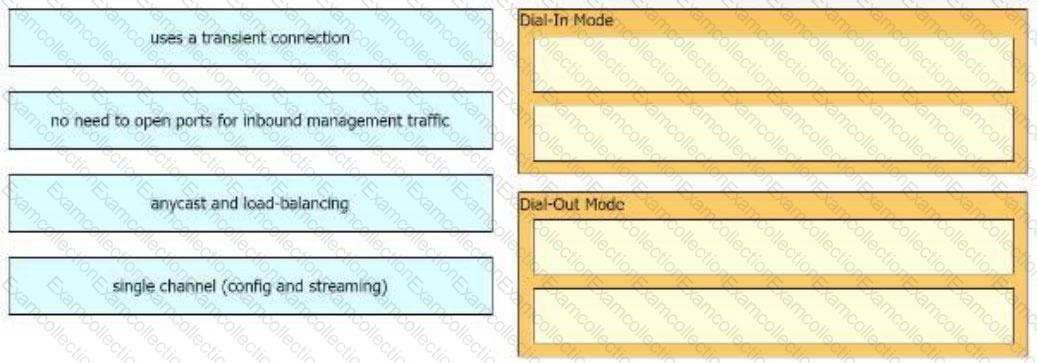

The telemetry mapping separates dial-in and dial-out behavior. In dial-in telemetry, the collector initiates the session toward the network device and subscribes to the data that it wants streamed. This model gives the collector direct control over the subscription lifecycle, but it requires the collector to reach the device and manage each session. In dial-out telemetry, the network device initiates the session toward the collector based on a configured subscription. This is useful when devices must stream telemetry to a centralized destination through firewalls or controlled management paths. Cisco model-driven telemetry can stream structured data from YANG models using subscription behavior rather than relying on repeated CLI polling. The selected drag-and-drop answer matches each consideration to the mode that owns the connection initiation and subscription handling. In design work, the architect must consider reachability direction, security policy, NAT traversal, collector scale, subscription persistence, and whether subscriptions should be configured on the device or created by the collector. Reference topics: model-driven telemetry, dial-in mode, dial-out mode, YANG subscriptions, gRPC telemetry, operational data streaming.

The border node provides connectivity between the SD-Access fabric and networks outside the fabric. In Cisco SD-Access, edge nodes connect endpoints to the fabric, intermediate nodes transport routed IP traffic through the underlay, control-plane nodes maintain endpoint location mappings, and border nodes connect the fabric to external Layer 3 domains such as the data center, WAN, internet edge, or shared services network. A border node may perform proxy tunnel router functions and can de-encapsulate fabric traffic that is destined outside the overlay, but its design purpose is external connectivity for the fabric site. Network virtualization is primarily delivered through virtual networks, VRF separation, LISP control-plane mappings, and VXLAN encapsulation. Expanding the network is too vague and does not identify a Cisco SD-Access role. Therefore, among the available options, the border node is the component used to connect the fabric to the required external network resources. Reference topics: Cisco SD-Access border node, external connectivity, fabric roles, LISP proxy tunnel router, VN-to-VRF mapping.

An inbound IP prefix list is the correct tool because the routers must decide which prefixes to accept from the service provider based only on prefix length. Prefix lists are designed to match network prefixes and mask-length ranges using operators such as le and ge. Applying the prefix list inbound to the BGP neighbors prevents routes with masks longer than /24 from entering the local BGP table, regardless of what the service provider advertises. This conserves memory and ensures the customer routing policy is enforced locally. An access list is a poor fit because it does not natively express prefix-length logic as cleanly as a prefix list. Applying the policy outbound would filter routes the customer sends to the provider, which is the wrong direction; the requirement is about routes the customer learns. A route map could reference a prefix list, but the simplest and most exact answer is to use an IP prefix list inbound. Therefore, the design should apply an inbound prefix list to both BGP peers to block prefixes greater than /24. Reference topics: BGP route filtering, prefix lists, inbound policy, maximum accepted prefix length.

When BFD echo mode contributes to high CPU utilization on lower-resource devices, the practical design response is to use slower BFD timers for those peers rather than continuing to run an overly aggressive failure-detection profile everywhere. Cisco BFD provides fast failure detection, but timer values must match platform capability, interface scale, and the operational value of subsecond detection. Echo mode can generate frequent packets, and in some environments the processing or punt behavior can create measurable CPU pressure. Slowing the timers reduces packet rate and control-plane stress while keeping BFD available for faster detection than traditional routing protocol dead timers. Moving to asynchronous mode may be appropriate in some designs, but the listed option says “BED” and does not directly address the requirement as cleanly as reducing timer aggressiveness. BFD multihop is used for non-directly connected peers and is not a CPU-relief mechanism. Carrier delay changes interface state notification behavior, but it does not solve BFD packet processing load. Therefore, implement slower timers on peers with limited resources. Reference topics: BFD design, echo mode, failure-detection timers, CPU utilization.

Affinity is the SD-WAN feature used to control and reduce control connections between WAN Edge devices and vSmart controllers. Cisco SD-WAN high-availability documentation describes controller affinity as a way to limit the number of controllers that an edge device establishes control connections with, while still preserving controller and data center redundancy. This reduces unnecessary control-plane load and limits the strain placed on vSmart controllers in large overlays. The feature is particularly useful when multiple vSmart controllers exist across multiple data centers and the designer wants predictable primary and backup controller relationships. The color attribute identifies transport characteristics, such as public Internet, MPLS, or other transport types. Control-connections is a general concept, not the feature that minimizes them. Control-direction is not the correct design construct for this purpose. A scalable SD-WAN design should use affinity where controller scale, regionalization, and control-plane efficiency must be explicitly managed. Reference topics: Cisco SD-WAN controller affinity, vSmart scale, control connections, TLOC control-plane optimization.

Redundancy for Cisco vBond Orchestrators is normally achieved by mapping the IP addresses of multiple vBond instances to a single DNS name. WAN Edge devices use the configured organization name and vBond DNS name during onboarding to resolve and contact an available orchestrator. This design allows several vBond nodes to be deployed across different locations or availability zones while giving the edge device a consistent bootstrap target. If one vBond is unavailable, DNS resolution can return another reachable vBond address, allowing control-connection orchestration to continue. Selecting only the closest vBond is not the redundancy mechanism described here, and deploying a single vBond creates an avoidable single point of failure. The answer that says WAN Edge routers are configured with all orchestrators by IP address and priority does not represent the common DNS-based design model. In production, the DNS record, certificates, firewall policy, NAT behavior, and controller reachability should all be validated so that WAN Edge devices can reach multiple vBond instances during onboarding and after failures. Reference topics: Cisco SD-WAN controller redundancy, vBond DNS, device onboarding, orchestration availability.

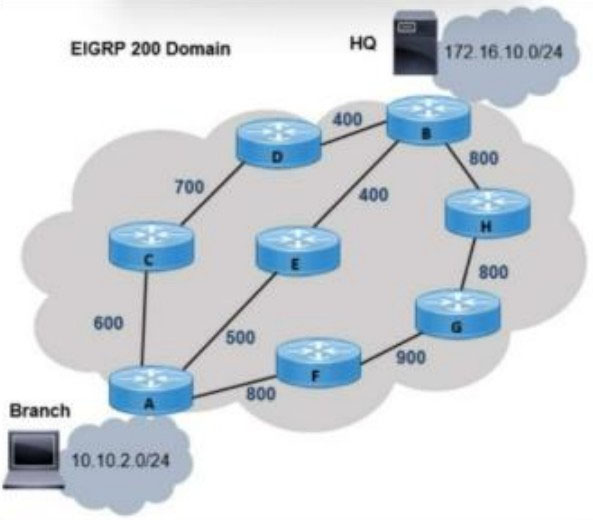

Route tags are the correct loop-prevention mechanism when connecting another routing domain or redistributed network behind R3 into an EIGRP network. Redistribution can create route feedback: a route learned from one domain is redistributed into another, then later redistributed back into the original domain as if it were new information. That can produce routing loops or suboptimal path selection, especially in multipoint redistribution designs. Cisco route-map based redistribution commonly uses route tags to mark the origin of redistributed routes. Other redistribution points can then match those tags and prevent the same routes from being reintroduced into the source domain. Split horizon prevents advertisements back out the interface on which a route was learned, but it is not sufficient for multipoint redistribution loop prevention. Summarization reduces route detail and query scope but does not identify route origin. The OSPF down bit is used in MPLS VPN/OSPF PE-CE scenarios, not general EIGRP redistribution. Therefore, the design should use route tags. Reference topics: EIGRP redistribution, route tagging, routing-loop prevention, route maps, redistribution policy.

The RPF check is performed against the RP address when the PIM router has shared-tree state. In PIM sparse mode, multicast traffic initially flows through the rendezvous point using the shared tree, represented as (*,G) state. For shared-tree traffic, the router verifies that packets arrive from the direction of the RP, because the RP is the root of the shared distribution tree. When the router has source-tree state, represented as (S,G), the RPF check is performed against the multicast source address instead. Dense mode behavior and directly connected membership are not the determining conditions in this question. The key distinction is whether forwarding state is shared-tree or source-tree. Cisco multicast design relies on this behavior to keep PIM forwarding loop free as traffic transitions from shared-tree delivery to shortest-path tree delivery where applicable. Selecting the shared-tree state option correctly identifies when the RP address is used for the RPF calculation. Reference topics: PIM sparse mode, shared tree, source tree, RPF toward RP, (*,G) and (S,G) state.
