When the mobility tunnel is not operational for the data path, it is essential to validate the network’s firewall settings. Firewall port 16666 must be open to allow mobility control messages to pass through, and firewall IP protocol 97 (EtherIP) must be permitted to enable the encapsulation of IP within IP, which is necessary for the data path of the mobility tunnel. Ensuring these firewall settings are correctly configured is critical for facilitating inter-controller roaming and operational mobility tunnels.

For an effective office site survey, it’s recommended to: A. Use a battery pack to power APs - This allows for mobility and testing in various locations without relying on fixed power sources. B. Use a drawing of the office space to mark AP and client placements - This helps in planning the optimal locations for AP installation. F. Use APs with built-in antennas - They are commonly used for site surveys as they represent the typical deployment scenario.

References: The official Cisco ENWLSD 300-425 certification guide will have more details on conducting site surveys.

https://www.cisco.com/c/en/us/td/docs/wireless/technology/mesh/8-4/b_mesh_84/Site_Preparation_and_Planning.html#ID3405

 The design approach should use the 5 GHz frequency band without channel bonding to support 20 MHz channels. This provides a balance between network capacity and interference mitigation.

https://www.cisco.com/c/en/us/support/docs/wireless/4400-series-wireless-lan-controllers/108184-config-802-11n-wlc.html

For a cost-effective high availability deployment in a campus enterprise wireless network with three controllers, the N+1 architecture with Stateful Switch Over (SSO) is recommended. This architecture provides redundancy and allows for seamless failover without service interruption, ensuring that the network remains highly available without the need for a one-to-one controller redundancy, which would be less cost-effective

https://www.cisco.com/c/en/us/td/docs/wireless/technology/hi_avail/N1_High_Availability_Deployment_Guide/N1_HA_Overview.html?

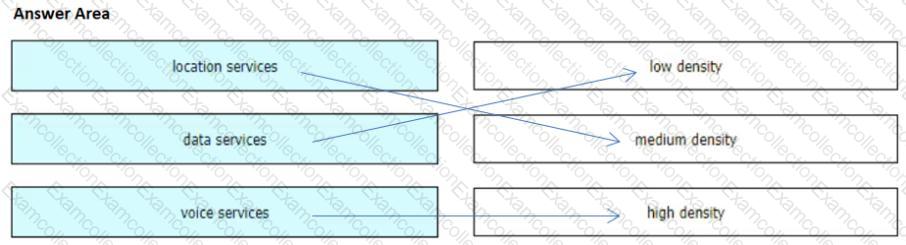

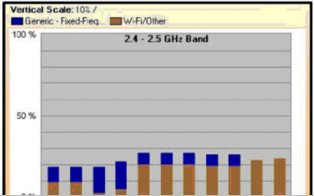

 In a Layer 1 passive wireless site survey, the chart that indicates the ratio of interference present during the duration of the capture in the 2.4 GHz spectrum is typically a Duty Cycle chart or an Interference chart. These charts display the percentage of time that energy, possibly from interfering sources, is present on a channel. The correct answer would show fluctuations in signal levels over time, highlighting periods where interference might be affecting the channel’s clarity.

An active ping survey is used to validate network performance by sending and receiving data packets to measure the end-to-end network performance, including latency, packet loss, and throughput. Ekahau site survey tools can perform active ping surveys to test the connectivity and performance of the wireless network, ensuring that it operates as expected and meets the required service levels.

References := Configuring Active Surveys – Ekahau Customer Support

For seamless roaming between access points, the protocol that supports fast transitions is 802.11r. This amendment to the 802.11 standard allows devices to roam quickly by establishing security credentials before moving to the next access point, reducing the time required for reauthentication.

Mobility domains and mobility groups are concepts used in wireless networking to manage client roaming and security contexts. When Wireless LAN Controllers (WLCs) are in the same mobility domain, they can communicate with each other, allowing clients to roam seamlessly between APs managed by different controllers. Mobility groups further refine this by constraining the distribution of a client’s security context, which includes authentication and encryption keys, and by managing AP failover between controllers. This ensures that a client can maintain a secure and stable connection as they move throughout the network.

References: Designing Cisco Enterprise Wireless Networks (ENWLSD) 300-425 Official Cert Guide

Devices that only support 2.4 GHz can increase congestion on this frequency band, especially in environments where multiple devices are present. This is because the 2.4 GHz band has fewer non-overlapping channels compared to 5 GHz, leading to more interference and potential performance issues.

When identifying network requirements, it’s important to consider the number of wireless devices that will need access to ensure sufficient capacity and coverage. The business type can influence the types of applications and services that will be used, which in turn affects the network design.
