Cisco 300-425 - Designing Cisco Enterprise Wireless Networks (ENWLSD)

To connect multiple wired devices over a workgroup bridge using an autonomous AP, a router is needed to manage the IP addresses and route traffic between the wired devices and the wireless network. The router will act as a gateway for the wired devices, allowing them to communicate with the WLAN. References: Cisco autonomous AP configuration guides and workgroup bridge deployment scenarios.

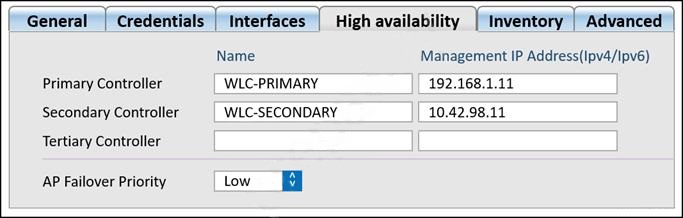

AP Fallback is a feature that allows APs to rejoin their primary controller after they have connected to a secondary controller due to a failure. By enabling AP Fallback on the primary controller, the APs will automatically rejoin it when it becomes available again after a power interruption. This ensures that APs return to their designated primary controller for normal operations.

 The AP fallback feature is designed to allow access points to return to their primary controller after they have connected to a secondary controller due to a failure or connectivity issue with the primary. This setting ensures that once the primary controller is back online, the APs will recognize it and re-establish their connection as per the original network design. This feature is crucial for maintaining the intended controller hierarchy and ensuring seamless wireless network operation.

When using the Cisco Prime Infrastructure Planning Tool for deploying a Greenfield 802.11n network with data, voice, location awareness, and APs equipped with WSSI modules, selecting ‘Voice’ will ensure that the tool accounts for the additional bandwidth requirements of voice applications which have strict QoS requirements. Choosing ‘Location’ will allow the tool to consider the need for more precise location tracking capabilities which typically require additional APs for triangulation purposes. References := CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide Premium Edition and Practice

 Enabling AP fallback globally on the WLC allows access points to reconnect to their primary controller after they have connected to a secondary controller due to the primary being offline. This ensures that once the primary WLC is back online, APs will revert to it, maintaining the intended primary/secondary controller hierarchy.

In a hospital setting, the kitchen is a common source of 2.4 GHz RF noise due to the use of microwave ovens which operate on the same frequency. X-ray radiography equipment, while primarily using higher frequency ranges, can also contribute to RF noise in both the 2.4 GHz and 5 GHz bands due to electronic components and shielding inefficiencies. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

https://www.ciscopress.com/articles/article.asp?p=2351131 &seqNum=2

 Smartphones and tablets typically have fewer antennas than laptops, which can affect their signal reception and transmission capabilities. Additionally, they often support lower data rates compared to laptops due to their smaller size and power constraints.
