Cisco 300-430 - Implementing Cisco Enterprise Wireless Networks (300-430 ENWLSI)

To collect user demographic information in exchange for guest WLAN access and to have a customized portal per location, the marketing department should tie the Facebook social connector into Cisco CMX. Facebook is widely used for social login features and provides access to demographic data when users consent, making it the ideal choice for this requirement. References: The use of social connectors for demographic data collection is discussed in the context of advanced location services in the official certification guide.

The correct command to shut down the 2.4 GHz radio on a specific AP on a Cisco 3850 switch is ap name Floor1_AP1 dot11 24ghz shutdown. This command specifies the AP by name (Floor1_AP1), the radio frequency band (dot11 24ghz), and the action to be taken (shutdown). The other commands listed either reference the wrong frequency band, use incorrect syntax, or are not valid Cisco IOS commands for managing AP radios. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

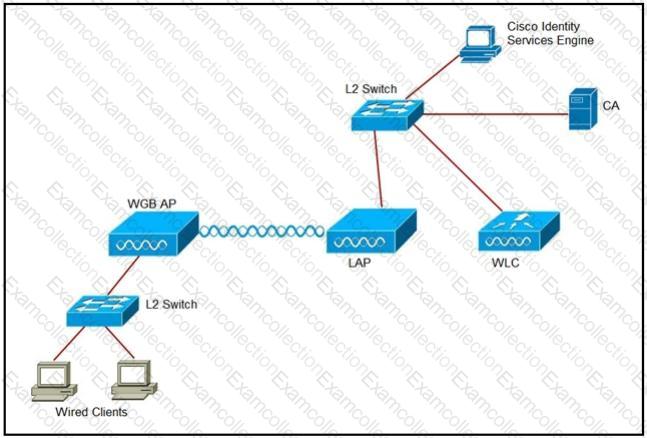

 To connect a Workgroup Bridge (WGB) to a wireless network and authenticate its certificate against a RADIUS server like ISE, the following steps are necessary:

A. Configure the certificate, WLAN, and radio interface on WGB: This is essential because the WGB needs to have the correct certificate to present to the RADIUS server for authentication. Additionally, the WLAN and radio interface must be configured to ensure proper communication with the wireless network.

E. Configure WGB as a network device in ISE: By configuring the WGB as a network device within ISE, it becomes a recognized entity that can be authenticated and authorized accordingly.

F. Configure a policy on ISE to allow devices to connect that validate the certificate: This step ensures that only devices with a validated certificate, such as the WGB, can connect to the network, enhancing security.

Before running a Client Traffic Stream Metrics report in Cisco Prime Infrastructure, the task that must be run is “client status”. This task collects the necessary data regarding the clients’ traffic streams, which is then used to generate the report. References := Cisco Prime Infrastructure Reports User Guide

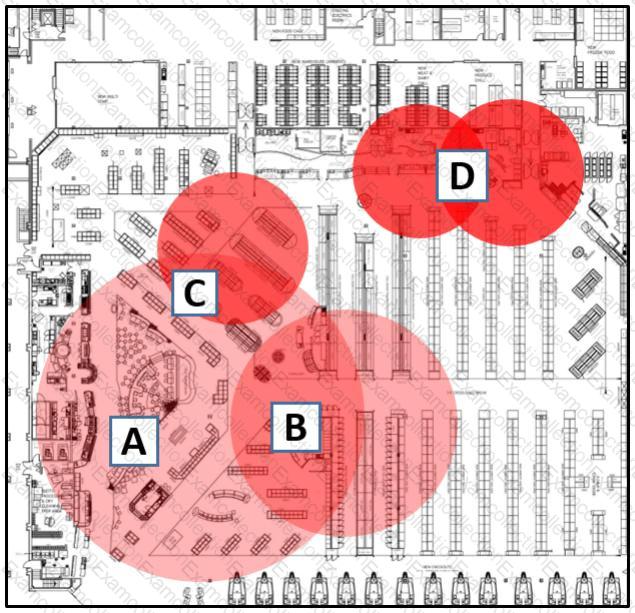

 The exhibit provided appears to be a floor map overlay with Cisco CleanAir Zone of Impact for interferers, which shows different areas affected by interference on a wireless network. The area labeled ‘A’ indicates the greatest impact on the wireless network due to its larger size compared with other zones, suggesting more significant interference or a stronger source of interference within this zone. References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

The Voice VLAN feature on switches allows the network to distinguish between voice traffic and data traffic from wireless clients connected to IP phones. This is crucial for applying the appropriate QoS to ensure that voice traffic is prioritized over client data traffic. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

Cisco Connected Mobile Experiences (CMX) Location Analytics requires accurate tracking of devices within the wireless network’s coverage area. To utilize CMX Location Analytics effectively, it is essential to enable tracking parameters in Cisco Mobility Services Engine (MSE). This allows MSE to collect data on device locations and movements within the environment, which can then be analyzed by CMX for insights into customer behavior, asset tracking, or other analytical purposes. References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

 Link-Local Service (LSS) filtering for mDNS (Multicast Domain Name System) is used to control the propagation of mDNS services across the network. To enable LSS for the AppleTV mDNS service only when ORIGIN is set to Wired, the correct action is to set ORIGIN to Wired and enable LSS specifically for the AppleTV service. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide
