Cisco 300-430 - Implementing Cisco Enterprise Wireless Networks (300-430 ENWLSI)

 To control administrative access to the WLC using Active Directory without concern for RBAC post-authentication, the engineer would configure a RADIUS server (option D) and a TACACS server (option E). These servers can integrate with Active Directory to authenticate users, and once authenticated, the admin user’s access level can be determined without the need for additional role-based access control configurations within the WLC. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide, focusing on the integration of WLC with RADIUS and TACACS servers for administrative access control.

For CMX high availability deployment, enabling the virtual IP address of the primary server is critical. This virtual IP facilitates seamless failover to the secondary server without requiring DNS updates or manual intervention, ensuring uninterrupted service during primary server outages. References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

https://www.cisco.com/c/en/us/td/docs/wireless/mse/10-6/cmx_config/b_cg_cmx106/managing_cisco_cmx_system_settings.html#task_35253AFE18234DDA8C6E04C297D725F5:~:text=Primary%20and%20Secondary.-,Enabling%20High%20Availability%20for%20Cisco%20CMX%20Using%20the%20Web%20UI,-Procedure

The correct command to add a VLAN with a specific ID to a FlexConnect group in a Cisco Wireless LAN Controller (WLC) is ‘config flexconnect group BranchA-FCG vlan 30 add’. This command specifies the FlexConnect group name ‘BranchA-FCG’ and the VLAN ID ‘30’, followed by the action ‘add’, which is consistent with Cisco’s CLI syntax for WLC configuration. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

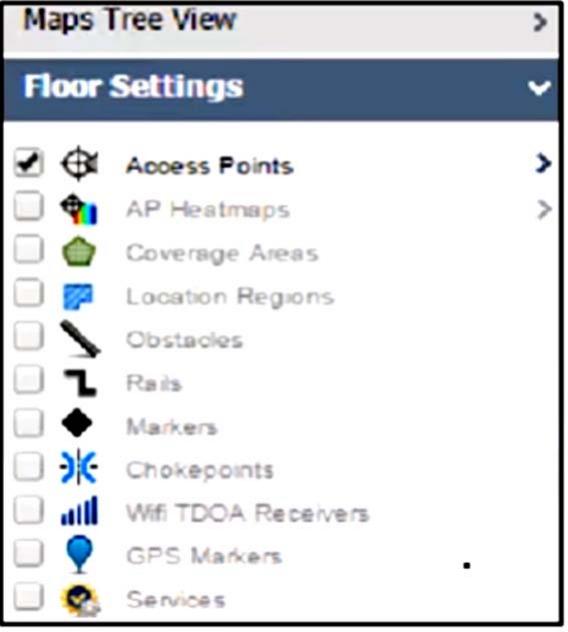

The absence of rogue AP options in the navigation menu under Maps in Cisco Prime Infrastructure (PI) version 3.0 indicates that there is an issue with integrating location services, which are provided by Mobility Services Engine (MSE). Without adding MSE to PI, location-based services such as tracking rogue access points cannot be utilized or displayed within PI’s interface. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

The correct command to shut down the 2.4 GHz radio on a specific AP on a Cisco 3850 switch is ap name Floor1_AP1 dot11 24ghz shutdown. This command specifies the AP by name (Floor1_AP1), the radio frequency band (dot11 24ghz), and the action to be taken (shutdown). The other commands listed either reference the wrong frequency band, use incorrect syntax, or are not valid Cisco IOS commands for managing AP radios. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

The command cmxha convert backup is used on the backup Cisco CMX server to designate it as the secondary server in a high-availability deployment. This command helps to resolve the issue where both servers are considered primary. References: Cisco CMX high-availability documentation will provide more details on this command.

For a network using EIGRP and BGP within a single domain from a single source, Protocol Independent Multicast Sparse Mode (PIM-SM) is the most suitable multicast routing to be implemented. PIM-SM is efficient for networks with a large number of networks and few receivers, which seems to be the case for an all-company video meeting.

References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

The primary change to the network when adding APs for location-based services, such as VolMLAN, would be the AP footprint. This refers to the physical coverage area of the access points. Increasing the AP footprint enhances the ability to perform location-based services by improving the accuracy of triangulation and location tracking of devices. This is because a denser AP footprint allows for more precise determination of a device’s location within the network. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide, specifically the sections discussing location-based services and AP deployment strategies for optimal coverage and location tracking.

In Cisco ISE version 2.1 for BYOD with a Single SSID setup, 802.1x must be configured to provide the necessary layer of security and to facilitate the device registration process. 802.1x authentication allows for the use of EAP (Extensible Authentication Protocol) to authenticate users before they can access the network. This ensures that only authorized devices can join the BYOD network, providing a secure method for device onboarding and access control. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

 The Cisco Mobility Services Engine (MSE) integrates with Cisco DNA Center to provide advanced location services, including the tracking of clients experiencing connectivity issues. This integration allows network administrators to visualize and troubleshoot client locations effectively. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide, which details the integration of location services within Cisco DNA Center.
