 When migrating the vSphere Management VMkernel of all ESXi hosts from the standard default virtual switch to a Virtual Distributed Switch (VDS) that is integrated with APIC in a VMM domain, it is essential to set the Management VMkernel EPG resolution to Pre-Provision. This action ensures that the necessary policies are in place on the ACI fabric before the migration occurs, allowing for a seamless transition and continuous management connectivity.

The attribute that should be configured for each user to enable RADIUS for external authentication in Cisco ACI is cisco-av-pair. This attribute allows for the assignment of roles and permissions to users authenticated via RADIUS.

In a Cisco ACI Multi-Pod environment, the supported routing protocol between Cisco ACI spines and IPNs (Inter-Pod Network) is Open Shortest Path First (OSPF)4.

The question asks which bridge domain setting is used when a Cisco ACI leaf switch learns the source IP address of a packet entering the front panel port. This involves understanding how ACI handles endpoint learning and IP address association within a bridge domain.

Requirement Analysis

When a packet enters a leaf switch’s front panel port, ACI learns the source IP and MAC address of the endpoint to populate its endpoint table.

The bridge domain settings control how IP addresses are learned and routed, especially for Layer 3 traffic.

The correct setting must enable the leaf switch to associate the source IP with the endpoint.

Option Evaluation

A. Unicast Routing:

The "Unicast Routing" setting in a bridge domain enables Layer 3 routing and allows the leaf switch to learn the source IP address of a packet by associating it with the MAC address and VLAN. When enabled, the switch performs IP-to-MAC mapping and updates the endpoint database, which is the standard mechanism for learning source IP addresses from incoming traffic.

The advantage of implementing an active-active firewall cluster that is stretched across separate pods when anycast services are configured is that local traffic within a pod is load-balanced between the clustered firewalls. This means that traffic destined for the anycast IP address of the service node (firewall) will preferentially be directed to the local node within the same pod, thus optimizing traffic flows and reducing latency by avoiding unnecessary traffic tromboning to a remote pod1.

When upgrading the Cisco ACI fabric through an intermediate release, the following steps should be taken:

Upgrade the APICs to an interim release: This is the first step to ensure that the APICs are running a stable version that is compatible with both the current and the targeted release1.

Upgrade the switches to an interim release: After the APICs are upgraded, the next step is to upgrade the leaf and spine switches to the same interim release. This ensures that the entire fabric is running on a compatible version before moving to the targeted release1.

Upgrade the APICs to the targeted release: Once the fabric is stable on the interim release, the APICs can be upgraded to the targeted release. It’s important to verify that the APICs are fully operational before proceeding to upgrade the switches1.

Upgrade the leaf and spine switches to the targeted release: The final step is to upgrade the leaf and spine switches to the targeted release. This should be done after the APICs have been successfully upgraded and are stable on the targeted release1.

By following these steps, the customer can successfully upgrade the Cisco ACI fabric to the new code release that includes the desired feature.

The two requirements for the IPN network when implementing a Multi-Pod ACI fabric are:

PIM ASM multicast routing2.

OSPF routing3.

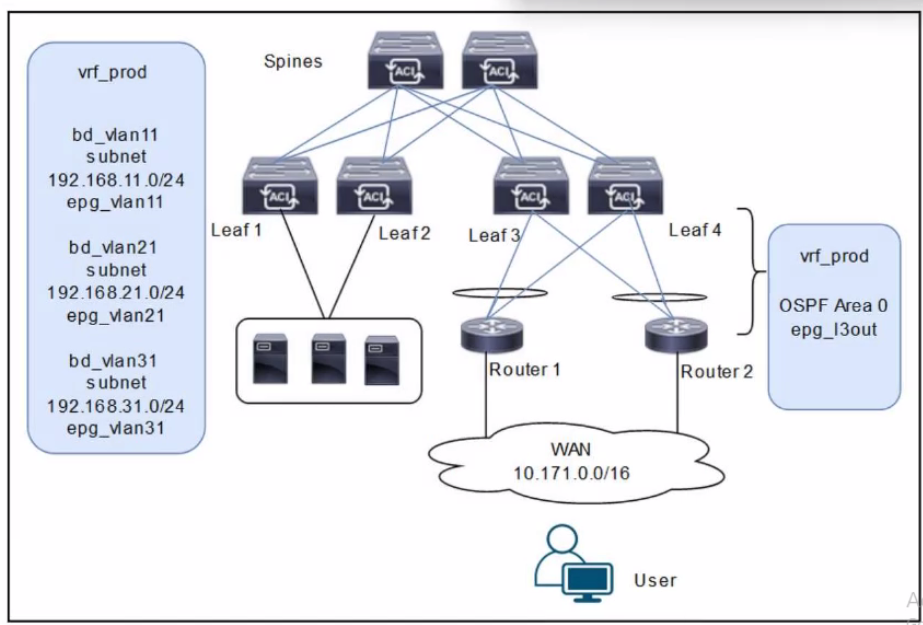

The scenario involves deploying a WAN with Cisco ACI, where Routers 1 and 2 (connected via an L3Out with OSPF Area 0) must receive specific routes (192.168.11.0/24 and 192.168.21.0/24) from the ACI fabric, and reachability to WAN users must be permitted only for servers in vrf_prod. The diagram shows three bridge domains (bd_vlan11, bd_vlan21, bd_vlan31) with their respective subnets and EPGs, all under vrf_prod, along with an L3Out (epg_l3out) for WAN connectivity.

Requirement Analysis

Routers 1 and 2 must receive only routes 192.168.11.0/24 and 192.168.21.0/24:

These subnets belong to bd_vlan11 and bd_vlan21, respectively. To advertise these routes to Routers 1 and 2 via the L3Out, they must be marked with the appropriate scope in the bridge domain configuration.

In ACI, the "Advertised Externally" scope on a subnet ensures that it is advertised to external routers via the L3Out routing protocol (OSPF in this case).

Reachability to WAN users must be permitted only for servers in vrf_prod:

This implies that only the subnets in vrf_prod (192.168.11.0/24, 192.168.21.0/24, and 192.168.31.0/24) should be accessible, but WAN users should only reach specific subnets based on policy.

The external EPG (epg_l3out) represents the WAN users (10.171.0.0/16), and its subnet scope must control inbound reachability.

The subnet 192.168.31.0/24 (bd_vlan31) should not be advertised to the WAN, as it is not listed in the routes Routers 1 and 2 should receive.

Option Evaluation

A. Configure the subnets 192.168.11.0/24 and 192.168.21.0/24 as Private to VRF. Configure the subnet 192.168.31.0/24 as Advertised Externally. Configure an EPG subnet 0.0.0.0/0 as External Subnets for External EPG:

Setting 192.168.11.0/24 and 192.168.21.0/24 as "Private to VRF" means they are not advertised externally, which fails the requirement for Routers 1 and 2 to receive these routes.

Setting 192.168.31.0/24 as "Advertised Externally" incorrectly advertises this subnet to the WAN, which is not desired.

The "External Subnets for External EPG" scope on 0.0.0.0/0 allows WAN users to reach all subnets in vrf_prod, which is correct for reachability.

Conclusion: Fails the first requirement (route advertisement).
