Cisco 300-640 - Implementing Cisco Data Center AI Infrastructure (DCAI)

In an Intersight Managed Mode UCS domain, DNS and NTP configuration is policy-controlled through the UCS Domain Profile deployed to the Fabric Interconnects. Changes entered locally through the Device Console can restore temporary reachability, but the policy configuration maintained by Intersight remains authoritative. If the Domain Profile still contains the previous DNS or NTP configuration, a subsequent deployment can overwrite the locally modified values.

Cisco documents that the Domain Profile references both the Network Connectivity Policy , which contains DNS settings, and the NTP Policy , which defines the NTP servers. The appropriate persistent remediation is therefore to edit the configuration associated with the deployed Domain Profile and redeploy it.

The IMC Access Policy applies primarily to server-management addressing and access rather than Fabric Interconnect DNS/NTP persistence. A Device Connector policy does not supply these domain DNS settings. Option C incorrectly applies a Network Connectivity Policy to the blade chassis; for the Fabric Interconnect domain, the relevant network-connectivity configuration is referenced through the UCS Domain Profile.

Cisco also advises that DNS and NTP should be configured on the management interface rather than being treated as Device Connector settings.

Study Guide Reference: AI Infrastructure Deployment and Data Management — Intersight Managed Mode, UCS Domain Profiles, DNS/NTP policies, and management connectivity.

Cisco Unified Edge directly matches the distributed branch deployment requirements. The Cisco UCS XE9305 chassis contains two Unified Edge Management Controllers, providing redundancy for the chassis management plane. Its XE130c M8 compute node supports up to 768 GB of memory , precisely matching the stated in-memory processing requirement, and supports optional GPU acceleration.

Operationally, Unified Edge is designed for highly distributed sites where qualified IT personnel may not be present. Cisco documents remote server launch with no onsite IT staff, zero-touch provisioning, fleet visibility, and automated lifecycle management through Cisco Intersight. Intersight provides SaaS-based infrastructure lifecycle operations across distributed Unified Edge systems.

Although X-Series Direct is also suitable for remote locations, the exact combination of dual management controllers, 768-GB memory capacity, remote server launch, and Unified Edge's edge-focused lifecycle capabilities uniquely identifies option C. C845A M8 and C240 rack servers provide substantial compute capabilities but do not match the integrated edge chassis and zero-touch operational model required by the scenario.

This is a classic DCAI compute-selection question in which architectural and operational requirements must be evaluated together rather than selecting solely by raw compute performance.

Study Guide Reference: 2.2 Evaluate compute deployment; 2.5 Evaluate hybrid AI deployment with distributed infrastructure.

===============

Ethernet Network Control Policy

Ethernet Network Group Policy

Ethernet QoS Policy

Ethernet Adapter Policy

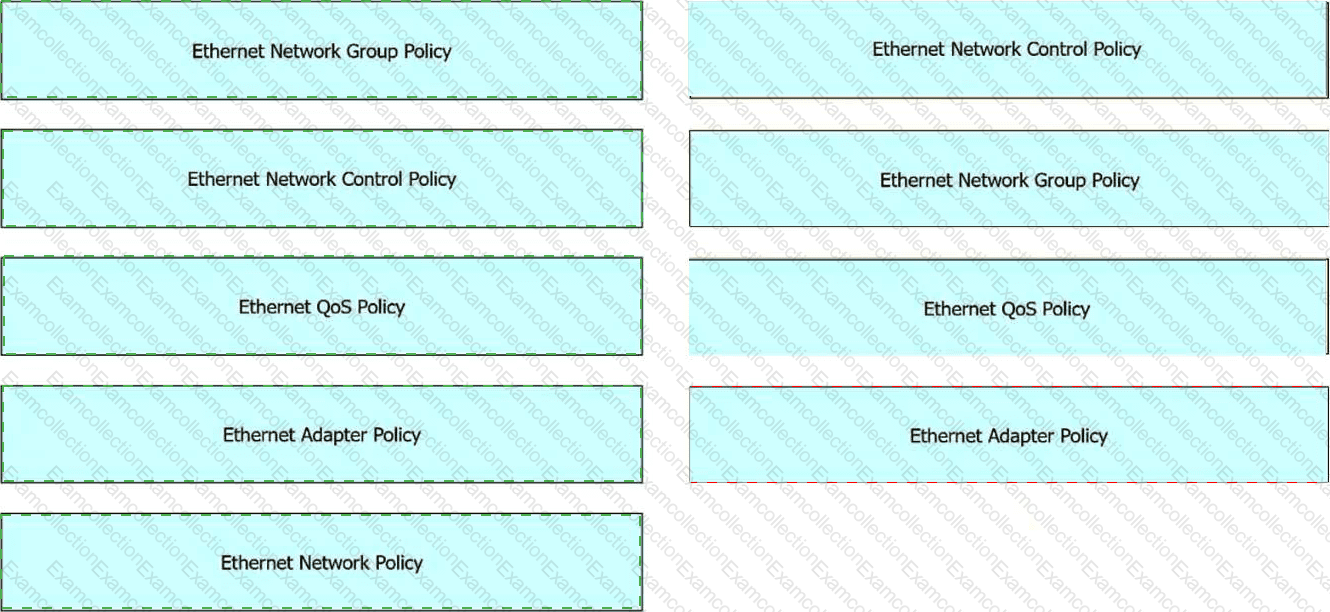

The mappings correspond to the functional boundaries of Cisco Intersight vNIC policies. Ethernet Network Control Policy manages link-layer behavior including CDP and LLDP. Cisco's Intersight documentation explicitly identifies CDP, LLDP transmit/receive, MAC registration, and uplink-failure behavior as Network Control settings.

Ethernet Network Group Policy controls VLAN membership for FI-attached servers, including the set of allowed VLANs and the optional native VLAN. Ethernet QoS Policy supplies performance-oriented vNIC characteristics such as MTU, rate limiting, traffic priority, CoS, and burst parameters. Cisco's current RoCE configuration guide lists MTU and rate-limit values directly under Ethernet QoS configuration.

Finally, Ethernet Adapter Policy contains adapter-level behavior and performance parameters, including RoCE configuration used for high-performance RDMA interfaces.

Ethernet Network Policy is the unused choice. Cisco documents that policy primarily for VLAN configuration on standalone servers, whereas Ethernet Network Group Policy is the relevant VLAN policy for Fabric Interconnect-attached UCS X-Series vNICs.

Study Guide Reference: AI Infrastructure Deployment and Data Management — UCS vNIC templates, Ethernet policies, QoS, VLAN configuration, and RoCE.

===============

VAST Data Universal Storage is the architecture explicitly associated with these requirements. Cisco's AI Data Platform documentation describes VAST's Disaggregated Shared-Everything (DASE) architecture, which separates stateless compute from persistent flash capacity so that storage performance and capacity can scale independently. This architecture is designed to eliminate conventional storage-controller bottlenecks and support extremely large AI datasets.

Cisco's AI POD with VAST architecture integrates Cisco UCS infrastructure, Cisco Intersight lifecycle management, high-performance Ethernet/RDMA networking, and VAST's all-flash storage platform. Cisco documentation also identifies UCS C225 M8 systems within VAST-based storage designs and describes the solution as optimized for high-throughput AI workloads.

GPU Direct Storage is particularly important because it reduces unnecessary CPU involvement and intermediate data copies when transferring datasets between storage and GPU memory. Combined with RDMA, this architecture can sustain the high parallel bandwidth required by large training and fine-tuning environments.

NetApp AFF and Pure Storage FlashBlade are capable enterprise storage products, but the DASE terminology uniquely identifies VAST. Local NVMe cannot provide the required exabyte-scale shared-storage architecture and would fragment datasets across individual GPU servers.

Study Guide Reference: AI Infrastructure Components and Architecture — high-performance storage, AI PODs, RDMA, scale, and shared AI data platforms.

The organization already owns third-party AI servers and NVMe storage, so it requires a network-centric AI fabric rather than a Cisco full-stack solution that bundles UCS compute. Cisco Nexus Hyperfabric supports bring-your-own infrastructure scenarios while providing cloud-based design, deployment, management, telemetry, and lifecycle operations.

The licensing distinction is critical. Cisco's current Nexus Hyperfabric documentation defines Essentials primarily for general-purpose fabrics, whereas Premier is the entitlement tier designed for AI fabrics. Premier includes AI-specific functionality such as alignment with NVIDIA reference architectures, adaptive routing support, AI-validated blueprints, automated lossless backend networking, and monitoring between switches and servers.

Option A uses the correct bring-your-own model but the wrong subscription tier for an AI fabric. Option D represents the full-stack Hyperfabric AI model, which includes Cisco UCS servers and therefore conflicts with the requirement to retain existing third-party compute. Option C does not match the requested Cisco 6000 Series cloud-managed Hyperfabric architecture.

Accordingly, BYO AI Hyperfabric using Cisco 6000 Series switches with the Premier entitlement satisfies both reuse of existing infrastructure and AI-specific cloud-managed networking.

Study Guide Reference: 3.3.c Hyperfabric — deploy AI-ready fabrics using Cisco orchestration tools.

===============

When an AI environment contains both local and external resources, workload distribution enables computational jobs to be placed or divided across multiple locations according to performance, capacity, latency, data residency, security, and cost requirements. This is a defining capability of hybrid AI infrastructure rather than an isolation mechanism.

Cisco defines hybrid AI infrastructure as combining on-premises and cloud resources within a common operating model. Workloads can use cloud capacity for burst training or experimentation while sensitive data or steady inference operations remain on premises. Cisco further identifies workload mobility, secure connectivity, and data synchronization as explicit requirements for hybrid AI deployment in DCAI objective 2.5. Cisco material on AI workload orchestration likewise describes workload execution across on-premises, cloud, and hybrid environments.

Option A unnecessarily isolates functions rather than distributing them. Option C contradicts hybrid automation by restricting operations locally. Option D describes security-policy enforcement, which is important but does not define workload distribution.

Accordingly, B is the technically correct response. It also corrects the answer indicated in the supplied source document, which lists C despite Cisco's current hybrid-infrastructure guidance.

Study Guide Reference: 1.0 AI Fundamentals and Applications — 1.4.b Hybrid; 2.5 Hybrid AI deployment and workload mobility.

===============

Priority Flow Control is a foundational mechanism used to provide lossless Ethernet behavior for RoCEv2. PFC operates on individual Ethernet priorities and allows a congested receiver or switch to pause transmission for the affected priority while permitting traffic in other classes to continue. Cisco's AI networking guidance explicitly states that PFC is enabled for RoCEv2 traffic to prevent packet drops caused by congestion.

This characteristic is critical for RDMA workloads because packet loss can trigger retransmission behavior and significantly degrade GPU collective communication performance. In an AI backend fabric, RoCEv2 is normally placed in a no-drop QoS class with PFC configured for that traffic class. ECN is commonly used alongside PFC to provide proactive congestion signaling, but PFC is the mechanism that directly prevents loss when buffers approach critical utilization.

Traffic shaping in option A may moderate burst rates but does not establish lossless transport. A high DSCP marking in option C provides classification and forwarding preference, not loss prevention. Weighted fair queuing in option D allocates scheduling bandwidth but also does not guarantee that packets will not be discarded during congestion.

Study Guide Reference: 3.1.a Congestion control mechanisms — PFC, ECN, ETS; 3.1.b RoCE/RoCEv2; 3.1.c QoS.

===============

Cisco's validated guidance for connecting VAST Data storage through an ACI fabric explicitly configures the RDMA storage class with Weighted Random Early Detection and Congestion Notification enabled . This makes option A directly consistent with Cisco's documented configuration.

In Cisco's VAST Data ACI design example, storage traffic arrives marked with DSCP 26 and is assigned to the Level2 QoS class. PFC is enabled for the corresponding no-drop DSCP, bandwidth is reserved for storage traffic, the congestion algorithm is configured as WRED, and congestion notification is enabled.

WRED and ECN-style congestion notification work together to detect developing queue pressure before buffers overflow. Rather than waiting for tail-drop conditions, the network can mark congestion-capable traffic so RoCEv2 endpoints reduce their transmission rates. PFC provides the complementary no-drop behavior when congestion becomes sufficiently severe.

Option B disables the required congestion signaling. Options C and D use Tail Drop, which Cisco's documented VAST RDMA storage class does not use. Tail Drop is instead shown in the same Cisco design for control-plane and ordinary traffic classes where lossless RDMA behavior is not required.

This configuration is therefore not merely a generic QoS preference; it directly follows Cisco's published ACI-to-VAST storage design.

Study Guide Reference: AI Infrastructure Deployment and Data Management — QoS, ECN/WRED, PFC, RDMA storage, and lossless fabric configuration.

Image recognition is a computer-vision application in which an AI model processes digital imagery and identifies meaningful visual content. Depending on the model and use case, the output can include image classifications, detected objects, faces, locations, labels, bounding boxes, or other semantic information describing what appears in the image. Therefore, detection and labeling of visual elements from digital sources is the correct result.

Cisco identifies computer vision as an established AI/ML workload and has used image-recognition techniques in technologies where models learn to identify objects despite variations in position and orientation. The DCAI exam blueprint requires candidates to understand AI use cases, making the distinction between computer-vision workloads and unrelated infrastructure functions important.

Option A is a security and compliance operation involving data anonymization. Option C is an infrastructure scheduling function generally performed by orchestration or management systems. Option D belongs to network control-plane and forwarding behavior and has no direct relationship to image recognition.

The key examination principle is that image recognition transforms unstructured visual input into meaningful classifications or detections that can subsequently drive automated decisions or analytics.

Study Guide Reference: 1.0 AI Fundamentals and Applications — 1.3 Describe AI use cases.

===============
