F5 301a - BIG-IP LTM Specialist: Architect Set-Up & Deploy

F5 301a Premium Access     Download Demo
Page: 2 / 5
Total 147 questions

The network team introduces a new subnet 10.10.22.0/24 to the network. The route needs to be configured on the F5 device to access this network via the 30.30.30.158 gateway.

How should the LTM Specialist configure this route?

A.

Tmsh modify net route 10.10.22/24 gw 30.30.30.158

B.

Tmsh create net route 10.10.22/24 gw 30.30.30.158

C.

Tmsh changey net route 10.10.22/24 gw 30.30.30.158

D.

Tmsh add net route 10.10.22/24 gw 30.30.30.158

Refer to the exhibit.

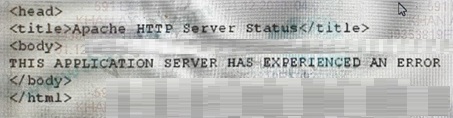

The http monitor is applied to a pool. All members are enabled. One server responds as follows.

What is the resulting status of this poo! member?

A.

Offline (Disabled)

B.

Offline (Enabled)

C.

Unavailable (Disabled)

D.

Available (Enabled)

A new HITP server has been deployed on an LTM device. The application running on the server must be monitored by the LIM device. The following is required:

A new HITP server has been deployed on an LTM device. The application running on the server must be monitored by the LIM device. The following is required:

When the server is unavailable, it will send an HTTP status code of 200 in response to a request for the status html page.

When the server is available. I will send and HTTP status code of 201 in response to a request for the status html page.

When the 200 status code is received, the pool member should receive No new connections.

Which configuration change should be made to meet these requirements?

A.

set the Send String to GET/ status html and the Receive String to 200 and Receive Disable String to 201.

B.

set the Send String to GET Arian and the Receive String to 200 and Receive Disable String to 201.

C.

set the Send String to GET Arian and the Receive Disable String to 200 and Receive String to 201.

D.

set the Send String to Get /status html and the Receive Disable String to 200 and Receive String to 201.

An LTM Specialist has detected that a brute force login attack is occurring against the SSH service via a BIG-IP management interface. Login attempts are occurring from many IPs within the internal company network. BIG-IP SSH access restrictions are in place as follows:

The LTM Specialist has determined that SSH access should only occur from the 192.168.1.0/24 and 172.16.254.0/23 networks.

Which tmsh command should the LTM Specialist use to permit access from the desired networks only?

A.

modify.sys sshd allow add {''192.168. 10/24 , '' ''172. 16 2540/23'')

B.

modify /sys sshd login disable (''10.0.00/8'', ''172 16.0 0/12'', ''192. 168.0.0/16'')

C.

modify/sys allow replace-all-with {''192.168.1.00/24'', ''192.16.254.0/23''}

D.

modify/sys sshd login enable {''192.166.10/24'''' ''172.16 254 0/23

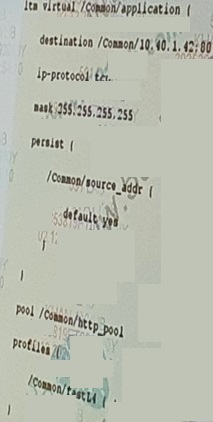

An application is being load balanced through the LTM device using the configuration displayed below.

The network has been re-engineered to NAT all client connection. As a result, all client connections are hitting the same pool member.

Which changes should the LTM Specialist make in order to restore load balancing functionality wile maintaining session persistence?

A.

Change the virtual server type to Standard, add an http profile, and change the persistence profile to Destination Address

B.

Leave the virtual server type set Performance (Layer 4) and change the persistence type to hash

C.

Change the virtual serer type to Forwarding (Layer 4) and leave the persistence type to hash source Address

D.

Change the virtual server to Standard add an http profile, and change the persistence profile to Cookie persistence

A web application is configured as follows:

What should be modified to set a maximum request limit?

A.

Virtual server settings

B.

HTTP profile

C.

Pool settings

D.

ICP Profile

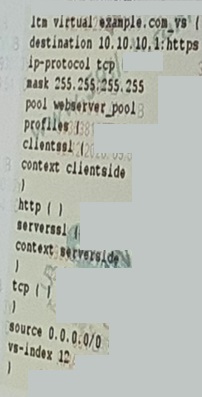

A web server is being overloaded with HTTPS traffic. To decrease the load on the server, the LTM Specialist and the Server. Administrator decide to perform SSL offloading on the LTM device. The configuration of the virtual server is as follows:

Which change must be made to the configuration to perform SSL offloading?

A.

Remove the clientssl and http profiles

B.

Remove the clients profile

C.

Remove the clientssl and serverssl profiles

D.

Remove the severssl profile

An LTM Specialist needs to upgrade all guests on a Viprion eight CMP guests.

What is the maximum number of guests that the LTM Specialist should upgrade at once?

A.

Eight

B.

One

C.

TWO

D.

Four

When importing a PEM formatted SSL certificate, which text needs to appear first in the file?

A.

--START CERTIFICATE....

B.

...BEGIN CERTIFICATE....

C.

...SECURITY CERTIFICATE....

D.

...SSL CERTIFICATE....

A new iRule needs to be tested. The LTM Specialist needs to measure page load times and monitor potential changes in memory usage A load test is scheduled.

Which two features should the LTM Specialist use to monitor these requirements? (Choose two.)

A.

Tmsh show memory

B.

Analytics

C.

Tmsh show sys proc-info

D.

Tmsh show sys provision
