LPI 305-300 - LPIC-3: Virtualization and Containerization - Exam 305, version 3.0

Docker stack is a command that allows users to deploy and manage a stack of services on a Docker Swarm cluster. A stack is a group of interrelated services that share dependencies and can be orchestrated and scaled together. A stack is typically defined by a Compose file, which is a YAML file that describes the services, networks, volumes, and other resources of the stack. To use docker stack to run a Compose file on a Swarm, the user must first create and initialize a Swarm cluster, which is a group of machines (nodes) that are running the Docker Engine and are joined into a single entity. The Swarm cluster has one or more managers, which are responsible for maintaining the cluster state and orchestrating the services, and one or more workers, which are the nodes that run the services.

When the user runs docker stack deploy with a Compose file, the command parses the file and creates the services as specified. However, docker stack does not build or upload the images referenced in the Compose file to any registry. Instead, it instructs the Swarm nodes to pull the images from a registry, which can be the public Docker Hub or a private registry. The user must ensure that the images are available in the registry before deploying the stack, otherwise the deployment will fail. The user can use docker build and docker push commands to create and upload the images to the registry, or use an automated build service such as Docker Hub or GitHub Actions. The user must also make sure that the image names and tags in the Compose file match the ones in the registry, and that the Swarm nodes have access to the registry if it is private. By pulling the images from a registry, docker stack ensures that the Swarm nodes have the same and latest version of the images, and that the images are distributed across the cluster in an efficient way.

The other options are not correct. Docker stack does not build the images locally or on the Swarm nodes, nor does it copy or transfer the images to the Swarm nodes. Dockerstack also does not pass the images to the Swarm master, as this would create a bottleneck and a single point of failure. Docker stack relies on the registry as the source of truth for the images, and delegates the image pulling to the Swarm nodes. References:

Deploy a stack to a swarm | Docker Docs1

docker stack deploy | Docker Docs2

docker build | Docker Docs3

docker push | Docker Docs4

Libvirt uses XML files to store configuration data for objects in the libvirt API, such as domains, networks, storage, etc. This allows for ease of extension in future releases and validation of documents prior to usage. Libvirt does not use any of the other file formats listed in the question. References:

libvirt: XML Format

LPIC-3 Virtualization and Containerization: Topic 305.1: Virtualization Concepts and Theory

The command docker run -tid -v data:/data debian bash creates and runs a new container from the debian image, with an interactive terminal and a detached mode, and mounts a named volume data at /data in the container12. If the volume data does not exist, it is created automatically3. If the command is executed twice in succession, two containers are created and run, each with its own terminal and process ID, but they share the same volume data. This means that both containers can access, modify, and see the contents of the data volume, and any changes made by one container are reflected in the other container. Therefore, the statement C is true and the correct answer. The statements A, B, D, and E are false and incorrect, as they do not describe the behavior of the command or the volume correctly. References:

1: docker run | Docker Docs.

2: Docker run reference | Docker Docs - Docker Documentation.

3: Use volumes | Docker Documentation.

[4]: How to Use Docker Run Command with Examples - phoenixNAP.

 cloud-init uses the /var/lib/cloud/ directory to store status information and configuration information retrieved from external sources, such as the cloud platform’smetadata service or user data files. The directory contains subdirectories for different types of data, such as instance, data, handlers, scripts, and sem. The instance subdirectory contains information specific to the current instance, such as the instance ID, the user data, and the cloud-init configuration. The data subdirectory contains information about the data sources that cloud-init detected and used. The handlers subdirectory contains information about the handlers that cloud-init executed. The scripts subdirectory contains scripts that cloud-init runs at different stages of the boot process, such as per-instance, per-boot, per-once, and vendor. The sem subdirectory contains semaphore files that cloud-init uses to track the execution status of different modules and stages. References:

Configuring and managing cloud-init for RHEL 8 - Red Hat Customer Portal

vsphere - what is the linux file location where the cloud-init user …

Libvirt supports creating and managing various types of virtual networks that can be used to connect virtual machines to each other or to the external network. One of the common types of virtual networks is the NAT-based network, which uses network address translation (NAT) to allow virtual machines to access the outside world through the host’s network interface. By default, libvirt creates a NAT-based network called ‘default’ when it is installed and started. This network appears as a standard Linux bridge device on the host system, named virbr0. The bridge device has an IP address of 192.168.122.1/24 and acts as a gateway and a DHCP server for the virtual machines connected to it. The bridge device also has iptables rules to forward and masquerade the traffic from and to the virtual machines. The virtual machines connected to the ‘default’ network have their own IP addresses in the 192.168.122.0/24 range and their own MAC addresses generated by libvirt. The virtual machines can communicate with each other, with the host, and with the external network through the bridge device and the NAT mechanism12.

The other statements in the question are false regarding networking with libvirt. Libvirt’s network functionality is not limited to connecting virtual machines to a physical network interface of the host system. Libvirt can also create isolated networks that do not have any connection to the outside world, or routed networks that use static routes to connect virtual machines to the external network without NAT3. Libvirt does not assign the same MAC address to all virtual machines and isolate their network interfaces at the link layer. Libvirt assigns a unique MAC address to each virtual machine and allows them to communicate with each other at the network layer4. Libvirt does not require a dedicated network interface that may not be used by the host system. Libvirt can share the host’s network interface with the virtual machines using NAT or bridging, or it can pass a physical network interface to a virtual machine exclusively using PCI passthrough5. Libvirt does not support exactly one virtual network and connect all virtual machines to it. Libvirt supports creating and managing multiple virtual networks with different names and configurations, and connecting virtual machines to different networks according to their needs6. References:

libvirt: Virtual Networking

libvirt: NAT forwarding (aka “virtual networks”)

libvirt: Routed network

libvirt: MAC address

libvirt: PCI passthrough of host network devices

[libvirt: Network XML format]

The file procs in a cgroup directory contains the list of processes belonging to this cgroup. Each line in the file shows the PID of a process that is a member of the cgroup. A process can be moved to a cgroup by writing its PID into the cgroup’s procs file. For example, to move the process with PID 24982 to the cgroup cg1, the following command can be used: echo 24982 > /sys/fs/cgroup/cg1/procs1. The file procs is different from the file tasks, which lists the threads belonging to the cgroup. The file procs can be used to move all threads in a thread group at once, while the file tasks can be used to move individual threads2. References:

Creating and organizing cgroups · cgroup2 - GitHub Pages

Control Groups — The Linux Kernel documentation

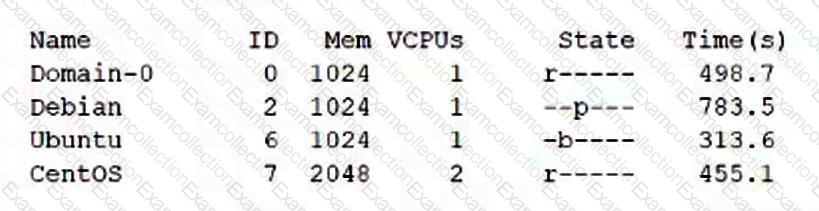

The output of xl list shows the state of the domains. The domain with ID 6, Ubuntu, has a state of “b—”. This means that the domain is blocked, which means it is idle or waiting for I/O.

https://xenbits.xen.org/docs/unstable/man/xl.1.html

The unshare command is used to run a process in a new Linux namespace12. It takes one or more flags to specify which namespaces to create or unshare from the parent process1. For example, to run a shell in a new mount, network, and PID namespace, one can use:

unshare -mnp /bin/bash

References:

1: unshare(1) - Linux manual page - man7.org

2: A gentle introduction to namespaces in Linux - Packagecloud

Containerd is an industry-standard container runtime that uses Runc (a low-level container runtime) by default, but can be configured to use others as well1. Containerd manages the complete container lifecycle of its host system, from image transfer and storage to containerexecution and supervision1. It supports the standards established by the Open Container Initiative (OCI)1. Containerd does not require the Docker engine and Docker CLI to be installed, as it can be used independently or with other container platforms2. Containerd is not a text file format, nor does it run in each Docker container or provide DHCP client functionality. Containerd is not the initial process run at the start of any Docker container, as that is the role of the container runtime, such as Runc3. References: 1 (search for “containerd”), 2 (search for “Containerd is an open source”), 3 (search for “It uses rune to start containers”).
