Cisco 350-501 - Implementing and Operating Cisco Service Provider Network Core Technologies (350-501 SPCOR)

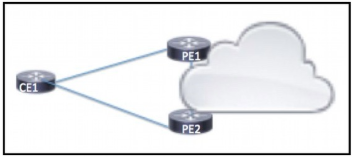

 Both options provide a default route pointing to CE-1, allowing CE-2 to access the internet. The specific choice would depend on additional context or requirements not provided in the question.

References:

Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) study materials.

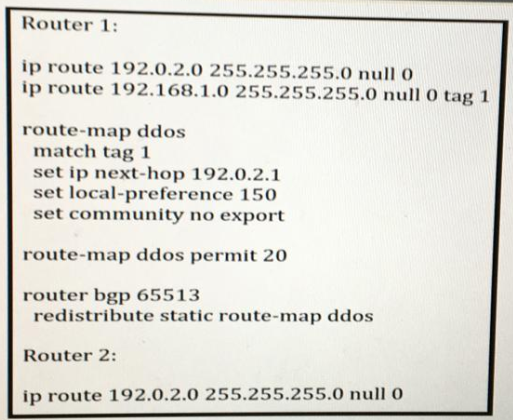

The configuration shown indicates that Router 1 is set up with a route-map named “ddos” that matches traffic tagged with “tag 1”. The traffic matching this tag is then set to have a next-hop IP of 192.0.2.1 and a local preference of 150. The community is also set to “no export”, which means this route will not be advertised to external BGP peers. Since there’s no explicit deny statement in the configuration, only traffic with tag 1 and local preference of 150 will be dropped by Router 1 as per the BGP routing policy. References: Implementing and Operating Cisco Service Provider Network Core Technologies course materials.

The command nsf ietf helper strict-lsa-checking is used to configure the router to terminate the OSPF graceful restart process if it detects any changes in the LSA during the restart. This ensures that the network remains stable and consistent by preventing the use of outdated or incorrect routing information.

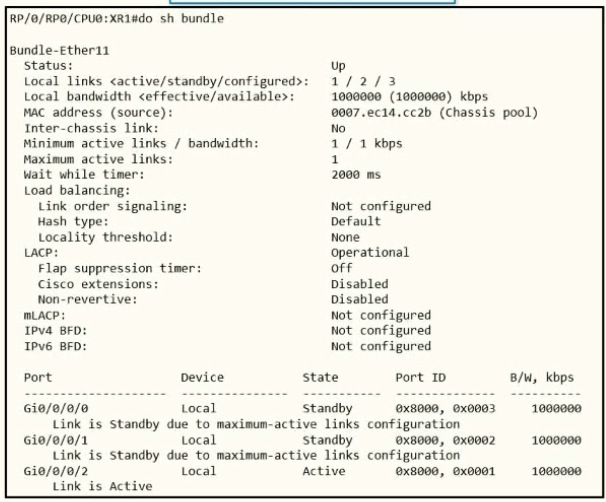

 When interface Gi0/0/0/2 is shut down for maintenance, the other interfaces’ states are affected based on their current configurations and roles. In this case, Gi0/0/0/0 becomes active because it is next in line to take over the traffic load, ensuring that network service remains uninterrupted. Gi0/0/0/1 remains standby as it was before the shutdown of Gi0/0/0/2.

References: The explanation can be inferred from understanding Cisco’s technology and protocols related to interface states and bundle ether configurations,

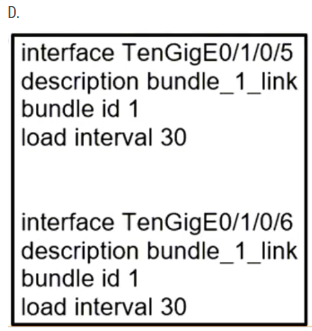

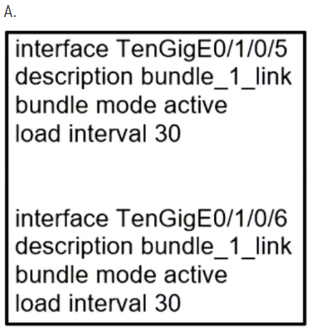

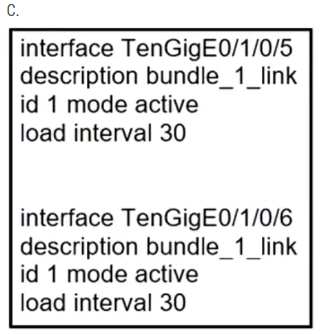

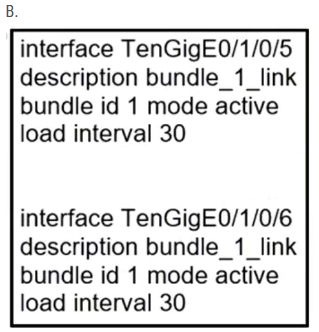

 In the context of Cisco IOS XR software, the configuration under Option D is appropriate for adding an interface to a bundle using LACP (Link Aggregation Control Protocol). The configuration specifies two Ten Gigabit Ethernet interfaces (TenGigE0/1/0/5 and TenGigE0/1/0/6) with descriptions indicating they are part of “bundle_1_link”. Both interfaces are assigned to “bundle id 1” with a load interval of 30 seconds, ensuring they are part of the same link aggregation group and share traffic load.

the configuration should ensure that VRF ABC and XYZ have route targets that allow them to import routes from VRF CENTRAL, but not from each other. This can be achieved by careful manipulation of route targets and import/export policies within the VRF configurations456.

 Enabling MPLS LDP IGP Synchronization ensures that the IGP advertises a route only if there is a corresponding label binding from LDP. This synchronization helps prevent blackholing traffic when there is a direct link failure in the network. When the B-C link failed, the IGP could find an alternate path via routers E and F, but without LDP synchronization, the labels for MPLS were not available on this new path, leading to traffic loss. By enabling LDP IGP Synchronization, routers will only use paths for which a complete set of labels exists, ensuring label forwarding occurs on the alternate path.

References: The information provided is based on the Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) course materials, which cover the configuration, verification, troubleshooting, and optimization of Service Provider IP network infrastructures, including MPLS LDP IGP Synchronization

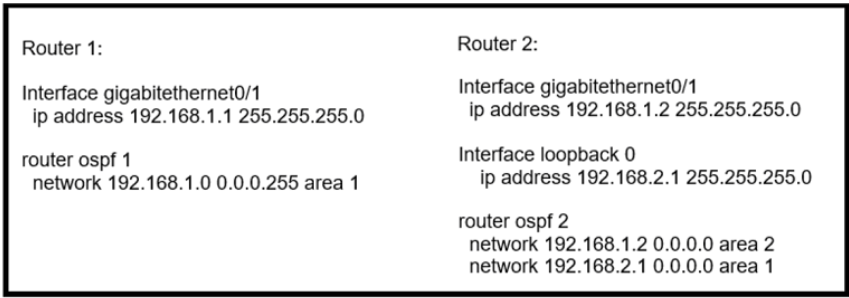

The issue with Router 1 missing the route for Router 2’s loopback 0 is likely due to the routers being configured in different OSPF areas. For OSPF to properly exchange routing information, routers within the same network should be configured in the same area. Therefore, the engineer should change the area numbers on Router 1 and Router 2 to be the same, ensuring they can exchange routes, including the route for Router 2’s loopback 0.

References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) documentation and study materials.

 In a gRPC dial-in configuration, the encoding is specified by the client initiating the connection. This setup allows for connection multiplexing, which means multiple gRPC calls can be made concurrently over a single connection, improving efficiency. Two-way streaming is also facilitated, allowing both the client and server to send a sequence of messages to each other, providing a full-duplex communication channel.

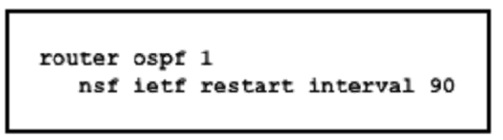

 The configuration in the exhibit shows the implementation of Nonstop Forwarding (NSF) with OSPF. NSF is used to minimize the downtime of neighbor relationships during a Route Processor (RP) switchover. The nsf command enables NSF, and ietf specifies the use of the IETF standard for graceful restart in OSPF. The restart interval 90 sets the time, in seconds, within which the restarting router should complete its restart, helping to maintain uninterrupted forwarding despite the switchover.

References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR v1.0); Cisco SPCOR Training & Certification.
