Cisco 350-501 - Implementing and Operating Cisco Service Provider Network Core Technologies (350-501 SPCOR)

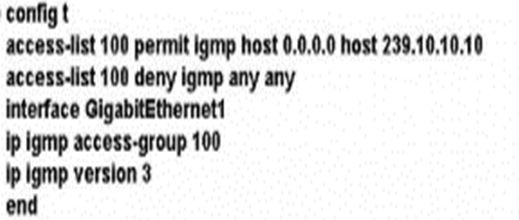

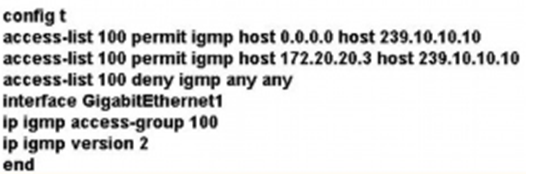

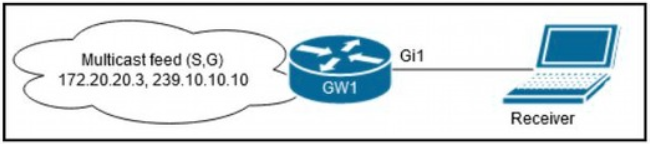

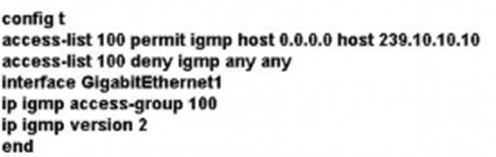

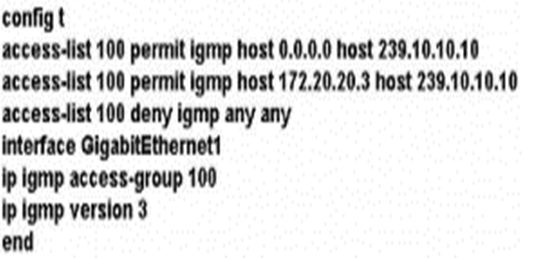

Option A corresponds to the desired configuration. It uses an access-list to permit IGMP joins for the specific multicast group 239.10.10.10 from the source 172.20.20.3.

Options B, C, and D do not match the desired configuration. They either allow all IGMP traffic or do not specify the correct source and group addresses.

References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) source book

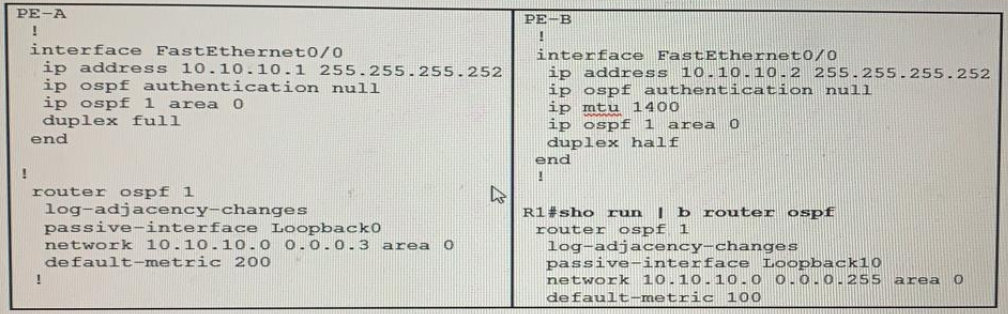

The OSPF neighbor relationship is not establishing due to a mismatch in MTU (Maximum Transmission Unit) settings on the interfaces of PE-A and PE-B routers. On PE-A, there is no MTU configuration under the interface FastEthernet0/0, which means it is using the default MTU setting. However, on PE-B, the MTU is explicitly set to 1400 bytes with “ip mtu 1400” command under interface FastEthernet0/0. OSPF requires that both ends of a point-to-point link have matching MTU sizes to form a neighbor relationship; otherwise, OSPF adjacency will not be established.

References:

Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) - Cisco SPCOR Resources

MPLS traffic-engineering tunnels can be configured with dynamic paths or explicitly defined paths across the core network. Tunnel links inherit IGP (Interior Gateway Protocol) metrics by default unless overridden by configurations that specify explicit paths or other criteria for path selection. Dynamic path tunnels use IGP metrics and other parameters like bandwidth availability for automatic path calculation. References: Implementing and Operating Cisco Service Provider Network Core Technologies source documents or study guide

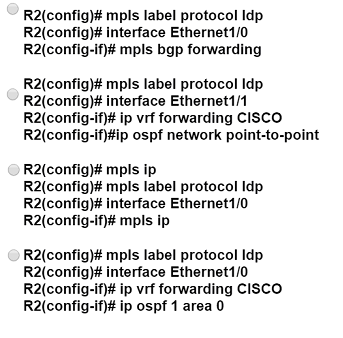

 To establish MPLS LDP sessions between two routers, both routers must be configured to support MPLS on the interfaces that connect them. The configuration shown for R2 includes enabling MPLS label protocol LDP and configuring interfaces Ethernet1/0 and Ethernet1/1. However, to complete the MPLS LDP session setup, R2 also needs to have MPLS enabled on the interface toward R1. This is done by entering the interface configuration mode for the relevant interface and using the mpls ip command. This command enables MPLS forwarding for IP packets on the interface, which is necessary for LDP to advertise and map labels to the IP routes.

References := The answer is based on the concepts covered in the Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) course,

The correct configuration for extending the layer 2 domain between the company’s two locations involves setting up the interface with L2 transport, specifying the encapsulation method as dot1q with the VLAN tag of 12, and applying the appropriate rewrite ingress tag rules. This setup ensures that the VLAN tag is preserved across the service provider’s core, maintaining the layer 2 domain continuity.

References := Implementing and Operating Cisco Service Provider Network Core Technologies

 The show isis neighbors command is used to display the Intermediate System to Intermediate System (IS-IS) neighbors that the router has discovered. This command is essential for troubleshooting and verifying the IS-IS network’s topology and ensuring that the router has formed the correct adjacencies with its neighbors.

References := For more detailed information and study materials, you can refer to the official Cisco course page for “Implementing and Operating Cisco Service Provider Network Core Technologies” here and the on-demand e-learning resources here.
