Cisco 350-501 - Implementing and Operating Cisco Service Provider Network Core Technologies (350-501 SPCOR)

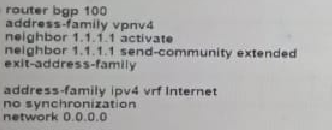

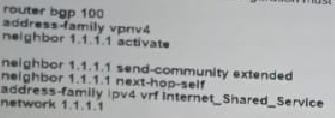

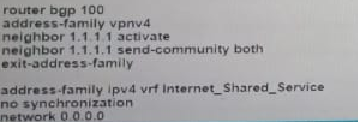

To inject a default route into the MP-BGP address family for a dedicated VRF, you would typically need to:

Configure a static default route in the VRF using the ip route vrf 0.0.0.0 0.0.0.0  command.

Redistribute the static route into BGP using the redistribute static command under the BGP VRF configuration.

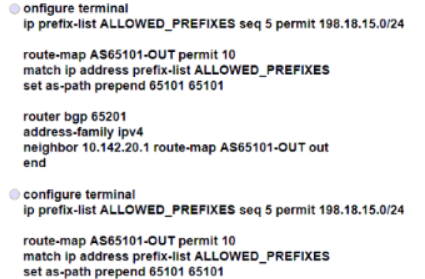

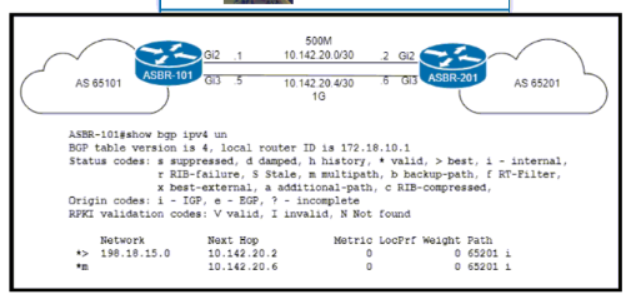

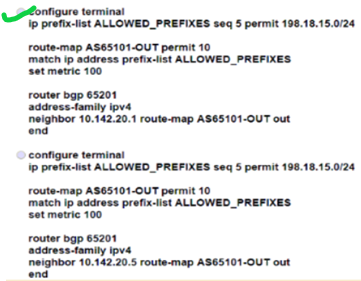

To influence inbound path selection when implementing BGP in a multihomed architecture, an engineer must configure a route map with the AS_PATH attribute. The AS_PATH attribute is used to manipulate the path information to make certain routes more or less attractive, thereby influencing the decision-making process for inbound traffic.

Model-driven telemetry (MDT) in a service provider environment uses a push model to send data to network monitoring tools. This method is beneficial because it allows for the streaming of data from network devices to monitoring tools in real-time, using reliable transport mechanisms. This approach is more efficient than traditional polling methods like SNMP, as it can provide faster and more granular data updates, which is crucial for maintaining network performance and reliability123.

References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR)

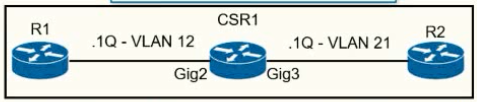

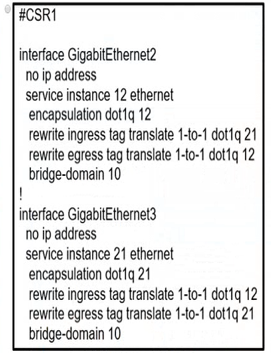

The configuration in Option C correctly sets up the interfaces for VLAN tag translation. On interface GigabitEthernet2, the command rewrite ingress tag translate 1-to-1 dot1q 21 changes the incoming VLAN tag from 12 to 21. Conversely, on interface GigabitEthernet3, the command rewrite egress tag translate 1-to-1 dot1q 12 changes the outgoing VLAN tag from 21 to 12. This setup ensures that traffic flowing from R1 to R2 and vice versa has the correct VLAN tags as required.

References: This explanation is based on the concepts outlined in the Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR v1.0) course

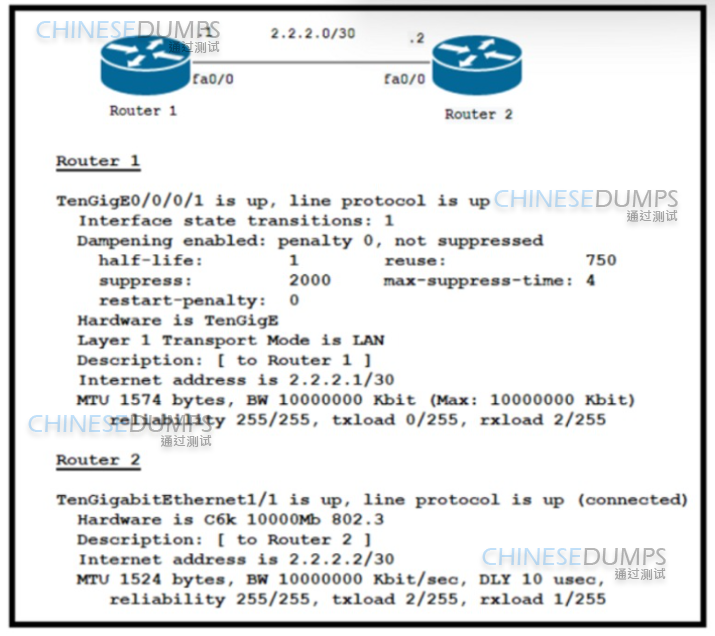

The issue of Router 1 failing to establish an OSPF peering with Router 2, and the increase in CPU and memory usage can be attributed to a mismatch in MTU (Maximum Transmission Unit) sizes. In OSPF, for a successful adjacency to be formed, the MTU size on the interfaces that are trying to form this adjacency must match. In this case, changing the MTU to 1524 on Router 1 will make it compatible with Router 2, allowing OSPF peering to be established and customer traffic to pass through successfully.References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) - Cisco

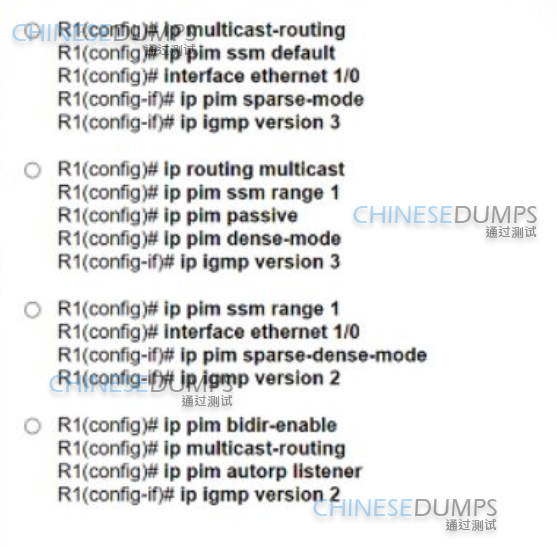

 To implement a PIM-SSM (Protocol Independent Multicast - Source Specific Multicast) configuration for streaming live traffic across different domains, the network operator must ensure that IGMPv3 (Internet Group Management Protocol version 3) is enabled on R1. IGMPv3 is required for SSM because it allows the receiver to specify the source IP address of the desired traffic, which is a key feature of SSM. The operator would configure IGMPv3 on the interfaces that connect to the users who will be accessing the multicast stream. Additionally, PIM-SSM must be enabled on the router, and the multicast sources and groups must be properly defined.

References: The explanation is based on the concepts outlined in the Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) course

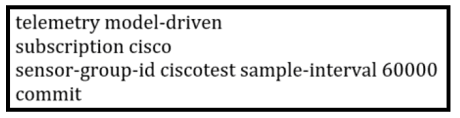

Here is the solution:

Text Description automatically generated

 The configuration sets up a telemetry subscription to collect and send data every 60 seconds, which is indicated by the sample-interval 60000 setting in the configuration. References: For more detailed information, please refer to the official Cisco documentation on Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) and the specific section on Telemetry Configuration.
