Cisco 350-801 - Implementing Cisco Collaboration Core Technologies (350-801 CLCOR) v2.0

Cisco 350-801 Premium Access     Download Demo
Page: 13 / 15
Total 489 questions

An engineer must configure codec on a Cisco Unified Border Element to prefer the G.711 ulaw and use G.711 codec as the

next The engineer logs In to the CUBE, enters the dial.peer configuration level, and runs the voice-class codec 100 command. Which set of commands completes the configuration?

A.

voice class codec 100 codec g7llalaw preference 1 codec a7Hulaw preference 2

B.

voice class codec 11j codec < ?7iiulaw preferred codec g7iialaw

C.

vice class codec 100codec preference 1 g7llulawcodec preference 2 o711alaw

D.

voice class codec ::: codec g711ulaw g711alaw

Which configuration on Cisco UCM is required for SIP MWI to work?

A.

Set the " Enable message waiting indicator " on the port group.

B.

The line partition must be inside the rerouting CSS assigned to the Cisco Unity Connection SIP trunk.

C.

The line partition must be inside the inbound CSS assigned to the CUC SIP trunk.

D.

Assign an MWI extension on the mailbox.

An administrator executes the debug isdn q931 command while debugging a failed call. After a test call is placed, the logs return a disconnect cause code of 1. What is the cause of this problem?

A.

The media resource is unavailable.

B.

The destination number rejects the call.

C.

The destination number is busy.

D.

The dialed number is not assigned to an endpoint.

Which certificate does the Disaster Recovery System in Cisco UCM use to encrypt its communications?

A.

Cisco Tomcat

B.

CAPF

C.

Cisco CallManager

D.

IPsec

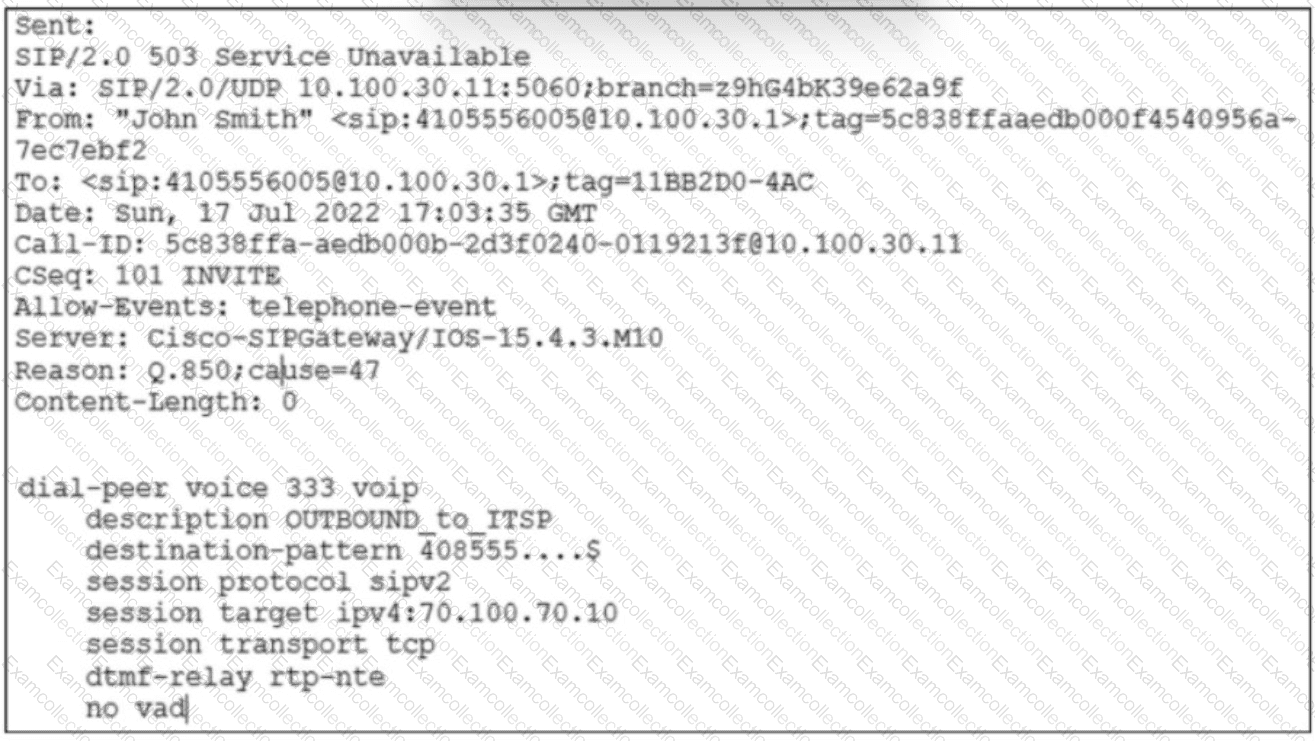

Refer to the exhibit. An engineer configures a SIP trunk to a new ITSP with IP address 70.100.70.100. The outbound dial peer configuration is shown in the exhibit. All outbound calls to 408-555-XXXX numbers fail. Which action resolves the issue?

A.

Configured in-band DTMF relay on the outbound dial peer.

B.

Change the destination-pattern to T on the outbound dial peer.

C.

Reconfigure the dial peer with session-target ipv4:70.100.70.100.

D.

Configure a different codec on the outbound dial peer.

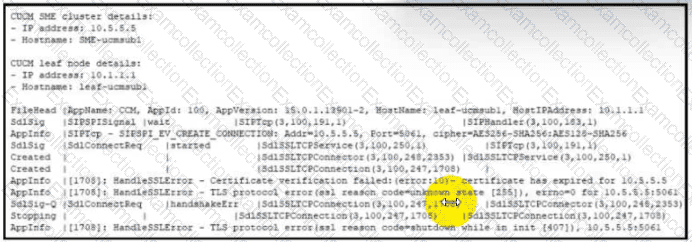

Reler Io lhe exhibit The SIP trunk between two Cisco UCM clusters suddenly went down Which action resolves the issue?

A.

Regenerate the CallManager certificate on the SME duster and then upload a copy of it as CallManager-trust certificate on the leaf cluster

B.

Regenerate the IPsec certificate on the SME cluster and then upload a copy of It as Ipsec-trust certificate on the leaf cluster

C.

Regenerate the CallManager certificate on the leaf cluster and then upload a copy of it as CalManager trust certificate on the SME cluster

D.

Regenerate the IPsec certificate on the leaf cluster and then upload a copy of it as ipsec-trust certificate on the SME cluster

An administrator needs to help a remote employee make a free call to an international destination. The administrator calls the employee, then conferences in the international party. The administrator drops the call, and the employee and the international party continue their conversation. Which action prevents this type of toll fraud in the Cisco UCM?

A.

Set service parameter ' Advanced Ad Hoc Conference " to FALSE.

B.

Set service parameter " Drop Ad Hoc Conference " to " When Conference Controller leaves. "

C.

Set service parameter " Advanced Ad Hoc Conference " to 2.

D.

Set service parameter " Drop Ad Hoc Conference " to " Do not allow outside parties. "

Which two devices are supported by the Flexible DSCP Marking and Video Promotion feature? (Choose two.)

A.

MGCP devices

B.

SCCP devices

C.

pass-through MTPs

D.

H.323 trunks

E.

DX80

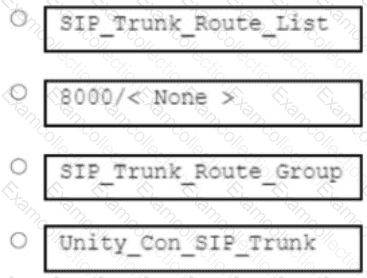

An engineer must create a route pattern for a SIP trunk with the pattern named Unity_Con_SIP_Trunk and a voicemail pilot number 8000/ < None > in Cisco Unity Connection. Which value must the engineer enter for the Gateway/Route List field?

A.

Option A

B.

Option B

C.

Option C

D.

Option D

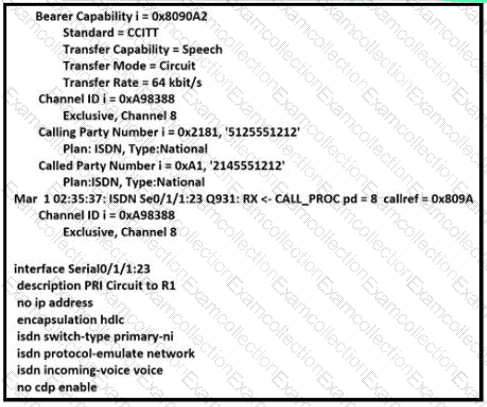

Refer to the exhibit. An engineer is troubleshooting why PSTN phones are not receiving the caller ' s name when called from a remote Cisco UCM site. An ISDN PRI connection is being used to reach the PSTN What must the administrator select to resolve the issue?

A.

isdn supp-service name calling

B.

isdn outgoing display-ie

C.

isdn enable did

D.

isdn send display le
