Cisco 352-011 - Cisco Certified Design Expert Practical Exam

Cisco 352-011 Premium Access     Download Demo
Page: 3 / 8
Total 249 questions

On a large enterprise security solution, which two options are IDS or IPS modes of operation? (Choose two)

A.

Transparent mode

B.

Routed mode

C.

Inline mode

D.

Traffic discovery mode

E.

Promiscuous mode

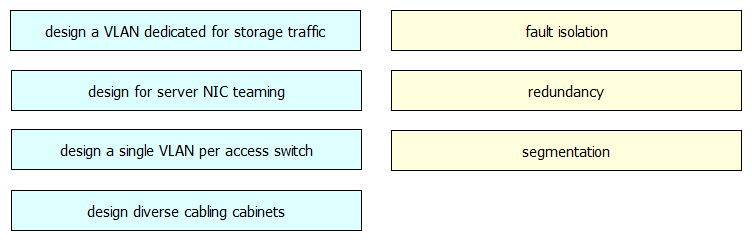

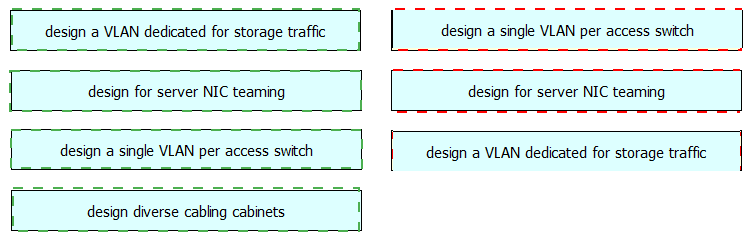

You are designing a new data center network. Drag and drop new data center requirements on the left into the appropriate design principle on the right.

Refer to the exhibit.

Which data format is used in this REST API call?

A.

JSON

B.

HTMLv5

C.

HTML

D.

XML

E.

BASH

Which interconnectivity method offers the fastest convergence in the event of a unidirectional issue between three Layer 3 switches connected together with routed links in the same rack in a data center?

A.

Fiber Ethernet connectivity with UDLD enabled

B.

Copper Ethernet connectivity with BFD enabled

C.

Fiber Ethernet connectivity with BFD enabled

D.

Copper Ethernet connectivity with UDLD enabled

Which aspect is a significant disadvantage of containers?

A.

Security

B.

Time to deploy

C.

Inefficiency

D.

Reduced operational overhead

E.

Resource consumption

Which two application requirements are mandatory for traffic to receive proper treatment when placed in the priority queue? (Choose two)

A.

WRED drop treatment

B.

Small transactions (HTTP – like behavior)

C.

Tolerance to packet loss

D.

Intolerance to jitter

E.

TCP based application

What is an effect of using ingress filtering to prevent spoofed addresses on a network design?

A.

It reduces the effect of DDoS attacks when associated with DSCP remaking to Scavenger

B.

It protects the network infrastructure against spoofed DDoS attacks

C.

It filters RFC 1918 addresses

D.

It classifies bogon traffic and remarks it with DSCP bulk

Which three options are IS-IS design considerations when connecting two Layer 3 switches directly using a 10 GBASE-T cabling and formatting an IS-IS neighbor adjacency?

A.

The default IS-IS network type is point-to-point so a DIS is not elected

B.

A DIS is elected between the IS-IS neighbors and the elected DIS is pre-empted if router with a higher system ID is connected

C.

The area, levels, and interface MTU parameters must match, and system MTU must be unique for two IS-IS routers to become adjacent

D.

Faster IS-IS hello and dead timers increase bandwidth and CPU use, and may cause instability

E.

The IS-IS hello and dead timers should be tuned to detect failures as quickly as possible

F.

A DIS is elected between the IS-IS neighbors and the elected Dis is pre-empted if a router with a lower system ID is connected

G.

The hello and dead timers must match for two IS-IS routers to become adjacent

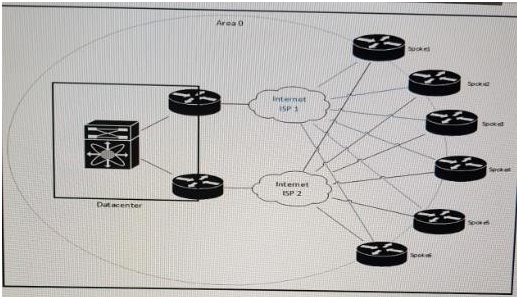

Refer to the exhibit.

You must review this single OSPF area, DMVPN network because the company has noticed a few area 0 convergence and stability issues. Also, traffic destined to the data center from one of the spokes as the next hop on the path. The company prefers that all traffic destined to the data center uses the least amount of hops. Which solution resolves these issues with the minimum amount of changes on the network?

A.

Migrate from OSPF to static routes between the hub routers and the spoke routers and deploy IP SLA for route health checks

B.

Migrate from OSPF to EIGRP between the hub routers and the spoke routers

C.

Modify OSPF cost metrics on all backup links

D.

Create areas between each hub and their spoke routers, to ensure that the hub routers become DRs

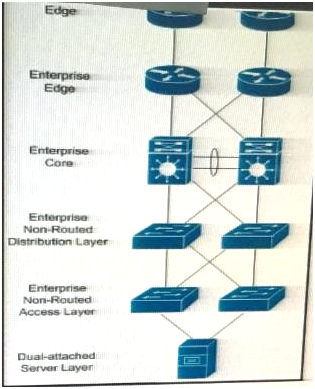

Refer to the Exhibit.

In which three Layers should you use nonstop Forwarding to reduce service impact in case of failure? (Choose three)

A.

Enterprise Edge

B.

Enterprise Core

C.

Service provider Edge

D.

Dual-attached sever Layer

E.

Enterprise Non-Routed Access Layer

F.

Enterprise Non-Routed Distribution Layer.
