VMware 3V0-22.25 - Advanced VMware Cloud Foundation 9.0 Operations

The correct base object type is NSX: Transport Node . In VCF Operations, an NSX Edge Node is modeled operationally as an NSX Edge Transport Node , not simply as a vCenter virtual machine. The alert definition must therefore be built against the NSX object type that owns the relevant NSX system-resource metrics. The VCF Operations documentation identifies Edge Node health monitoring as including Edge Resource Utilization , which summarizes CPU, memory, and disk storage utilization for the node . The metrics reference also states that VCF Operations for Networks collects metrics for NSX-T Transport Node , and under Node Metrics includes CPU Usage (%) , described as the percentage of CPU used out of total capacity during the interval . This aligns directly with an alert condition such as CPU Utilization > 95%. NSX: Edge Cluster is a higher-level grouping object and would not be the correct base for per-node CPU utilization. vCenter: Virtual Machine would monitor the appliance as a VM, but not the NSX transport-node metric model. vCenter: Entity Status is not appropriate for CPU thresholding. Reference topic: Objective 4.9 – Configure a Custom Alert / NSX Transport Node Metrics / Edge Node Resource Utilization .

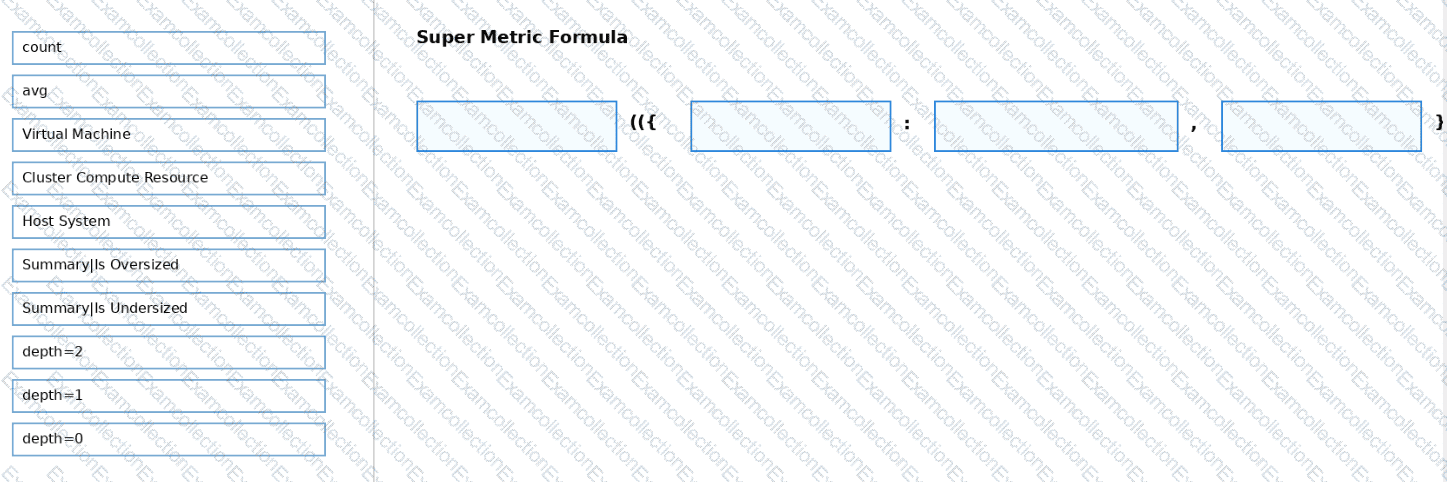

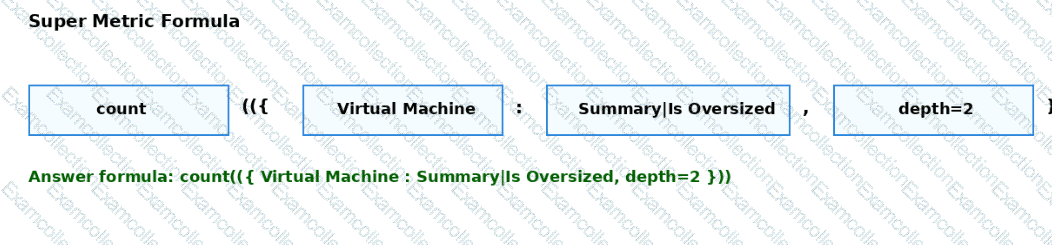

The report must count oversized Virtual Machine objects beneath the workload domain cluster. The correct aggregate function is count , because the requirement is a total number, not an average. The correct object type is Virtual Machine , because the oversized state is a VM-level metric. The correct metric is Summary|Is Oversized , which maps to the VM metric key summary|oversized and returns whether the VM is oversized . The correct relationship depth is depth=2 , because the VCF Operations super metric guidance states that when a super metric is assigned to a cluster and calculates across virtual machines, the cluster is two levels above the VM in the relationship chain, so depth must be changed to 2

The minimum count is 12 collectors , because the requirement is stated at the domain level and each VCF instance contains three domains: one Management Domain and two Workload Domains. The calculation is: 2 Fleets × 2 VCF Instances per Fleet × 3 Domains per VCF Instance = 12 dedicated domain collectors . VCF 9.0 defines a VCF private cloud as containing one or more VCF fleets, a VCF fleet as containing one or more VCF instances, and a VCF instance as consisting of a management domain and optional workload domains . VCF Operations collector architecture also supports scaling collection by adding collector nodes and assigning them through collector groups; collector groups are used to increase resiliency when a collector becomes unavailable and redistribute collection work across remaining collectors . Because the question states that each domain requires dedicated collectors, the administrator cannot satisfy the design by sharing a single collector across multiple domains or counting only the VCF instances. Options 4, 6, and 10 undercount the total number of managed domains. Reference topic: Objective 4.1 – Day 2 Tasks / Unified Cloud Proxies / Collector Groups / Scaling VCF Operations Collection .

The next required step is to download and run the helper script from the cloud proxy, then restart Telegraf . Installing Telegraf and defining OS or application input plug-ins is only part of the configuration. To send data to VCF Operations, Telegraf must also be configured with the correct output plug-in that targets the VCF Operations cloud proxy. The documentation states that after installing open source Telegraf, the administrator must run the helper script to configure Telegraf to send data to the cloud proxy. Running the helper script creates the cloudproxy-http.conf file and adds the output plug-in properties required for sending data; it also updates input plug-ins for OS metrics . The same workflow then requires the Telegraf service to be started or restarted so the new configuration is loaded . Direct communication to the VCF Operations load balancer is not the collection path; Telegraf sends to the cloud proxy or collector group. Operator rights do not control the Telegraf service runtime, and rebooting cloud proxies is unnecessary. Reference topic: Objective 4.7 – Managed/Open Source Telegraf / OS and Application Monitoring / Cloud Proxy Output Configuration .

The correct entry point is Infrastructure Operations > Configurations > Service Discovery > Configure Service Discovery . VCF Operations Service Discovery is not automatically enabled merely because VMware Tools is installed. VMware Tools is a dependency for discovery methods, but the vCenter adapter instance and Service Discovery configuration still must be enabled and associated with the relevant vCenter. The official workflow states that the administrator opens Infrastructure Operations > Configurations , selects the Service Discovery tile, and clicks Configure Service Discovery . From there, the administrator selects the vCenter instance, opens the Service Discovery tab, and activates the Service Discovery option. Application Discovery and credential or credential-less discovery settings can also be enabled from the same workflow . Option B is incorrect because the documented navigation is not through an Administration menu, and the configuration is performed from the Service Discovery tile into the vCenter integration. Option D is used later to manage discovered services and monitoring state, not to initially configure the service discovery adapter. Reference topic: Objective 4.7 – Monitor Applications with VCF Operations / Service Discovery / Configure Service and Application Discovery .

The OUT_OF_SYNC state indicates that the configuration template state in VCF Operations no longer matches the corresponding state expected from Source Control. VCF Operations supports GitHub-based source control so configuration templates can be synchronized to and from a repository, and the documented sync workflow explicitly changes template status back to IN_SYNC after the administrator uses the Sync option in VCF Operations . A template can become out of sync when it is modified outside the VCF Operations workflow, such as being edited directly in the GitHub repository. It can also become out of sync if the corresponding template file is deleted from the repository, because VCF Operations can no longer reconcile the local template object with its source-controlled copy. If the source-control configuration itself is deleted, VCF Operations loses the configured repository association required to validate and synchronize templates. Removing a template from a policy or removing a vCenter instance from a drift-detection job affects drift evaluation scope, not Git template synchronization. Reference topic: Objective 4.16 – Configuration Drift / Source Control Integration / Syncing Configuration Templates with GitHub .

The correct answer is SDDC Manager . In VCF 9.0 password management, VCF Operations can manage many component credentials from Fleet Management > Passwords , including update and remediate operations for supported accounts. However, SDDC Manager is a special case. The documentation lists the VCF Instance/domain components managed from the VCF Operations console as ESX , NSX Manager , vCenter , and SDDC Manager backup password only . The SDDC Manager root and vcf accounts are not updated through the VCF Operations UI password workflow. Instead, the documented SDDC Manager account table shows that the vcf and root accounts are manually managed by using the operating system, while only the backup account is updated or remediated by using the VCF Operations UI or API . By contrast, the vCenter root account, NSX Local Manager root account, and ESX root account are listed as accounts that can be updated or remediated using the VCF Operations UI or API . Reference topic: Objective 4.14 – Complete Fleet Management activities in VCF Operations / Password Management / component account lifecycle management .

The administrator must configure the overcommit ratio and activate the appropriate custom profile at the datastore policy level. In VCF Operations, the Allocation Model is enabled from the policy Capacity card by unlocking Allocation Model and setting the overcommit ratio for CPU, memory, or disk space. For a Datastore , the allocation model specifically allows the administrator to set the overcommit ratio for datastore disk space, which controls how allocated storage capacity is calculated rather than relying only on demand-based usage . The second requirement is to use the current disk space usage of an existing VM to determine how many similar VMs can fit on the datastore. That is handled by a custom profile . Custom profiles define a hypothetical VM configuration and calculate VM remaining for objects such as datastores, datastore clusters, and cluster compute resources . The custom profile wizard also allows metric values to be copied from an existing object, including by VM name, vCenter, VM tag, or custom group . Peak utilization and capacity buffer do not enable allocation modeling or define VM-fit profiles. Reference topic: Objective 4.2 – Manage VCF Capacity / Allocation Model / Custom Profiles / Policy Capacity Settings .

The required plug-in type is Webhook Notification Plugin . Workload Placement Action-based notifications are a specific notification type used for WLP virtual machine movement tasks , not standard alert notifications. The VCF Operations documentation states that administrators can create and manage Workload Placement action-based notifications and configure actions for which notifications are sent when a WLP action succeeds, fails, or times out. It further specifies that notifications are sent after the WLP VM movement task completes, regardless of final status . Before such notification rules can be created, the administrator must configure the Webhook Notification Plugin . In the WLP Action notification workflow, the outbound method supported by default is the Webhook Notification Plugin, and the administrator selects or creates a Webhook plug-in instance before selecting the payload template . This is reinforced in the payload-template workflow, where Action appears only when Webhook Notification Plugin is selected as the outbound method; WLP Action notification payloads are configurable only for Webhook . Network Share does not support notification rules, and SNMP or Standard Email are used for alert-style notifications, not WLP Action notifications. Reference topic: Objective 4.9 – Notifications / Outbound Plugins / WLP Action-Based Notifications .
