VMware 3V0-24.25 - Advanced VMware Cloud Foundation 9.0 vSphere Kubernetes Service

In a Kubernetes-based architecture like the vSphere Kubernetes Service (VKS) within VMware Cloud Foundation (VCF) 9.0, a StorageClass manifest serves as the definition for dynamic volume provisioning. The provisioner field is the mandatory attribute that determines which specific volume plugin or driver is invoked to create the underlying storage resource. In the provided exhibit, the string provisioner: kubernetes.io/aws-ebs specifies that the AWS Elastic Block Store (EBS) driver is the orchestrator for the lifecycle of the volumes associated with this class.

In a standard on-premises VCF 9.0 deployment, the provisioner field typically points to csi.vsphere.vmware.com, identifying the vSphere Container Storage Interface (CSI) driver. This driver acts as the translator between Kubernetes PersistentVolumeClaims (PVCs) and vSphere’s Cloud Native Storage (CNS) layer. The other fields in the manifest serve supporting roles: name provides a reference for the StorageClass, parameters (such as type: gp2) pass configuration-specific details to the driver, and reclaimPolicy determines what happens to the data once a claim is deleted. However, only the provisioner field defines the " who " of the operation—the actual software driver responsible for communicating with the storage array or cloud provider to provision the physical or virtual disk. Understanding this distinction is critical for administrators managing hybrid-cloud workloads where different provisioners are used across diverse infrastructure backends.

VCF 9.0 explains that VKS releases are distributed throughcontent libraries, and that when you configure asubscribed content libraryyou can choose how content is downloaded and synchronized. Critically for constrained storage sites, the documentation states you can selecton-demand (“when needed”)download so thatonly the metadatais synchronized, and theactual image content is not downloadeduntil you explicitly need it—“as a result storage space is saved.”

This directly addresses the problem of a remote site with minimal datastore capacity: choosingWhen neededprevents the subscribed library from immediately caching all published VKS images locally. The vSphere content library guidance reinforces this behavior: with “download contents only when needed,” the system synchronizesmetadata only, which “saves storage space,” and you download a specific item’s content only when you synchronize that item for use.

Therefore, selectingDownload content → When neededis the correct action to avoid consuming all available datastore space.

In VMware Cloud Foundation (VCF) 9.0 and vSphere Kubernetes Service (VKS) environments, the kubectl logs command is the essential tool for retrieving the standard output (STDOUT) and standard error (STDERR) streams from containers within a pod. When a microservice like an API gateway enters a CrashLoopBackOff state, it signifies that the container is starting, failing, and being restarted by the kubelet in an exponential back-off loop. To diagnose the root cause—such as a syntax error in a configuration file or a failed connection to a backend database—the administrator must inspect the application ' s internal execution logs.

The kubectl logs command is particularly powerful in this scenario when used with the -p (or --previous) flag. This flag allows the administrator to retrieve logs from the specific container instance that just crashed, rather than the one currently attempting to restart. While kubectl describe provides critical metadata about the pod ' s lifecycle events, resource constraints, and status, it does not capture the internal application stream. In VCF 9.0, where the vSphere Supervisor manages the lifecycle of these clusters, utilizing the standard Kubernetes toolset ensures that platform operators have a consistent and familiar troubleshooting experience. This logging mechanism is a core part of the observability stack in VKS, enabling rapid identification of application-level failures within the software-defined data center.

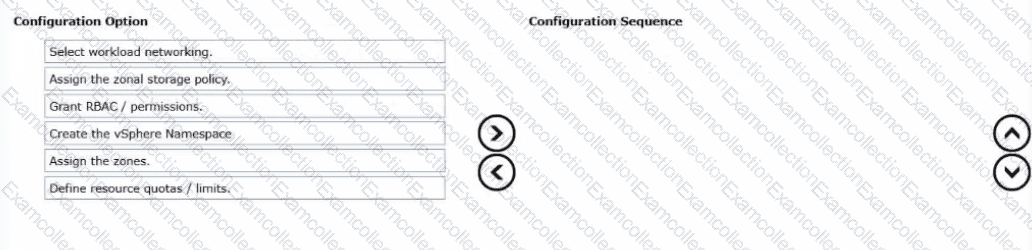

Configuration Sequence (in order):

Create the vSphere Namespace

Assign the zones

Select workload networking

Assign the zonal storage policy

Define resource quotas / limits

Grant RBAC / permissions

A zonal vSphere Namespace is created as a standard namespace first, then “zonalized” by associating it with one or morevSphere Zonesso workloads can be scheduled according to zone placement rules. You start bycreating the namespacebecause it is the tenancy and governance container where networking, storage access, quotas, and permissions are applied. Next, youassign the zones, since zone association is what makes the namespace “zonal” and determines where Kubernetes workloads (and their node pools) are allowed to land.

With zones set, you configureworkload networking, because namespaces must have the correct network attachment and IP behavior for the workloads that will be placed across the selected zones. Then youassign the zonal storage policy, ensuring that persistent volumes can be provisioned using storage that is valid/available for the zone placement model you selected. After networking and storage access are defined, you setresource quotas/limits(CPU, memory, storage) so multi-tenant consumption stays within governance boundaries. Finally, yougrant RBAC/permissionsso the right DevOps/users can consume the namespace and provision clusters/workloads under the enforced controls.

Amulti-zone Supervisorin VCF 9.0 is designed to deliverplatform resiliency and high availability at the vSphere cluster (zone) failure-domain level. The VCF 9.0 documentation states that a multi-zone Supervisor “leverages three vSphere clusters” (each mapped to a vSphere Zone) and that these zones are used by both “workloads and Supervisor management components to deliver high availability,” exposing “each cluster as an independent, consumable availability zone,” resulting in a “resilient, HA-capable platform.”

This is reinforced in the vSphere Zones guidance: deploying the Supervisor onthree vSphere Zones spreads the control plane VMs across three zones, providing “cluster-level high availability” that protects the Supervisor control plane against asingle cluster-level failure(one control plane VM per management zone).

Because VKS (vSphere Kubernetes Service) runs on Supervisor, distributing Supervisor control plane and workload placement across zones improves overall availability of Supervisor services and Kubernetes consumption in that Supervisor instance.

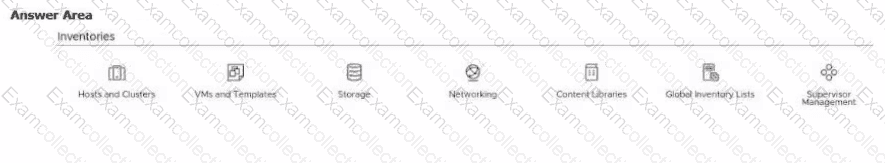

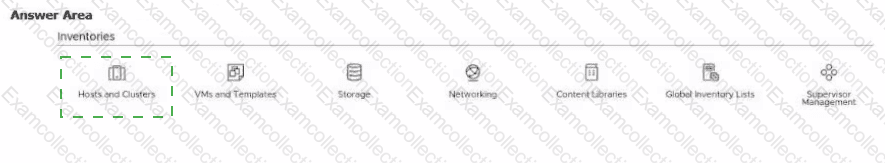

Hosts and Clusters

To create avSphere Zone(used as a Supervisor Management Zone and/or Workload Zone), the administrator must start from the vSphere Client inventory wherevCenterand its clusters are managed. That’s why the correct starting point in the “Inventories” toolbar isHosts and Clusters—it is the entry point used to select the vCenter object and the target clusters.

VCF 9.0 documents the zone-creation workflow as:navigate to vCenter, thenSelect Configure, thenselect vSphere Zones, and finally clickAdd New vSphere Zone. After naming the zone, youselect a vSphere cluster to add to the zoneand finish the wizard.

This sequence matches the intent of the hotspot: you must first open the inventory view that exposes vCenter and clusters (Hosts and Clusters), then perform the configuration steps under vCenter to define vSphere Zones. Once created, these zones can later be selected during Supervisor deployment (for multi-zone placement) or assigned to namespaces for workload placement.

VCF 9.0 describes a standardized approach to deploying optional capabilities on VKS clusters viastandard packages. In the VCF Automation cloud services overview, VMware listsIstioamong the packages that “can be optionally installed” for VKS. For installing those packages, the VCF CLI provides a dedicatedpackage pluginthat “works on a workload cluster” and exposes explicitinstallworkflows.

The VCF CLI command reference shows the syntax for installing a package:

vcf package install INSTALLED_PACKAGE_NAME --package PACKAGE_NAME --version VERSION (with optional values files and overlays). This is the supported, VCF-aligned way to install standard packages such as Istio onto a VKS workload cluster in a controlled, declarative manner, including tracking reconciliation status and providing configuration via a values file.

Options that rely on ad-hoc downloads (curl) or building tooling (docker build) do not match the documented VCF package-management workflow for VKS standard packages. Therefore, the correct command family isvcf package install.

VCF 9.0 explicitly lists thecomponents that run in a VKS clusterand groups them into areas such as authentication/authorization, storage integration, pod networking, and load balancing. In that list, the documentation names:“Container Storage Interface Plugin”(a paravirtual CSI plug-in that integrates with CNS through the Supervisor),“Container Network Interface Plug-in”(a CNI plugin that provides pod networking), and“Cloud Provider Implementation”(supports creating Kubernetes load balancer services).

These three items map directly to the answer choicesD (Container Storage Interface),F (Container Network Interface), andA (Cloud Provider Implementation). The same VCF 9.0 section also mentions an authentication webhook, but that component is not offered as a selectable option in this question, so the best three matches among the provided choices are the CSI, CNI, and cloud provider implementation entries that the document explicitly states are present inside a VKS cluster.

VCF 9.0 documentation explicitly indicates thatvCenter upgrades and the Supervisor/cluster (Workload Management) upgrade are distinct, noting that “if you have only upgraded vCenter and not the cluster” then DevOps engineers have reduced permissions until the cluster is upgraded. This supports the stated standard that VKS/Workload Management lifecycle can be treated separately from vCenter. For the private registry requirement, VCF 9.0 provides an operational mechanism to authenticate and pull artifacts from private registries: “Registry secrets allow package and repository consumers to authenticate to and pull images from private registries,” implemented via a standard Kubernetes Secret of type kubernetes.io/dockerconfigjson.

Taken together, the standard implies (1)asynchronoushandling (separate lifecycle from vCenter) and (2)privatesourcing (images pulled from an internal registry with registry secrets). Therefore, selectingAsynchronous Privatebest matches both requirements in a single configuration choice, aligning with the documented separation of upgrades and the documented need to use authenticated access to private registries.

In Kubernetes, the component that actuallycreates and runs workloads on a nodeis thekubelet. The kubelet is the node agent that ensures the containers described by PodSpecs are running on that node. VCF 9.0 maps this concept directly into vSphere Supervisor by describingSphereletas “a kubelet that is ported natively to ESXi and allows the ESXi host to become part of the Kubernetes cluster,” showing that kubelet functionality is responsible for running workloads on worker nodes (ESXi hosts in the Supervisor case).

The other options have different roles:etcdis the control plane data store,API Serveris the front-end for Kubernetes API operations, and theSchedulerdecides placement (which node should run a pod). VCF 9.0 even calls out that “the Kubernetes scheduler… cannot place pods intelligently” without visibility into vCenter inventory—reinforcing that scheduling is about placement decisions, not the act of creating/running the workload on the node.

So, while the scheduler selects where a pod should run, thekubeletis the component responsible for actually instantiating and maintaining the workload on the target node.
