Nokia 4A0-C01 - Nokia NRS II Composite Exam

Nokia 4A0-C01 Premium Access     Download Demo
Page: 1 / 13
Total 852 questions

On an Alcatel-Lucent 7750 SR, what is the recommended approach for making sure that MTUs between a VPLS and its spoke IES termination match?

A.

Set the service MTU of the VPLS to match the IES MTU.

B.

Set the ip-mtu of the IES to match the service MTU of the VPLS.

C.

Set the SDP MTU of the IES to match the SDP MTU of the VPLS.

D.

Set the MTU of the IES's network port to match the service MTU of the VPLS.

Which of the following SAPs will NOT forward untagged frames?

A.

sap 1/1/1

B.

sap 1/1/1:*

C.

sap 1/1/1:0

D.

sap 1/1/1:1

A service needs to accept frames that have the following: an outer VLAN tag of 200 with an inner VLAN tag of 33; and frames that have an outer VLAN tag of 250 with an inner VLAN tag of 33. What SAP(s) need to be configured?

A.

1/1/1:200.*

B.

1/1/1:*.33

C.

1/1/1:*.*

D.

This requires two SAPs: 1/1/1:200.33 and 1/1/1:250.33

Which of the following statements best describes the flooding of traffic on a PE when traffic is received on a mesh SDP?

A.

Traffic is flooded to all SAPs in the service.

B.

Traffic is flooded to all SAPs and spoke SDPs in the service.

C.

Traffic is flooded to all SAPs and mesh SDPs in the service.

D.

Traffic is flooded to all SAPs, spoke SDPs. and mesh SDPs in the service.

E.

The traffic is not flooded.

A SAP configured in the form of 1/1/1:0/32 would be used for which type of VPWS?

A.

A-pipe

B.

C-pipe

C.

E-pipe

D.

F-pipe

Which of the following comparisons between E-pipes and VPLSes is FALSE?

A.

They both function as a Layer 2 switch from the service provider's perspective.

B.

They both support SAP encapsulations of null, dot1Q and Q-in-Q.

C.

They both use SAPs as the demarcation point between the customer and the provider.

D.

MAC addresses are learned by VPLSes, but not by E-pipes.

Click the exhibit.

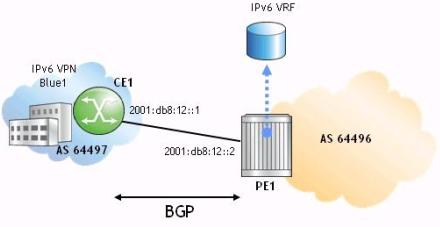

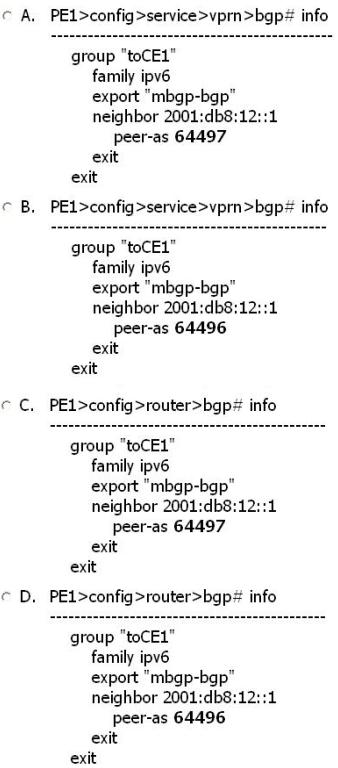

Part of a 6VPE deployment is shown in this exhibit. Which of the following is the correct configuration and context on PE1 for a BGP peering session with CE1?

A.

Option A

B.

Option B

C.

Option C

D.

Option D

Which of the following is a benefit of VPRN as compared to VPLS?

A.

Service providers can apply QoS, ingress/egress traffic shaping and policing on a per service basis.

B.

Different customers with overlapping address space can be accommodated.

C.

There is a clear demarcation of customer and service provider networks.

D.

Customers can connect to the same service using different subnets.

All services mapped to an SDP use the same transport encapsulation type (either GRE or MPLS)

A.

TRUE

B.

FALSE

An E-pipe is configured with a service MTU of 5000. What MTU value should be set on the access port for a Q-in-Q encapsulated SAP?

A.

5000

B.

5004

C.

5008

D.

5018

How many service labels must be signaled to bring up a fully-meshed VPLS among five PE routers?

A.

1

B.

5

C.

10

D.

20

An IPv4 MPLS provider network is being configured for 6VPE. BGP is being used for the PE-CE protocol to exchange IPv6 routes. Which of the following is FALSE?

A.

MP-BGP in the provider network needs to support the VPN-IPv6 address family.

B.

PE routers must be configured to run MP-BGP.

C.

PE-to-CE BGP sessions need to be configured to support IPv6.

D.

The provider network core must be configured to support IPv6.

Which protocol can be used to signal the outer label for a VPN service?

A.

IPCP

B.

LDP

C.

PPP

D.

TLDP

On a dot1Q encapsulated port, frames with a VLAN tag of 0 and untagged frames are forwarded to the null SAP

A.

TRUE

B.

FALSE

Which of the following about VPLS MAC learning is FALSE?

A.

The PE routers of the service are responsible for learning MAC addresses.

B.

Flooding ensures that all PEs in a fully-meshed VPLS will learn the source address of all traffic.

C.

MAC learning reduces flooding of frames with previously learned addresses.

D.

Multiple VPLSes on the same PE share the same MAC FDB.

Consider an E-pipe service configured with SAP 1/1/1:5 and SAP 1/1/1:6. If the SAP 1/1/1:5 accepts an ingress frame, which of the following is TRUE?

A.

The frame egresses from 1/1/1:6 with no VLAN tag.

B.

The frame egresses from 1/1/1:6 with VLAN tag 5.

C.

The frame egresses from 1/1/1:6 with VLAN tag 6.

D.

The frame egresses from 1/1/1:6 with an inner VLAN tag of 5 and an outer VLAN tag of 6.

By default, how does a VPLS handle a tagged frame received at the ingress of a null SAP on an Alcatel-Lucent 7750 SR?

A.

The FCS is verified and kept in the customer frame. The VLAN tag is kept and transported over the network.

B.

The FCS is verified and kept in the customer frame. The VLAN tag is removed for transport over the network.

C.

The FCS is verified and removed from the frame. The VLAN tag is kept and transported over the network.

D.

The FCS is verified and removed from the frame. The VLAN tag is removed for transport over the network.

Once a service has been created with a customer association, it is possible to change the customer association.

A.

TRUE

B.

FALSE

Which of the following about SDPs is FALSE?

A.

Spoke SDPs prevent loops in a VPLS.

B.

Mesh SDPs and spoke SDPs can be used in the same VPLS.

C.

A spoke SDP does not require the routers at both ends to be directly connected.

D.

A mesh SDP is identical to a spoke SDP except for its flooding behavior.

What command syntax would be used to create a new routed interface on an existing IES service?

A.

config>service>ies# interface "to-CE" customer customer-id create

B.

config>service>ies# interface to CE create

C.

config>service>ies# interface to CE

D.

config>service>ies# interface "to-CE" create
