Nokia 4A0-C04 - Nokia NRS II Composite Exam: OSPF version

Nokia 4A0-C04 Premium Access     Download Demo
Page: 7 / 9
Total 298 questions

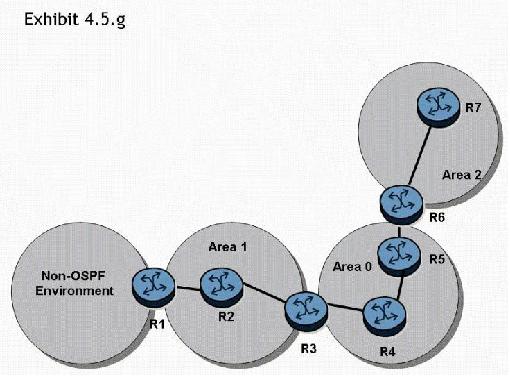

Click the exhibit button.

In the topology shown, router R1 is an ASBR configured to export external routes to OSPF. Assuming that there are no stub networks, which of the following statements regarding type 4 LSA generation is true?

A.

Router R1 generates a type 4 LSA that is flooded to areas 0, 1, and 2.

B.

Router R3 generates a type 4 LSA that is flooded to areas 0, 1, and 2.

C.

Router R3 generates a type 4 LSA that is flooded to areas 0 and 2.

D.

Router R3 generates a type 4 LSA that is flooded to area 0, and router R6 generates a type 4 LSA that is flooded to area 2.

What happens by default on an Nokia 7750 SR when a VPLS accepts a tagged frame at the ingress SAP 1/1/1:100?

A.

The FCS is verified and kept in the customer frame. The VLAN tag is kept and transported over the network.

B.

The FCS is verified and kept in the customer frame. The VLAN tag is removed for transport over the network.

C.

The FCS is verified and removed from the frame. The VLAN tag is kept for transport over the network.

D.

The FCS is verified and removed from the frame. The VLAN tag is removed for transport over the network.

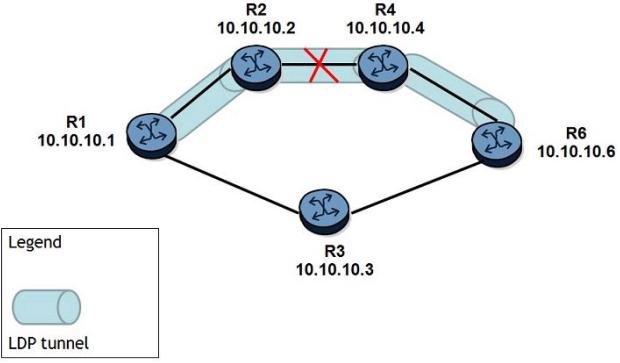

Click on the exhibit.

An LDP tunnel is established on router R1 towards router R6. The link between routers R2 and R4 goes down. What will happen to the MPLS data traffic to router R6 IMMEDIATELY after the link goes down?

A.

MPLS data traffic will be discarded until the IGP finds a new next-hop to router R3.

B.

MPLS data traffic will be discarded unless the LDP tunnel has a standby secondary path.

C.

MPLS data traffic will not be discarded because router R1 received labels from both next-hops, routers R2 and R3.

D.

MPLS data traffic will not be discarded because of fast reroute capability on router R2.

Initially, all ports on an Nokia 7750 SR have 10Gbps bandwidth. RSVP configuration limits reservable bandwidth to 30 percent on all interfaces. An LSP is signaled reserving 1 Gbps bandwidth. How much unreserved bandwidth is left on the interface?

A.

10 Gbps

B.

7 Gbps

C.

3 Gbps

D.

2 Gbps

On which object is ADSPEC enabled?

A.

SDP

B.

Network port

C.

LSP

D.

Service

E.

RSVP

Which MPLS mode saves only active label mappings received from peer LSRs?

A.

Conservative label retention

B.

Liberal label retention

C.

Downstream on demand

D.

Downstream unsolicited

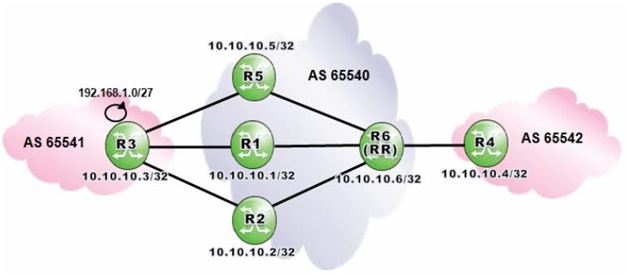

Click the exhibit.

Router R6 is a route reflector with clients R1, R2 and R5. Router R3 advertises the prefix 192.168.1.0/27 to routers R1, R2 and R5. How many routes for prefix 192.168.1.0/27 will router R6 receive?

A.

1

B.

2

C.

3

D.

None

Which of the following statements is TRUE?

A.

An OSPF adjacency can be established on an IES interface.

B.

IES allows provider MP-BGP sessions to be extended to customers.

C.

An IES service must use static routes in order to communicate with customer networks.

D.

An IES interface supports OSPF and IS-IS in passive mode only.

An Nokia 7750 SR receives a route via an IS-IS LSP with internal reach ability, and receives the same route via an OSPF type 5 LSA. If al protocol preferences are default, which route will be installed in the route table?

A.

The route learned via IS-IS will be installed.

B.

The route learned via the OSPF type 5 LSA will be installed.

C.

Both routes will be installed, if ECMP is enabled.

D.

Both routes will be installed, regardless of whether ECMP is enabled.

Which of the following messages is NOT used in T-LDP operation?

A.

Hello message

B.

Init message

C.

Keepalive message

D.

Label Mapping message

E.

ACK message
