Nokia 4A0-C04 - Nokia NRS II Composite Exam: OSPF version

Nokia 4A0-C04 Premium Access     Download Demo
Page: 8 / 9
Total 298 questions

Which one of the commands below will create a static route to network 2.3.4.0/24 on the AlcatelLucent 7750 SR router?

A.

Static route 2.3.4.0 255.255.255.0 next hop 3.4.5.6

B.

Static-route next-hop 3.4.5.6 2.3.4.0/24

C.

Static route 2.3.4.0/24 next hop 3.4.5.6

D.

Static-route 2.3.4.0/24 next-hop 3.4.5.6

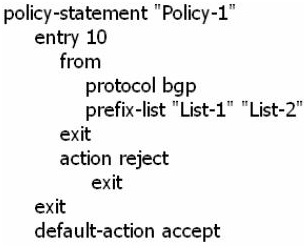

What is the result of configuring the following policy statement as a BGP import policy on the Nokia 7750 SR?

A.

All BGP routes are accepted.

B.

All routes matching prefix lists "List-1" and "List-2" are rejected.

C.

BGP routes matching prefix lists "List-1" or "List-2" are rejected.

D.

BGP routes matching prefix lists "List-1" and "List-2" are rejected.

Click the exhibit.

The two PEs are providing 6VPE and IPv4 VPRNs. The core network is IPv4/MPLS. Which of the following is the BGP family configuration for the MP-BPG on the PEs?

A.

family ipv4 ipv6

B.

family vpn-ipv4ipv6

C.

family vpn-ipv4 vpn-ipv6

D.

family ipv6 vpn-ipv6

Which of the following statements about SAPs that are part of a VPVVS is FALSE?

A.

SAPs can be defined on Ethernet, POS, Sonet/SDH, or TDM channels.

B.

Only one SAP is required for a service that originates and terminates on the same Nokia 7750 SR.

C.

SAPs can have QoS policies assigned to them.

D.

Multiple SAPs can be defined on the same port.

Which of the following best describes the type of packets used by OSPF routers to exchange updates on a point-to-point link?

A.

IP packets sent to an IP multicast address.

B.

TCP packets sent to an IP multicast address.

C.

IP packets sent to an IP unicast address.

D.

UDP packets sent to an IP multicast address.

Which of the following statements regarding Internet Exchange Points is FALSE?

A.

They provide both peering and transit services.

B.

They provide services only to Tier 1 service providers.

C.

They can be either public or private.

D.

They provide services at the local, regional and continental levels.

Click the exhibit.

The CEs use BGP and export policies to advertise their local prefixes with the VPRN on their PEs. If the VPRN is functioning properly, which of the following commands will succeed when performed on router R1?

A.

"ping 192.168.20.1"

B.

"oam vprn-ping 100 source 192.168.10.1 destination 192.168.20.1"

C.

"oam vprn-ping 100 source 192.168.20.1 destination 192.168.10.1"

D.

"ping 10.10.10.6" (router R6's system IP)

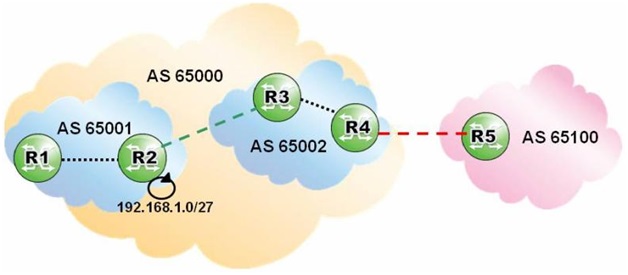

Click the exhibit.

Router R2 is advertising prefix 192.168.1.0/27 with community "no-advertise" towards AS 65002.

Which routers receive an update for that prefix?

A.

Router R3 only.

B.

Routers R3 and R4 only.

C.

Routers R3, R4 and R5 only.

D.

Router R2 does not advertise an update for the prefix.

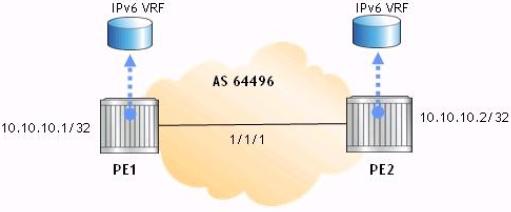

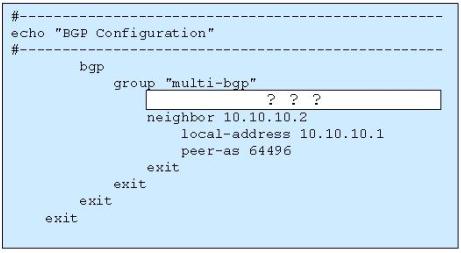

Click the exhibit.

This PE is connected to an IPv4 core and is being configured to support 6VPE for a VPRN. Which of the following completes this section of the configuration?

A.

Family ipv4

B.

Family ipv6

C.

Family ipv4 ipv6

D.

Family vpn-ipv4

E.

Family vpn-ipv4 vpn-ipv6

Which of the following about RSVP-TE is FALSE?

A.

It supports traffic protection using IGP equal cost paths.

B.

It supports CAC to prevent resource overbooking.

C.

It supports LSPs with traffic engineering constraints.

D.

It supports LSPs that follow the IGP best path.
