This object is part of the concrete model.

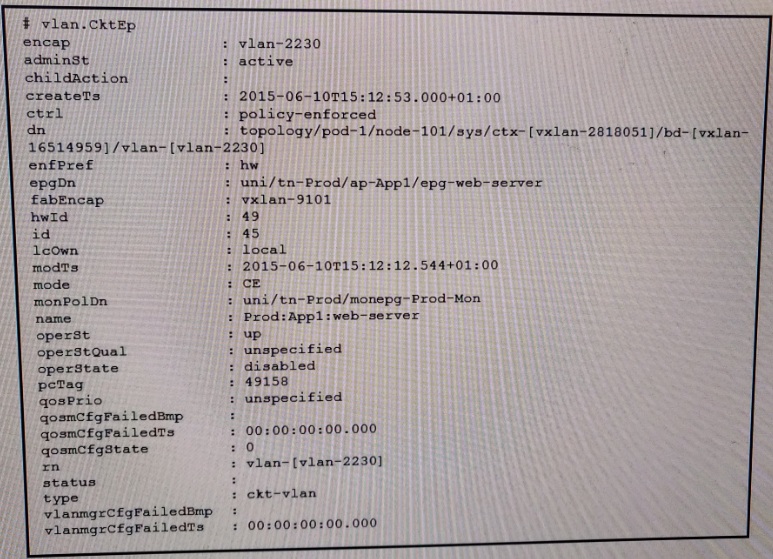

There are endpoints with encapsulation vlan-2230 in the EPG name "web-server" on node 101.

This object is part of the resolved model.

This object is part of the logical model

This object represents an FPG named "web server" in tenant Prod.

If IPManager On the spinerejected a tenant VRF/route configuration, the spine command show ip route vrf can be used to verify all tenant VRF configurations.

The BD SVI IP addresscan be verified with the vsh_ Ic show platform internal ns forwarding router-ip command.

The tcpdum command can be used on all Cisco ACI switches to capture and verity tenant EPGdata plan traffic.

The VLAN membership for an interface on the Broadcom ASIC can be verified with the show hardware vlans programmed command.

VL AN membership of an Interface can be vended wrth the VSh_lC show system Internal eltmc Info interface x/x command.

Create an external bridged network to extend the entire bridge domain.

Create a routed outside network connection using the OSPF protocol to extend the EPG.

Create a routed outside network connection using the BGP to extend the entire bridge domain.

Create a connectivity profile to external devices that include the bridge domain or EPG information.

Create a static binding to a path (port + encap-ID) inside an EPG.

under the contract provider EPG

under the contract consumer EPG

in a shared bridge domain in the tenant common

in the endpoint bridge domain

Static endpoint entries can be configured under the Tenant Networking section of the Cisco ACI Ulfor silent hosts to communicate with each other.

When the ARP originator and ARP target are known to the proxy, forwarding can no longer occur using the proxy because the source and destination are now known

When an ARP target device responds, a response is sent to the proxy, which has an entry (or the ARP originator, so it is then forwarded to the leaf where ARP originator resides.

When ARP response is known by the proxy, the ARP is forwarded from the leaf that received the ARP to the spine, and onto the leaf where the ARP target resides.

The proxy age time has no limit If the target of the ARP has not sourced a frame for some lime, the entry remains indefinite because this i$ the only way forwarding can work between silent hosts.

VXLAN, no local switching

VPC-HM

VXLAN,local switch

VLAN,no local switching

MAC pinning

VLAN, local switching

assigned by Cisco ARC from the management tenant IP space.

allocated from the vPC domain number assigned to the vPC peers.

DHCP from the infra TEP pool leaf portion.

DHCP from the infra TEP pool VIP portion.

The class ID (or PCTag) of the source EPG is inserted by the ingress leaf intoany packets going into the fsbric.

Contracts are always enforced m the ingress leaf

The class ID (or PCTag) of the destination EPG is inserted by the ingress leaf into any packets going into the fabric

Contracts are sometimes enforced in the ingress leaf and sometimes in the egress leaf.

Contracts are always enforced m the egress leaf

It will always be the switches first and the APICs second.

It will always be the APICs first and the switches second.

It will always depend on the specifics of the software release.

It does not matter which you upgrade first(ARC/Switch) or second (APIC/Switch)
