Microsoft AZ-700 - Designing and Implementing Microsoft Azure Networking Solutions

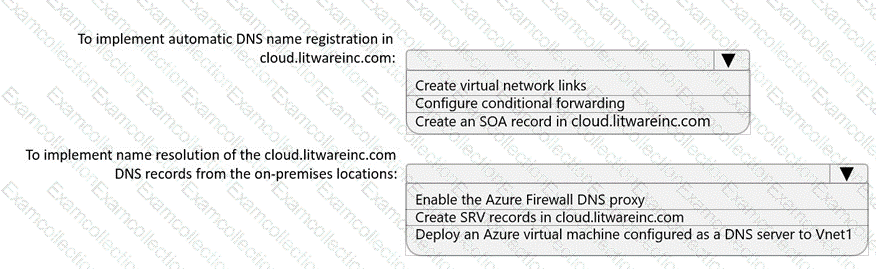

To achieve the task of ensuring that virtual machines on VNET1 and VNET2 are included automatically in a DNS zone named contoso.azure, and that they can resolve the names of the virtual machines on either virtual network, you can follow these steps:

Step-by-Step Solution

Step 1: Create a Private DNS Zone

Navigate to the Azure Portal.

Search for “Private DNS zones” in the search bar and select it.

Click on “Create”.

Enter the DNS zone name as contoso.azure.

Select the appropriate subscription and resource group.

Click on “Review + create” and then “Create”.

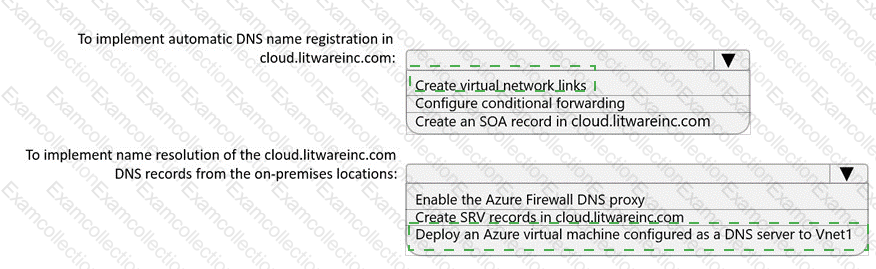

Step 2: Link VNET1 and VNET2 to the DNS Zone

Go to the newly created DNS zone (contoso.azure).

Select “Virtual network links” from the left-hand menu.

Click on “Add”.

Enter a name for the link (e.g., VNET1-link).

Select the subscription and virtual network (VNET1).

Enable auto-registration to ensure that VMs are automatically registered in the DNS zone.

Click on “OK”.

Repeat the process for VNET2.

Step 3: Configure DNS Settings for VNET1 and VNET2

Navigate to VNET1 in the Azure Portal.

Select “DNS servers” under the “Settings” section.

Ensure that the DNS server is set to “Default (Azure-provided)”.

Repeat the process for VNET2.

Step 4: Verify Name Resolution

Deploy a virtual machine in VNET1 and another in VNET2.

Connect to the virtual machines using Remote Desktop Protocol (RDP) or Secure Shell (SSH).

Test name resolution by pinging the VM in VNET2 from the VM in VNET1 using its hostname (e.g., ping .contoso.azure).

Explanation

Private DNS Zone: This allows you to manage and resolve domain names in a private network without exposing them to the public internet.

Virtual Network Links: Linking VNET1 and VNET2 to the DNS zone ensures that VMs in these networks can register their DNS records automatically.

Auto-registration: This feature automatically registers the DNS records of VMs in the linked virtual networks, simplifying management.

DNS Settings: Using Azure-provided DNS ensures that the VMs can resolve each other’s names without additional configuration.

By following these steps, you ensure that virtual machines on VNET1 and VNET2 are included automatically in the DNS zone contoso.azure and can resolve each other’s names seamlessly.

Here are the steps and explanations for ensuring that the storage34280945 storage account will only accept connections from hosts on VNET1:

To restrict network access to your storage account, you need to configure the Azure Storage firewall and virtual network settings for your storage account. You can do this in the Azure portal by selecting your storage account and then selecting Networking under Settings1.

On the Networking page, select Firewalls and virtual networks, and then select Selected networks under Allow access from1. This will block all access to your storage account except from the networks or resources that you specify.

Under Virtual networks, select + Add existing virtual network. Then select VNET1 from the list of virtual networks and select the subnet that contains the hosts that you want to allow access to your storage account1. This will enable a service endpoint for Storage in the subnet and configure a virtual network rule for that subnet through the Azure storage firewall2.

Select Add to add the virtual network and subnet to your storage account1.

Select Save to apply your changes1.

Here are the steps and explanations for ensuring that connections to the storage34280945 storage account can be made by using an IP address in the 10.1.1.0/24 range and the name stor-age34280945.pnvatelinlcblob.core.windows.net:

To allow access from a specific IP address range, you need to configure the Azure Storage firewall and virtual network settings for your storage account. You can do this in the Azure portal by selecting your storage account and then selecting Networking under Settings1.

On the Networking page, select Firewalls and virtual networks, and then select Selected networks under Allow access from1. This will block all access to your storage account except from the networks or resources that you specify.

Under Firewall, select Add rule, and then enter 10.1.1.0/24 as the IP address or range. You can also enter an optional rule name and description1. This will allow access from any IP address in the 10.1.1.0/24 range.

Select Save to apply your changes1.

To map a custom domain name to your storage account, you need to create a CNAME record with your domain provider that points to your storage account endpoint2. A CNAME record is a type of DNS record that maps a source domain name to a destination domain name.

Sign in to your domain registrar’s website, and then go to the page for managing DNS settings2.

Create a CNAME record with the following information2:

Source domain name: stor-age34280945.pnvatelinlcblob.core.windows.net

Destination domain name: stor-age34280945.pnvatelinlcblob.core.windows.net

Save your changes and wait for the DNS propagation to take effect2.

To register the custom domain name with Azure, you need to go back to the Azure portal and select your storage account. Then select Custom domain under Blob service2.

On the Custom domain page, enter stor-age34280945.pnvatelinlcblob.core.windows.net as the custom domain name and select Save2.

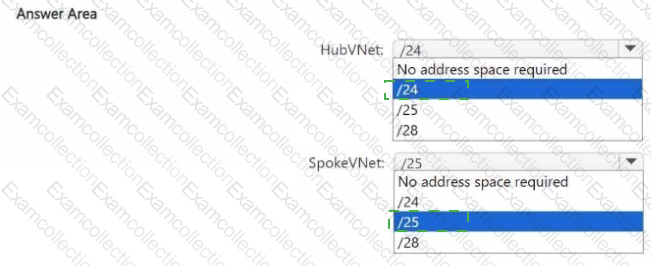

Here are the steps and explanations for ensuring that subnet4-3 can accommodate 507 hosts:

To determine the subnet size that can accommodate 507 hosts, you need to use the formula: number of hosts = 2^(32 - n) - 2, where n is the number of bits in the subnet mask1. You need to find the value of n that satisfies this equation for 507 hosts.

To solve this equation, you can use trial and error or a binary search method. For example, you can start with n = 24, which is the default subnet mask for Class C networks. Then, plug in the value of n into the formula and see if it is too big or too small for 507 hosts.

If you try n = 24, you get number of hosts = 2^(32 - 24) - 2 = 254, which is too small. You need to increase the value of n to get a larger number of hosts.

If you try n = 25, you get number of hosts = 2^(32 - 25) - 2 = 510, which is just enough to accommodate 507 hosts. You can stop here or try a smaller value of n to see if it still works.

If you try n = 26, you get number of hosts = 2^(32 - 26) - 2 = 254, which is too small again. You need to decrease the value of n to get a larger number of hosts.

Therefore, the smallest value of n that can accommodate 507 hosts is n = 25. This means that the subnet mask for subnet4-3 should be /25 or 255.255.255.128 in dot-decimal notation1.

To change the subnet mask for subnet4-3, you need to go to the Azure portal and select your virtual network. Then select Subnets under Settings and select subnet4-3 from the list2.

On the Edit subnet page, under Address range (CIDR block), change the value from /24 to /25. Then select Save2.

Here are the steps and explanations for ensuring that all hosts deployed to subnet3-2 connect to the internet by using the same static public IP address:

To use the same static public IP address for multiple hosts, you need to create a NAT gateway and associate it with subnet3-2. A NAT gateway is a resource that performs network address translation (NAT) for outbound traffic from a subnet1. It allows you to use a single public IP address for multiple private IP addresses2.

To create a NAT gateway, you need to go to the Azure portal and select Create a resource. Search for NAT gateway, select NAT gateway, then select Create3.

On the Create a NAT gateway page, enter or select the following information and accept the defaults for the remaining settings:

Subscription: Select your subscription name

Resource group: Select your resource group

Name: Type a unique name for your NAT gateway

Region: Select the same region as your virtual network

Public IP address: Select Create new and type a name for your public IP address. Select Standard as the SKU and Static as the assignment method4.

Select Review + create and then select Create to create your NAT gateway3.

To associate the NAT gateway with subnet3-2, you need to go to the Virtual networks service in the Azure portal and select your virtual network.

On the Virtual network page, select Subnets under Settings, and then select subnet3-2 from the list.

On the Edit subnet page, under NAT gateway, select your NAT gateway from the drop-down list. Then select Save.

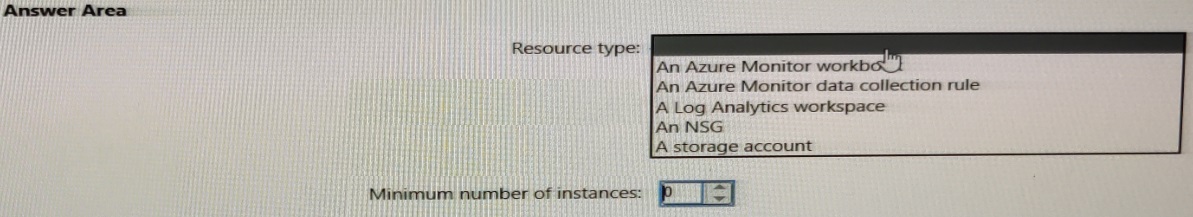

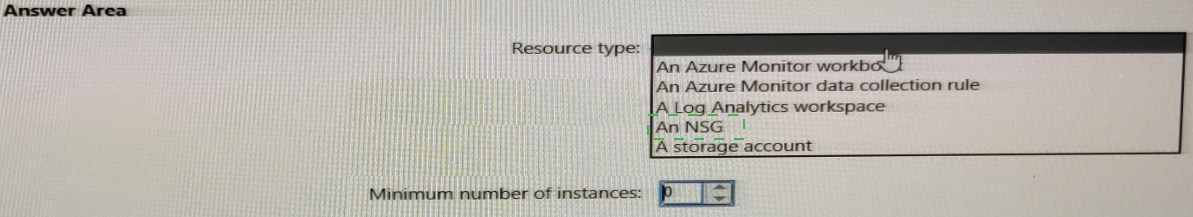

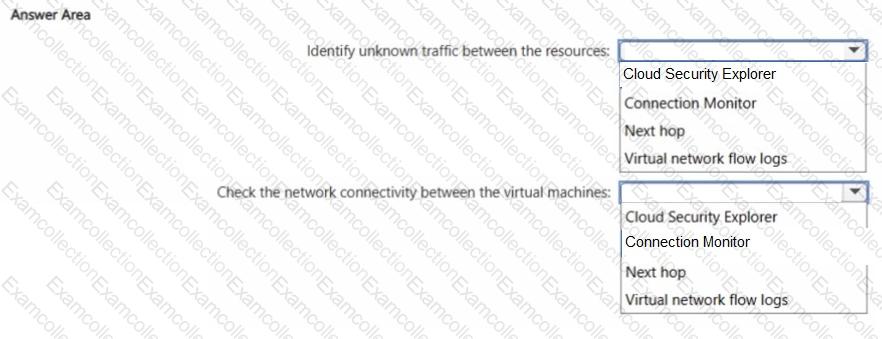

Here are the steps and explanations for configuring VNET1 to log all events and metrics and query them by using KQL:

To enable logging for VNET1, you need to create a diagnostic setting that collects the platform metrics and logs from the virtual network and routes them to one or more destinations. You can choose to send the data to a Log Analytics workspace, a storage account, an event hub, or a partner solution1.

To create a diagnostic setting, you need to go to the Azure portal and select your virtual network. Then select Diagnostic settings under Monitoring and select + Add diagnostic setting1.

On the Add diagnostic setting page, enter or select the following information:

Diagnostic setting name: Type a unique name for your diagnostic setting.

Destination details: Select the destination where you want to send the data. For example, you can select Send to Log Analytics workspace and choose your workspace from the list.

Log: Select the categories of logs that you want to collect. For VNET1, you can select NetworkSecurityGroupEvent and NetworkSecurityGroupRuleCounter as the log categories2.

Metric: Select AllMetrics to collect all the platform metrics for VNET12.

Select Save to create your diagnostic setting1.

To query the events and metrics from the Azure portal by using KQL, you need to go to the Log Analytics workspace that you selected as the destination. Then select Logs under General and enter your KQL query in the query editor3.

For example, you can use the following KQL query to get the top 10 network security group events for VNET1 in the last 24 hours:

NetworkSecurityGroupEvent

| where TimeGenerated > ago(24h)

| where ResourceId contains "VNET1"

| summarize count() by EventID

| top 10 by count_

Copy

Select Run to execute your query and view the results in a table or a chart3.

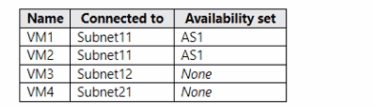

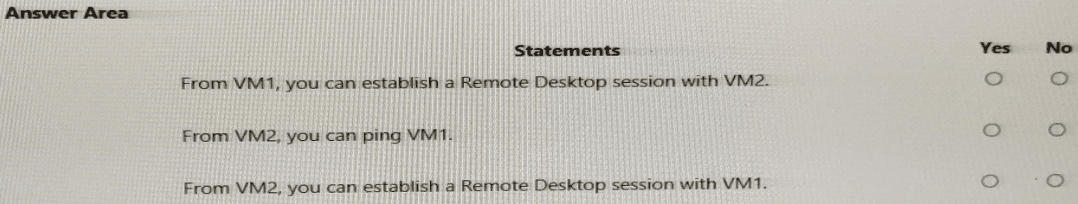

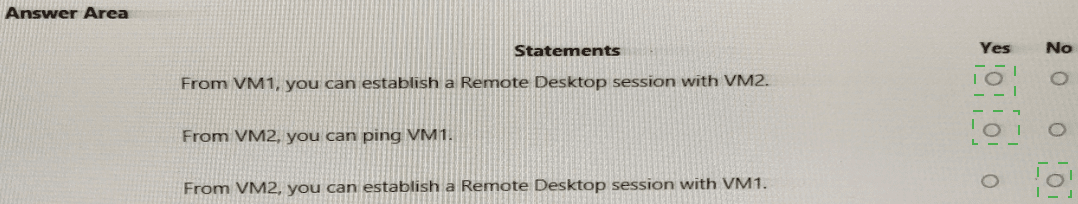

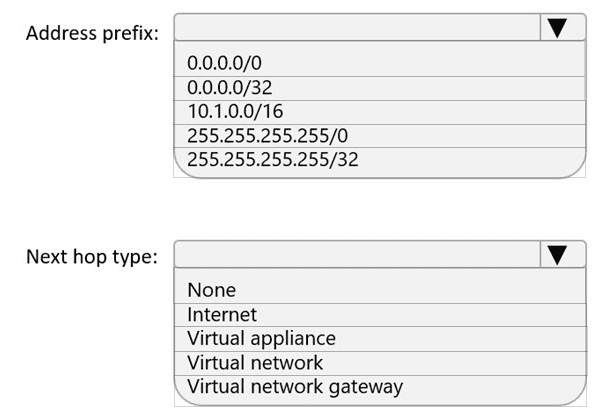

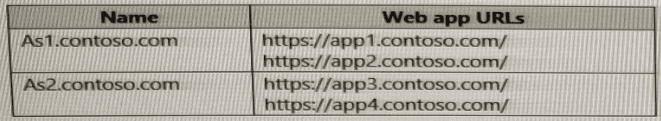

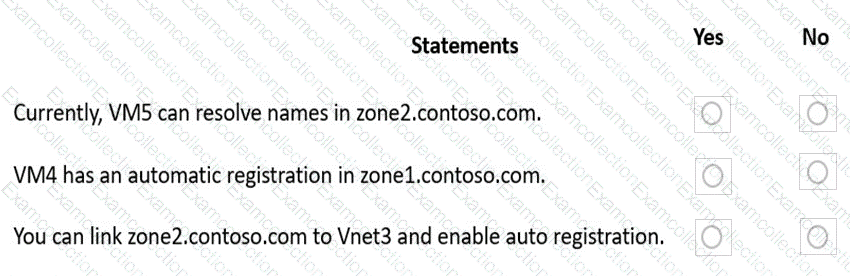

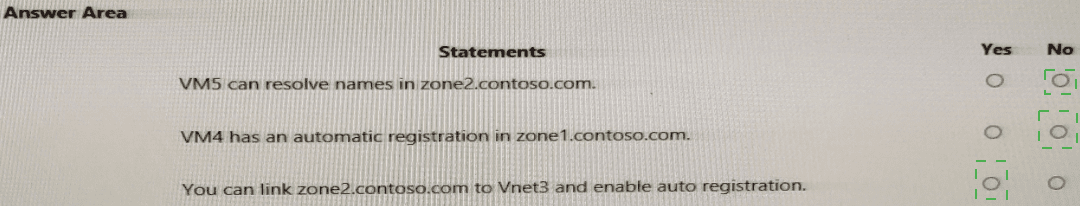

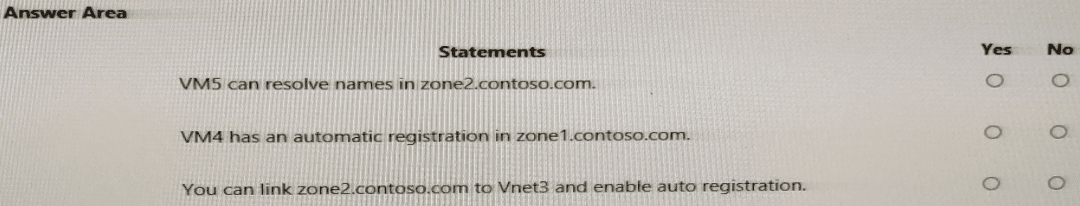

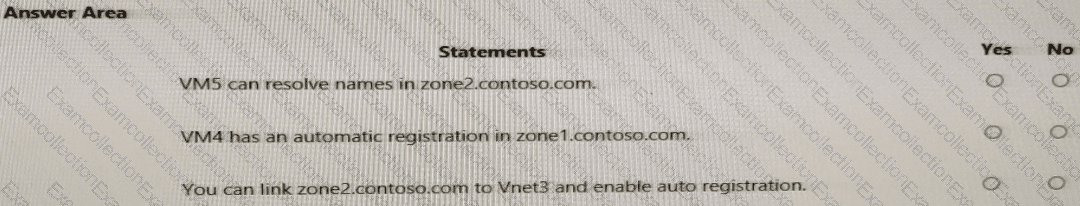

There is no virtual network peering between VM4’s VNet (VNet3) and VM5’s VNet (VNet4). To enable the VMs to communicate over the Microsoft backbone network a VNet peering is required between VNet3 and VNet4.
