Warnings should be managed through structured triage rather than treated as one undifferentiated backlog. The BIM manager should demonstrate how the Revit Warnings dialog groups recurring conditions by warning type, allowing the team to identify high-volume patterns and understand their underlying causes. Examples include duplicate instances, overlapping elements, disconnected systems, room-separation conflicts, and constraints that are no longer satisfied.

The team should then classify warnings according to severity, coordination impact, data integrity, and performance risk. Critical warnings should be corrected first, while lower-risk conditions should be documented and reviewed against the project’s agreed warning-management standard. Teaching users how to select affected elements, use Show , review contextual information, and research the relevant Revit behaviour creates sustainable capability rather than dependency on the BIM manager.

Bulk deletion is unsafe because the affected elements may be valid design content. Ignoring every warning through an add-in conceals model-health problems without resolving them. Creating a cloud issue for each individual warning would generate excessive administrative noise and is not an appropriate substitute for native model-quality management.

Reference topics: Revit warning management; model-health training; warning categorization; quality-control procedures; team capability development.

===============

The BIM manager should perform a gap analysis between the client’s BEP-defined gateway requirements and the firm’s standard quality-control checklist. The internal checklist may address common model-health and documentation criteria, but it cannot be assumed to cover every project-specific submission, approval, information, or coordination requirement.

Any client requirement not represented in the standard checklist should be incorporated into the project review process. Creating trackable issues or review actions in the Common Data Environment provides assigned responsibility, due dates, supporting evidence, status visibility, and an auditable closure record before each gateway.

Granting the client model access does not demonstrate that the design team has completed the required review. Placing a PDF on the Revit opening view may improve awareness but does not establish compliance, accountability, or verification. Model phases also represent temporal construction conditions and should not be manipulated merely to correspond with project-management milestones such as Design Development.

The milestone process should culminate in documented evidence that each requirement was reviewed, passed, conditionally accepted, or formally resolved before the project advances to the next stage.

Reference topics: BEP compliance; milestone and gateway reviews; quality-control checklists; gap analysis; issue tracking; project-specific standards.

===============

Revit phase mapping is specifically intended to reconcile differences between phase structures in a host model and a linked Revit model. The BIM manager should map Phase 1 in the structural link to Existing in the architectural host and map Phase 2 to New Construction . Revit can then interpret the linked elements’ phase-created and phase-demolished conditions in the context of the host view.

This preserves the structural consultant’s internal phase definitions and avoids altering a model controlled by another discipline. It also produces consistent display behaviour across host views using phase filters such as Show Previous + Demo, Show Complete, or other project-specific configurations.

A Visibility/Graphics override can alter how an entire link or category appears, but it does not correctly translate the underlying phase relationships. Renaming or restructuring the phases directly in the consultant’s model is unnecessary and may disrupt that firm’s documentation. A host view template can control link-display settings, but it cannot substitute for correct phase correspondence where the two files use different phase names or phase structures.

Phase mapping is therefore the controlled, non-destructive coordination mechanism for this scenario.

Reference topics: Revit phase mapping; linked-model display; phase filters; demolition views; host and consultant model coordination; multidisciplinary phase standards.

===============

The existing project levels should be retained because the preset floor plans, reflected ceiling plans, and other level-associated views already placed on sheets depend on them. The BIM manager should align those levels with the authoritative as-built levels and then establish monitoring where appropriate. The linked grids can be created in the host through Copy/Monitor , providing native project grids that correspond to the resource model.

Deleting the template levels would also delete or disrupt dependent views, resulting in precisely the extensive sheet and view reconstruction the question requires the BIM manager to avoid. A Scope Box controls datum extents and view cropping; it does not reconcile level elevations or create coordinated grid elements. Hiding the host levels and displaying only linked datums would leave the host project without properly coordinated native reference elements and would not support reliable modelling or documentation.

After alignment and copying, the team should review Copy/Monitor warnings whenever the linked as-built model changes. This preserves the firm’s established documentation infrastructure while integrating authoritative project-specific datum information.

Reference topics: Copy/Monitor; level-associated views; linked as-built models; grid coordination; Revit template reuse; datum management.

===============

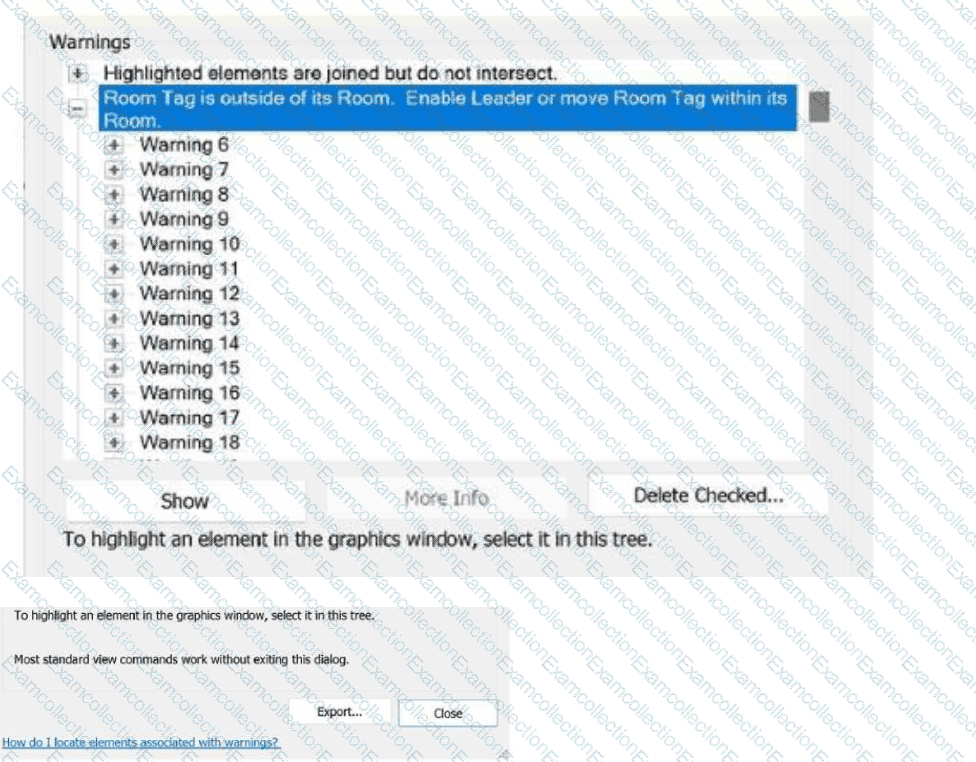

The Show function is the appropriate diagnostic action because it locates and highlights the elements associated with the selected warning in the active graphical view. The design team can then inspect each affected Room Tag, confirm the relationship between the tag and its room boundary, and determine whether the tag should be repositioned inside the room or displayed outside the room with a leader.

The warning does not necessarily indicate invalid room data. It identifies an annotation condition in which the Room Tag’s insertion point is outside the room it references. This commonly occurs where the room is narrow, irregularly shaped, crowded with documentation, or too small to contain the complete tag symbol. Each occurrence must therefore be visually assessed rather than handled through a blanket deletion or suppression process.

Export produces an external warning report for review; it does not move warnings out of the model or identify the affected annotation graphically. Close exits the dialog without investigating the condition. Delete Checked risks deleting associated model elements and is not an appropriate method for correcting annotation placement.

Using Show supports controlled warning resolution, preserves the room and tag data, and allows the team to apply a leader only where required.

Reference topics: Revit model-health review; warning management; annotation quality control; Room Tags; graphical element identification; model auditing procedures.

===============

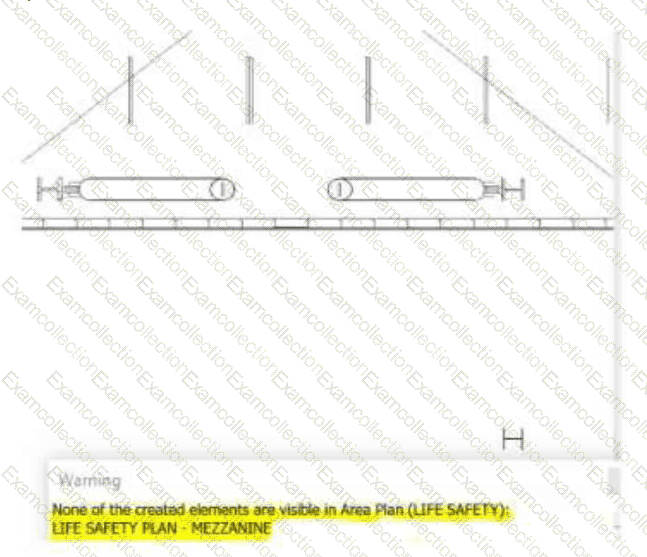

The designer should inspect the view’s Visibility/Graphics settings. Area Lines, also referred to as Area Boundary Lines, are view-specific elements whose visibility can be controlled by the active view, an applied view template, or category-level visibility settings. If the applicable line category is disabled, Revit can create the boundaries successfully while warning that the newly created elements are not visible in the current Area Plan.

The review should include the Model Categories and Annotation Categories tabs, any active view filters, temporary hide/isolate status, and the view template controlling the Area Plan. Where a template governs visibility, the correction should normally be made in the template rather than as an isolated view override, particularly when the same standard must apply to multiple Area Plans.

A Plan Region changes the local view range and does not govern Area Boundary Line visibility. Detail Level affects how certain model geometry is represented but does not normally suppress Area Lines. The Area Scheme determines the type and organizational purpose of an Area Plan, such as Gross Building or Rentable Area, but it is not the direct location for correcting hidden linework.

Reference topics: Area Plans; Area Boundary Lines; Visibility/Graphics; view templates; view-specific elements; graphical troubleshooting.

===============

A prospective fabricator who is not a project member should receive information through a controlled external-sharing process rather than being granted ordinary project-folder access. Enabling public sharing permits authorized files to be distributed externally, while a transmittal creates a formal record of what was issued, when it was issued, and to whom.

The BIM manager should select only the documents required for the bidding process, confirm that external sharing is permitted by the project’s information-governance procedures, and establish any applicable expiration, download, or access controls. A transmittal also provides a traceable issue package and reduces ambiguity regarding which file versions formed the basis of the recipient’s bid.

Setting folder permissions to Everyone generally applies to eligible users within the project environment; it does not provide a properly controlled method for distributing information to unknown external parties. Audit and Compact is a Revit model-maintenance operation unrelated to access. Centralizing a model and creating local files concerns traditional worksharing and would be inappropriate for bidders who are not authorized project contributors.

External sharing must remain limited, deliberate, and auditable.
