iSQI CPSA-FL - ISAQB Certified Professional for Software Architecture -Foundation Level

In the context of software architecture, certain elements serve as building blocks to structure and organize software systems effectively.

A: An algorithm is a sequence of steps designed to perform a specific task and can be a critical part of system logic and functionality.

B: A component is a modular part of a system that encapsulates its contents and whose deployment and versioning can be managed independently.

D: A class in object-oriented programming encapsulates data for the object and operations that manipulate that data, serving as a blueprint within the architecture.

H: A package helps organize classes and interfaces that are related functionally, promoting a cleaner and more manageable architecture structure.

Considering that the requirements are still being determined, designing components with specific attributes can ensure adaptability and maintainability of the architecture.

B: Weak coupling makes individual components less dependent on each other, enhancing the flexibility and scalability of the system.

C: Strong cohesion ensures that components are designed with a clear purpose and functionality, improving the system's integrity and ease of maintenance.

D: Making components open for extension but closed for modification supports the adaptability of the system to changing requirements without disrupting existing functionality.

The term 'coupling' in software architecture refers to the degree of direct knowledge that one component has about another. This can be reflected in:A. A building block uses an interface of another building block. - This represents a form of coupling where components interact through well-defined interfaces, influencing the level of dependency between them.D. A building block uses internal data structures of another building block. - This indicates a higher degree of coupling, as it involves direct knowledge of another component’s internal workings, which is generally discouraged to maintain modularity and ease of maintenance.

These answers are based on fundamental software architecture and design principles widely recognized in the field.

Understandability in architecture documentation is crucial as it directly impacts the ease with which the architecture can be reviewed, maintained, and extended. Here’s why the chosen answers are relevant:

It is an important quality characteristic (C): Understandability ensures that the architecture is accessible not only to the creators but also to other stakeholders like new team members, management, and maintenance personnel. This aids in the effective communication of the architecture’s intent, usage, and functionalities.

It is a quality characteristic together with simplicity and brevity (E): Simplicity and brevity contribute to making complex systems easier to understand. Concise and straightforward documentation helps in quicker comprehension and reduces ambiguities.

It is a quality characteristic together with scope and completeness (F): While it is important for the documentation to be comprehensive, it should also clearly define the scope of the system. This helps in setting the right expectations and ensures that the documentation covers all necessary aspects thoroughly, thus enhancing understandability.

References:

“Documenting Software Architectures: Views and Beyond” by Paul Clements et al. emphasizes the importance of these aspects in effective architecture documentation.

ISO/IEC 42010 also highlights understandability as a fundamental quality characteristic of architectural descriptions.

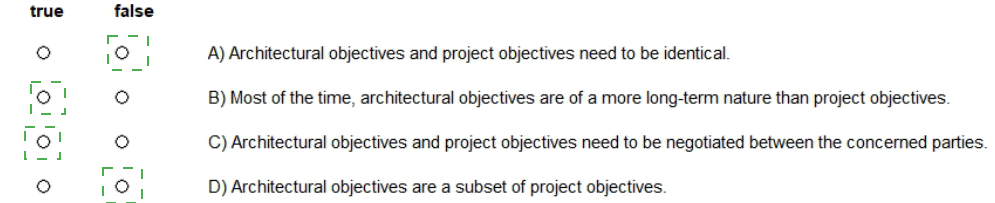

A) FalseB) TrueC) TrueD) False

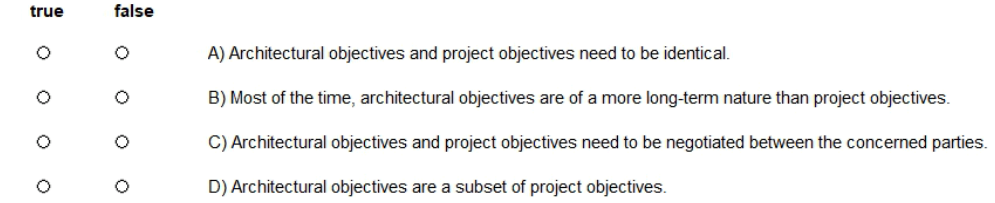

A) Architectural objectives and project objectives need to be identical.

This is false. Architectural objectives are concerned with the technical goals and quality attributes of the system, while project objectives are broader and include timelines, budgets, and overall project deliverables12.

B) Most of the time, architectural objectives are of a more long-term nature than project objectives.

This is true. Architectural objectives often focus on the sustainability and maintainability of the system, which are long-term considerations, whereas project objectives may be more immediate and focused on the project’s completion12.

C) Architectural objectives and project objectives need to be negotiated between the concerned parties.

True. Both sets of objectives should align with the stakeholders’ needs and the project’s overall goals, and thus require negotiation to ensure that all parties’ interests are addressed3.

D) Architectural objectives are a subset of project objectives.

This is false. Architectural objectives are not necessarily a subset but are related and should support the project objectives. They deal specifically with the architecture of the system, which is one aspect of the project

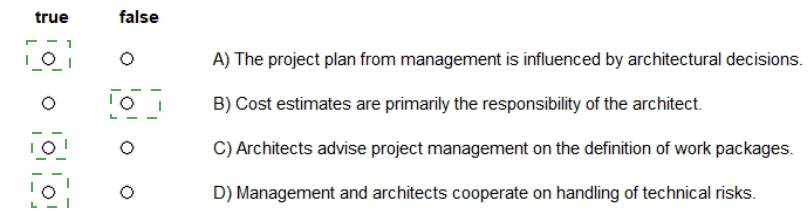

A) TrueB) FalseC) TrueD) True

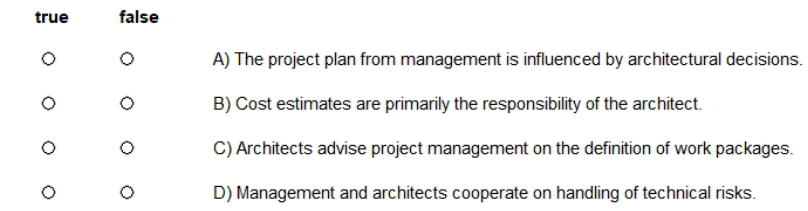

A) The project plan from management is influenced by architectural decisions.

True. Architectural decisions often have significant implications on the project plan, including timelines, resource allocation, and technical approaches1.

B) Cost estimates are primarily the responsibility of the architect.

False. While architects may contribute to cost estimates, especially regarding design-related expenses, it is typically the management’s responsibility to oversee and finalize cost estimates for the entire project2.

C) Architects advise project management on the definition of work packages.

True. Architects play a crucial role in defining work packages, particularly in ensuring that the technical aspects of the project are accurately captured and planned for1.

D) Management and architects cooperate on handling of technical risks.

True. Both management and architects need to work closely to identify, assess, and manage technical risks throughout the project2.

The software architect is typically responsible for the following quality characteristics:A. The performance of the software - Ensuring that the software meets performance criteria and behaves efficiently under specified conditions is a primary responsibility of the software architect.C. The suitability of the software design for its purpose - Architects must ensure that the design effectively meets the intended functions and requirements, addressing the suitability of the software for its purpose.

These answers are derived from established software architecture practices and principles, focusing on the roles and responsibilities of software architects in ensuring quality and effective documentation.

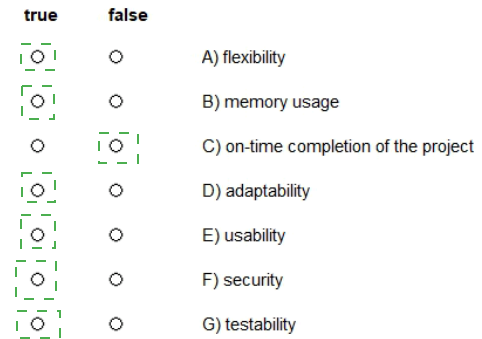

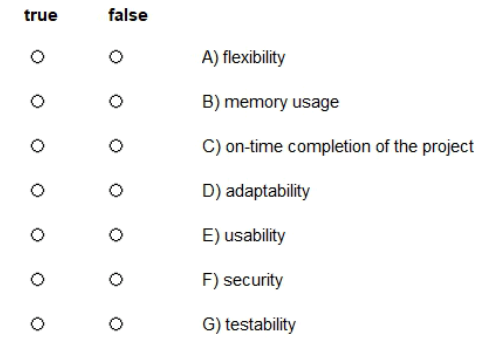

The performance of a system often competes with its:

Flexibility (A) - True1

Memory usage (B) - True1

On-time completion of the project C - False

Adaptability (D) - True1

Usability (E) - True1

Security (F) - True1

Testability (G) - True

In system design, performance trade-offs are a critical consideration. Here’s an explanation of how each listed aspect competes with system performance:

Flexibility (A): Systems designed for high performance may be less flexible because they are optimized for specific tasks or conditions1.

Memory Usage (B): High-performance systems may require more memory to store data and instructions for rapid access, which can be at odds with limited memory resources1.

On-time Completion of the Project ©: While performance considerations can impact project timelines, they do not inherently compete with the on-time completion of a project.

Adaptability (D): Systems that need to perform well under varying conditions may sacrifice adaptability, as they are tightly coupled with their performance optimizations1.

Usability (E): Sometimes, the pursuit of performance can lead to complex user interfaces or workflows, affecting usability negatively1.

Security (F): Security measures can introduce additional processing and checks, potentially slowing down system performance1.

Testability (G): High-performance systems may be harder to test due to their complexity and the need for specialized testing environments or tools1.

These trade-offs highlight the importance of balancing different system attributes to meet the overall goals and constraints of a project.

References:

CodingDrills article on Trade-Offs in System Design1

In template-based architecture documentation, the most important fields are:A. To describe module structures (white boxes) - This involves detailing the internal structure of modules, which is crucial for understanding how software components are implemented and how they interact internally.B. To describe individual architectural modules and their external interfaces (black boxes) - This focuses on the interfaces and interactions of modules with external components, essential for understanding system integrations and dependencies.D. To use a standardized document structure - Standardization in documentation facilitates consistency, readability, and maintainability of documents, which is critical for long-term project management and new team member onboarding.
