ASQ CSQE - Certified Software Quality Engineer Exam

Software development organizations must consider privacy because software products often collect, store, process, transmit, or display personal information. Databases may contain customer names, addresses, payment data, health data, employee records, account credentials, usage history, or other sensitive personal details. If privacy is not addressed during requirements, design, implementation, testing, deployment, and maintenance, this information can be exposed, misused, altered, or accessed by unauthorized parties. Cultural differences may affect privacy expectations, but the primary engineering concern is protecting personal data from risk. Proprietary design documents relate to intellectual property, not user privacy. Security protocols may be difficult to test, but that is not the main reason privacy matters. The strongest reason is that personal information can be put at risk.

================

A cost of quality system is designed to identify and measure costs related to quality and poor quality, especially the costs caused by nonconformance. In software quality engineering, these costs include internal failure costs such as rework, retesting, defect analysis, scrap, and delays, and external failure costs such as support, warranty work, customer dissatisfaction, patches, and post-release failures. Prevention and appraisal costs are also tracked to understand investment in quality activities. The purpose is not only to budget improvement efforts or identify best practices, although those may result from analysis. It is also broader than general product development cost. The best answer is measuring the cost of nonconformances because poor-quality costs reveal where improvement is economically justified.

================

In a concurrent development environment, when a problem is identified in an earlier version (Version 1) that originated in a later version (Version 2), the appropriate action involves managing the code versions effectively. Branching the Version 2 codeline is the most appropriate first step because:

Isolation of Changes : Branching allows for the isolation of the problematic code in Version 2, enabling targeted fixes without affecting ongoing development in other versions.

Version Control : It helps maintain a clean and organized version control history, ensuring that changes specific to Version 2 are tracked and managed separately.

Concurrent Development : This approach supports concurrent development activities, allowing different teams to work on fixing the issue in Version 2 while continuing development on other versions.

When documenting a test failure, the tester should complete the " Steps to reproduce the failure " section of a problem report. This section is crucial as it provides a detailed account of the actions taken leading up to the failure, allowing developers to replicate the issue consistently. This replication is essential for diagnosing and fixing the problem effectively. Documenting the steps accurately ensures that all relevant information is conveyed, facilitating quicker resolution and better communication within the team.

A scatter diagram is the appropriate tool for analyzing the relationship between the number of defects found and the complexity of various software applications. Scatter diagrams are used to plot pairs of numerical data, with one variable on each axis, to look for a relationship between them. This visual representation helps in identifying patterns or correlations between the two variables, such as whether higher complexity correlates with more defects.

The iterative model benefits projects by allowing development to start without having all the requirements fully defined upfront. This model supports ongoing refinement through repeated cycles (iterations) of planning, development, and feedback. Each iteration builds upon previous work, allowing teams to adapt to changes and new information, which is particularly useful in projects with evolving requirements or high uncertainty.

ï‚· Definition of Patents: Patents provide legal protection for new inventions, granting the inventor exclusive rights to use and commercialize the invention for a certain period.

ï‚· Purpose of Patents: They prevent others from making, using, or selling the invention without permission, thus protecting the intellectual property of the inventor.

ï‚· Other Forms of IP Protection: While copyrights, licenses, and trademarks also protect intellectual property, they do not specifically cover novel inventions in the same way patents do.

Cyclomatic complexity is a metric used to determine the number of linearly independent paths through a program ' s source code.

Definition: Cyclomatic complexity provides a quantitative measure of the complexity of a program, which is directly related to the number of test cases needed to achieve full branch coverage.

Calculation: It is calculated using the control flow graph of the program, where nodes represent blocks of code and edges represent control flow paths.

Test Cases: The metric indicates the minimum number of test cases required to cover all possible paths, ensuring that each statement is executed at least once.

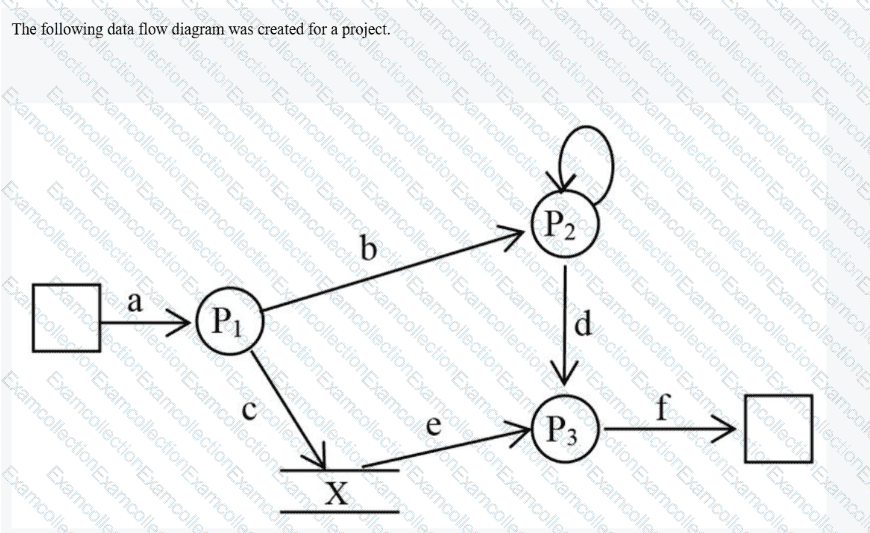

In a data flow diagram, a data store represents a place where data is held for later use. It may be shown as an open-ended rectangle or parallel-line symbol, depending on the notation used. A data store can represent a file, table, database, repository, queue, or other storage location. Processes read data from it or write data to it through labeled data flows. A timing delay is not normally represented by the standard data-store symbol. An I/O interrupt is a control or hardware event rather than a data repository. A sub-process of P1 would normally be modeled as another process or through decomposition. Since X is represented as the storage element in the diagram, the correct answer is B.

================

The total cost of quality includes all costs associated with achieving quality and all costs caused by poor quality. In software quality engineering, these costs are commonly grouped into prevention costs, appraisal costs, internal failure costs, and external failure costs. Prevention costs include activities such as training, process improvement, standards, and defect prevention. Appraisal costs include reviews, audits, inspections, and testing used to evaluate conformance. Failure costs include rework, defect correction, retesting, support, warranty, customer dissatisfaction, and post-release failures. Quality assurance and testing budgets represent only part of the total. Fixing defects and maintenance describe failure-related costs but exclude prevention and appraisal. Planning, designing, and testing are development activities, not the full cost of quality.
