ASQ CSSBB - Certified Six Sigma Black Belt

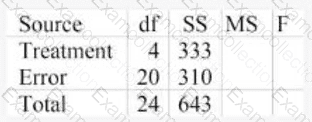

In a one-way ANOVA, the F statistic is calculated by dividing the mean square for treatment by the mean square for error. From the table, the treatment sum of squares is 333 with 4 degrees of freedom, and the error sum of squares is 310 with 20 degrees of freedom.

First calculate the treatment mean square:

MS treatment = 333 / 4 = 83.25

Then calculate the error mean square:

MS error = 310 / 20 = 15.5

Now compute the F statistic:

F = 83.25 / 15.5 = 5.37

That value corresponds to choice D.

ANOVA is an Analyze Phase tool used by Black Belts to test whether there are statistically significant differences among treatment means. The F ratio compares variation between groups to variation within groups. A larger F value suggests that treatment effects may be real rather than due to random error. In this case, the calculations from the given sums of squares and degrees of freedom clearly produce 5.37. Therefore, the correct answer is D, 5.37.

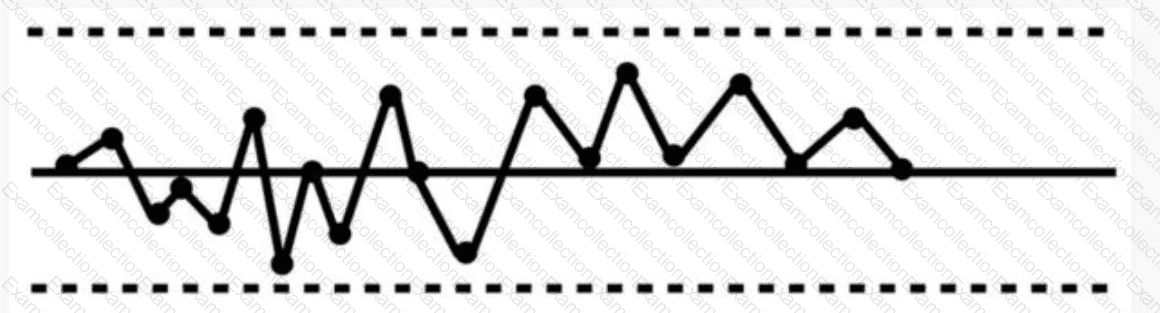

The correct answer is C. periodicity . The chart shows a repeated up-and-down cycling pattern around the centerline rather than a sustained movement in one direction or a long cluster on one side of the centerline. The CSSBB supplemental material describes a systematic variable pattern as one in which points are cycled , such as high-then-low or low-then-high. That description corresponds most closely to periodicity among the answer choices.

A shift would show a run of points staying mostly above or below the centerline. A trend would show several consecutive points steadily increasing or decreasing. Stratification refers to very small variation relative to the control limits, with points clustering unusually close to the centerline. In this chart, the more obvious signal is the regular oscillation pattern. That kind of repeating cycle often suggests a recurring external influence such as shifts, alternating methods, environmental cycles, or periodic adjustments. Therefore, the best CSSBB-aligned answer is C. periodicity .

The correct answer is Label. In the CSSBB metrology and measurement-system material, calibration control requires that measuring equipment be identified, controlled, calibrated, and linked to records. The text further states that a labeling system must be in place showing the identification of each piece of measuring equipment and its status. This directly supports the use of a label as the standard and most common display method for calibration status on a gage. Labels typically show the last calibration date, due date, equipment identification, and status, making them simple, visible, and practical at the point of use. While barcodes, RFID, or handwritten information can be used as supporting mechanisms in some organizations, the CSSBB framework explicitly identifies the labeling system as the required and recognized method for indicating calibration status. From a Measure Phase perspective, this matters because the integrity of the measurement system depends on ensuring that only properly calibrated equipment is used. Clear labeling prevents the accidental use of nonconforming or overdue gages and supports traceability, audit readiness, and confidence in collected data.

===========

Project team members should ideally come from the areas affected by the project because those individuals bring direct process knowledge, operational experience, and practical understanding of how the work actually occurs. In Six Sigma team management, cross-functional representation is important so that the team reflects the real process interfaces, customer impacts, handoffs, and implementation conditions. People from affected areas can identify hidden issues, validate current-state understanding, evaluate feasibility of solutions, and support adoption once changes are made. While expertise in process management or quality improvement is valuable, a successful project team cannot rely only on specialists who are detached from the work. Likewise, selecting people solely because they have no vested interest would reduce ownership and may weaken implementation success. Teams need informed participants who understand the consequences of change and can represent the voices of departments touched by the project. This helps improve buy-in, speeds problem identification, and supports more realistic decision-making. Therefore, the correct answer is D, workers from areas affected by the project, because effective Six Sigma teams are built around relevant functional representation.

===========

The correct answer is B. The team should agree on the evaluation criteria as part of the start of the project . The supplemental Lean Six Sigma material explains that effective project evaluation must be fair, systematic, rigorous, and measurable , and it emphasizes SMART team goals upfront along with clear accountability and plain-sight measures of success. This means the criteria for evaluating progress must be established early, not later in the Measure phase.

A team cannot properly evaluate progress if it does not already know what success looks like and how it will be measured. Narrative self-evaluations are not the main mechanism for tracking project goals, and the facilitator should not unilaterally set the goals and objectives. Instead, the team needs shared agreement at the beginning so progress can be assessed consistently over time. This supports accountability, buy-in, and objective review of milestones and deliverables. Therefore, the verified answer is B .

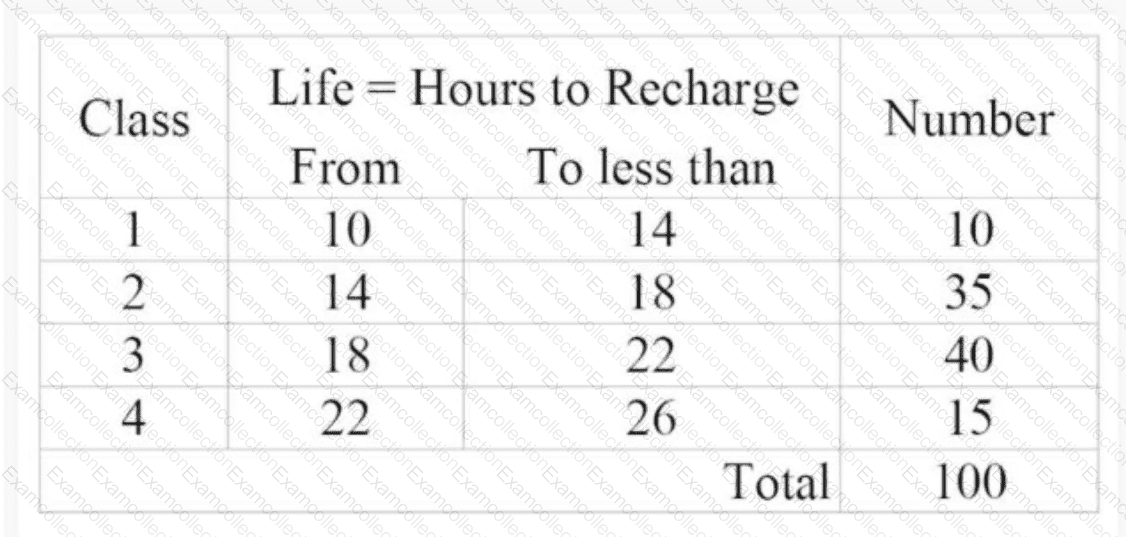

The correct answer is C. 18.40 . In CSSBB descriptive statistics, the mean is the total of all data values divided by the number of data points. For grouped frequency data, the estimated mean is found by using each class midpoint multiplied by its frequency, summing those products, and dividing by the total count.

The class intervals and midpoints are:

10 to less than 14 → midpoint 12 , frequency 10

14 to less than 18 → midpoint 16 , frequency 35

18 to less than 22 → midpoint 20 , frequency 40

22 to less than 26 → midpoint 24 , frequency 15

Now calculate:

(12 × 10) + (16 × 35) + (20 × 40) + (24 × 15)

= 120 + 560 + 800 + 360

= 1840

Total frequency = 100

Estimated mean = 1840 / 100 = 18.40

This is why option C is correct. Using class midpoints is the standard estimation method when only grouped frequency-distribution data are available rather than individual observations.

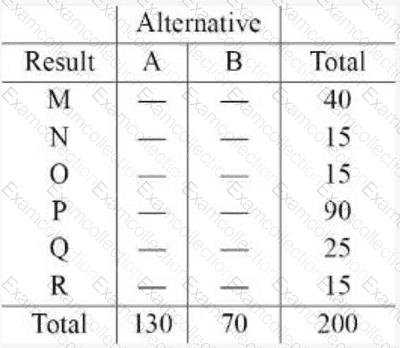

This is a chi-square test of independence, used in the Analyze Phase to determine whether two categorical variables are related. The null hypothesis states that the variables are independent, while the alternative hypothesis states that they are dependent. The table shows 6 result categories (M, N, O, P, Q, R) and 2 alternative categories (A, B), so the degrees of freedom are calculated as (rows − 1) × (columns − 1) = (6 − 1) × (2 − 1) = 5. For α = 0.05 and 5 degrees of freedom, the critical chi-square value is 11.07. The test statistic given is χ² = 17.0. Since 17.0 is greater than 11.07, the result falls in the rejection region, so the null hypothesis must be rejected. That means there is sufficient statistical evidence to conclude that the variables are not independent and are therefore dependent. In Six Sigma analysis, this kind of result indicates that category membership in one variable is associated with category membership in the other, which can guide further root-cause investigation and decision-making.

The correct answer is C. gain a deeper understanding of customer needs. The CSSBB customer-focus material explains that organizations need a deep knowledge and understanding of the customer and must go beyond superficial feedback to uncover what customers truly want. It also states that companies can use focus groups, along with interviews and surveys, to identify customer needs and expectations. In related VOC material, focus groups are specifically listed as one of the ways a company can listen to the voice of the customer.

A focus group is especially effective for exploring perceptions, motivations, unmet needs, and reactions in depth through interactive discussion. Measuring satisfaction rates is more directly associated with surveys and quantitative metrics. Converting requirements into product specifications is the role of QFD, not the focus group itself. Reviewing complaints provides useful feedback, but it is narrower and more reactive than exploring broader customer needs. Therefore, the most accurate CSSBB-based answer is C. gain a deeper understanding of customer needs.

A complete, well-defined process map gives the team a structured visual understanding of how work actually flows, including handoffs, rework loops, delays, decision points, interfaces, and hidden complexity. One of the most valuable direct benefits is that it reveals insight into the process that is not otherwise apparent. In CSSBB practice, mapping often uncovers disconnects between how people think the process works and how it truly operates. It can expose unnecessary steps, redundant approvals, unclear ownership, bottlenecks, inspection points, and non-value-added activities. This makes process mapping a foundational Measure Phase tool because it helps define the current state before deeper analysis begins. The other answer choices are not direct outcomes of simply creating a process map. Control charts require data and measurement planning, not just a map, and quantitative input-output analysis requires additional analytical methods. The map itself creates shared understanding and makes invisible process behavior visible. Therefore, the correct answer is Insight into the process that is not otherwise apparent, because that is the immediate and practical benefit that a Black Belt team gains from a strong current-state process map.

===========

A process decision program chart, or PDPC, is used to anticipate what might go wrong in a proposed plan and to define countermeasures before implementation. In this tool, potential problems are identified, possible responses are listed, and symbols are often used to classify those responses. The “X” symbol signifies that a countermeasure is impractical. In other words, the idea may exist in theory, but it is not feasible to use in the actual operating environment because of cost, time, technical limitations, resource availability, or some other constraint. This distinction is valuable in Six Sigma planning because teams must separate workable preventive actions from ideas that cannot realistically be executed. During the Control Phase, that helps the process owner maintain a practical response plan rather than a theoretical one. PDPC supports risk prevention and contingency thinking by identifying acceptable and unacceptable actions ahead of time. Therefore, the correct answer is that the “X” indicates the countermeasure is impractical, which helps the team avoid relying on responses that cannot be deployed successfully in the real process.

===========
