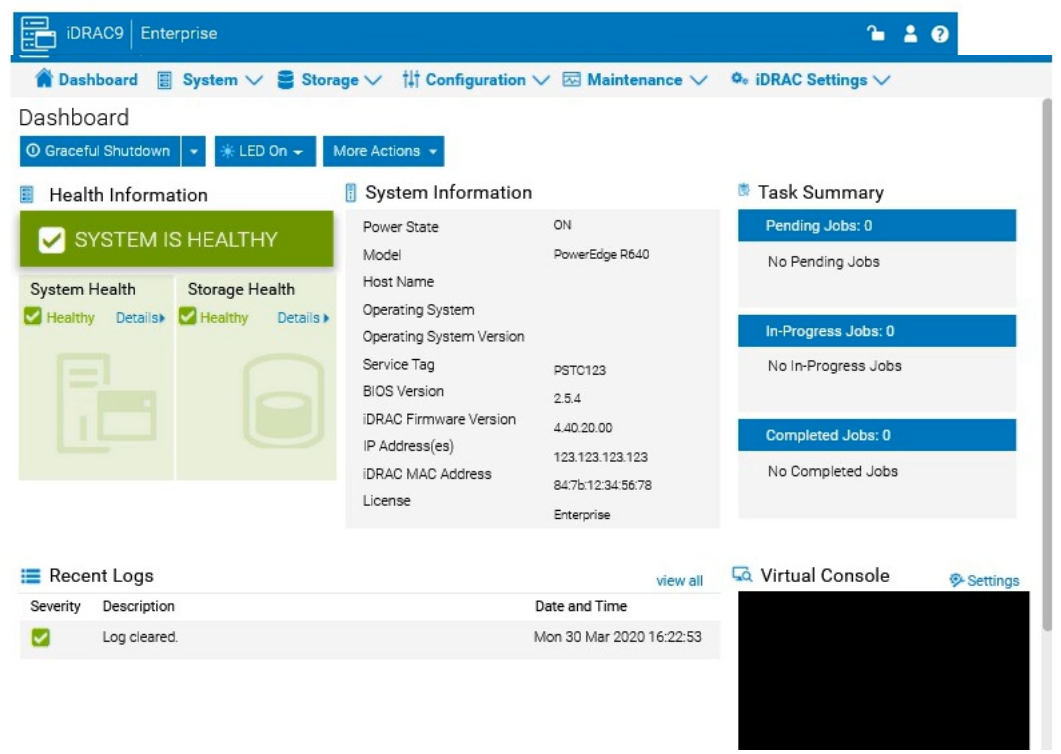

To prevent unwanted configuration changes in the iDRAC UI, you can adjust user roles, permissions, or enable specific security settings to restrict access for junior IT staff. Here are the steps to secure the iDRAC configuration:

Step-by-Step Guide:

Access User Settings:

In the iDRAC interface, navigate to iDRAC Settings from the main menu.

Choose User Authentication or Users to manage user accounts and permissions.

Adjust User Roles and Permissions:

Identify the accounts associated with junior IT staff.

For each user account, adjust the role to Read-Only if you want them to have view-only access without making configuration changes.

Alternatively, set their permissions to exclude configuration changes. This may involve assigning a custom role with limited access based on your needs.

Enable Configuration Lock (if available):

Some versions of iDRAC offer a Configuration Lock feature, which prevents any configuration changes until the lock is removed by an administrator.

Navigate to Configuration > System Security or User Authentication, depending on the version, and enable the Configuration Lock option.

Set Up Two-Factor Authentication (Optional):

For added security, enable Two-Factor Authentication under iDRAC Settings > Network or Security settings. This step ensures only authorized users can access and make changes to the iDRAC UI.

Save and Apply Security Changes:

After setting up the desired restrictions and permissions, save the settings to apply the changes.

Verify that junior IT staff accounts now have restricted access and cannot make configuration changes.

Log Out and Test the Changes:

Log out of the administrator account and log in with a junior IT staff account to confirm that the permissions are set correctly.

Ensure that configuration changes are disabled and that the user can only view the iDRAC interface as per the restrictions.

By following these steps, you can restrict junior IT staff from making any configuration changes within the iDRAC interface, thus preventing accidental or unauthorized modifications.

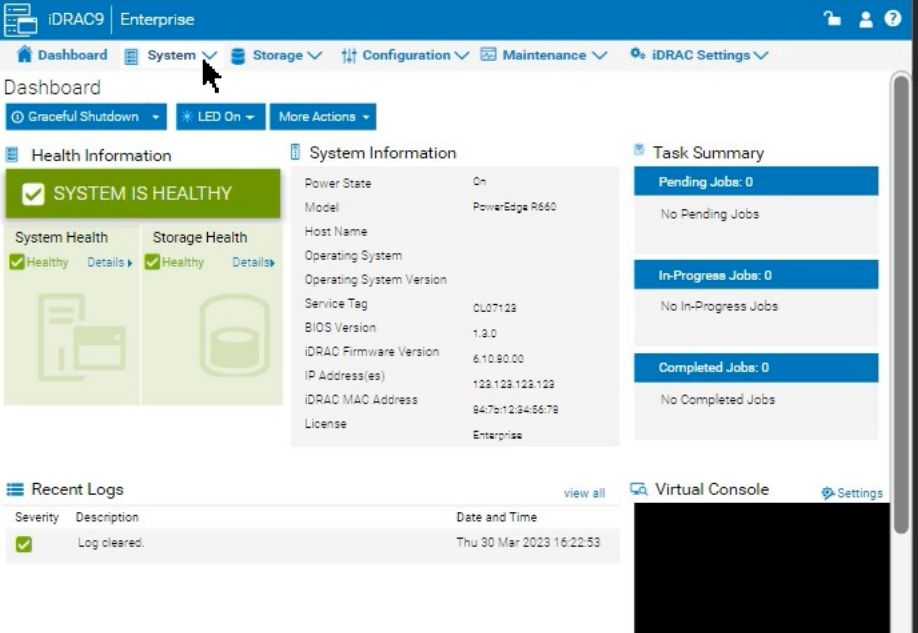

To reconfigure the iDRAC network settings with a new IP address, gateway, and DNS servers, follow these steps in the iDRAC interface:

Step-by-Step Guide:

Access iDRAC Network Settings:

Log into the iDRAC interface.

Go to the iDRAC Settings tab in the top menu.

Select Network from the dropdown options. This will open the network configuration page.

Change IP Address and Subnet Mask:

In the Network settings, locate the section for IPv4 Settings.

Set the IP Address to 192.168.0.120.

For the Subnet Mask, since it’s a /24 CIDR, set it to 255.255.255.0.

Configure the Gateway:

In the same section, find the field for Default Gateway.

Enter the Gateway as 192.168.0.1.

Update DNS Server Information:

Scroll down to the DNS Server settings.

Enter DNS Server 1 as 10.10.0.1.

Enter DNS Server 2 as 10.10.0.2.

Apply the Settings:

After entering all the new network information, click on Apply or Save to confirm the changes.

The iDRAC interface may prompt for a restart to apply network changes. Follow any prompts as needed.

Verify the Configuration:

After applying the changes, check that the iDRAC is accessible at the new IP address 192.168.0.120.

Confirm that the gateway and DNS settings are properly configured by testing connectivity or accessing the iDRAC from a device within the same network segment.

By completing these steps, you will have reconfigured the iDRAC network settings for the new network segment, allowing remote management of the Dell PowerEdge server at the edge location.

To configure an iDRAC shared management port with LOM2 and set up a failover network using LOM3 in the iDRAC interface, follow these steps:

Step-by-Step Guide:

Access iDRAC Network Settings:

In the iDRAC interface, navigate to the iDRAC Settings tab in the top menu bar.

Select Network from the dropdown options to access network configuration settings.

Configure the Shared Management Port:

In the Network settings, locate the section for Network Interface or LAN Interface Configuration.

Change the NIC Selection to Shared. This will enable the use of a LAN on Motherboard (LOM) port for iDRAC management.

Select LOM2 for the Shared Management Port:

Once you’ve selected Shared, additional options should appear for selecting the specific port.

Choose LOM2 as the Shared Management Port. This configures iDRAC to use LOM2 for its primary network connection.

Enable Failover and Select LOM3:

Look for the Failover settings within the same Network Interface configuration.

Enable Failover and select LOM3 as the failover network port. This configuration allows iDRAC to switch to LOM3 automatically if there is an issue with the connection on LOM2.

Save and Apply Settings:

Once you have configured the shared management port and failover settings, click Apply or Save to confirm the configuration.

The iDRAC interface may briefly refresh, and you should receive a confirmation that the settings have been applied successfully.

Verify Configuration:

After the settings are saved, you can verify that LOM2 is listed as the shared management port and that LOM3 is set as the failover port under Network settings.

By following these steps in the simulator, you should be able to configure iDRAC to use LOM2 for the shared management port and set up a failover network with LOM3. Make sure to save your changes to apply the configuration.

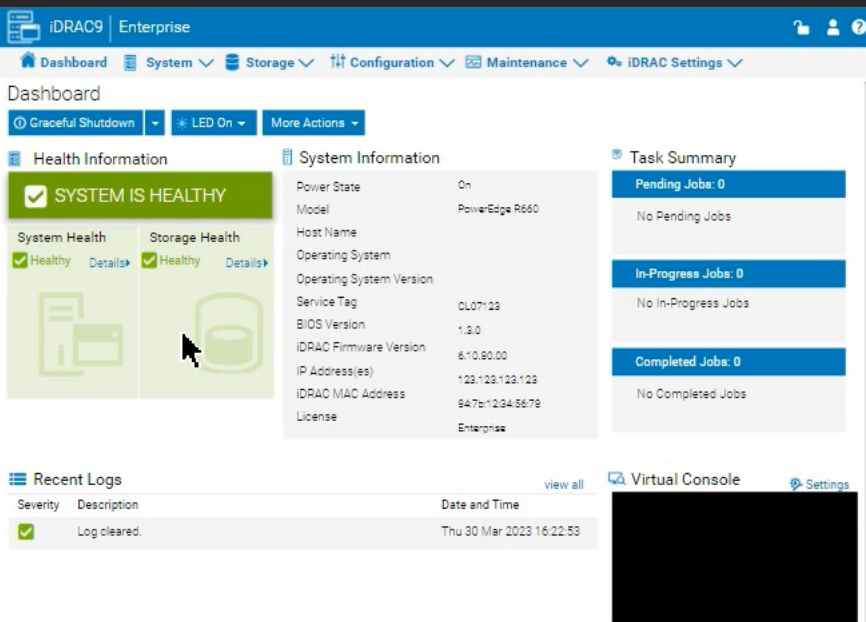

ï‚· Launch the Simulator:

Open the PowerEdge iDRAC simulator to access the user interface and perform the required task.

ï‚· Navigate to System Information:

In the top menu bar, select the "Configuration" tab.

From the options that appear, choose "Storage". This section will display details and configurations for the storage controllers installed on the server.

ï‚· Check the H965i Storage Controller:

Locate the H965i storage controller in the list. Selecting it should bring up a summary page with various specifications for the controller.

Look for the field labeled "Cache Memory Size". This will provide the cache memory size value for the controller.

To change the Power Supply Unit (PSU) configuration to a 2+0 setup with PSU2 as the primary in the iDRAC interface, follow these steps:

Step-by-Step Guide:

Navigate to Power Management Settings:

In the iDRAC interface, go to the Configuration tab at the top.

Select Power Management from the dropdown options.

Locate the Power Configuration Section:

Within the Power Management settings, look for a section labeled Power Configuration or Power Supply Configuration.

Select the Redundancy Policy:

Change the Redundancy Policy to 2+0. In this configuration, there will be no redundancy, and both power supplies will be active but configured as independent power sources without failover.

Set PSU2 as the Primary PSU:

Locate the option to designate the Primary PSU. Select PSU2 as the primary power source.

This setting ensures that PSU2 will handle the primary power load under normal conditions.

Apply and Save Changes:

Once you have made these changes, click Apply or Save to confirm the new configuration.

The interface may prompt for confirmation, after which the settings will be saved, and PSU2 will become the primary power supply under a 2+0 configuration.

Verify Configuration:

Review the updated settings to confirm that PSU2 is now set as primary and that the redundancy policy is 2+0, meaning only PSU2 is actively providing power without a secondary backup.

By following these steps in the iDRAC simulator, you will set up PSU2 as the primary power source with no redundancy, ensuring a 2+0 configuration. This setup will leverage PSU2 exclusively without automatic failover to another power supply.

To generate and save a SupportAssist collection with system information and debug logs only in the iDRAC UI, follow these steps:

Step-by-Step Guide:

Access SupportAssist in iDRAC:

In the iDRAC interface, navigate to the Maintenance tab in the top menu.

From the dropdown, select SupportAssist. This will bring up the SupportAssist options.

Initiate a Collection:

In the SupportAssist section, look for the option to Create a New Collection or Start a Collection.

Choose Collect System Data or Generate a Collection, depending on the version of iDRAC.

Select Collection Components:

When prompted to select components for the collection, check the boxes for System Information and Debug Logs only.

Ensure no other components are selected to limit the collection to just the required data.

Start the Collection:

Confirm your selection, then click Start or Generate. This will initiate the process to gather the specified data from the system.

Save the Collection Locally:

Once the collection is complete, you should see an option to Download or Save the file.

Click the download link and save the collection file locally on your computer.

Verify the Collection File:

Check the downloaded file to ensure it contains only the system information and debug logs. It should be in a format such as ZIP or TAR, depending on the system configuration.

By following these steps, you can successfully generate a SupportAssist collection with just the system information and debug logs and save it to your local system for further review or support purposes.

To investigate a power issue on a specific date, such as April 30, 2022, the system administrator should examine the iDRAC logs for entries related to power supply faults or failures. Here's how to approach finding the correct answer:

Step-by-Step Approach:

Access the System Logs:

In the iDRAC interface, navigate to the Dashboard tab.

Scroll down to the Recent Logs section or navigate to System Logs under Maintenance or iDRAC Settings (depending on the iDRAC version) to access detailed logs.

Filter Logs by Date:

Use the filter option to specify the date, focusing on entries from April 30, 2022. This will help narrow down relevant events.

Identify Power-Related Entries:

Look for log entries that mention power supply issues or voltage faults around the specified date. In this case, entries related to under-voltage faults or power supply failures will be critical.

Interpret the Log Entries:

Based on typical power fault logs, consider the possible answers:

A. Under voltage fault detection on power supply 1: Indicates a voltage issue was detected on PSU1.

B. Power supply 2 has failed: Indicates PSU2 has completely failed.

C. Under voltage fault detected on power supply 2: Indicates a voltage issue was detected on PSU2.

D. Power supply 1 has failed: Indicates PSU1 has completely failed.

The specific log entry depends on the exact wording in the logs. However, from the options provided, if the administrator received a notification about a power issue, the most likely scenario involves a failure or under-voltage detection.

Troubleshooting iDRAC Network Connectivity Issues Using Diagnostic Console

Server Troubleshooting (32%)

Explain Easy Restore, diagnostic utilities, and hardware diagnostic options

Analyze the visual indicators on server components - system ID, PSU, and BLINK

Understanding the Diagnostic Console

Diagnostic Console: An interface within iDRAC that provides command-line tools for troubleshooting and diagnosing issues.

Purpose: Allows administrators to execute commands directly on the iDRAC to diagnose network and system problems.

Commands Available for Network Troubleshooting

ping

Usage: Tests connectivity to other network devices by sending ICMP echo requests.

Purpose: Determines if the iDRAC can reach a specified IP address or hostname.

Example: ping 192.168.1.1

ifconfig

Usage: Displays or configures network interface parameters.

Purpose: Checks the status of network interfaces, IP addresses, and subnet masks configured on the iDRAC.

Example: ifconfig eth0

arp

Usage: Displays or modifies the system's ARP table.

Purpose: Helps identify IP to MAC address mappings, useful for diagnosing duplicate IP issues or incorrect network configurations.

Example: arp -a

Explanation of Options

Option A: show-netstat

Explanation: While netstat is a common networking command, show-netstat is not a standard command in the iDRAC Diagnostic Console.

Conclusion: Not a valid command in this context.

Option B: ping

Correct Answer: Used to test network connectivity.

Option C: ifconfig

Correct Answer: Used to display and configure network interface settings.

Option D: ipconfig

Explanation: ipconfig is a Windows command-line utility, not available in the iDRAC (which is Linux-based).

Conclusion: Incorrect.

Option E: arp

Correct Answer: Used to view and manage the ARP cache.

Dell Operate References

Server Troubleshooting (32%)

Emphasizes the use of diagnostic utilities for troubleshooting network issues.

Explain Easy Restore, diagnostic utilities, and hardware diagnostic options

Highlights the importance of understanding and utilizing available tools for diagnostics.

Conclusion

The three commands that can be used in the iDRAC Diagnostic Console to troubleshoot network connectivity issues are:

ping: To test connectivity to other network devices.

ifconfig: To check and configure network interface settings.

arp: To view and manage the Address Resolution Protocol cache.

These commands help identify connectivity problems, misconfigurations, and issues with network interfaces.

Entering BIOS Progress Mode on a Non-Responsive Dell PowerEdge R660 During POST

Server Troubleshooting (32%)

Explain Configuration Validation, crash capture, and minimum to POST

Analyze the visual indicators on server components - system ID, PSU, and BLINK

Understanding the Scenario

Server Model: Dell PowerEdge R660

Issue: Not responding during POST (Power-On Self-Test)

Objective: Enter BIOS Progress Mode to troubleshoot the issue

What is BIOS Progress Mode?

BIOS Progress Mode is a diagnostic feature that allows the system to display detailed POST codes and progress indicators during the boot process. This can help administrators identify where the boot process is stalling.

How to Enter BIOS Progress Mode

Method: Press and hold the System ID button for more than five seconds during the boot process.

Effect:

Forces the server into BIOS Progress Mode.

Displays detailed POST information on the screen.

Helps in diagnosing issues that prevent the server from completing POST.

Explanation of Options

Option A: Press and hold the power button for 15 seconds.

Analysis:

Holding the power button for an extended period typically forces a hard shutdown or initiates a power reset.

Does not help in entering BIOS Progress Mode.

Conclusion: Incorrect.

Option B: Enter <F2> when the server tries to POST.

Analysis:

Pressing during POST is the standard method to enter the BIOS Setup Utility.

However, if the server is not responding during POST, this method may not be effective.

Does not specifically enable BIOS Progress Mode.

Conclusion: Less effective.

Option C: Press and hold the System ID button for more than five seconds.

Analysis:

Pressing and holding the System ID button for over five seconds triggers the server to enter BIOS Progress Mode.

This method is designed for situations where the server is unresponsive during POST.

Conclusion: Correct Answer.

Option D: Disconnect and reconnect the power cables for both PSUs.

Analysis:

Power cycling the server by disconnecting and reconnecting power may not resolve POST issues.

Does not enable BIOS Progress Mode.

Conclusion: Unlikely to help.

Dell Operate References

Server Troubleshooting (32%)

Explain Configuration Validation, crash capture, and minimum to POST:

Understanding how to enter BIOS Progress Mode is essential for diagnosing POST-related issues.

Analyze the visual indicators on server components - system ID, PSU, and BLINK:

System ID Button:

Located on the front panel of the server.

Serves multiple functions, including identifying the server in a rack and triggering diagnostic modes.

System Administration (18%)

Configure BIOS, Storage, virtual media, networking, user access, lockdown mode, and group management:

Familiarity with BIOS access methods and diagnostic tools is crucial for system administrators.

Conclusion

When a Dell PowerEdge R660 server is not responding during POST, pressing and holding the System ID button for more than five seconds will force the server into BIOS Progress Mode. This allows the administrator to see detailed POST codes and identify where the boot process is failing.
