EMC D-PWF-DS-23 - Dell PowerFlex Design 2023 Exam

The creation of a NAS server requires a dedicated storage pool. If a storage pool specifically for NAS has not been created, the NAS server creation will fail. This is because the NAS server needs to allocate space from a storage pool to store the file system data. Without a designated storage pool, the NAS server cannot be configured properly1.

The other options, while important for the operation and integration of a NAS server, are not directly related to the creation process itself. For instance, using the same VLAN as block storage networks (Option B) may lead to network conflicts, but it would not prevent the creation of the NAS server. Similarly, not defining DNS in the NAS server creation wizard (Option C) could cause resolution issues later on, but it is not a prerequisite for the creation of the NAS server. Lastly, while adding FSN to the cluster (Option D) is a necessary step for enabling file system services, it is not the cause of the NAS server creation failure in this context.

Therefore, the correct answer is A. A Storage Pool for NAS has not been created, as it is a fundamental requirement for the NAS server creation process in a PowerFlex environment.

The PowerFlex rack system meets the requirements of a bank creating a data center that needs integrated, fully configured hardware with a single management platform, all supported end-to-end by Dell.

Here’s why the PowerFlex rack is the suitable choice:

Integrated and Fully Configured Hardware: The PowerFlex rack is a pre-configured solution that includes integrated hardware and software components. It is designed for easy deployment and management1.

Single Management Platform: PowerFlex rack systems come with a single management platform that simplifies operations and provides a unified view of the entire infrastructure1.

End-to-End Dell Support: PowerFlex rack solutions are fully supported by Dell, providing customers with a single point of contact for all support needs. This includes hardware, software, and the entire infrastructure stack2.

The PowerFlex rack is specifically designed to meet the needs of organizations like banks that require a robust, scalable, and easy-to-manage storage solution. It offers a turnkey experience with the assurance of comprehensive support from Dell, making it an ideal choice for the bank’s data center requirements1.

To maximize the storage capacity available to the system while utilizing NVDIMMs, SAS, and NVMe disks, the design should include both a Storage Pool and an Acceleration Pool. The Storage Pool will be used for the bulk storage provided by the SAS disks, while the Acceleration Pool, leveraging the high-speed NVMe disks, will be used to accelerate the performance of the storage system.

The use of NVDIMMs in PowerFlex is associated with enabling fine-granularity storage pools that provide compression, which is beneficial for space efficiency, especially with heavy snapshot use1. This configuration allows for the creation of a storage pool that can take advantage of the NVDIMMs’ capabilities for compression and the high capacity of the SAS disks, while the NVMe disks in the Acceleration Pool provide high-performance storage for more demanding workloads.

Therefore, the correct answer is A. One Storage Pool and one Acceleration Pool, as this design will provide the highest capacity of storage available to the system while also ensuring optimal performance through the use of NVMe disks in the Acceleration Pool.

FSN, or File Storage Network, is the component within the PowerFlex software suite that enables data availability over NAS (Network Attached Storage). It is designed to integrate file services into the PowerFlex system, allowing for the management of file shares alongside block storage within the same infrastructure1.

The FSN component provides the necessary functionality to create, manage, and serve file systems over the network, making it possible for clients to access shared files and directories as if they were local. This integration simplifies the storage architecture and provides a unified storage solution for both block and file data requirements1.

The other options listed, such as SDR (Storage Data Replicator), LIA (Log Integration Adapter), and SDT (Software-Defined Technology), do not specifically relate to the provision of NAS services within the PowerFlex environment. Therefore, the correct answer is A. FSN, as it is the PowerFlex software component responsible for enabling NAS capabilities within the cluster.

To calculate the required journal capacity, we need to consider the maximum cumulative writes that might occur during an outage. The calculation is based on the application’s write bandwidth and the duration of the supported outage. For an application generating 2 GB/s of writes, using a 2-hour outage (which is 7200 seconds), the journal capacity reservation needed is:

Journal Capacity=Write Bandwidth×Outage Duration

Journal Capacity=2 GB/s×7200 s=14400 GB

However, since the question specifies that the outage is under two hours, we use the minimum outage allowance of 1 hour for the calculation, which is 3600 seconds. Therefore, the correct calculation is:

Journal Capacity=2 GB/s×3600 s=7200 GB

But considering the recommendation to use three hours in the calculations for safety, the needed capacity would be approximately 10.547 TB, which is roughly 10.800 GB12. Hence, the verified answer is 10.800 GB.

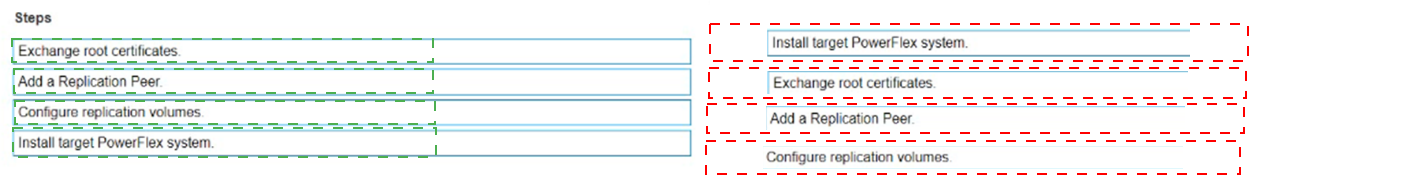

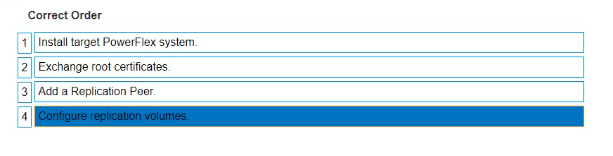

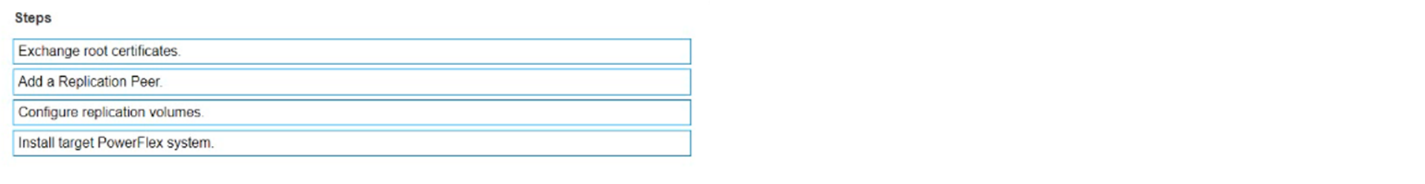

The correct sequence of steps to set up remote replication on the PowerFlex system is as follows:

Install target PowerFlex system: Before replication can be set up, there must be a target system in place to receive the replicated data1.

Exchange root certificates: This is a security measure to ensure that communication between the source and target systems is secure1.

Add a Replication Peer: This involves configuring the target system as a replication partner in the source system’s configuration1.

Configure replication volumes: Finally, specific volumes on the source system are configured to replicate to the target system1.

Setting up remote replication in a PowerFlex system involves a series of steps that establish the necessary components and configurations for the replication process. The sequence begins with the installation of the target PowerFlex system, which will serve as the destination for the replicated data. Next, root certificates are exchanged between the source and target systems to ensure secure communication. The target system is then added as a Replication Peer within the source system’s configuration. Lastly, the volumes intended for replication are configured on the source system to complete the setup process. This sequence ensures that the replication is secure, reliable, and correctly configured to maintain data integrity and availability across both systems1.

When adding an NVMe device to an existing storage pool in PowerFlex, the details provided in the “Add Storage Device to SDS” dialog box must be accurate and follow the correct syntax. In the scenario provided, the device path contains an invalid character (an apostrophe) and an incorrect format, which would cause the device addition to fail.

Here’s a breakdown of the process and where the error occurs:

Device Path: The device path should be a valid Linux device path, typically starting with /dev/disk/by-id/. The path provided contains an apostrophe (') which is not a valid character in Linux file paths and would result in an error1.

Device Name: The device name should be a simple identifier without spaces or special characters. The name provided, “NVMe A. 1.6 TB”, contains spaces and periods, which are not typical for device names and could potentially lead to issues, although the primary cause of failure is the invalid device path1.

Storage Pool: The storage pool name “SP-1” is a valid identifier, but it is contingent on the correct device path and name for the device to be added successfully.

The result of the action, given the invalid device path, would be that the device addition fails. It is crucial to ensure that all details entered in the dialog box adhere to the expected formats and do not contain invalid characters to avoid such failures.

This explanation is based on the standard practices for device path naming conventions in Linux systems and the configuration guidelines for PowerFlex systems as described in Dell’s official documentation1. Correcting the device path by removing the invalid character and ensuring the proper format would resolve the issue and allow the device to be added to the storage pool successfully.

Volume migration in PowerFlex allows for the movement of volumes between storage pools, which can be necessary for various operational reasons such as performance tuning, capacity expansion, or infrastructure upgrades. The possible migrations are:

Option B: Migrating from an MG (Medium Granularity) storage pool volume that is zero padded and thick provisioned to an FG (Fine Granularity) storage pool volume that is also zero padded and thin provisioned. This migration is possible and allows for a change in the provisioning and granularity of the volume, which can be beneficial for optimizing storage efficiency and performance1.

Option D: Migrating from an MG storage pool volume that is non-zero padded and thin provisioned to another MG storage pool volume that is zero padded and thin provisioned. This migration is within the same granularity type (MG) and involves changing the padding of the volume. It is a viable option when adjusting the volume configuration for specific storage optimization needs1.

These migrations are supported by PowerFlex’s flexible architecture, which allows for non-disruptive volume movements between storage pools. The process involves using PowerFlex’s management tools to initiate and monitor the migration, ensuring data integrity and system stability throughout the operation1.

The references for these migrations come from PowerFlex documentation and best practices, which detail the procedures and capabilities of the system regarding volume management and migration1. It isimportant to follow the recommended guidelines to ensure successful migrations that align with the system’s design and operational principles.

Tree quotas in PowerFlex are used to limit the maximum size of a directory on the file system. They are a way to manage and control the amount of disk space that can be used by a specific directory and its subdirectories. By setting tree quotas, administrators can ensure that no single directory consumes more space than intended, which helps in maintaining a balanced utilization of storage resources across the file system.

Here’s how tree quotas function:

Setting Quotas: Administrators define tree quotas by specifying a maximum size limit for a directory.

Enforcement: Once set, the system enforces these limits, ensuring that the total size of the directory does not exceed the specified quota.

Monitoring: Tree quotas also allow for monitoring of storage usage, providing insights into how storage is being consumed by different directories.

The purpose of tree quotas is not to limit the overall I/O or the total storage capacity of the file system but to provide a mechanism for controlling and monitoring the storage usage at the directory level within the file system1.

This explanation aligns with the information provided in the Dell PowerFlex documentation, which details the configuration and management of storage resources, including the implementation and purpose of tree quotas1
