EMC D-SNC-DY-00 - Dell SONiC Deploy Exam

Here are the steps to configure the required VLAN translations on a Dell SONiC switch:

Map a Single-Tagged CVLAN 100 to SVLAN 200 on Interface Eth1/1:

sonic# configure terminal

sonic(config)# interface Ethernet1/1

sonic(config-if-Ethernet1/1)# switchport mode trunk

sonic(config-if-Ethernet1/1)# switchport vlan mapping 100 200

sonic(config-if-Ethernet1/1)# end

sonic# write memory

Map a Double-Tagged VLAN Packet with Outer CVLAN 100 and Inner dot1q 200 to SVLAN 300 on Interface Eth1/2:

sonic# configure terminal

sonic(config)# interface Ethernet1/2

sonic(config-if-Ethernet1/2)# switchport mode trunk

sonic(config-if-Ethernet1/2)# switchport vlan mapping 100 200 300

sonic(config-if-Ethernet1/2)# end

sonic# write memory

Comprehensive Detailed Step by Step Explanation with References:

Enter Configuration Mode:

Access the global configuration mode using the configure terminal command.

Configure Interface Eth1/1:

Enter interface configuration mode for Ethernet1/1 using the command interface Ethernet1/1.

Set the switchport mode to trunk with the command switchport mode trunk.

Configure the VLAN translation using the switchport vlan mapping 100 200 command, which maps CVLAN 100 to SVLAN 200.

Exit the interface configuration mode by typing end.

Save the configuration with write memory.

Configure Interface Eth1/2:

Enter interface configuration mode for Ethernet1/2 using the command interface Ethernet1/2.

Set the switchport mode to trunk with the command switchport mode trunk.

Configure the double-tagged VLAN translation using the switchport vlan mapping 100 200 300 command, which maps packets with outer CVLAN 100 and inner dot1q 200 to SVLAN 300.

Exit the interface configuration mode by typing end.

Save the configuration with write memory.

References:

Dell Technologies Networking - SONiC

Dell Enterprise SONiC Deployment Guide

These steps provide a comprehensive guide to configure VLAN translations on a Dell SONiC switch, ensuring that the specific requirements for single-tagged and double-tagged VLAN mappings are met.

Here are the steps to configure the VRF and the static route:

Enter Configuration Mode:

sonic# configure terminal

Create VRF "VrfGreen":

sonic(config)# ip vrf VrfGreen

Configure the Static Route:

sonic(config)# ip route vrf VrfGreen 172.16.128.64/28 10.10.10.1 213

Save Configuration:

sonic# write memory

Comprehensive Detailed Step by Step Explanation with References:

Enter Configuration Mode:

Begin by entering the global configuration mode to make changes to the switch configuration.

Create VRF "VrfGreen":

Use the command ip vrf VrfGreen to create a new VRF named "VrfGreen". This command sets up a new VRF instance which will isolate the routing table for this VRF from the global routing table and other VRFs.

Configure the Static Route:

Use the command ip route vrf VrfGreen 172.16.128.64/28 10.10.10.1 213 to configure the static route.

ip route vrf VrfGreen specifies that the route should be added to the "VrfGreen" VRF.

172.16.128.64/28 is the destination network.

10.10.10.1 is the next-hop IP address.

213 is the administrative distance, which in this case is set to a non-default value to influence route preference.

Save Configuration:

Save the configuration to ensure the changes persist after a reboot using the write memory command.

References:

Dell Technologies Networking - SONiC

Dell Enterprise SONiC Deployment Guide

These steps provide a comprehensive guide to configure a VRF and a static route within that VRF on a SONiC-based switch, ensuring the specific requirements for routing and administrative distance are met.

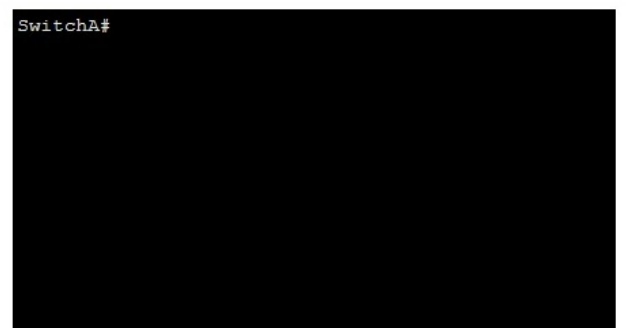

Here are the steps to configure the peer link on SwitchA:

Enter Configuration Mode:

SwitchA# configure terminal

Create VLAN 101:

SwitchA(config)# vlan 101

Create Port-Channel 100:

SwitchA(config)# interface port-channel 100

SwitchA(config-if-po100)# switchport mode trunk

SwitchA(config-if-po100)# switchport trunk allowed vlan 101

SwitchA(config-if-po100)# exit

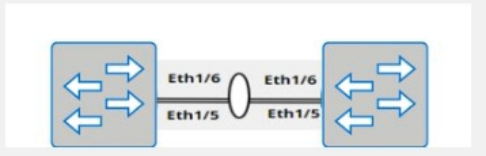

Assign Physical Interfaces to Port-Channel 100:

SwitchA(config)# interface ethernet 1/5

SwitchA(config-if-eth1/5)# channel-group 100 mode active

SwitchA(config-if-eth1/5)# exit

SwitchA(config)# interface ethernet 1/6

SwitchA(config-if-eth1/6)# channel-group 100 mode active

SwitchA(config-if-eth1/6)# exit

Configure MC-LAG Domain 1:

SwitchA(config)# mclag domain 1

SwitchA(config-mclag-domain)# peer-link port-channel 100

SwitchA(config-mclag-domain)# local-ip 192.168.1.1

SwitchA(config-mclag-domain)# peer-ip 192.168.1.2

SwitchA(config-mclag-domain)# system-mac 00:00:00:11:11:11

SwitchA(config-mclag-domain)# exit

Save Configuration:

SwitchA# write memory

Comprehensive Detailed Step by Step Explanation with References:

Enter Configuration Mode:

Begin by entering the global configuration mode to make changes to the switch configuration.

Create VLAN 101:

Create VLAN 101 to be used for the MC-LAG peer link communication.

Create Port-Channel 100:

Enter the port channel interface configuration mode using interface port-channel 100.

Set the port channel to trunk mode with switchport mode trunk.

Allow VLAN 101 on the trunk with switchport trunk allowed vlan 101.

Exit the port channel interface configuration mode.

Assign Physical Interfaces to Port-Channel 100:

Enter interface configuration mode for ethernet 1/5 and assign it to port channel 100 using the channel-group 100 mode active command.

Exit the interface configuration mode.

Repeat the same steps for ethernet 1/6.

Configure MC-LAG Domain 1:

Enter the MC-LAG domain configuration mode using mclag domain 1.

Specify the peer link port channel with peer-link port-channel 100.

Configure the local IP address as 192.168.1.1 using local-ip 192.168.1.1.

Configure the peer IP address as 192.168.1.2 using peer-ip 192.168.1.2.

Set the MC-LAG system MAC address using system-mac 00:00:00:11:11:11.

Exit the MC-LAG domain configuration mode.

Save Configuration:

Save the configuration to ensure the changes persist after a reboot using the write memory command.

References:

Dell Technologies Networking - SONiC

Dell Enterprise SONiC Deployment Guide

These steps provide a comprehensive guide to configure the peer link for an MC-LAG scenario on SwitchA, ensuring the specific requirements for IP addressing, VLAN configuration, and port channel setup are met.
