When VPLEX Metro is added to an existing HP OpenView network monitoring environment and only the remote VPLEX cluster is reporting performance statistics, the likely cause is a misconfiguration of the SNMP agent on the local VPLEX cluster management server.

SNMP Agent Configuration: The SNMP (Simple Network Management Protocol) agent on the VPLEX management server must be correctly configured to communicate with the HP OpenView monitoring system. If the local cluster’s SNMP agent is misconfigured, it may not report performance statistics correctly1.

Troubleshooting Steps: To resolve this issue, the following steps should be taken:

Verify the SNMP configuration on the local VPLEX cluster management server.

Check for any discrepancies in the SNMP version, community strings, and allowed hosts between the local and remote clusters.

Ensure that the SNMP service is running and properly configured to send traps and fetches to the HP OpenView system1.

Firewall and Network Checks: Although TCP Port 443 is important for secure communications, it is not typically used for SNMP, which usually operates over UDP ports 161 and 162. Therefore, a blockage of TCP Port 443 would not directly affect SNMP reporting1.

HP OpenView Compatibility: While HP OpenView running SNMP version 2C could potentially cause issues with performance statistic reporting, if the remote cluster is reporting correctly, it suggests that the version of SNMP is not the issue in this case1.

VPLEX Witness Configuration: The VPLEX Witness is not directly involved in the reporting of performance statistics to HP OpenView, so a misconfiguration of the VPLEX Witness’s SNMP agent would not cause this specific issue1.

In summary, the cause of the issue where only the remote VPLEX cluster is reporting performance statistics to HP OpenView is likely due to a misconfigured SNMP agent on the local VPLEX cluster management server.

The default subnet mask for a management server network, specifically for the network 128.221.252.0, is typically a subnet mask that allows for a small number of hosts, as management networks do not usually require a large number of IP addresses.

Subnet Mask Purpose: A subnet mask is used in IP networking to divide the IP address into a network and host identifier. The default subnet mask for a particular network depends on the class and configuration of the network1.

Management Server Network: For a management server network like 128.221.252.0, a common default subnet mask is 255.255.255.248. This subnet mask allows for up to 6 usable IP addresses, which is generally sufficient for management purposes1.

Network Configuration: The choice of subnet mask can affect the number of hosts that can be accommodated within a network. A subnet mask of 255.255.255.248 indicates a very small network, often used for specialized network segments such as management interfaces1.

Dell VPLEX Configuration: In the context of Dell VPLEX Deploy Achievement, the management server network would be configured with a subnet mask that supports the network architecture and design best practices as outlined in Dell’s documentation1.

Best Practices: It is important to follow the recommended settings and configurations provided in the Dell VPLEX Deploy Achievement documents to ensure proper network segmentation, security, and performance1.

In summary, the default subnet mask value for a management server network like 128.221.252.0 is typically 255.255.255.248, which aligns with the standard practices for configuring management networks in a Dell VPLEX environment.

In the context of performance monitoring, particularly for systems like Dell VPLEX, histograms are used to track latencies and display statistical data such as median, mode, percentiles, minimums, and maximums. The term “buckets” is often used to describe the segments within a histogram that categorize the latency data into ranges. Each bucket represents a range of latencies, and the number of events (or I/O operations) that fall into each latency range is counted and displayed.

Histograms in Monitoring: Histograms provide a visual representation of how data is distributed across different ranges of values, which is particularly useful for understanding the performance characteristics of a system like VPLEX.

Buckets Explained: Buckets within a histogram divide the entire range of collected data into discrete intervals. For latency tracking, these buckets might represent latency ranges such as 0-1 ms, 1-2 ms, etc.

Latency Tracking: By collecting latency data in buckets, administrators can quickly identify the distribution of latencies over time, pinpointing whether most I/O operations are fast, slow, or somewhere in between.

Minimums and Maximums: Histograms make it easy to see the minimum and maximum latencies experienced by the system, as well as the frequency of latencies within each bucket range.

Performance Analysis: This method of collecting and analyzing performance statistics is crucial for performance tuning and capacity planning, as it helps administrators understand the behavior of their storage systems under different workloads.

In summary, “buckets” are the correct answer when referring to the segments within a histogram that are used to collect and categorize latency data for performance monitoring purposes in systems like Dell VPLEX.

For connecting the MMCS-A to the customer management network in a Dell VPLEX system, it is essential to use the correct port that is designated for management traffic. According to the Dell EMC VPLEX documentation1, each MMCS (Management Module Control Station) has two network connections that connect to the customer’s network. One of these is used for system monitoring and remote connectivity for Dell Technologies Customer Support, and the other is for use by the Network Address Translation (NAT) Gateway.

In the context of the VS6 VPLEX cluster, the management ports are located on MMCS-A and MMCS-B, and both must be configured and connected to the customer network. MMCS-A is the management port that will be accessed for all management and monitoring purposes1. Therefore, the cable that should be connected to the customer management network is the one associated with MMCS-A.

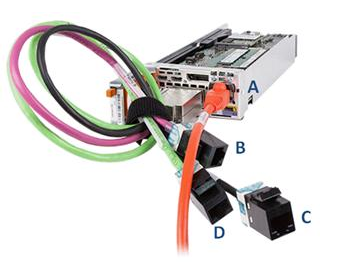

Based on the information provided in the search results and the description of the image, the correct cable to connect to the customer management network for MMCS-A is indicated by the letter B in the exhibit. This connection is crucial for enabling management and monitoring access to the VPLEX system.

In a VPLEX Metro environment without a Cluster Witness, consistency groups (CGs) are used to manage distributed virtual volumes with detach rules that determine the behavior during a cluster failure.

CG1 with Cluster-1 as Winner: For App1, the distributed virtual volumes are added to CG1, which has a detach rule set with cluster-1 as the winner. This means that if cluster-2 fails, I/O for CG1 will continue to be serviced at cluster-1 after it automatically attaches the volumes that were distributed across both clusters1.

CG2 with Cluster-2 as Winner: For App2, the distributed virtual volumes are added to CG2, which has a detach rule set with cluster-2 as the winner. In the event of a cluster-2 failure, I/O for CG2 will be serviced after the volumes are detached from cluster-2, allowing cluster-1 to take over and service the I/O1.

Extended Cluster-2 Failure: If cluster-2 fails for an extended period, the VPLEX Metro will follow the detach rules set for each consistency group. CG1 will have its I/O serviced at cluster-1, and CG2 will also have its I/O serviced at cluster-1 after detaching from the failed cluster-21.

No Cluster Witness: Without a Cluster Witness, the VPLEX Metro relies on the detach rules defined in the consistency groups to determine how to handle I/O in the event of a cluster failure1.

Operational Continuity: The goal is to maintain operational continuity for both applications. By servicing I/O for both CG1 and CG2 at cluster-1, VPLEX ensures that both applications remain operational despite the failure of cluster-21.

In summary, if cluster-2 fails for an extended period in a VPLEX Metro setup without a Cluster Witness, I/O for CG1 will be serviced at cluster-1, and I/O for CG2 will also be serviced at cluster-1 after detaching from cluster-2, as per the detach rules set for each consistency group.

In the context of Dell VPLEX, a rebuild occurring on a volume is a condition that would prevent the expansion of that volume. This is because the system needs to ensure data integrity and consistency during the rebuild process before any changes to the volume size can be made.

Rebuild Process: A rebuild is a process where VPLEX re-synchronizes the data across the storage volumes, typically after a disk replacement or a failure1.

Volume Expansion: Expanding a volume involves increasing its size to accommodate more data. This process requires that the volume is in a stable state without any ongoing rebuild operations1.

Data Integrity: During a rebuild, the system is focused on restoring the correct data across the storage volumes. Attempting to expand a volume during this process could lead to data corruption or loss1.

System Restrictions: VPLEX systems have built-in mechanisms to prevent administrators from performing actions that could jeopardize the system’s stability or data integrity, such as expanding a volume during a rebuild1.

Post-Rebuild Expansion: Once the rebuild process is complete and the volume is fully synchronized, the administrator can then proceed with the volume expansion1.

In summary, a rebuild currently occurring on a volume is a condition that would prevent the expansion of that volume in a Dell VPLEX system. The system must first ensure that the rebuild process is completed successfully before allowing any changes to the volume’s size.

When performing batched data mobility jobs using the VPlexcli, a key consideration is that each batched mobility job plan can only contain one type of data mobility jB. This means that all the migrations within a single plan must be of the same type, such as all migrations being from one storage array to another or all being within the same array.

Creating a Mobility Job Plan: When creating a batched data mobility job plan using the VPlexcli, you initiate a plan that will contain a series of individual migration jobs1.

Job Type Consistency: Within this plan, all the jobs must be of the same type to ensure consistency and predictability in the execution of the jobs. This helps in managing resources and dependencies effectively1.

Execution of the Plan: Once the plan is created and initiated, the VPlexcli will execute each job in the order they were added to the plan. The system ensures that the resources required for each job are available and that the jobs do not conflict with each other1.

Monitoring and Completion: As the jobs are executed, their progress can be monitored through the VPlexcli. Upon completion of all jobs in the plan, the system will report the status and any issues encountered during the migrations1.

Best Practices: It is recommended to follow best practices for data mobility using VPlexcli as outlined in the Dell VPLEX Deploy Achievement documents. This includes planning migrations carefully, understanding the types of jobs that can be batched together, and ensuring that the system is properly configured for the migrations1.

In summary, when performing batched data mobility jobs using the VPlexcli, it is important to remember that only one type of data mobility job is allowed per plan. This consideration is crucial for the successful execution and management of batched data mobility jobs in a VPLEX environment.

To ensure that a consistency group will continue synchronization without manual intervention once the link is restored after a link outage, the configuration option that must be set is auto-resume = true.

Consistency Group Configuration: A consistency group in Dell VPLEX is a collection of virtual volumes that are managed together to maintain write-order fidelity. This is crucial for applications that require all writes across multiple volumes to be consistent with each other1.

Link Outage Handling: In the event of a link outage, it is important for the consistency group to be able to automatically resume synchronization once the link is restored. This minimizes the manual intervention required and ensures data integrity is maintained1.

Auto-resume Option: The auto-resume = true setting is used to configure the consistency group to automatically resume synchronization. This setting is part of the consistency group’s attributes and can be configured via the VPLEX CLI or Unisphere for VPLEX1.

Implementation: To set this option, the administrator would use the VPLEX CLI to navigate to the consistency group settings and modify the auto-resume attribute to true. This ensures that the consistency group will automatically attempt to resume synchronization after a link outage is resolved1.

Best Practices: It is recommended to enable auto-resume for all consistency groups that require high availability and automatic recovery from link outages. This setting is part of the best practices for VPLEX consistency groups as outlined in the Dell VPLEX Deploy Achievement documents1.

In summary, the auto-resume = true configuration option is essential for ensuring that a VPLEX consistency group will continue synchronization without manual intervention after a link outage, thereby maintaining the high availability and data protection standards set by Dell VPLEX Deploy Achievement guidelines.
