EMC D-VPX-OE-A-24 - Dell VPLEX Operate Achievement

When LUNs belonging to an ESXi cluster are encapsulated behind VPLEX, the information that must be shared with the ESXi administrator for them to re-discover the datastore and the RDM LUNs is the Virtual Volume VPD (Vital Product Data).

Virtual Volume VPD: The VPD for a virtual volume contains essential information about the volume, such as its identifier, which is used by the ESXi host to recognize and differentiate the volume1.

Re-Discovery Process: After encapsulation, the ESXi administrator will need to perform a rescan of the storage adapters on the ESXi hosts.During this rescan, the hosts use the VPD information to identify the newly encapsulated LUNs and re-discover the associated datastore and RDM LUNs1.

Datastore and RDM LUNs: Datastores are storage containers that hold virtual machine files, while RDM (Raw Device Mapping) LUNs allow a virtual machine to directly access a storage device.Both rely on unique identifiers to ensure correct access and operation within the ESXi environment1.

Sharing Information: The VPLEX administrator should provide the VPD information to the ESXi administrator, typically after the encapsulation process is complete and before the ESXi storage rescan is initiated1.

Ensuring Access: By sharing the correct VPD information, the ESXi administrator can ensure that the ESXi cluster correctly identifies and regains access to the encapsulated LUNs, maintaining the continuity of services and data availability1.

The sharing of the Virtual Volume VPD is a critical step in the process of LUN encapsulation behind VPLEX, ensuring that the ESXi cluster can successfully re-discover and utilize the datastore and RDM LUNs.

The batch-migrate check-plan command in Dell VPLEX is used to determine if there is currently enough back-end bandwidth to carry out a migration plan. This is crucial to ensure that the migration does not negatively impact the performance of other operations within the VPLEX environment.

Back-End Bandwidth: The back-end bandwidth refers to the data transfer capacity between the VPLEX and its connected storage arrays.Adequate back-end bandwidth is essential for migration operations to prevent bottlenecks1.

Migration Plan: Before executing a migration plan created by the batch-migrate create-plan command, it is important to check that the system has the necessary resources, such as sufficient back-end bandwidth, to support the migration without disruption1.

Command Function: The batch-migrate check-plan command analyzes the current system load and the expected load from the migration to determine if the migration can proceed without exceeding the system’s bandwidth capabilities1.

Ensuring Performance: By verifying the availability of back-end bandwidth, the command helps to ensure that the migration will not interfere with the normal operations of the VPLEX system, maintaining overall system performance1.

Pre-Migration Assessment: This command is part of the pre-migration assessment process, which is critical for planning and executing migrations effectively and efficiently within the VPLEX environment1.

The batch-migrate check-plan command is an important tool for administrators to validate the feasibility of migration plans and to ensure that migrations do not adversely affect the performance of the VPLEX system.

Before a host can detect the virtual volumes presented by VPLEX, it is necessary for the host to initiate a bus-scan of the Host Bus Adapters (HBAs). This process allows the host to recognize new storage devices that have been presented to it, such as the virtual volumes from VPLEX.

Here’s a detailed explanation:

Host Bus Adapters (HBAs): HBAs are the hardware interfaces that connect a host system to a network or storage device. In the context of VPLEX, they connect the host to the VPLEX storage system.

Bus-Scan: A bus-scan is a command that can be issued from the host to scan the storage network for any changes, such as newly added storage volumes. This is typically done using operating system-specific commands or utilities.

Virtual Volumes Detection: Once the bus-scan is complete, the host’s operating system can detect the virtual volumes presented by VPLEX and make them available for use by applications and services running on the host.

No RAID Requirement: The detection of virtual volumes does not require RAID configuration to be enabled for the volumes themselves, as this is managed within the VPLEX system.

No Reboot Necessary: It is not necessary to reboot the host to detect virtual volumes. A bus-scan can be performed while the system is running without requiring a restart.

No Wizard Required: The EZ Provisioning wizard is a tool used within the VPLEX system for provisioning storage, but it is not required to be run on the host for virtual volume detection.

By initiating a bus-scan of the HBAs, the host can detect and utilize the virtual volumes presented by VPLEX, allowing for flexible and dynamic storage management.

Expanding a virtual volume using the Storage Volume expansion method is a valid option when the virtual volume is mapped 1:1 to the underlying storage volume. This method is suitable when each virtual volume corresponds directly to a single storage volume on the backend array, and there is a need to expand the volume’s capacity.

1:1 Mapping: A 1:1 mapping means that there is a direct relationship between a virtual volume in VPLEX and a single storage volume on the backend storage array.This allows for a straightforward expansion process as any increase in the size of the backend volume can be reflected in the virtual volume1.

Storage Volume Expansion: The Storage Volume expansion method involves increasing the size of the backend storage volume first.This is typically done through the storage array’s management interface1.

VPLEX Recognition: Once the backend storage volume is expanded, VPLEX must recognize the new size.This may require rescanning the storage volumes within VPLEX to detect the changes1.

Virtual Volume Expansion: After VPLEX recognizes the increased size of the storage volume, the corresponding virtual volume can be expanded to utilize the additional capacity.This is done within the VPLEX management interface1.

Exclusion of Other Options: The other options listed, such as a virtual volume having minor problems, being a metadata volume, or previously expanded by adding extents or devices, are not typically associated with the Storage Volume expansion methD.These scenarios may require different approaches or may not be suitable for expansion using this method1.

By ensuring that the virtual volume is mapped 1:1 to the underlying storage volume, administrators can effectively utilize the Storage Volume expansion method to increase the capacity of virtual volumes in a VPLEX environment.

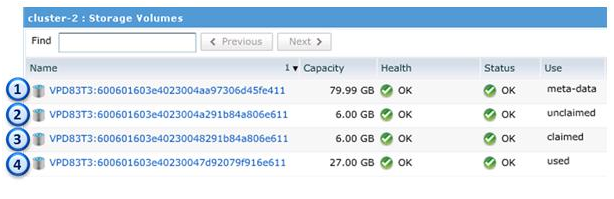

Based on the information provided in the image, here is the explanation:

Storage Volume 1 (OB): This volume is listed with a capacity of 79.99 GB, health status OK, and status OK. Its use is indicated as ‘meta-data’, which typically means it is reserved for system or metadata use and not available for creating extents.

Storage Volume 2 (OA): This volume has a capacity of 6.00 GB, health status OK, and status OK. Its use is indicated as ‘unclaimed’, which suggests that it has not been allocated for any specific purpose yet and could potentially be used for creating an extent.

Storage Volume 3 (OD): This volume also has a capacity of 6.00 GB, health status OK, and status OK. However, its use is indicated as ‘claimed’, meaning it has already been allocated and is not available for creating new extents.

Storage Volume 4 (OC): The final volume has a capacity of 27.00 GB, health status OK, and status OK. Its use is indicated as ‘used’, which implies that it is currently in use and not available for creating new extents.

Based on the above analysis, the storage volume that is available to be used for the creation of an extent isStorage Volume 2 (OA). It is the only volume marked as ‘unclaimed’ and therefore available for new configurations such as creating extents.

Questions no:Q29

In VPLEX, the type of statistic that provides an instantaneous value displaying CPU utilization and memory utilization is referred to as “counters.” These counters offer real-time metrics that reflect the current state of the system’s resources.

Counters: Counters are a type of statistic in VPLEX that provide immediate, real-time values for various system metrics, including CPU and memory utilization.They are used to monitor the current performance and resource usage of the VPLEX system1.

CPU Utilization: CPU utilization counters show the percentage of CPU resources currently being used by the VPLEX directors.This information is crucial for understanding the load on the system and for capacity planning1.

Memory Utilization: Memory utilization counters display the amount of RAM currently in use by the VPLEX system.This helps administrators monitor memory consumption and ensure that the system has enough memory to operate efficiently1.

Monitoring and Management: Counters are an essential tool for the ongoing monitoring and management of a VPLEX environment.They help administrators identify potential performance bottlenecks and take proactive measures to optimize system performance1.

Instantaneous Values: Unlike other statistics that may provide averages or aggregated data over a period, counters offer instantaneous snapshots of resource usage, making them ideal for real-time monitoring1.

By utilizing counters, VPLEX administrators can gain immediate insights into the system’s CPU and memory utilization, enabling them to maintain optimal performance and address issues as they arise.

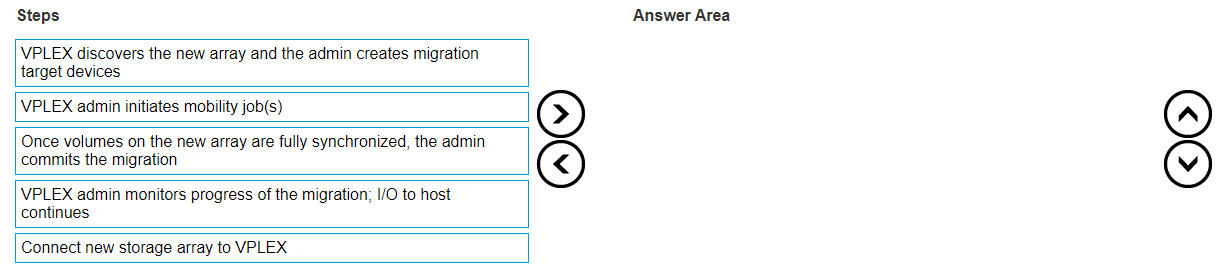

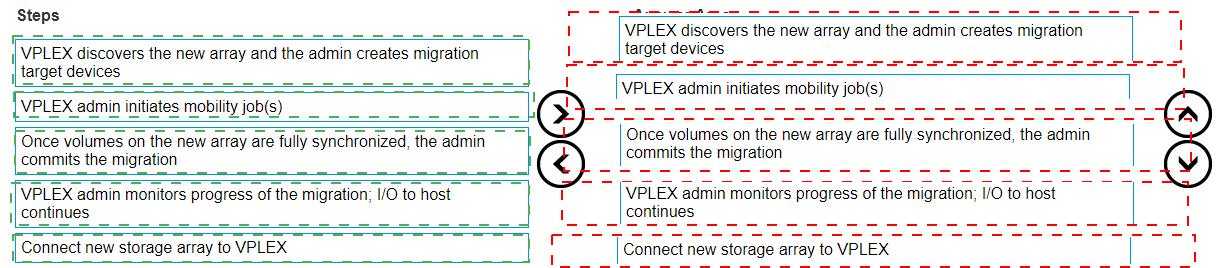

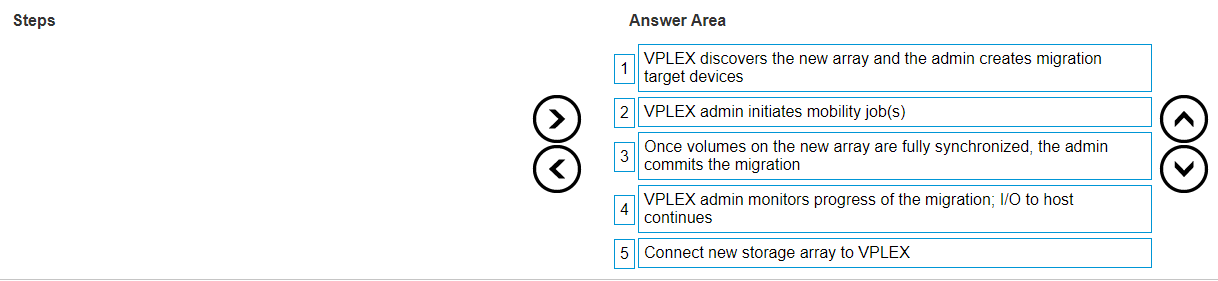

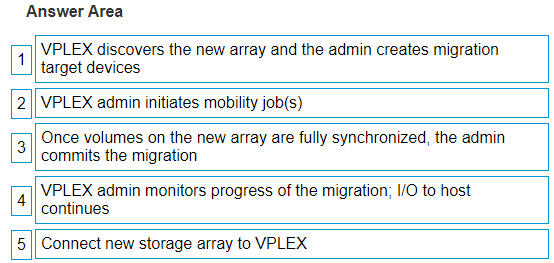

The correct order of steps to migrate from an old array to a new one without disruption using VPLEX is:

VPLEX discovers the new array and the admin creates migration target devices.

VPLEX admin initiates mobility job(s).

Once volumes on the new array are fully synchronized, the admin commits the migration.

VPLEX admin monitors progress of the migration; I/O to host continues.

Connect new storage array to VPLEX.

Discovery and Creation: The initial step involves VPLEX identifying the presence of a new storage array within its environment. Following this discovery, a system administrator is responsible for setting up migration target devices on this newly recognized array.

Initiation of Mobility Jobs: Subsequently, a system administrator must initiate mobility jobs through the VPLEX management interface, which facilitates data movement from the existing source storage to the target devices on the new array.

Synchronization and Commitment: After initiating mobility jobs, data synchronization between source and target arrays begins automatically. Once synchronization reaches completion, indicating that both arrays have identical data sets, an administrator must commit to finalizing this stage of migration.

Monitoring Migration Progress: Throughout this process, it’s crucial for an administrator to monitor ongoing operations ensuring that input/output operations continue uninterrupted for hosts accessing data during transition phases.

Connecting New Array: The final step involves integrating the newly populated storage array into production by connecting it with VPLEX systems thus completing migration.

In a VPLEX Metro cluster without a VPLEX Witness and with a static rule set to “cluster-2 detaches”, the result of a WAN COM failure would be as follows:

Delay Timer: Initially, VPLEX starts a delay timer upon detecting the WAN COM failure.This timer allows for a temporary network issue to be resolved without immediate impact on I/O operations1.

Suspension of I/O: While the delay timer is active, VPLEX suspends I/O to all distributed devices on both clusters to prevent data corruption and ensure data integrity1.

Resumption of I/O: If the WAN COM connectivity is not restored within the expiration period of the delay timer, VPLEX will resume I/O operations on Cluster-2, as per the static rule set.I/O will remain suspended on Cluster-1 to maintain a consistent data state and prevent a split-brain scenario1.

This process ensures that data remains consistent and available on at least one cluster in the event of a WAN COM failure, aligning with the predefined static rule set and maintaining the integrity of the VPLEX Metro cluster operations.
