EMC D-XTR-MN-A-24 - Dell XtremIO Maintenance Achievement

In an XtremIO X2 system, the maximum number of lifetime cycles for NVRAM is 10,000. This number represents the total count of write and erase cycles the NVRAM can endure throughout its lifespan, ensuring data integrity and reliability over time.

The Eaton 1550 Evolution BBU (Battery Backup Unit) uses 1 DB9 and 1 RJ50 connector. These connectors are used for communication and management purposes, ensuring that the BBU can interface correctly with other components of the system.

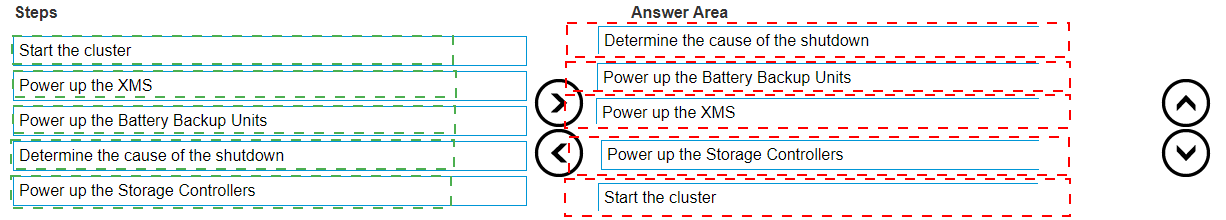

The correct sequence of steps to power up an XtremIO X1 cluster after an emergency shutdown is as follows:

Determine the cause of the shutdown

Power up the Battery Backup Units

Power up the XMS

Power up the Storage Controllers

Start the cluster

Detailed Explanation with References:

Determine the cause of the shutdown: Before powering up the system, it is essential to understand why the emergency shutdown occurred to prevent reoccurrence.

Power up the Battery Backup Units: The BBUs provide the necessary power to the storage controllers during power-up.

Power up the XMS: The XtremIO Management Server must be powered up to manage and monitor the storage system.

Power up the Storage Controllers: Once the BBUs and XMS are operational, power up the storage controllers.

Start the cluster: Finally, start the cluster to bring the XtremIO system back online and resume normal operations.

For an XtremIO cluster to use FTPS (File Transfer Protocol Secure) for the Connect Home feature, the firewall ports that need to be opened are989 and 990.These ports are used for data connections and control connections under implicit security for FTPS1.

When using explicit security, FTPS can also use port 21, but since the question specifies FTPS for Connect Home, which typically uses implicit security, the correct ports are989 for data transmissionand990 for the control connection1. It’s important to ensure these ports are open to allow secure file transfer capabilities for the XtremIO cluster.

In the event of a power failure, the XtremIO X2 array is designed to protect the journal data using a combination ofSupercapacitorandNVRAM. The NVRAM (Non-Volatile Random Access Memory) ensures that the data remains intact without power, while the supercapacitor provides the necessary energy to maintain the power to the NVRAM during the outage.This design allows the XtremIO X2 array to preserve the integrity of the journal data until normal power can be restored1.

=========================

When modifying the IP addresses on an XtremIO X2 cluster that will remain in the same IP network, the appropriate document to reference is the "XtremIO Storage Array User Guide." This guide contains detailed instructions and best practices for changing network configurations, including IP address modifications.

When deploying a virtual XtremIO Management Server (XMS), the template uses the file name extension.ova. This is a standard format for virtual appliances, which are pre-configured virtual machines that can be imported and run on various virtualization platforms.The .ova file extension stands for Open Virtual Appliance (or Application) and is typically used for packaging and distributing software to be run in virtual machines1.

The deployment process using an .ova file typically involves the following steps:

Download the .ova file from the official source or portal.

Import the .ova file into the virtualization platform (such as VMware vSphere or Oracle VM VirtualBox).

Follow the prompts to configure the virtual machine settings as needed.

Once the import is complete, power on the virtual machine to begin the initial setup and configuration of the virtual XMS server.

This information is consistent with the practices outlined in the Official Dell XtremIO Maintenance Achievement document, ensuring that the deployment of the virtual XMS server aligns with Dell’s recommended procedures2.

When comparing XtremIO X1 to XtremIO X2, the amount of memory installed in a Storage Controller with a DAE attached with 400 GB SSDs differs. For the X1, it is 256 GB, while for the X2, it is 512 GB. This increase in memory in the X2 model supports higher performance and improved handling of data operations.

The show-storage-controllers command is used in XMCLI to verify the IP addresses of the Storage Controllers after they have been changed. This command provides detailed information about the status and configuration of the storage controllers, including their IP addresses.
