Tableau Desktop-Specialist - Tableau Desktop Specialist Exam

When dealing with a union of two tables in Tableau, using logical tables with a single table extract is the most appropriate approach. Logical tables allow for the integration of data from multiple tables in a way that is seamless and efficient for analysis. By using a single table extract, Tableau consolidates the data from the union into one extract, optimizing performance and enabling faster data processing. This approach is particularly beneficial when working with large datasets or complex unions.

When the Physical Tables option is selected for an extract in Tableau, an individual table is created for each physical table in the extract. This means that the extract will include a separate table for each underlying table in your database, maintaining the database's structure within the extract. This can be useful when you need to preserve the original granularity of the data or when working with certain database optimizations.

This is a tricky question often asked in the exam.

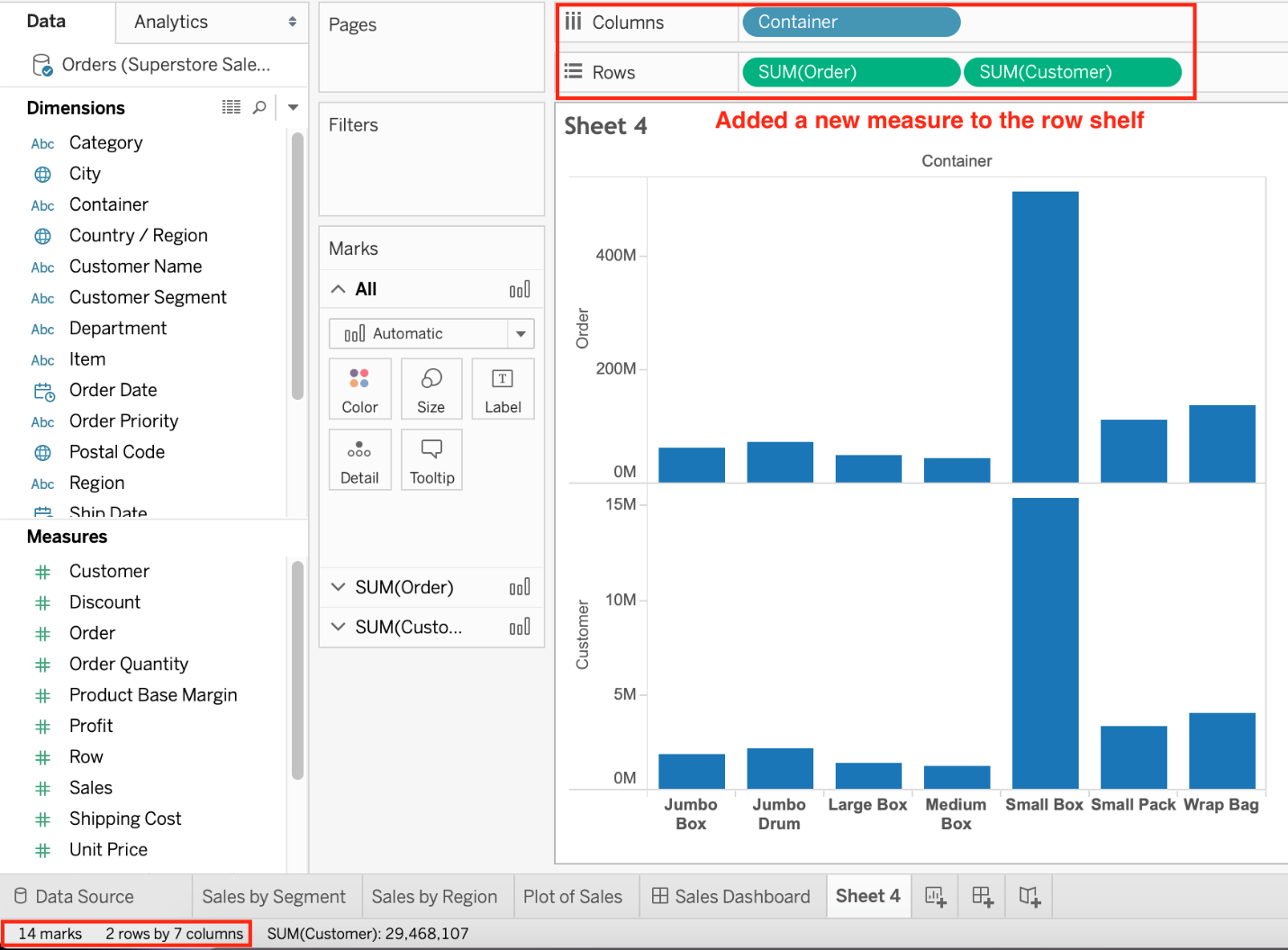

If we drag a new measure to the row shelf, the following happens:

We now have 2 rows, and the same 7 columns for both these rows. Therefore, 2x7 = 14 marks!

Graphical user interface, chart, bar chart Description automatically generated with medium confidence

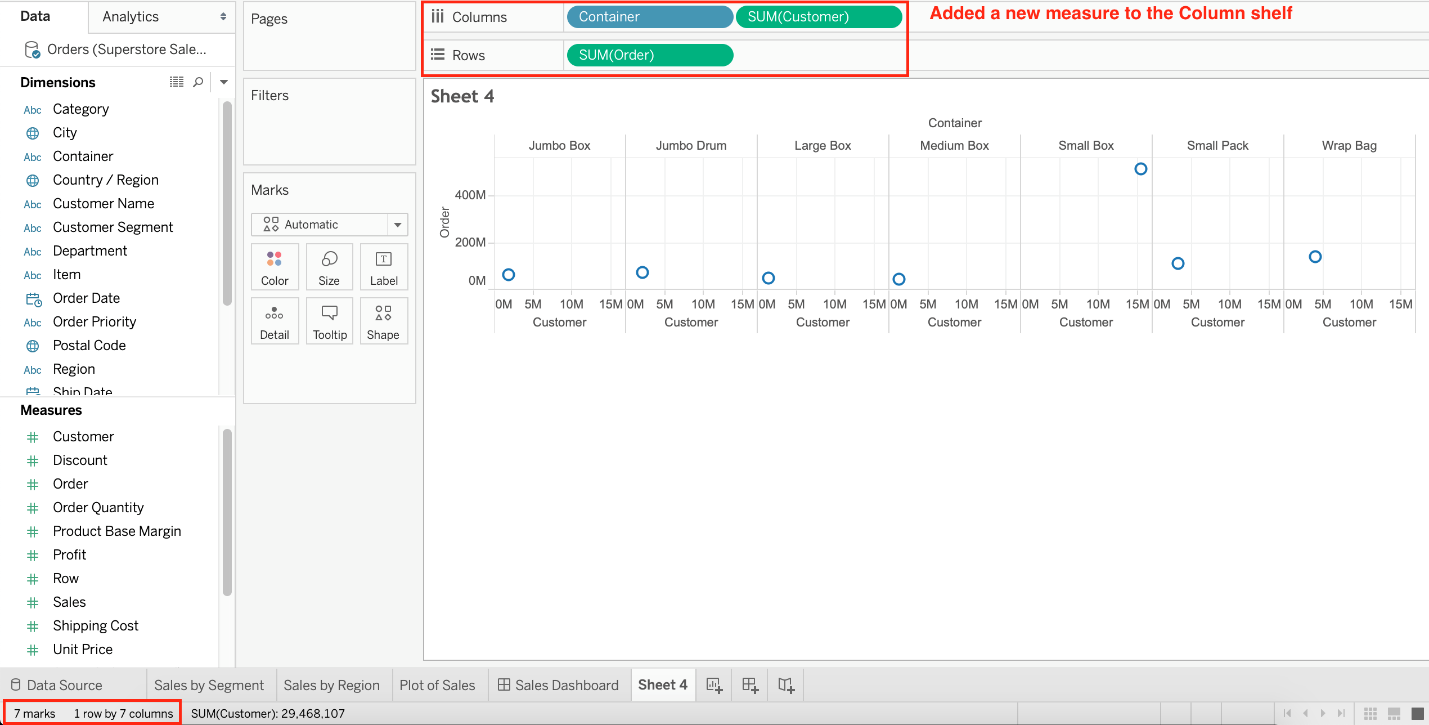

But if we drag the same measure to the column shelf, we have just 1 row and a chart created for each of the columns. So (1x7) = 7 marks!

Graphical user interface, text, application Description automatically generated

Reference and notes: https://medium.com/@justindixon91/tableau-specialist-exam-notes-part-4-understanding-tableau-concepts-f78de83fdd35

You can assign an alias to a field member before creating a visualization. An alias is an alternative name that you can assign to a value in a dimension field. You can use aliases to rename specific values within a dimension to make them more relevant or descriptive in your view than what the original data provides. For example, you can use aliases to shorten long names, correct spelling errors, or replace codes with meaningful labels6 You can create aliases for the members of discrete dimensions only. They cannot be created for continuous dimensions, dates, or measures. To create an alias for a dimension member, you can right-click the dimension in the Data pane and select Aliases, then enter a new name for each member under Value (Alias). You can also create an alias by right-clicking a dimension member in the view and selecting Edit Alias. You can do this before or after creating a visualization6 The other options are not accurate statements about aliases. You cannot create an alias for a discrete measure, because measures are not discrete fields. You cannot create an alias for a continuous dimension, because aliases are only available for discrete dimensions. When you assign an alias, the name does not change in the database, only in Tableau. Aliases are stored as part of the workbook or data source, and do not affect the original data6

According to the Tableau Help, one of the ways to improve a crosstab is to “Include an Other group”. The help also states that “If you have a large number of members in a dimension, you can create groups to combine low-frequency members into an Other group. This can help you focus on the most relevant data and reduce clutter in your view” (page 2).

Explanation

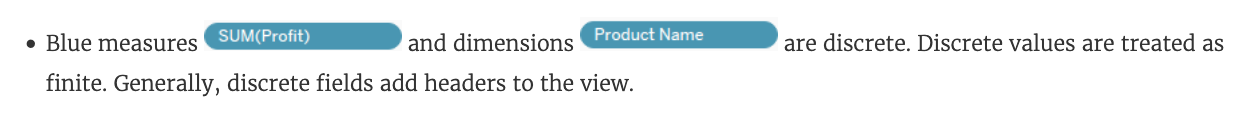

When you connect to a new data source, Tableau assigns each field in the data source as dimension or measure in the Data pane, depending on the type of data the field contains. You use these fields to build views of your data.

Explanation

According to the official Tableau documentation, there are 5 types of trend lines which we can work with in Tableau :

1) Linear Trend Line

2) Logarithmic Trend Line

3) Exponential Trend Line

4) Polynomial Trend Line

5) Power Model

Hence, the correct answer is BINOMIAL trend line which is not present in Tableau.

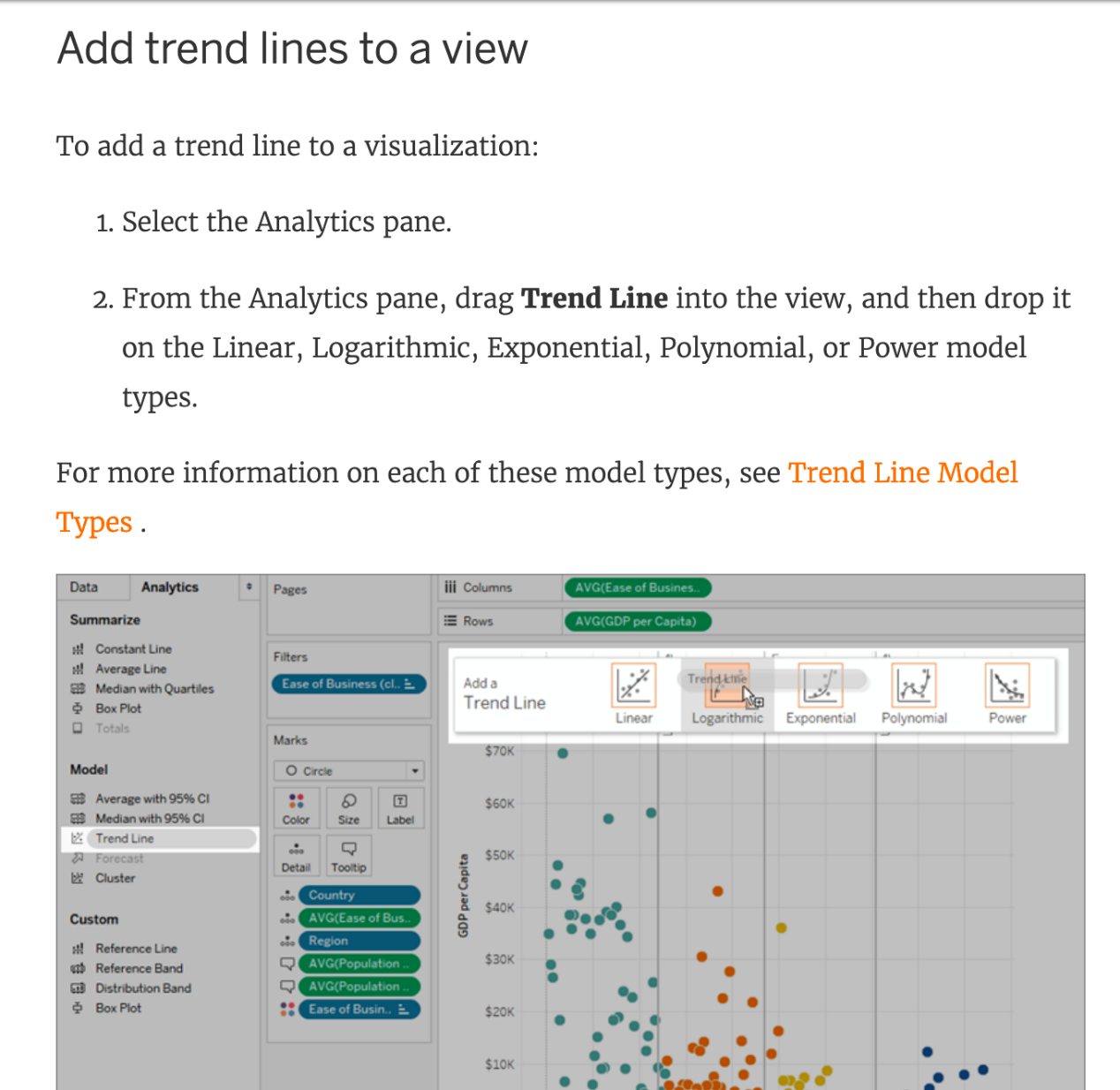

See the following image:

For more information, refer to: https://help.tableau.com/current/pro/desktop/en-us/trendlines_add.htm

Explanation

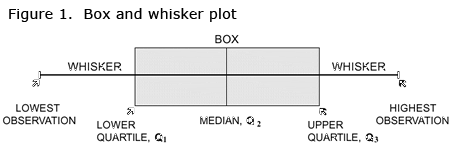

In a box and whisker plot:

1) The ends of the box are the upper and lower quartiles, so the box spans the interquartile range

2) The median is marked by a vertical line inside the box

3) The whiskers are the two lines outside the box that extend to the highest and lowest observations.

Explanation

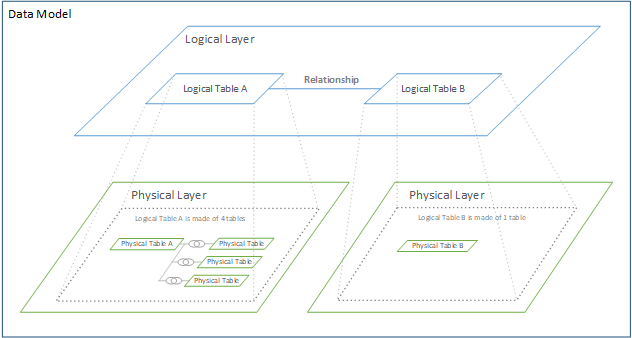

Remember that joins are defined in the physical layer and relationships in the logical layer.

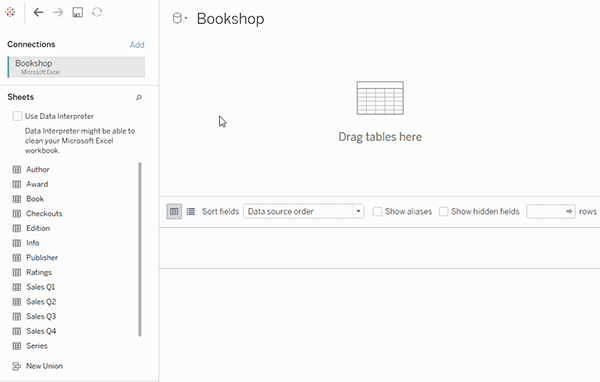

You can still specify joins between tables in the physical layer of a data source. Double-click a logical table to go to the Join/Union canvas in the physical layer and add joins or unions.

Every top-level, logical table contains at least one physical table. Open a logical table to view, edit, or create joins between its physical tables. Right-click a logical table, and then click Open. Or, just double-click the table to open it.

When you create a data source, it has two layers. The top-level layer is the logical layer of the data source. You combine data between tables in the logical layer using relationships.

The next layer is the physical layer of the data source. You combine data between tables at the physical layer using joins. For more information, see Logical and physical tables in the data model
