F5 F5CAB3 - BIG-IP Administration Data Plane Configuration (F5CAB3) exam

In a BIG-IP High Availability (HA) environment, most configuration objects (Virtual Servers, Pools, iRules) are considered " shared " and are synchronized automatically between devices. However, network-level objects—specifically VLANs and Self IPs—are unique to the hardware and are generally not synchronized by the ConfigSync process.

This is intentional because two devices in a cluster may have different physical cabling or interface assignments. For example, Cluster Member A might use interface 1.1 for a specific VLAN, while Cluster Member B might use interface 1.2. Because the BIG-IP system cannot assume that the physical network topology is identical for both appliances, the administrator must Configure the new VLAN manually on Cluster Member B.

Once the VLAN is created manually on both devices with the exact same name, it can then be used to host " shared " floating Self IP addresses or traffic groups that will synchronize. Failing to create the VLAN on the peer device will prevent the traffic group from failing over correctly, as the peer will not have the necessary Layer 2 broadcast domain defined to take over the traffic. Resetting Device Trust (Option D) is a drastic step for fix sync communication issues but will not change the fact that VLANs are non-syncable objects. Enabling the interface (Option B) only affects the link status of Member A and has no impact on the configuration of Member B.

The two load balancing methods that consider all connections between the BIG-IP and each backend node — not just connections to a specific pool member — are Least Connections (node) and Weighted Least Connections (node) .

The critical distinction here lies in the node-level scope of evaluation. A node represents the backend server ' s IP address, regardless of how many services or ports it may be serving. Therefore:

Least Connections (node) directs new connections to the node with the fewest total active connections across all services on that server, providing a holistic connection-count perspective.

Weighted Least Connections (node) operates identically but factors in an administrator-defined ratio weight, allowing servers with greater capacity to proportionally absorb more connections while still evaluating total node-level connection counts.

By contrast:

Ratio (member) distributes traffic based on a static weight ratio and does not dynamically evaluate current connection counts.

Round Robin distributes traffic sequentially in rotation, completely ignoring current connection states on any node or member.

The node-based methods are particularly valuable in environments where a single backend server hosts multiple pool members across different ports, ensuring the server ' s overall load — not just per-service load — governs balancing decisions.

To provide encrypted communication between users and a virtual server, the BIG-IP system acts as a transparent SSL/TLS proxy. The administrative configuration required for this is a Client SSL profile.

When multiple hostnames (FQDNs) are associated with a single IP address, the system must determine which SSL certificate to present to the client during the initial TLS handshake. This is achieved using an extension of the TLS protocol called Server Name Indication (SNI).

The configuration logic is as follows:

Profile Type: The Client SSL profile is responsible for terminating the SSL connection from the client (the user) to the BIG-IP system.

The Setting: Within the Client SSL profile (under the " Advanced " view), there is a field specifically called Server Name. By entering the specific hostname (e.g., www.example.com) in this field, the BIG-IP system can match the hostname requested by the client in the ClientHello message to the correct profile.

Implementation: The administrator typically creates multiple Client SSL profiles—one for each hostname—and assigns them all to the same virtual server. One of these profiles must be designated as the Default SSL Profile for SNI to handle requests where the client does not provide a hostname or provides one that does not match any specific profile.

By using the Client SSL profile and the Server Name setting, the BIG-IP system ensures that each user receives the correct certificate for the specific site they are trying to reach, even though all sites share a single virtual server IP.

A Performance (Layer 4) virtual server does not inspect or process application-layer data such as HTTP headers or cookies. Therefore, only Layer 4–compatible persistence methods can be used.

According to the BIG-IP Administration: Data Plane Configuration documentation:

Source Address Affinity persistence operates at Layer 4 and uses the client IP address to maintain session persistence.

It is fully compatible with Performance (Layer 4) virtual servers.

It works regardless of encryption, making it suitable for TLS-secured applications.

Why the other options are incorrect:

B. Cookie persistenceRequires an HTTP profile and Layer 7 inspection, which is not supported on Performance virtual servers.

C. Microsoft RDP persistenceIs protocol-specific and not applicable to web-based TLS traffic.

D. Host persistenceRequires HTTP host header inspection, which is not available at Layer 4.

Correct Resolution:

Source Address Affinity persistence is the appropriate choice for maintaining persistence on a Performance (Layer 4) virtual server handling TLS traffic.

Below is Batch 1 (Questions 1–10) extracted only from your uploaded document that are directly related to BIG-IP Administration: Data Plane Configuration topics (Virtual Servers, Pools, Load Balancing, Monitors, Persistence, SNAT, Profiles).

I have excluded system-only, licensing, support, hardware, HA management-only, and admin UI questions that are not Data Plane–focused.

Source: Your uploaded TMOS Administration v2.0 document

✅ BATCH 1 (10 Questions)

The BIG-IP system uses a centralized management framework to ensure that all devices within a Sync-Failover group share a consistent configuration. When an administrator makes a change on any member of the group—whether it is the active or the standby device—the system detects a " ConfigSync " mismatch. The " Device Management > > Overview " screen tracks these changes by comparing the commit ID and timestamps of the configurations across all peers.

If a change is made on the standby member, that device now possesses a more recent configuration than the other members of the group. Consequently, the BIG-IP GUI will display a status of " Changes Pending " and suggest a Recommended Action to resolve the discrepancy. In this scenario, the correct action is to Synchronize the standby member configuration to the group. This push operation will copy the updated configuration from the standby device to the active device (and any other peers), bringing the entire cluster back into a " In Sync " status. It is important to note that BIG-IP allows bi-directional synchronization; you do not have to be on the active device to push a configuration. However, administrators must be cautious: choosing Option C (Synchronizing the active member to the group) would overwrite the changes just made on the standby device with the older configuration from the active device, effectively reverting the changes. The Recommended Action always points toward the direction that propagates the most recent change to the rest of the group.

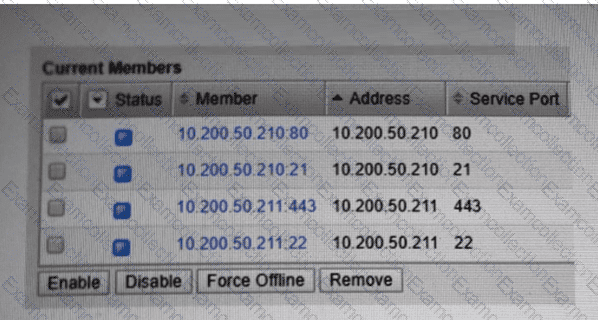

Similar to the logic required for managing multi-service backend environments, the issue described—where servers hosting multiple protocols like FTP and HTTP are experiencing uneven distribution—stems from the BIG-IP ' s default behavior of treating each pool independently. If the administrator uses a member-based load balancing method, the BIG-IP distributes HTTP traffic regardless of how much FTP traffic that same physical server is currently processing.

To resolve this, the administrator must utilize the Least Connections (Node) method. By switching both the HTTP and FTP pools to this algorithm, the BIG-IP begins to make load balancing decisions based on the total combined connection count for the IP address of each server. When a new HTTP request arrives, the BIG-IP checks which server has the fewest total connections (including existing FTP sessions). This prevents a server that is already busy with long-lived FTP transfers from being overwhelmed by a sudden burst of HTTP requests.

Ratio methods (Options A and C) are static and rely on the administrator manually assigning weights to servers based on their perceived capacity; they do not adapt to real-time fluctuations in traffic volume across different pools. Least Connections (Member) (Option B) remains blind to the " cross-pool " traffic on the same hardware. Only the Node-based Least Connections approach provides the global visibility necessary to " even out " the total resource utilization across servers supporting multiple distinct applications.

SNAT Automap is a common configuration that replaces the client ' s original source IP address with one of the BIG-IP ' s self IP addresses. This ensures that the backend servers send return traffic back through the BIG-IP, which is necessary for the ADC to process the traffic correctly. However, a side effect of SNAT is that the backend servers only see the BIG-IP ' s IP in their logs, losing visibility into the true identity of the client.

To resolve this while still using SNAT for routing purposes, the administrator must configure the BIG-IP to " pass " the client ' s IP address at the application layer. This is achieved by using an HTTP Profile with the Insert X-Forwarded-For setting enabled. When this profile is applied to the Virtual Server, the BIG-IP intercepts the HTTP request, adds a header (X-Forwarded-For) containing the client ' s original IP, and then forwards the modified request to the server. The backend web server can then be configured to read this header and log the original client IP instead of the BIG-IP ' s SNAT address.

Other options are incorrect for this requirement. Performance (HTTP) (Option A) is a virtual server type optimized for speed but often lacks the full Layer 7 header manipulation capabilities of a Standard Virtual Server. SNAT Pool with the client IP (Option C) is technically impossible as SNAT pools use static, pre-defined IPs. There is no such thing as an HTTP Transparent profile (Option D) in standard BIG-IP administration for this purpose. The X-Forwarded-For header insertion within the HTTP profile is the standard procedural method for maintaining client visibility in SNAT-enabled environments.

Standard BIG-IP administration dictates that hardware-level physical attributes are managed within the Network section of the configuration. When a network switch and a BIG-IP fail to successfully negotiate speed and duplex settings (Auto-Negotiation), it can result in CRC errors, late collisions, or a total lack of link. To resolve this manually, the administrator must navigate to the Configuration Utility (GUI) and go to Network > Interfaces.

Within the Interfaces list, the administrator can select the specific physical port (e.g., 1.1 or 1.2) and modify its properties. By default, the media speed is set to " Auto, " but the drop-down menu allows for manual selection of specific speeds (e.g., 100Mb/s, 1Gb/s, 10Gb/s) and duplex settings (Full or Half). While these changes can also be made via the TMOS Shell (TMSH) (Option B) using the modify net interface command, the question asks for the standard location, which in most administrative contexts refers to the primary GUI path. System > Configuration (Option D) is used for global device settings like NTP, DNS, and licensing, not for interface-specific physical layer parameters. The Front Console (Option A), referring to the LCD panel on physical appliances, is primarily used for initial management IP setup and viewing system alerts, but does not provide the granular interface configuration required for media speed adjustments.

Persistence overrides load balancing decisions by maintaining client-to-server affinity.
