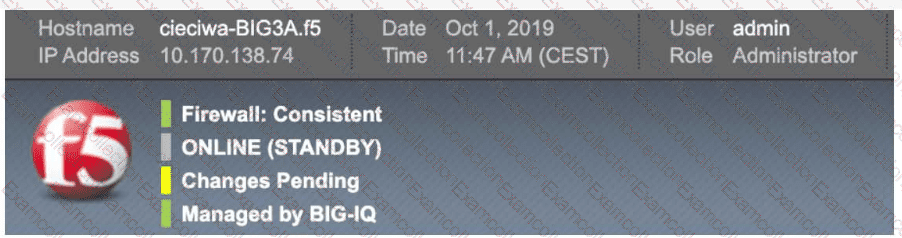

F5 F5CAB5 - BIG-IP Administration Support and Troubleshooting (F5CAB5) exam

Troubleshooting SSL connection resets often involves verifying license limits against actual resource utilization. F5 devices use a "Transactions Per Second" (TPS) license to control the amount of SSL processing the device can handle. The log entry SSL transaction (TPS) rate limit reached is a clear indicator that the traffic volume has exceeded the licensed capacity. When determining the necessary license level, it is important to know that F5 primarily licenses and limits the "Client-side" SSL TPS—which represents the encrypted connections between the users and the virtual servers. In this specific scenario, the peak demand reached 1200 client-side transactions per second. Although there were also 800 server-side transactions (re-encryption from the BIG-IP to the pool), these typically do not count against the primary TPS license limit in the same manner. Therefore, to ensure that the virtual server works as expected during peak load, the administrator must upgrade the license to at least 1200 TPS. This troubleshooting process links system log errors to license-enforced resource constraints.

Comprehensive and Detailed Explanation From BIG-IP Administration Support and Troubleshooting documents:When troubleshooting intermittent connection resets on a "busy" Virtual Server, the administrator must examine the configured thresholds62. A "Connection Limit" is a hard cap on the number of concurrent connections a Virtual Server or pool member can handle63. If this limit is set too low, the BIG-IP will reset any new connection attempts once the threshold is reached64. The key indicator in this scenario is that the problem only affects "some users" and happens when the server is "busy," suggesting that the system is hitting a capacity ceiling rather than suffering from a persistent configuration error65. Unlike a missing SSL profile, which would likely cause all connections to fail, or a "Connection Rate Limit," which throttles how fast connections arrive, a "Connection Limit" focuses on the total volume66. Identifying this as the cause requires reviewing the Virtual Server's statistics to see if the "Current Connections" count is consistently peaking at the configured limit value.

When a pool member is markedDOWN, it indicates that the configured health monitor is failing. The most effective troubleshooting approach is to focus on the monitor behavior and the actual traffic between BIG-IP and the pool member.

Enabling monitor logging (Option B)is a recommended first step. Monitor logging provides detailed information about why the health check is failing, such as timeouts, connection refusals, incorrect responses, or unexpected status codes. This directly correlates with BIG-IP troubleshooting best practices and allows administrators to confirm whether the failure is due to application behavior, incorrect monitor configuration, or network reachability.

Collecting a TCPdump packet capture (Option D)is also a highly effective method. A packet capture allows the administrator to verify whether the monitor probes are being sent, whether responses are received, and whether packets are being dropped, reset, or malformed. This is especially valuable when diagnosing firewall issues, SSL problems, or application-level failures.

Reviewing pool statistics (Option C) is useful for general monitoring but does not explainwhya health monitor is failing. Reviewing the routing table (Option A) is typically unnecessary unless there is evidence of a broader routing issue affecting multiple destinations.

In the BIG-IP Configuration Utility, the status icon (shape and color) provides immediate feedback on why a virtual server is not working as expected81. A "Red Diamond" indicates that the object is "Offline" and unavailable to process traffic82. For a virtual server, this specific status typically means it has inherited an offline state from its mandatory backend resources8383. If all pool members associated with the virtual server have failed their health monitors, the virtual server will transition to a red diamond status because it has no healthy destination for incoming requests. This is distinct from a "Black Circle," which would indicate the virtual server has been manually "Disabled" by an administrator85858585. To troubleshoot a red diamond, the administrator must examine the associated pool and its members to determine why the health monitors are failing (e.g., server crashes, network path failures, or incorrect monitor strings). Resolving the health check failures on the pool members will return the virtual server to an "Available" (Green) status.

This virtual server is intended to function as aforwarding (IP-forwarding) virtual server, which is commonly used for routing or firewall-style deployments where BIG-IP forwards traffic transparently without load balancing or address translation. For a forwarding virtual server to match and passall traffic, the destination must be configured as 0.0.0.0:anywith a mask of 0.0.0.0, not 255.255.255.255.

The configured mask 255.255.255.255 represents a/32 host mask, which restricts the virtual server to matching traffic destined only for the exact IP address 0.0.0.0. Since 0.0.0.0 is not a valid routable destination for normal traffic, no packets will ever match the virtual server, causing it to pass no traffic at all.

This is a well-documented BIG-IP behavior:

destination 0.0.0.0:any

mask 0.0.0.0

together define acatch-all forwarding virtual server.

The destination itself (Option A) is correct for a forwarding VS, and disabling address translation (Option C) is expected and required for IP-forwarding mode. Therefore, the incorrect subnet mask is the sole reason the virtual server is not functioning as expected.

Troubleshooting failed SSL handshakes involves interpreting the resource limits defined by the system's license8888. The log message SSL transaction (TPS) rate limit reached indicates the BIG-IP is dropping SSL connections because it has exceeded its licensed "Transactions Per Second" capacity. When analyzing stats to determine the correct license level, the administrator must focus on "Client-side" SSL TPS. This represents the initial encrypted handshakes between users and the BIG-IP virtual servers91. In this scenario, the peak client-side demand is 1200 TPS. While the 800 server-side transactions represent re-encryption toward the backend, F5's primary SSL TPS license limits typically apply to the client-facing side of the traffic flow. Therefore, to resolve the intermittent connectivity issues and ensure the virtual server works reliably during peaks, the license must be upgraded to at least 1200 TPS949596969696.9798Confirming this peak via statistics andcomparing it to the current license is a standard troubleshooting step for SSL performance issues.

Comprehensive and Detailed Explanation From BIG-IP Administration Support and Troubleshooting documents: When load balancing is not working as 23expected and connections appear skewed across physical hardware, the administrator must distinguish between "member"24 and "node" level balancing. A "member" refers to a specific IP and Port combination (e.g., 10.1.1.1:80), whereas a "node" refers to the underlying IP address (10.1.1.1) regardless of the port25. If a single server hosts multiple services (Web, FTP, API) across different pools, using "Least Connections (member)" would only balance connections within each individual pool26. This could lead to a scenario where one server is overwhelmed because it is winning the "least connections" count in three different pools simultaneously. By selecting "Least Connections (node)," the BIG-IP tracks the total number of concurrent connections to the physical IP address across all pools it belongs to27. This ensures that the administrator can maintain an equal distribution of work across the hardware, preventing performance degradation on backend servers that host multiple application services.

When a physical network link (like Interface 1.1) reaches its maximum capacity, it creates a bottleneck that negatively impacts network-level performance. To overcome the physical limits of a single interface, BIG-IP administrators use "Trunking," which is the F5 term for Link Aggregation (often implemented via LACP). A trunk object bundles multiple physical interfaces into a single logical link. By creating a trunk with two or more interfaces, the BIG-IP can spread the traffic load across all members of the trunk, effectively doubling or tripling the available bandwidth for the associated VLANs. Beyond performance, troubleshooting redundancy often leads to the use of trunks; if one cable in a trunk fails, the others continue to carry traffic, preventing a complete outage. This is a superior solution to simply increasing MTU (which requires end-to-end support) or manually setting media speeds. In a high-availability environment, configuring trunks is a foundational troubleshooting and optimization step to ensure that traffic spikes do not result in packet loss due to link saturation.

When a BIG-IP system experiences high overall CPU usage, troubleshooting requires identifying which specific application or service is the primary consumer of resources. While the system-wide performance graphs provide a global view, the granular data necessary to isolate a "top talker" is found in the "Local Traffic" statistics. Navigating to Statistics > Module Statistics > Local Traffic > Virtual Servers allows the administrator to see specific metrics for each configured virtual server, including the number of packets processed, current connections, and critical CPU cycles consumed. This is essential for troubleshooting performance issues where an inefficient iRule, high SSL handshake volume, or complex L7 profiles (like Compression or ASM) might be overtaxing the Traffic Management Microkernel (TMM) for one specific application. By reviewing these basic stats, an administrator can determine if a performance bottle-neck is a system-wide h1ardware issue or if it is isolated to a single virtual server, enabling targeted remediation such as optimizing iRule logic or moving the high-load virtual server to a dedicated device.
